Plastic bag making machine manufacturer

Product Overview

Description

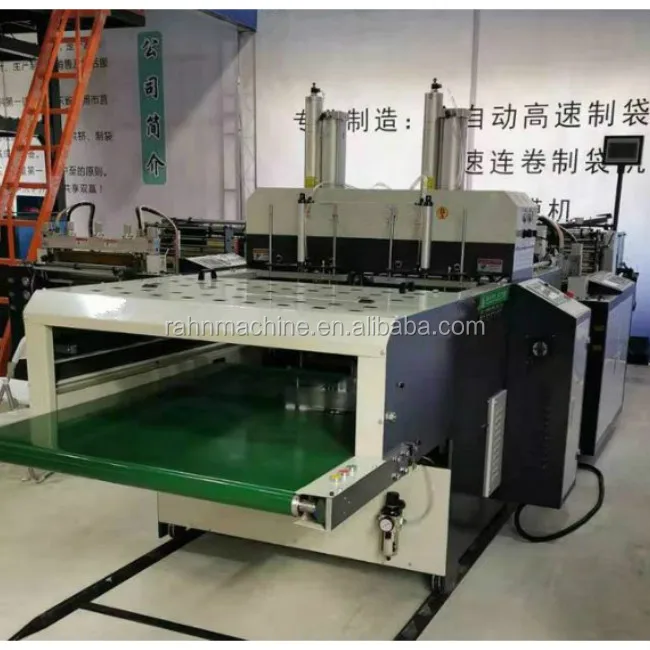

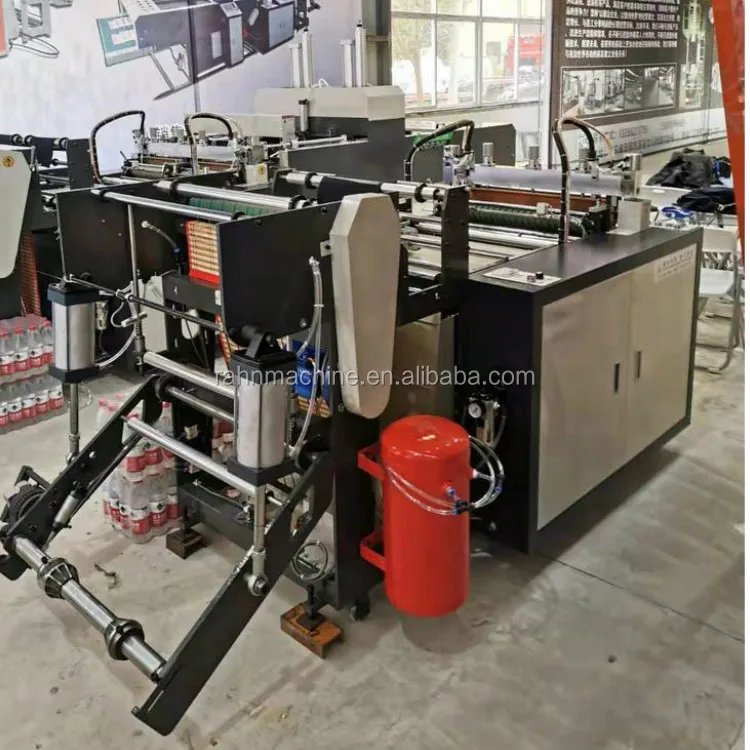

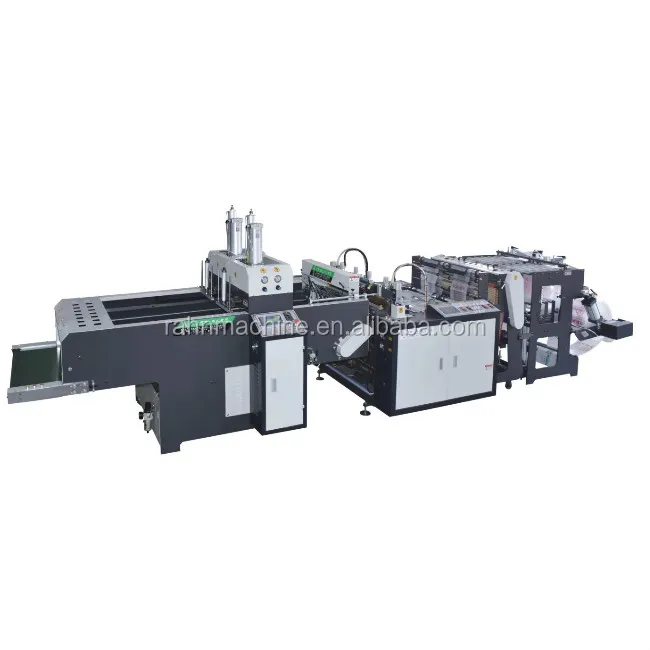

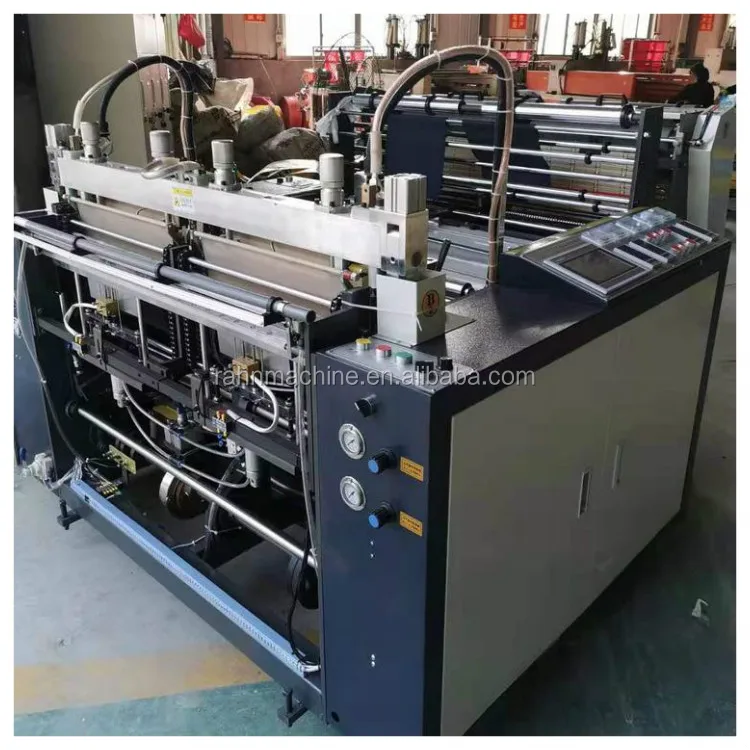

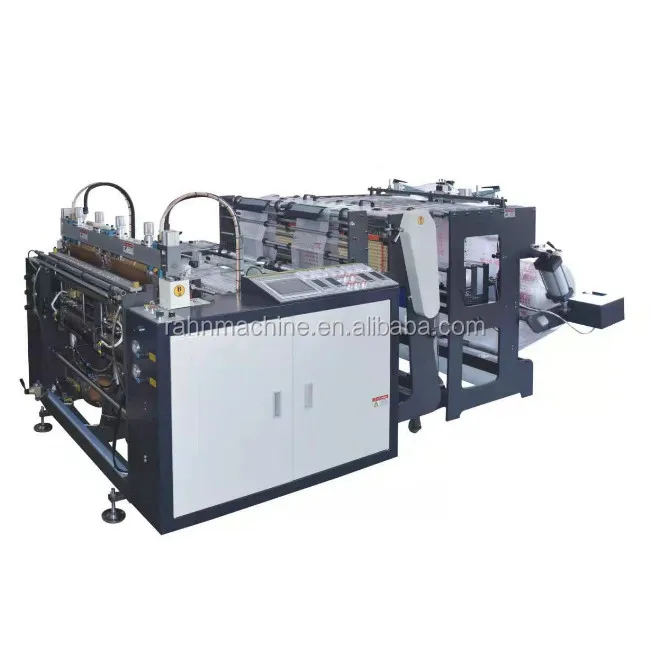

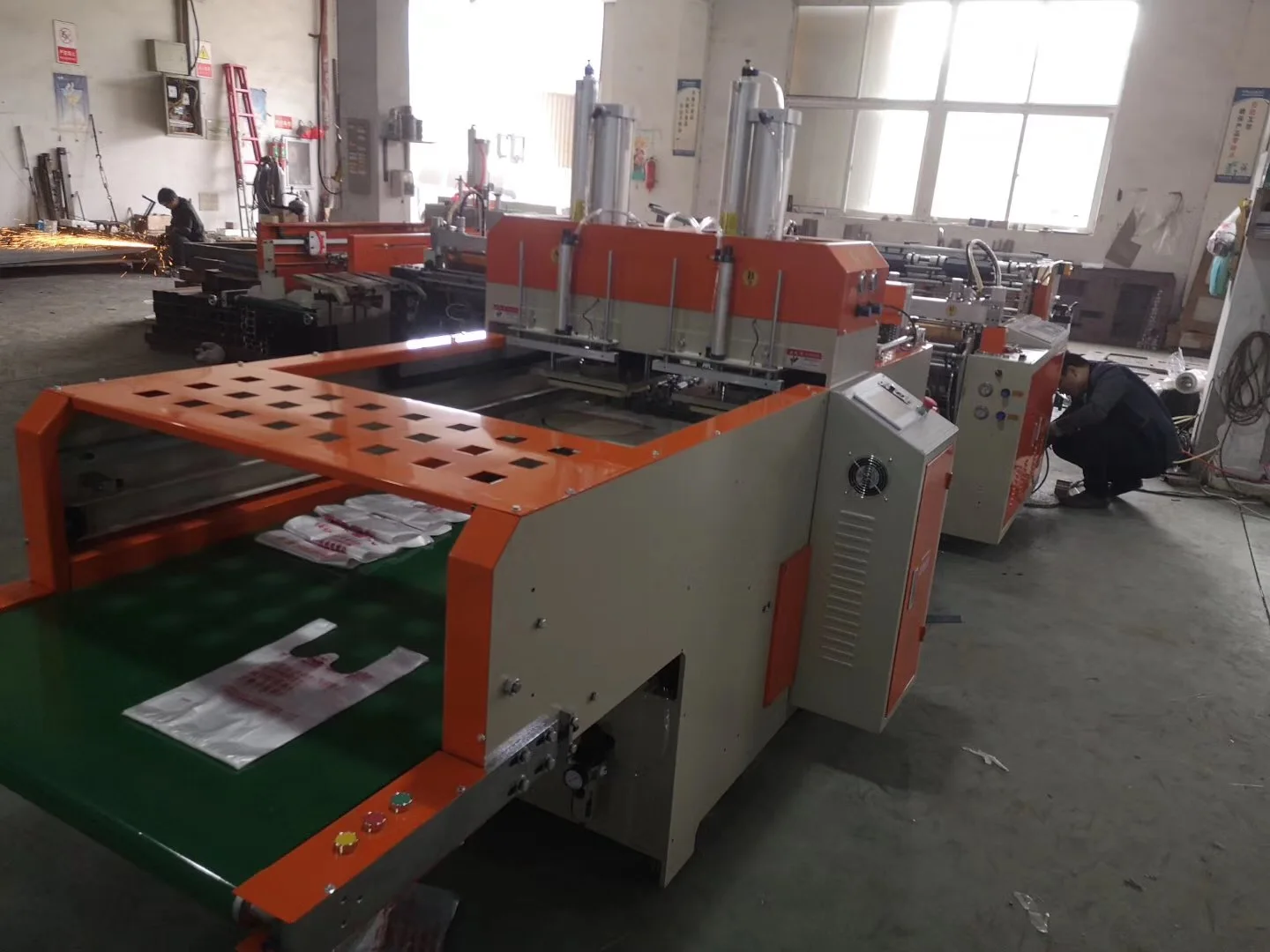

Automatic Super High Speed Double Line Double-Color

T-shirt Bag Making Machine

(HDPE), low-density polyethylene (LDPE), tube natural color and printed plastic film materials for heat sealing and cutting bags.



CHARACTERISTICS OR MAIN TECHNICAL VARIABLES:

  Performance and characteristics of automatic ultra-high speed bag making machine:

1. This machine is a special machine for heat sealing and cutting of vest bags, which can automatically punch two lines, increase output and save manpower.

2. This machine is double track, double production line, double printing bag, double servo motor.

3. Electric eye induction tracking, accurate printing pattern, automatic stop warning when electric eye fails.

4. Host motor inverter control, easy to operate and reduce power consumption.

5. Automatic stop device without material.

6. When the machine reaches the set number of sheets, the punching machine immediately clamps the bag without stopping the machine and can continue to feed.

7. The newly designed sealing knife structure, when the sealing knife needs to be cleaned, the sealing knife can be turned over 100 and fixed for cleaning, which is safe, reliable and easier to maintain.

8. The bag is tidy and the seal is firm.

9. Gas-liquid pressurized cylinder punching machine is adopted, with low noise and small air consumption.



The main technical parameters:

MODEL	DFR-400x2C	DFR-450x2C	DFR-500x2C
Max.width of bag	360mmx2	410mmx2	450mmx2
Bag length	660mm	680mm	750mm
Speed	140-300*2pcs/min	140-300*2pcs/min	140-300*2pcs/min
Film thickness	0.008-0.035	0.008-0.035	0.008-0.035
Main motor	1.5kw	1.5kw	1.5kw
Total power	10kw	10kw	10kw
Air compressor	7kg/cm2; 700Ni/min	7kg/cm2; 700Ni/min	7kg/cm2; 700Ni/min
Feeding size	800mm	800mm	800mm
Machine weight	2300kg	2300kg	2300kg
Overall dimension	7000x1600x1700mm	7000x1700x1700mm	7000x1700x1700mm
