Product Overview

Description

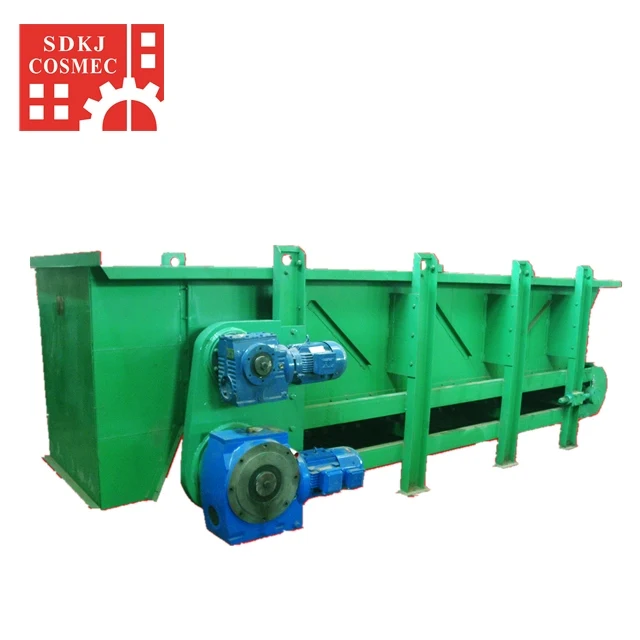

Belt Box-Type Feeder in Clay Brick Plant
Product description:
Its main application is to convey granulated solid materials i. E. Quantitative feeding of granulated solid materials, and is able to make feeding uniform and improve quality and output of bricks and tiles products. Its models cover KBB650 and KBB800, wherein the numbers of 650 and 800 respectively denote the belt width of the feeder. By adopting the variable-frequency stepless speed regulation technology, it is available in stepless regulation of feeding quantity.



Chain plate box-type feeder is mainly used to convey lumpy solid materials i. E. Quantitative feeding of lumpy solid materials, and enjoys uniform feeding and improved quality and output of bricks and tiles. Its models cover KB1000 and KB1000A, wherein the number of 1000 denotes width of chain plate. It is available in stepless regulation of feeding quantity by adopting the variable-frequency stepless speed regulation technology, and is especially suitable for feeding materials which are free from crushing or are coarsely crushed to the fine crusher.

Technical Parameters


	Belt Box-type Feeder		Chain Plate Box-type Feeder
Specification	KBB650	KBB800	KB1000	KB1000A
Width of Belt(Chain Plate) (mm)	650	800	1000	1000
Movement Speed of Belt (Chain Plate)(m/min)	0.4~2.8(Variable-frequency Speed Regulation)	0.4~2.8(Variable-frequency Speed Regulation)	0.4~2.8(Variable-frequency Speed Regulation)	0.5~4.5(Variable-frequency Speed Regulation)
Maximum Grain Size of Transport Material (mm)	160	160	160	200
Production Capacity (m3/h)	15~30	25~45	15~45	15~60
Distribution Power(kW)	3+2.2	3+2.2	3+2.2	3+11

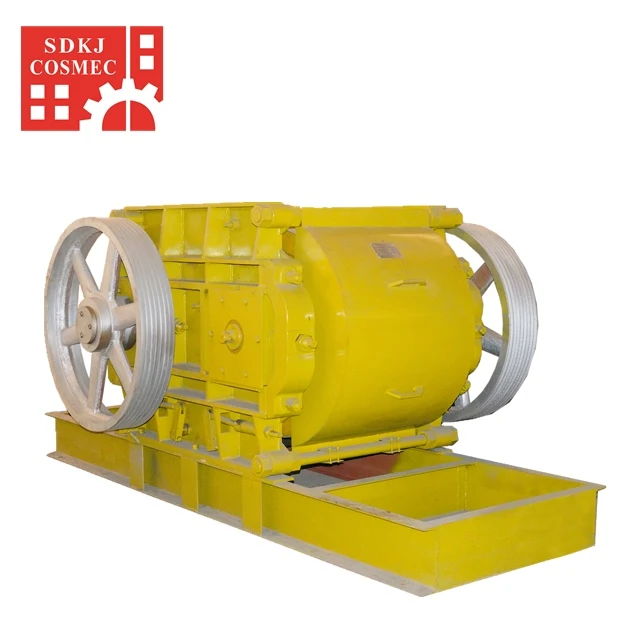

  Roller Crusher machine
Product description
This crusher is suitable to crush mid hardness and brittle material with resistance less than 150Mpa. It's wildly used in industry of building material, metallurgy, chemical, fuel electric plant etc. For crushing of coal gangue, shale, slag, limestone, refractory material or other inorganic minerals. Featured for its compact structure, low noise, high efficiency and less dust, especially high performance, advantage of output size and perfect grading in crushing of mid hardness material like coal gangue, shale etc., it's welcome particularly in brick factory using coal gangue and shale brick as material.

    Double shaft mixer
Product description
SJ Series double shaft mixer is the key equipment for raw material preparing process, watering, mixing the raw material.
PRODUCT FEATURES

1. High mixing speed and homogeneity;

2. Specially-designed discharger has big door-opening angle and quick discharging with less remainder.





Technical Parameters

Type Technical data	DM50	DM75	DMP50	DMP75
Capacity ( m 3 / h )	20~45	35-80	20-45	35~65
Installed Power ( kW )	45	90	55	90
Speed of mixing shaft ( r/min )	27	32	22	32

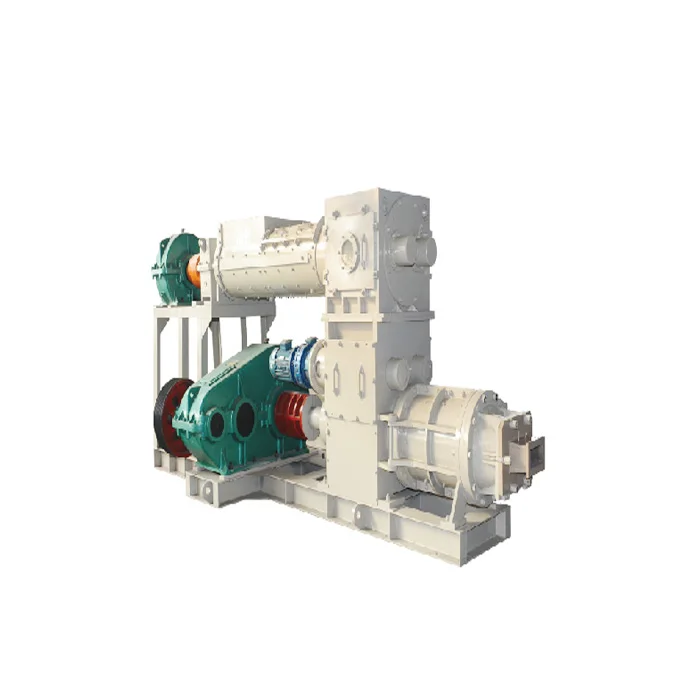

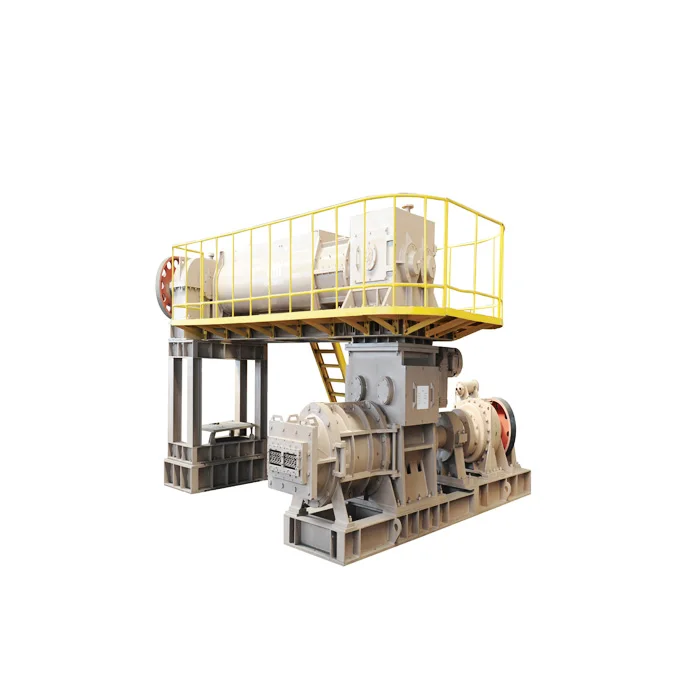

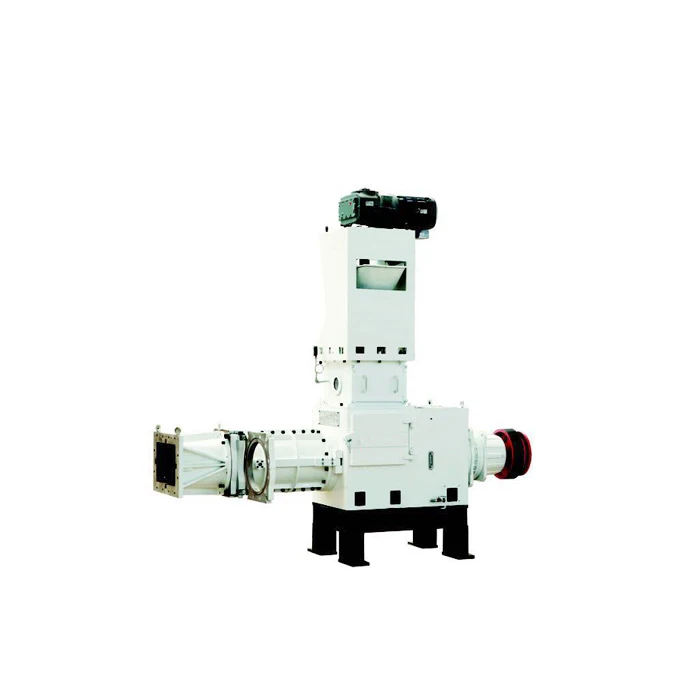

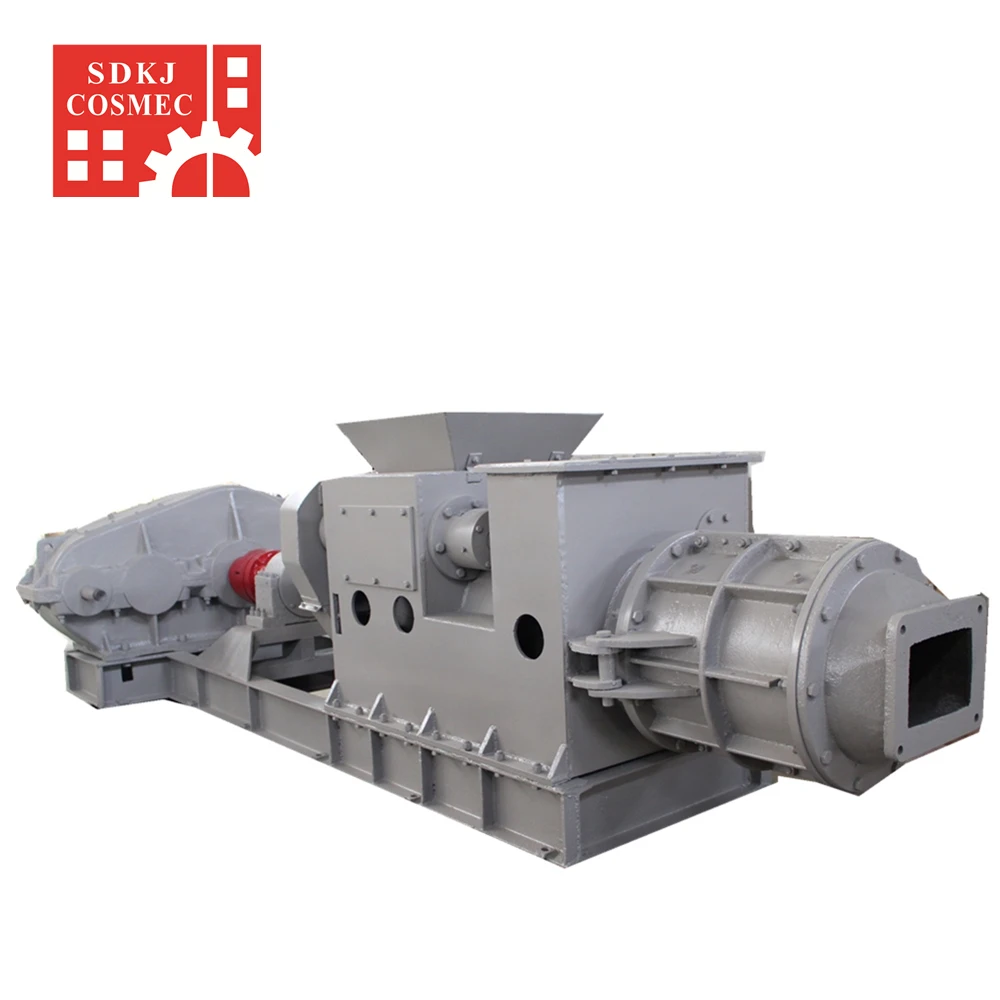

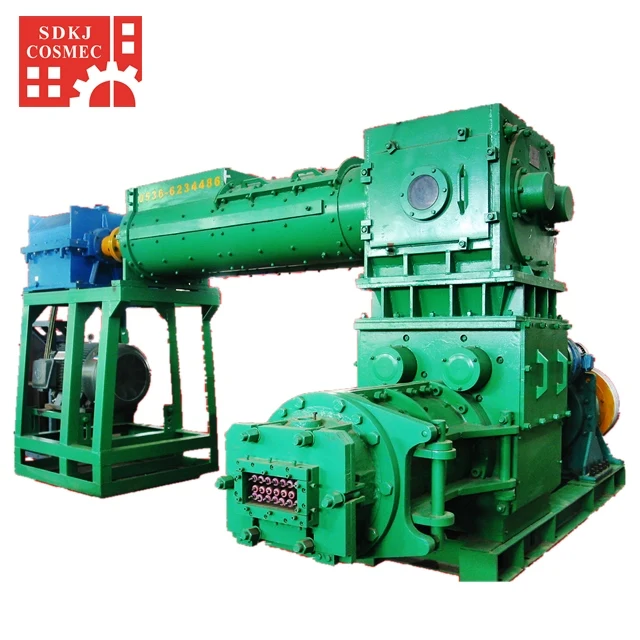

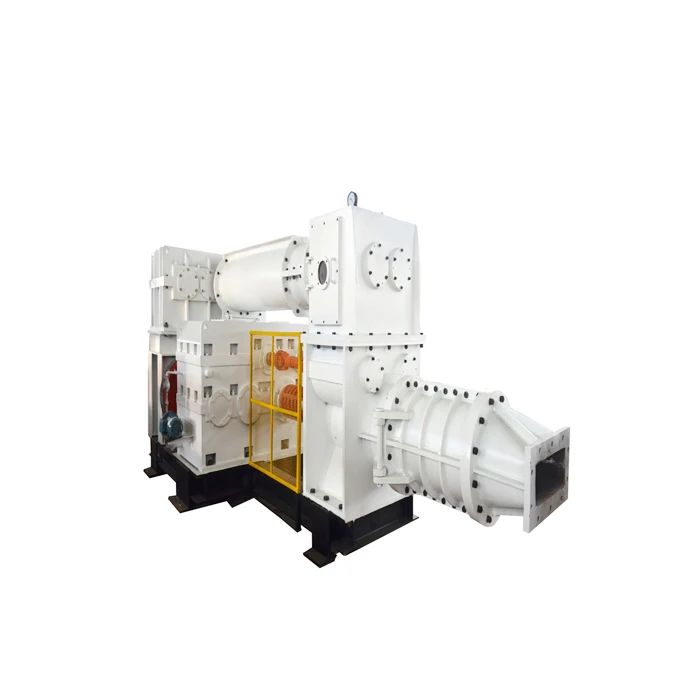

New technology Brick Vacuum Extruder
Product description
Hollow brick making machine is suitable to produce all kinds of hollow or solid brick & block, with all kind of raw material: Clay, shale, coal slack, fly ash etc.
Wear resistant metal spraying technology was applied to the screw, pug mill, axis of screw and seasoning, conditioning, quenching treatment make sure the body of extruder work in long life.
It is high-performance vacuum extrusion equipment for extrusion and forming of various hollow bricks made from coal gangue, shale, coal dust and other solid wastes. It is permitted to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. Its mixing reducer is equipped with hardened gears which are all grinded, and the extrusion reducer makes use of planet gears with high drive efficiency, therefore, it is the advanced vacuum extrusion equipment in the world.

Technical Parameters

Specification	VP45A	VP45B	VP50A	VP50B
Output (standard pcs/h)	10000_14000	10000_14000	12000_16000	12000_16000
Diameter of Extrusion Reamer(mm)	450	450	500	500
Rotary Speed of Extrusion Reamer(r/min)	24(Customizable)	24(Customizable)	28(Customizable)	28(Customizable)
Distribution Power (kW)	110+55+7.5X2	110+55+7.5X2	132+55+7.5X2	132+55+7.5X2
Allowable Extrusion Pressure(MPa)	4	3	4	3
Vacuum(MPa)	-0.096	-0.096	-0.096	-0.096
Model of Upper Reducer	Z335	ZQ65	Z335	ZQ65
Model of Lower Reducer	N560	ZQ100	N560	ZQ100
Model of Vacuum Pump	SK-6	SK-6	SK-6	SK-6







Technological Process of the whole brick&block production line:



FAQ
1. what's the raw material for producing bricks?

Answer: clay,mud,gangue,shale etc.


2. how much land area for building a new brick plant?

Answer: it need above 20,000 square meters,the land area relate with capacity



3. when  you need our proposal and quotation,what you have to mention in your inquiry.

 Answer:please provide daily capacity,the brick size and you want to build a new brick plant or brick making machingery only. so we can give the proposal and offer accordingly.



4. what's the Trade terms?

Answer: it can be EXW,FOB,CIF,CNF,FCA,CPT, CIP
