Product Overview
Description
Product Description

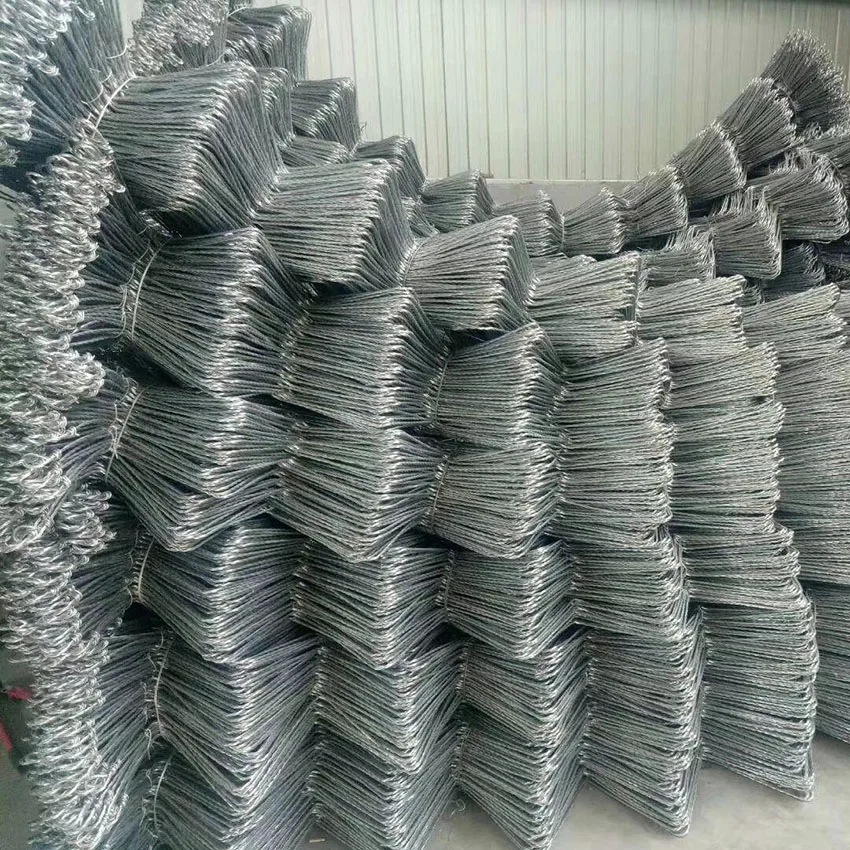

Speider Spiral Rope Net-Slope Protection Net

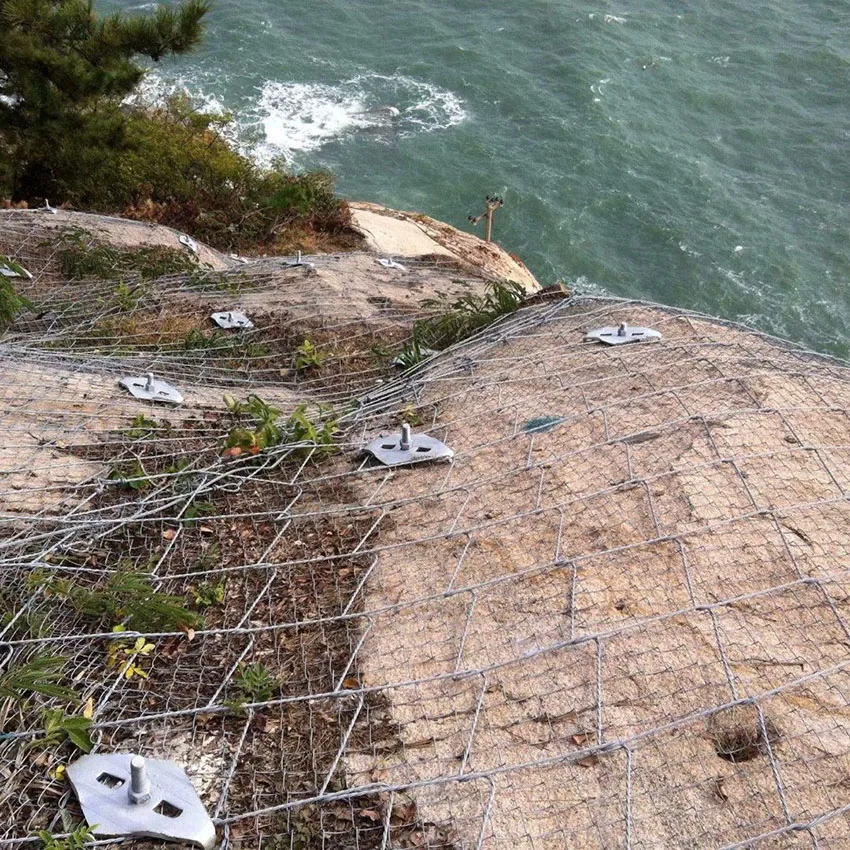

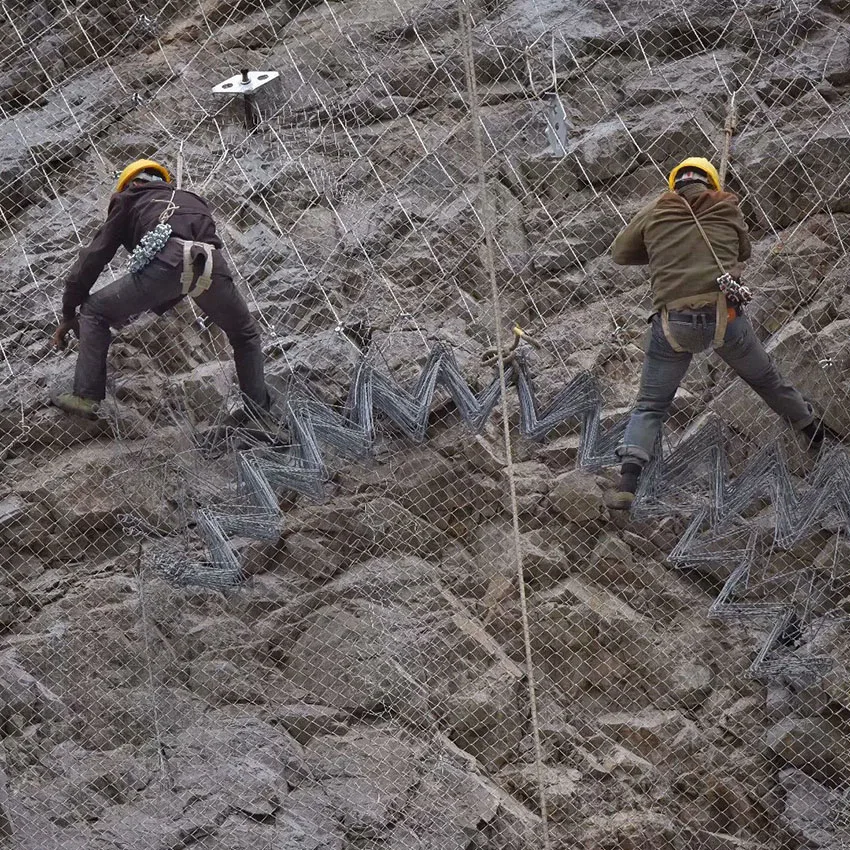

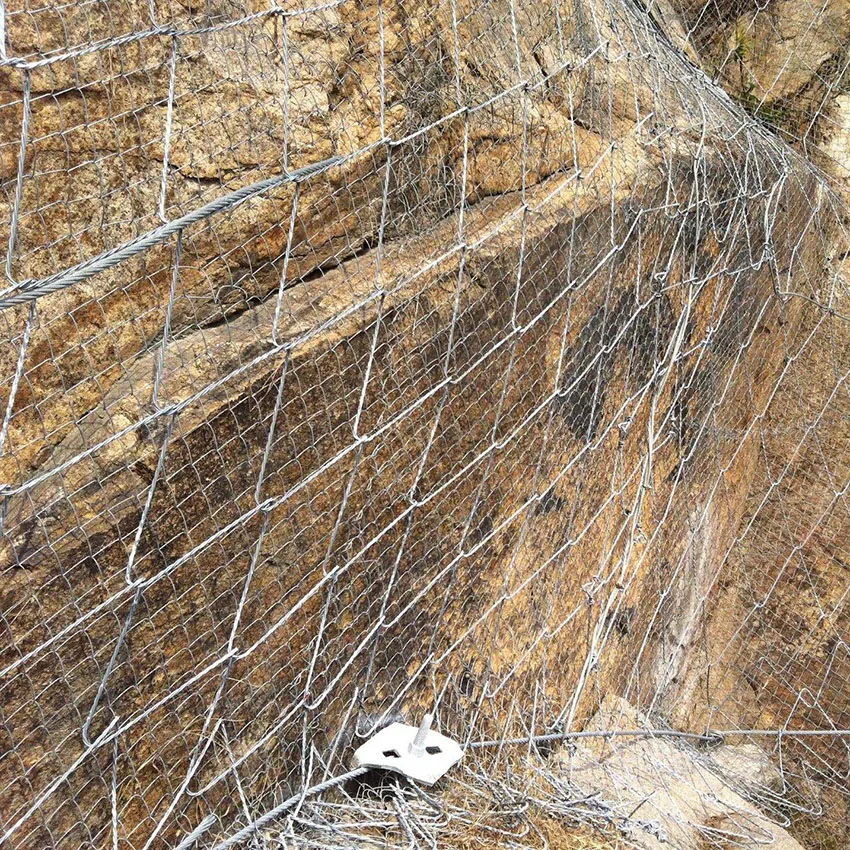

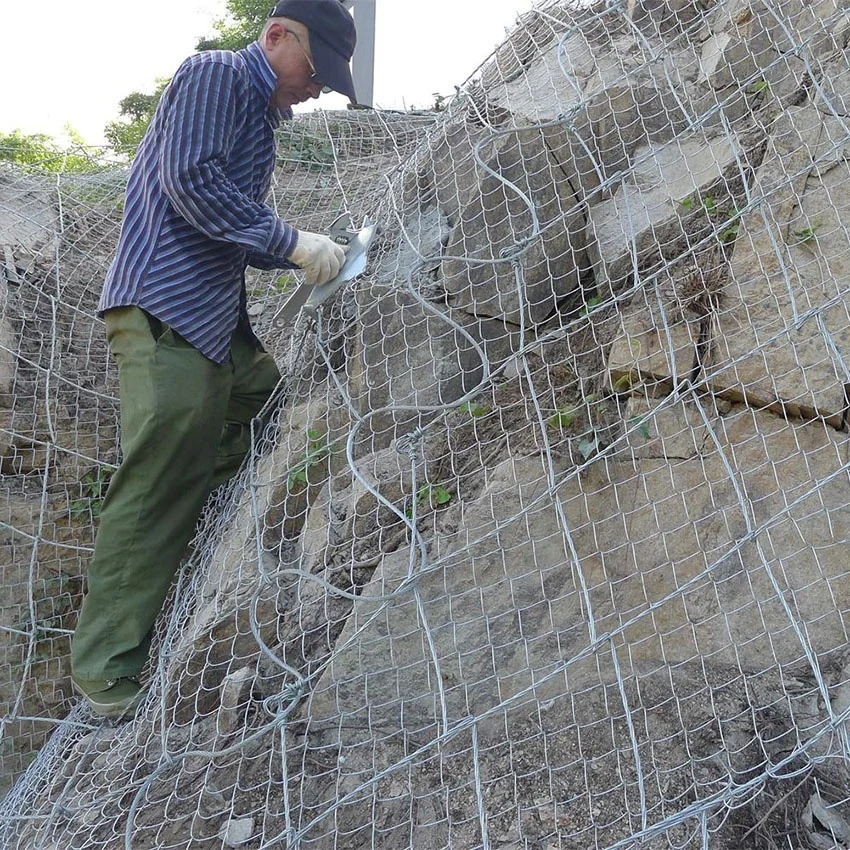

The Spider spiral rope net made from high-tensile wire secures loose, blocky rocks, rock spurs, overhangs or unstable rock formations with highly irregular surface structures.
Product specification
Speider system consists of the SPIDER spiral rope net, grid net, anchors, anchor bearing plate , border and suture ropes and net connection elements.

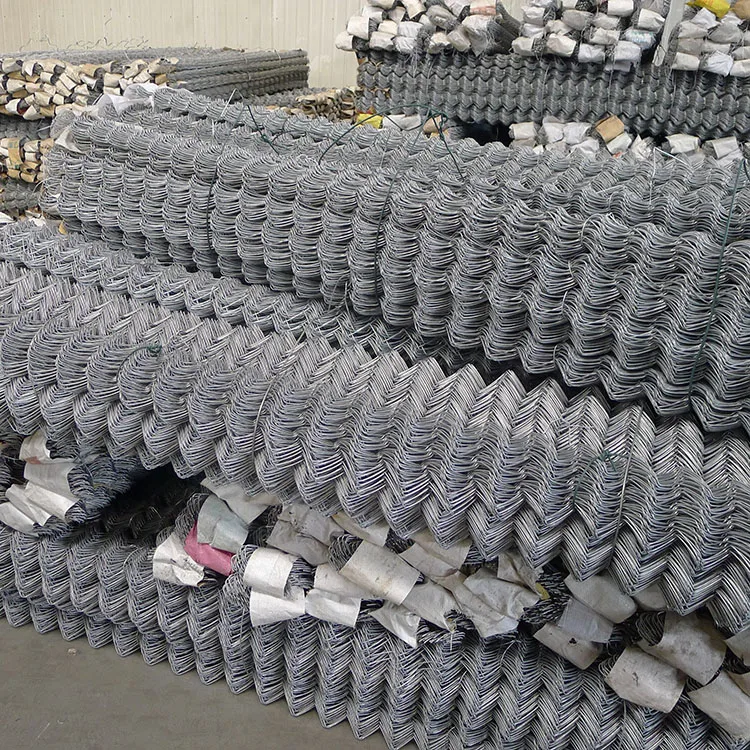

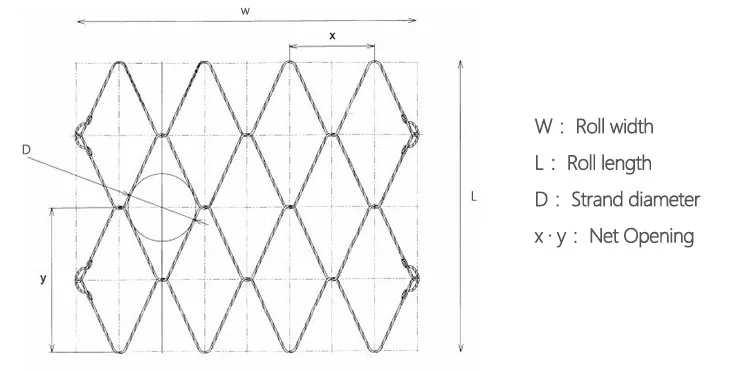

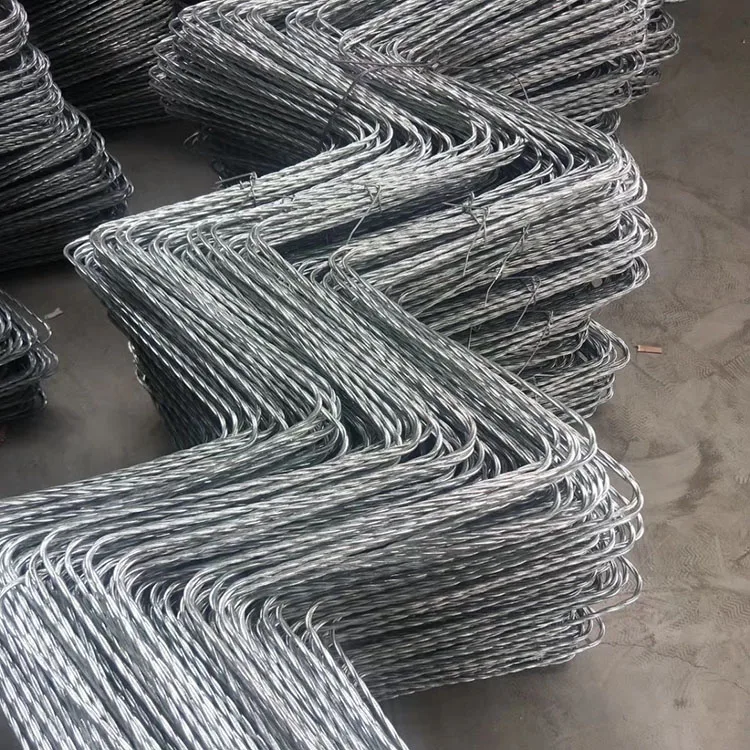

Speider Spiral Rope Net Standard Specification Strand diameter：6.5mmStrands Structure：1 x3 Hole size：164mmx270mm(+/- 5%) Hole Inscribed circle diameter: 250mm (+/- 5%) Roll width：3.5m Roll length：5m，10m，20m Monofilament intensity: Not less than 1770N/㎡ Zinc mass： Not less than 150g/m2 Breaking force：195-220KN/m | Grid Net Standard Specification Wire diameter：2.2mm Hole size: 50mmx50mm Roll width：2mRoll length：20m |
Component：Prestressed anchor, anchor plate, boundary rope, sewing rope.
●Prestressed anchor:reinforcing steel bar anchor, and one side has threads of 25 mm or 28 mm diameter.
● Anchor plate:claw type anchor plate with four bending sides, the size of anchor plate is larger than 320 mm × 180 mm and the plate thickness is thicker than 10 mm.

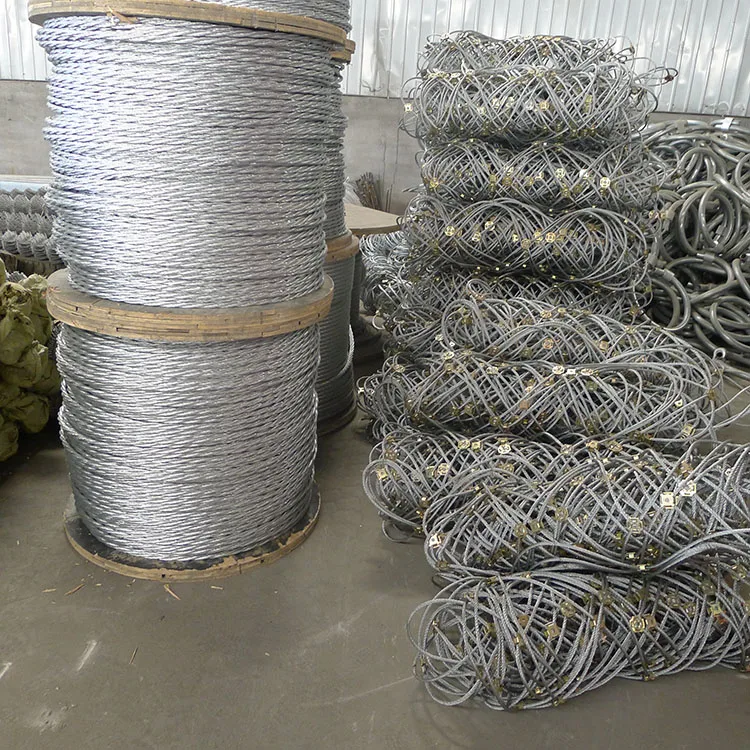

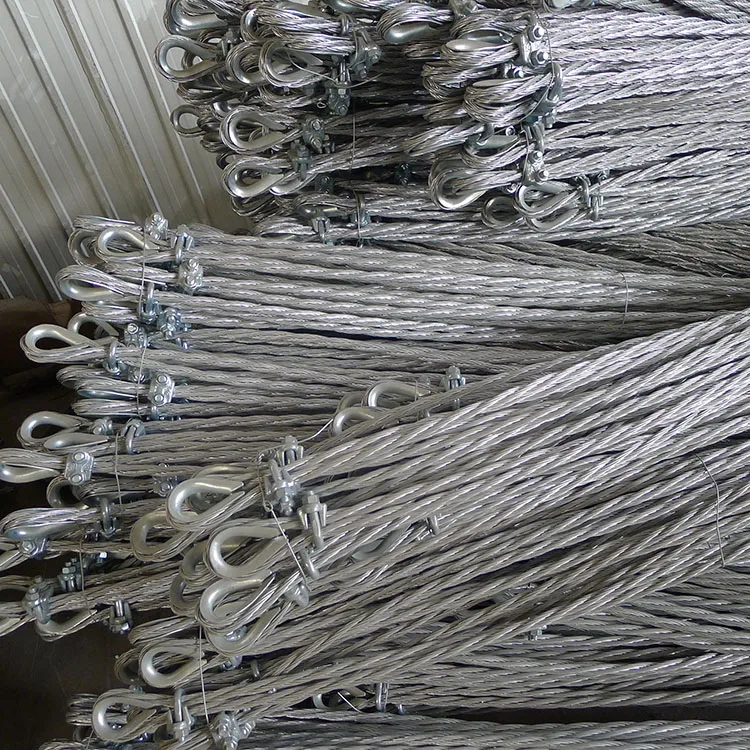

●Boundary rope:the diameter is thicker than the 12 mm, and the most common diameter is 14 mm or 16 mm; the length of single boundary rope is shorten than 40 m.
● Anchor plate:claw type anchor plate with four bending sides, the size of anchor plate is larger than 320 mm × 180 mm and the plate thickness is thicker than 10 mm.
●Boundary rope:the diameter is thicker than the 12 mm, and the most common diameter is 14 mm or 16 mm; the length of single boundary rope is shorten than 40 m.

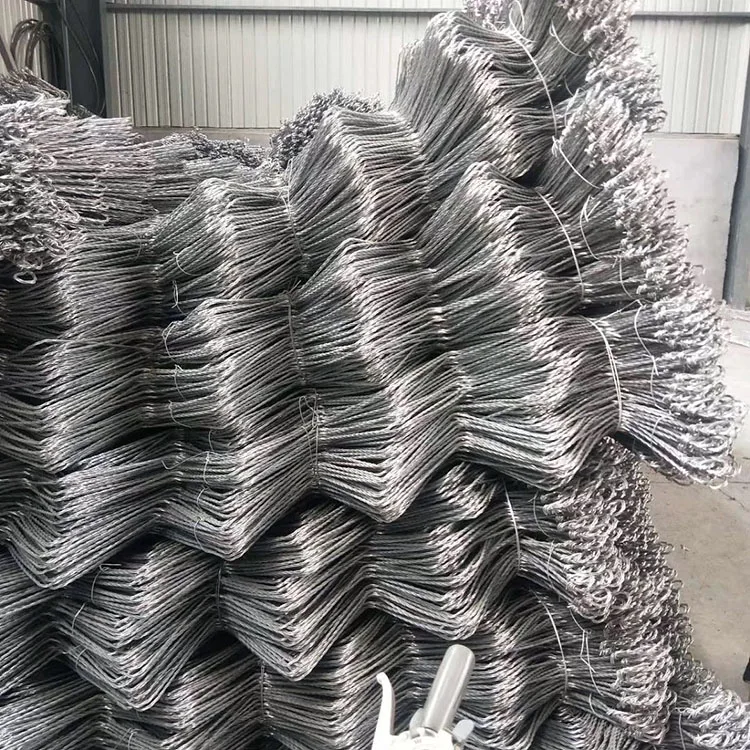

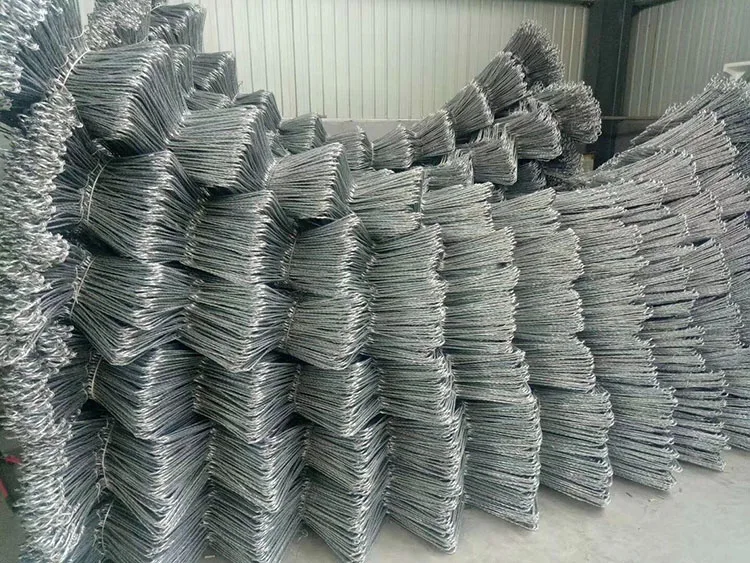

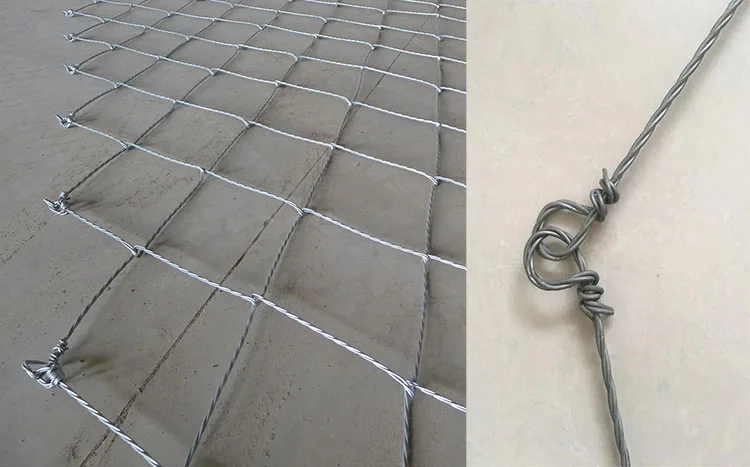

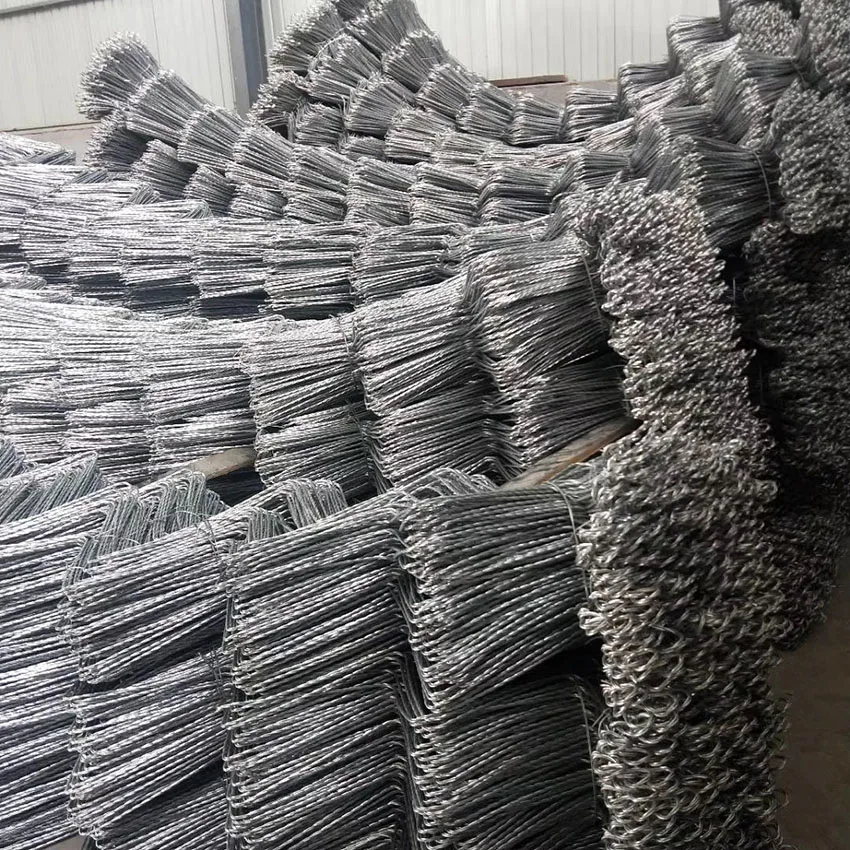

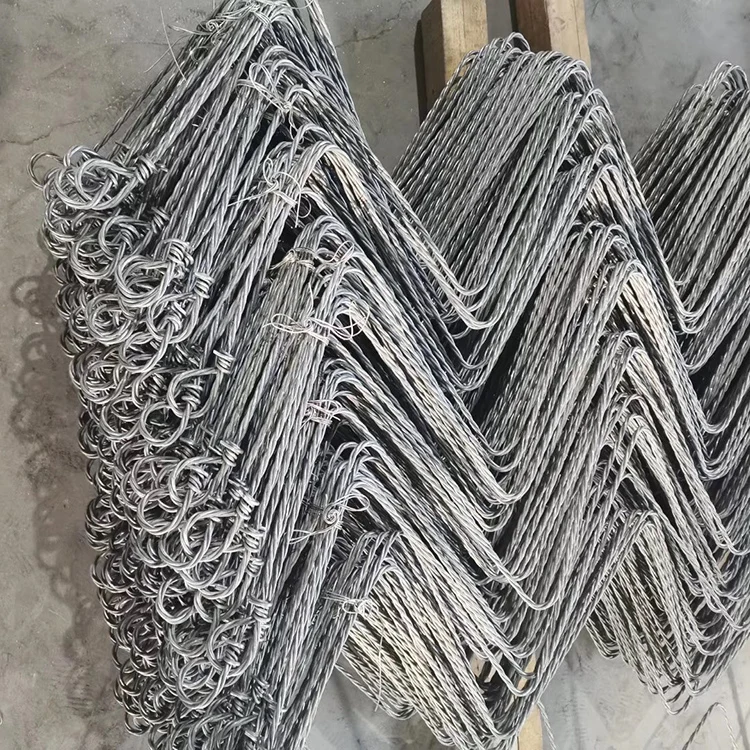

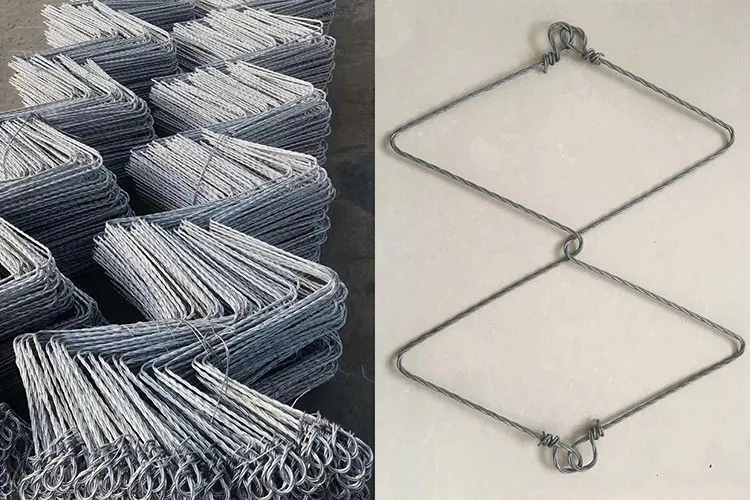

Detailed Images

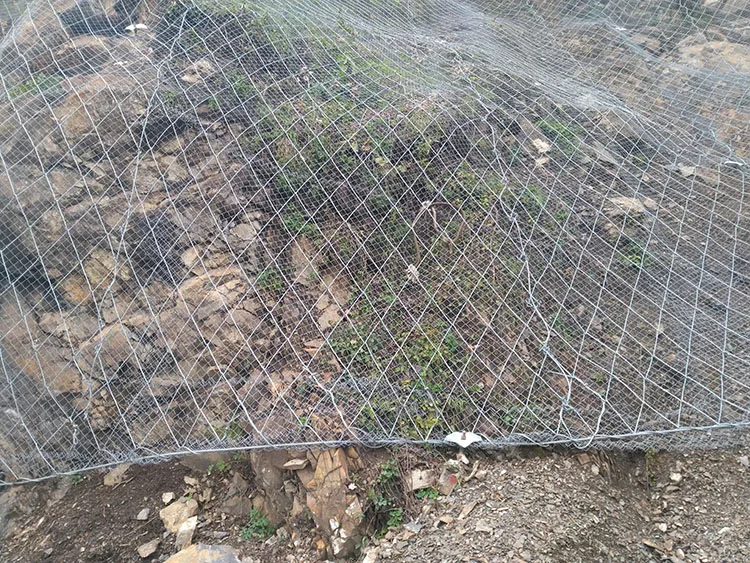

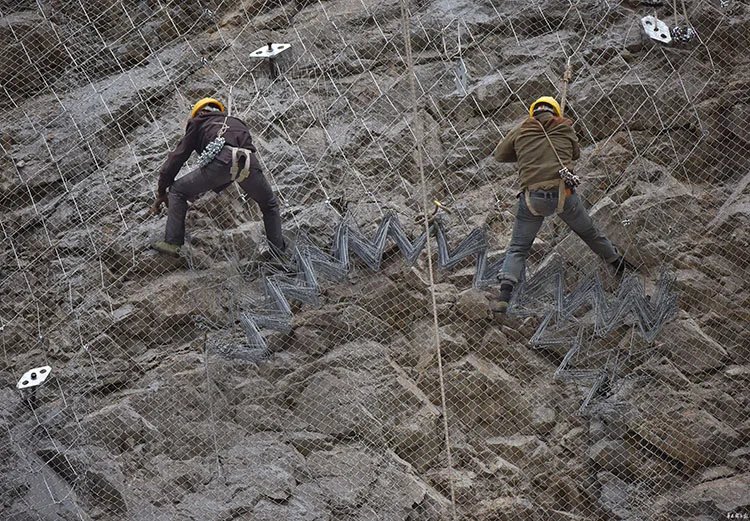

Product Application
Speider Spiral Rope Net Features:
Free choice of anchor points.
Tensile strength:1770N/mm2.
More than 250g/m2 zinc coated
Fast mounting of the spiral rope net rolls over large areas.
Suitable for reinforcing existing protection measures
Practically invisible when the vegetation is established.
Tensile strength:1770N/mm2.
More than 250g/m2 zinc coated
Fast mounting of the spiral rope net rolls over large areas.
Suitable for reinforcing existing protection measures
Practically invisible when the vegetation is established.
About our factory
Hebei Longen Wire Mesh Co.,LTD
With 20 years of manufacturing and export experience along with excellent quality, advanced services and competitive prices, Longen Wire Mesh Products Co., Ltd. has won numerous customers' trust and support.We can offer customized solutions for a wide range of stainless steel rope mesh...see more>>
Packaging & Shipping
Delivevr time ：10~20 workinng days after payment receipt confirmed (based on actual quantity) Packing : standard export packing or customized packing as your request. professional goods shipping forwarder
