1.5ton electric pallet truck and stacker

Share on (62480609219):


Price:

Quantity:


Product Overview

Description




Choose Factory



1.5ton electric pallet truck and stacker

Produced By

Taizhou Ruyi Handling Machinery Factory

www.ruyi-lift.com

8 years experience

of Material Handling Equipment exporting



What products do we have?



Electric  Stacker, Semi Electric Stacker, Hand Stacker, Electric Pallet Truck, Semi Electric Pallet Truck, Hand Pallet Truck, Table Lift, Electric Tow Tractor,Electric Sweeper,Scissor Lift, electric stacker hydraulic high lift for europe.



Why choose us?



1. Real Factory with exporting experience.

More than 10 years of producing material handling equipment and 4 years of exporting experience (former named Vlit Machinery Factory)

2. Price.

Provide factory direct price, will save your cost than buy from third party
3.Excellent quality.

Mainly parts imported from Europe and USA, assembly in China,we can ensure the long time use and safety.

4. Adequate Stock.

We have many kinds of spare parts in stock, we can delivery in 24 hrs.
5. Services.

Professional service team can give powerful support for our products. Engineers have more than 10 years' experience in products and ready to solve all your problems.

6. Innovation.

Technical and management innovation guarantee our quality to be in top position in our industry.

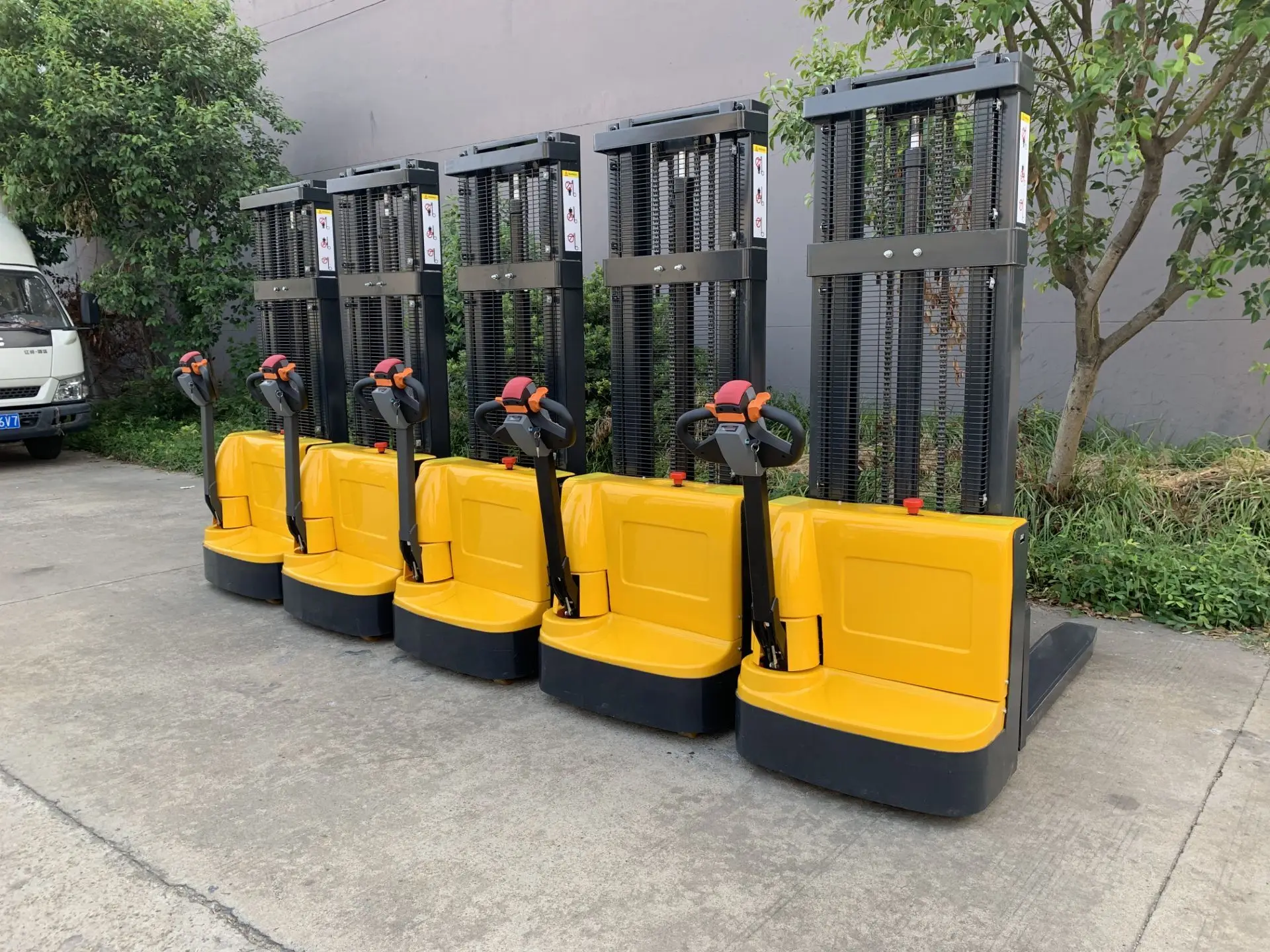

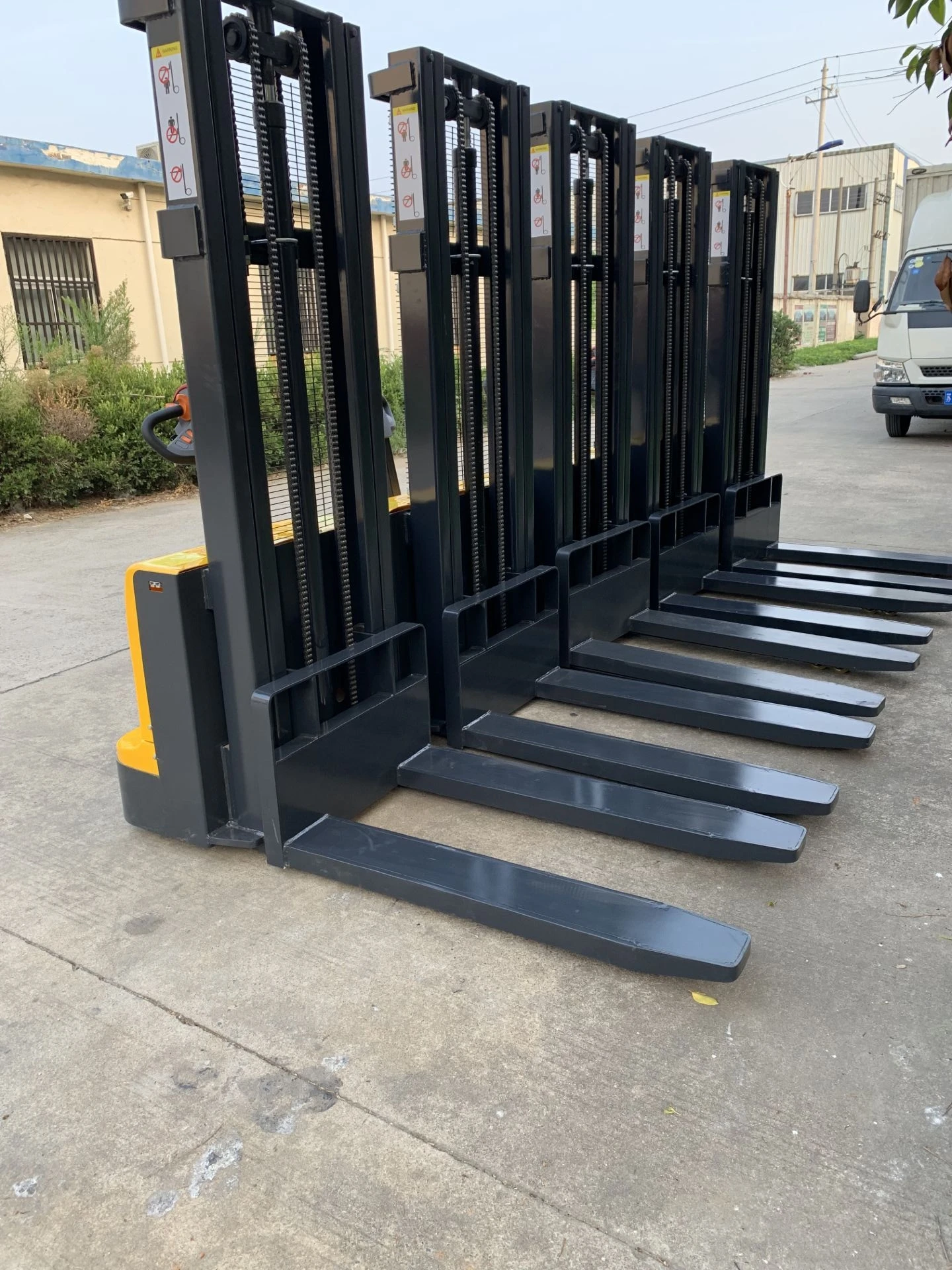

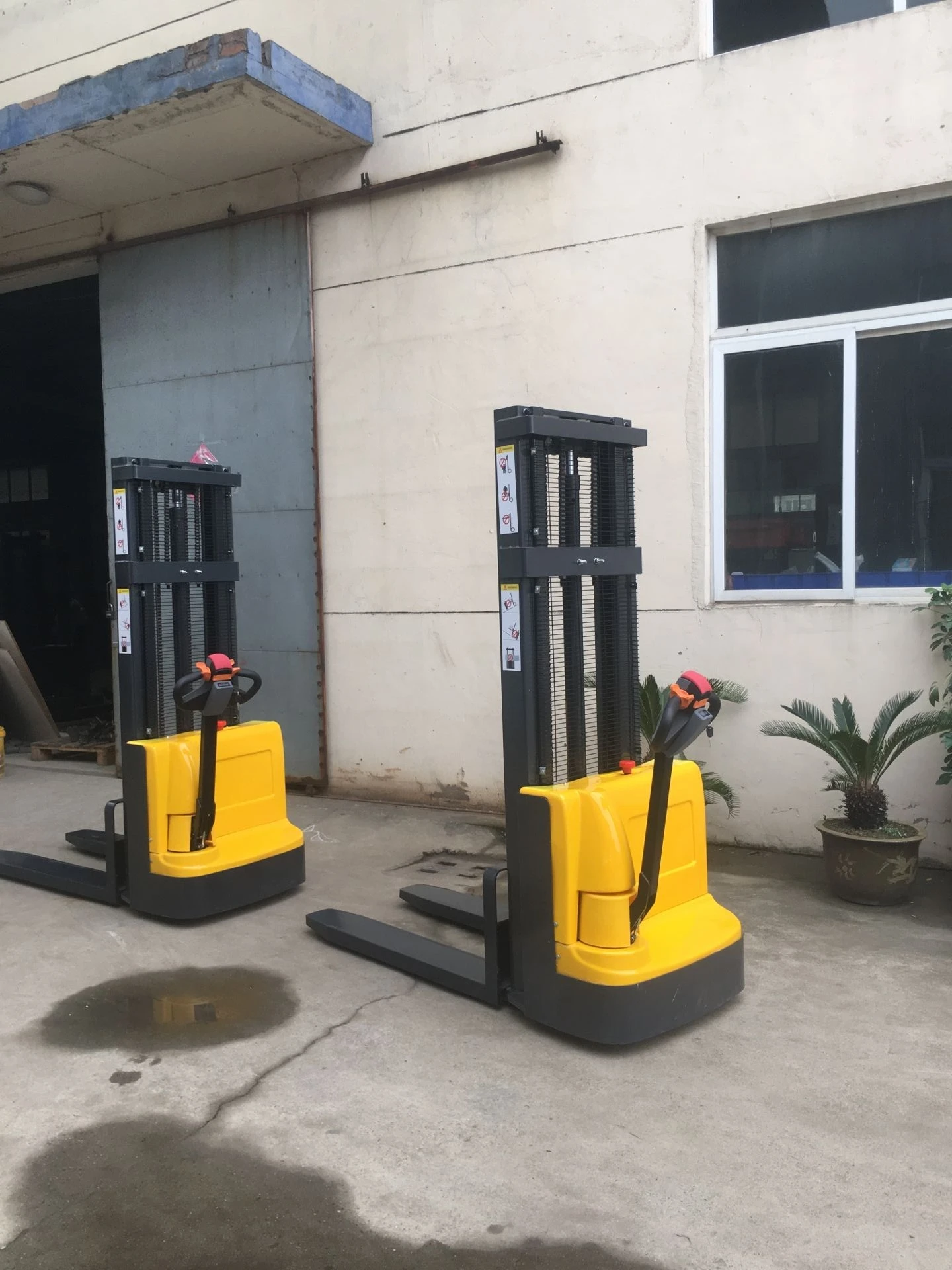

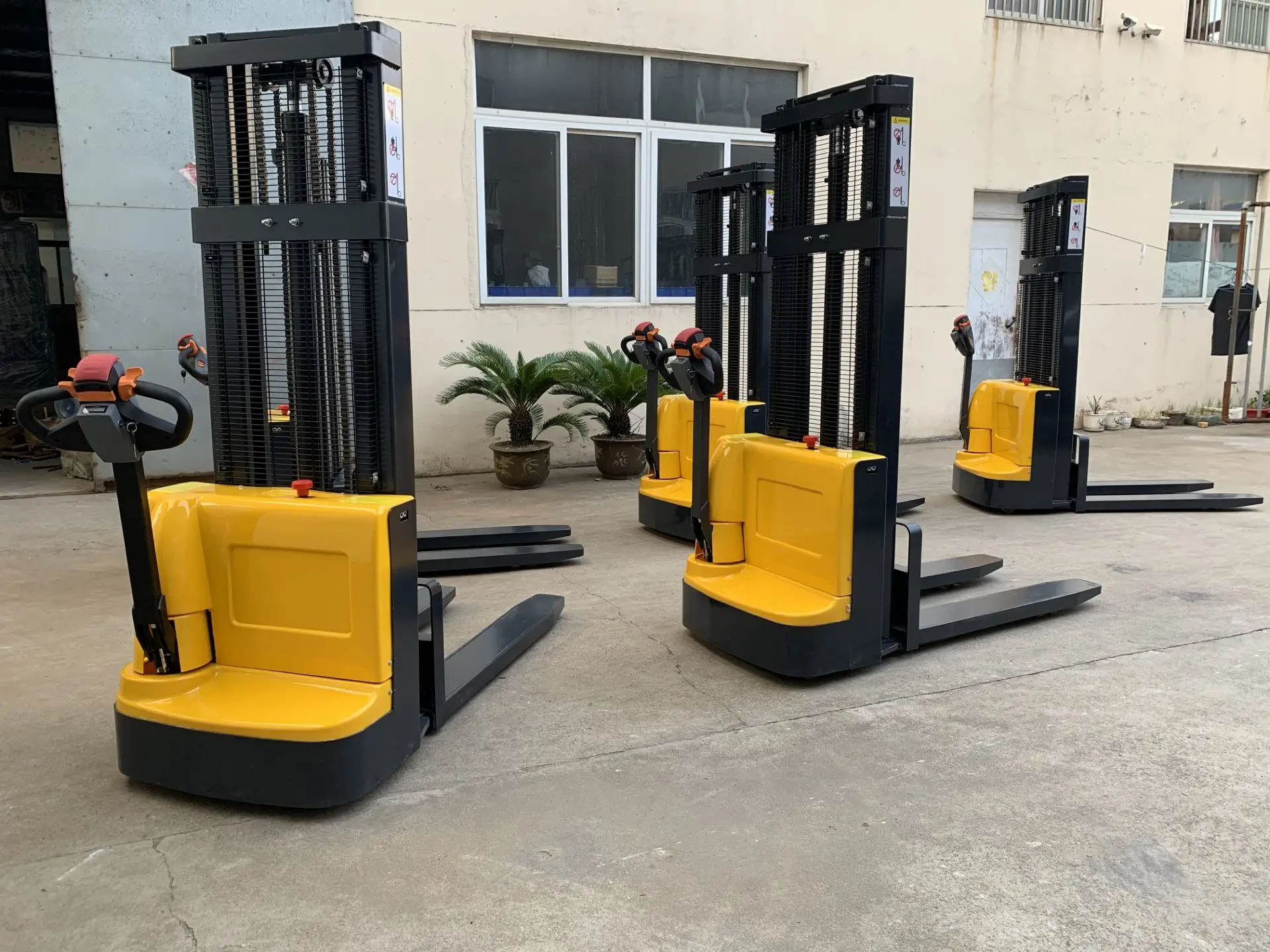

Pictures


Technical Data



 Model UnitCDD-EH10CDD-EH15
Rated load capacity kg10001500
Load center mm500
Lifting height (max) mm1600/2000/2500/3000
Mast lowered height mm2090/1590/1840/2090
Mast extended height mm2090/2550/3050/3550
Driving motor kw0.75
Lifting motor kw2.2
Fork min. height  mm≤90
Driving wheel dimension mm Φ210×70
Loading wheel dimension mmΦ80×70×2
Balance wheel dimension mmΦ100×50
Turning radius mm1600
Battery(Voltage/Capacity) V/Ah2*12/80
Fork overhang length mm230
Min aisle space mm2200
Overall length mm1720
Overall width mm800
Standard fork mm60/170/1100
Fork overall widthmm690
Fork individual width mm350
Traveling speed km/h4/5.8
Lifting speed mm/s80/130
Lowering speed mm/s110/90
Gradient %3/7
Power  Tractive-type Battery
Manipulation  Walkie Type
Braking type  Electromagnetic braking
Controling type   permanent magnet motor,stepless adjusting speed

Weight  460/500/520/540

FAQ



Welcome to ask us questions . Don't be shy. We are very professional.
1. How to place an order?
A:Tell us your detail requirements of Warehouse sell 2ton electric pallet mover lift (Load Capacity? Lifting height etc.) by email or on Trademanager or Skype ,We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.



2. What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.



3. Are you Factory?
A: Yes.



4. Can i place mix order?For example, i need 1 pc Electric Stacker and 1 pc Hand Pallet Truck,can this ok?
A: Yes, of course. You can mix different models as you wish.



5. Can you send the machine to my factory in other city to load the container?
A: Yes, please tell us the detail address, we can arrange to send your factory in time.



6. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.



7. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.


8. How to place an order?
A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype ,We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.



9. How could i pay them?
A: We accept Western Union (for parts order, order value less than $1500); T/T(bank transfer,order value at least $1500); L/C (Irrevocable LC at sight, order value at least $10000 )



10. How long could i get my order?
A: Mainly depend on the order quantity
1) Stock products: deliver within 24 hours.
2) If don't have items in stock, then
produce 1 pc, delivery time is 7days;
produce 2~5 pcs, delivery time is 15 days;
produce 6~12 pcs, delivery time is 25 days.



11. Can you add our own logo on the products or use our designs?
A: Yes,of course you can add logo on our products! We provide OEM/ODM service.In addition, we promise your design would protect by law, we won't tell anyone else about this. It's your own copyright.

Packaging Pictures

Packaging

1)Normal Packing for free

Inner Pack: Bubble Film + PP Knitted Band
Outer Pack: Wrapping Film + Iron Pallet

2)Plywood case packing for optional

Shipping

The transportation depends on client's choice, usually by sea, by train etc.You also can choose other shipping method and inform us before shipment.
