Galvanized hand pinch quick install single wire spring tube clamp
Galvanized hand pinch quick-install single wire spring tube clamp
Galvanized hand pinch quick-install single wire spring tube clamp
Galvanized hand pinch quick-install single wire spring tube clamp
Galvanized hand pinch quick-install single wire spring tube clamp
Galvanized hand pinch quick-install single wire spring tube clamp
Galvanized hand pinch quick-install single wire spring tube clamp

Galvanized hand pinch quick install single wire spring tube clamp

Share on (62480623628):


Price:

Quantity:


Product Overview

Description


BRAND  YilanNAME  Hose Clamps
STANDARD  Q671MATERIAL  65MN Spring steel
BORE SIZE  4mm - 24mmWIRE DIAMETER  0.8 - 2.0mm
PURPOSE  Used for automobile oil pipe and medical equipment pipe
PRODUCT
INFORMATION
1345

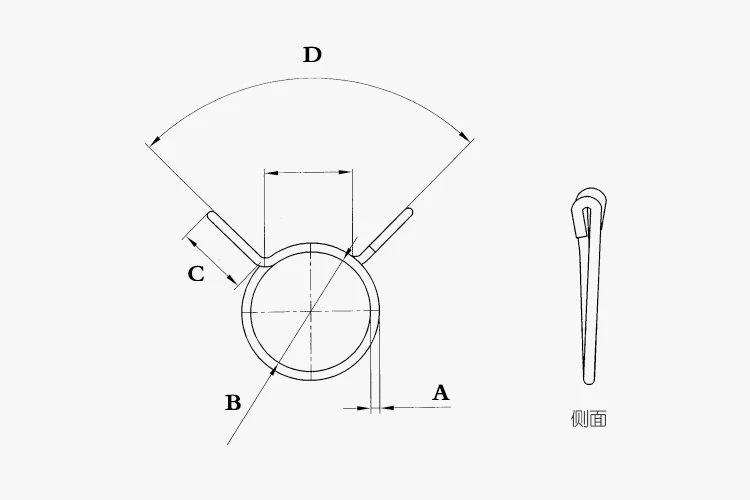

numberdiameter(B)Wire diameter(A)Ear length(C)angle(D)Suitable size
Q671-044mm0.8mm8±1mm80±10°4.3mm~4.5mm
Q671-055mm5.5mm~5.8mm
Q671-066mm6.5mm~7.1mm
Q671-077mm1.0mm7.6mm~8.3mm
Q671-088mm8.6mm~9.5mm
Q671-99mm9.7mm~10.7mm
Q671-1010mm1.2mm10±1mm10.8mm~11.9mm
Q671-10510.5mm11.4mm~12.5mm
Q671-1111mm11.9mm~13.1mm
Q671-1212mm13.0mm~14.3mm
Q671-12512.5mm13.5mm~14.9mm
Q671-1313mm1.4mm14±1mm14.0mm~15.5mm
Q671-13513.5mm14.5mm~16.1mm
Q671-1414mm15.1mm~16.7mm
Q671-14514.5mm15.7mm~17.3mm
Q671-1515mm16.2mm~17.9mm
Q671-1616mm1.6mm17.3mm~19.1mm
Q671-1717mm16±1mm18.4mm~20.2mm
Q671-1818mm1.8mm19.4mm~21.4mm
Q671-1919mm20.5mm~22.6mm
Q671-2020mm21.6mm~23.8mm
Q671-2222mm22.7mm~25.0mm
Q671-2424mm2.0mm24.5mm~28mm
Explain The size is measured by vernier caliper, and the error is within the normal range of 0.2mm.
OUR SERVICES

1. OEM Manufacturing welcome: Product, Package...

2. Accept sample order

3. We will reply to your inquiry, phone or email within 12 hours.

4.In terms of quality and price, we will try our best to make the best quality, but not the highest price.

Packing&shipping
Company Introduction
Chongqing Yilan Spring Co., Ltd. was established in 2017, specializing in the production of various hose clamps, military and civilian springs, various types of stamping parts, etc.Products are widely used in automobiles, motorcycles, general motors, medical equipment, internal combustion engines and other mechanical and military products.20 million pieces.
