Direct export luzhong 554 with TB chassis
- Category: >>>
- Supplier: Qingdao Alfine Machinery Co. Ltd.
Share on (62481038562):
Product Overview
Description
Product Description
luzhong 554 specification
| Model | Luzhong-404 | Luzhong-454 | Luzhong-504 | Luzhong-554 | |
| Type | Wheeled Type, 4WD | ||||
| Rated Traction (N) | |||||
| Dimensions of Tractor (mm) | Length | 3700 | |||
| Width | 1615 | ||||
| Height | 2130 (2340 with cab) | ||||
| Front Wheel Tread | 1250 | ||||
| Rear Wheel Tread | 1200/1300(usual)/1400 | ||||
| Wheel Base | 2010 | ||||
| Min.Ground Clearance (mm) | 325(the bottom of steering tie rod) | ||||
| Min. Operational Mass (kg) | 2160 (2265 with cab) | ||||
| Engine | Model | ZN490BT | A495BT | 4100T | 4G33T |
| Type | Vertical, water cooled and 4-stroke | ||||
| Rated Power (kW) | 29.4 | 33.1 | 36.8 | 40.5 | |
| Rated Rev. (rpm) | 2300 | 2400 | 2300 | 2400 | |
| Fuel | Diesel | ||||
| Tire size | Front Wheel | 8.3-20 | |||
| Rear Wheel | 12.4-28 | ||||
| Clutch | Dry-friction, single plate, constant mesh | ||||
| Steering | Hydraulic power steering | ||||
| Transmission Box | 4X(2+1) composed | ||||
| Hitching Type | Rear mounted, 3-point linkage, Category I | ||||
| PTO | Type and Rev (rpm) | Rear mounted, semi-independent, 540/760 or 540/1000 | |||
| Spline Size | I35 Rectangle Spline with 6 teeth | I35/I38, 6/8teeth | |||

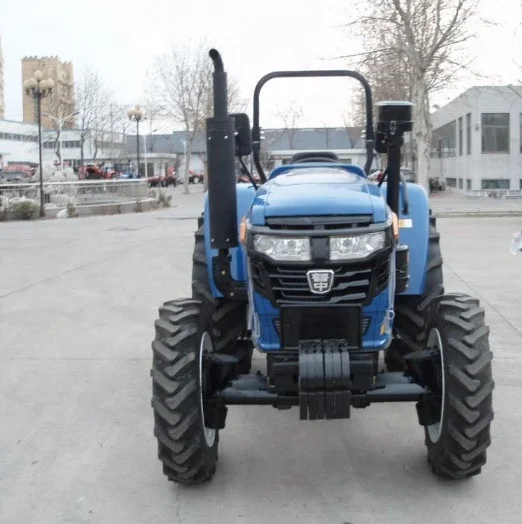

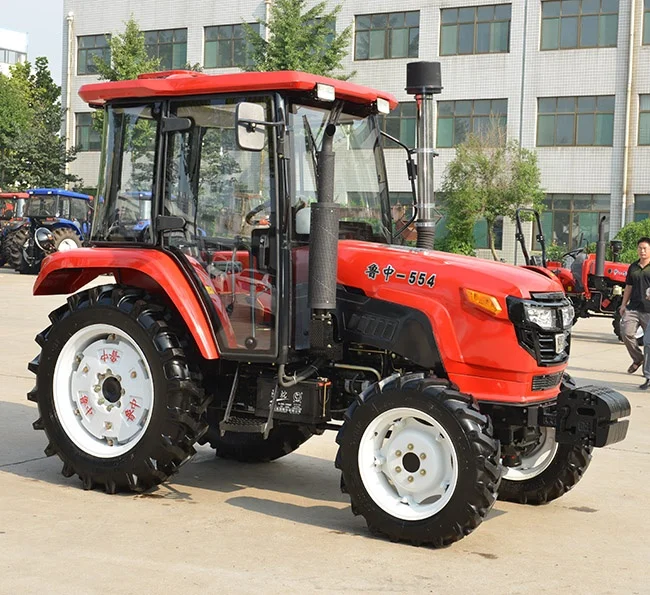

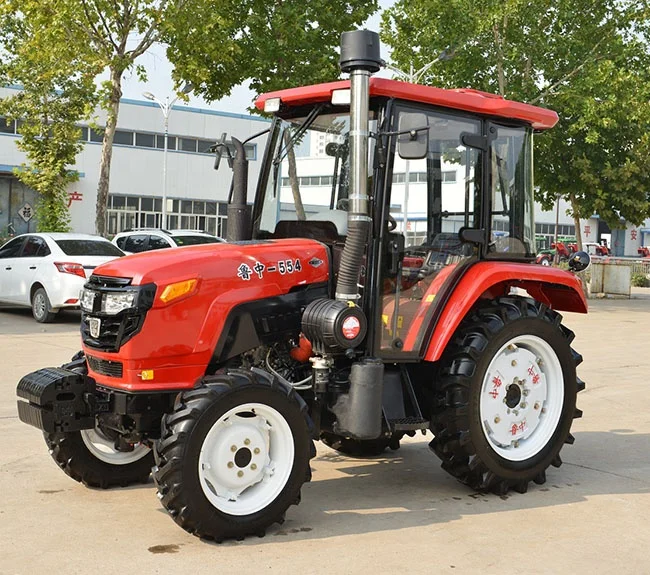

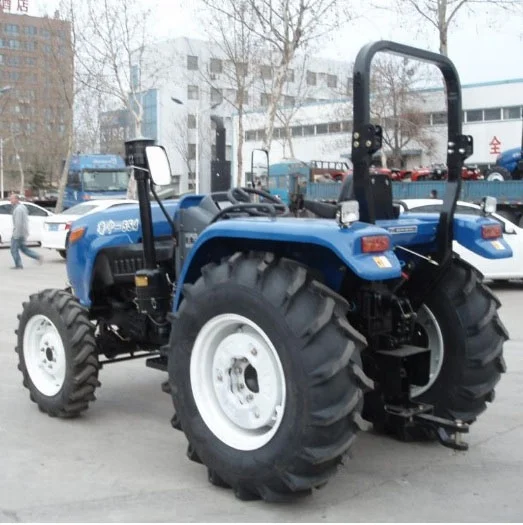

luzhong 554 product show

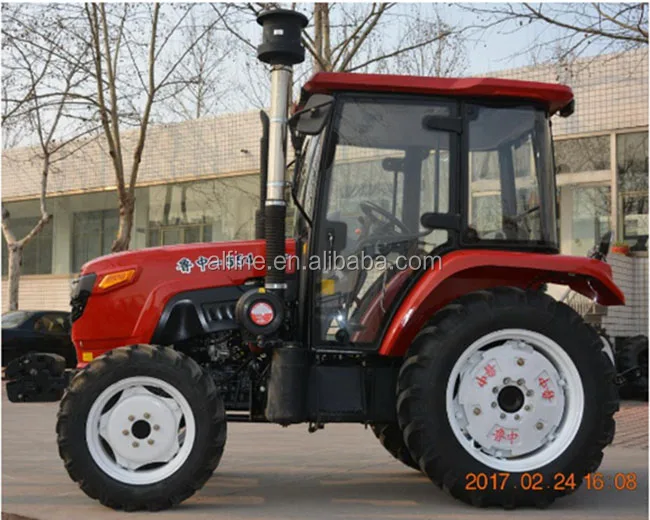

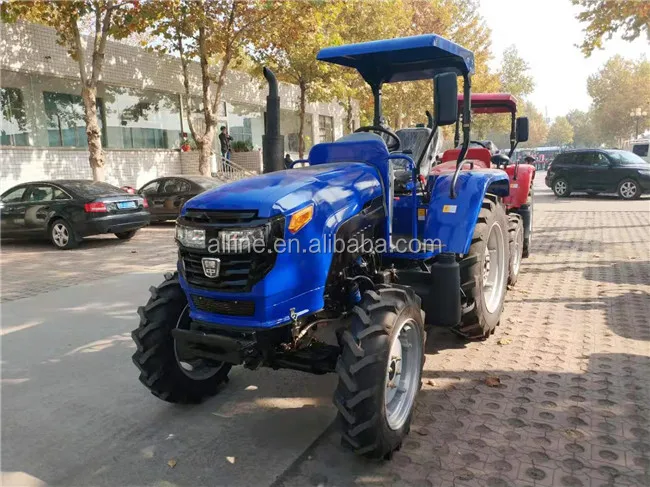

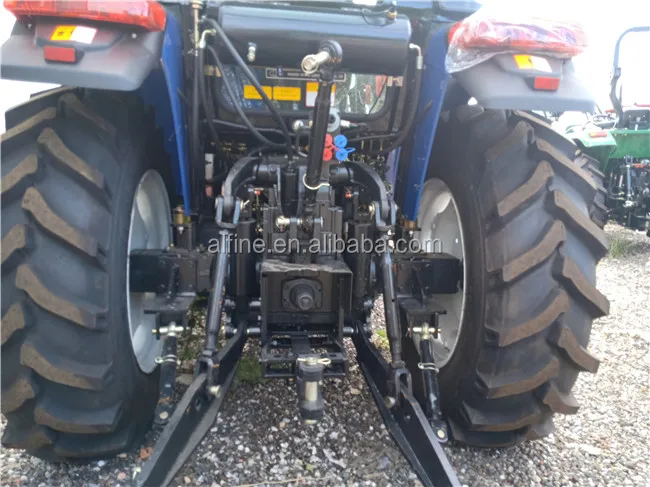

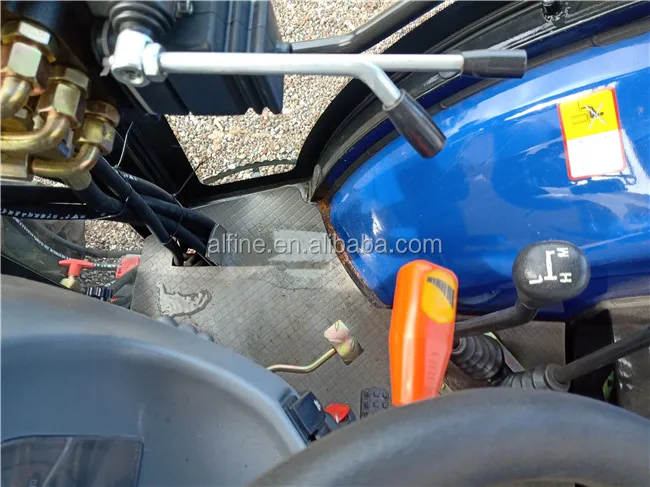

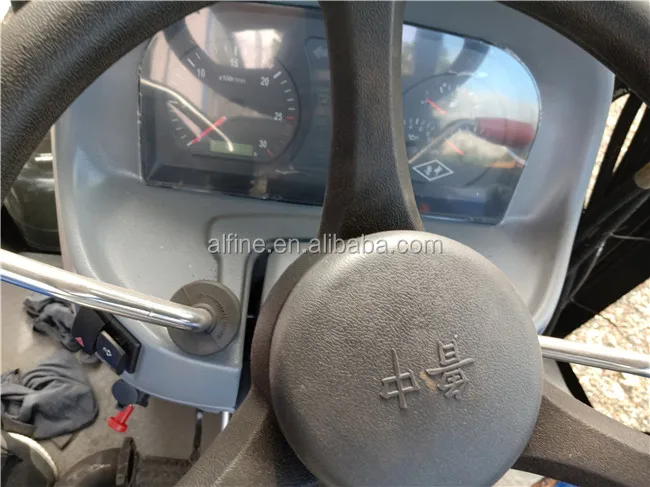

luzhong 554 details picture
Packaging & Shipping

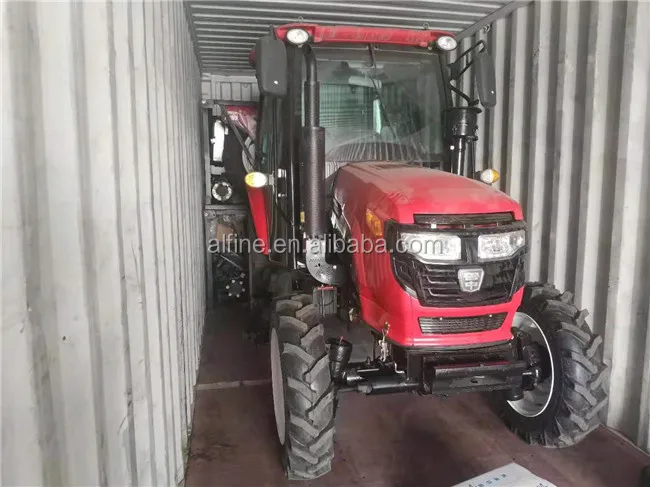

luzhong 554 packaging and shipping
