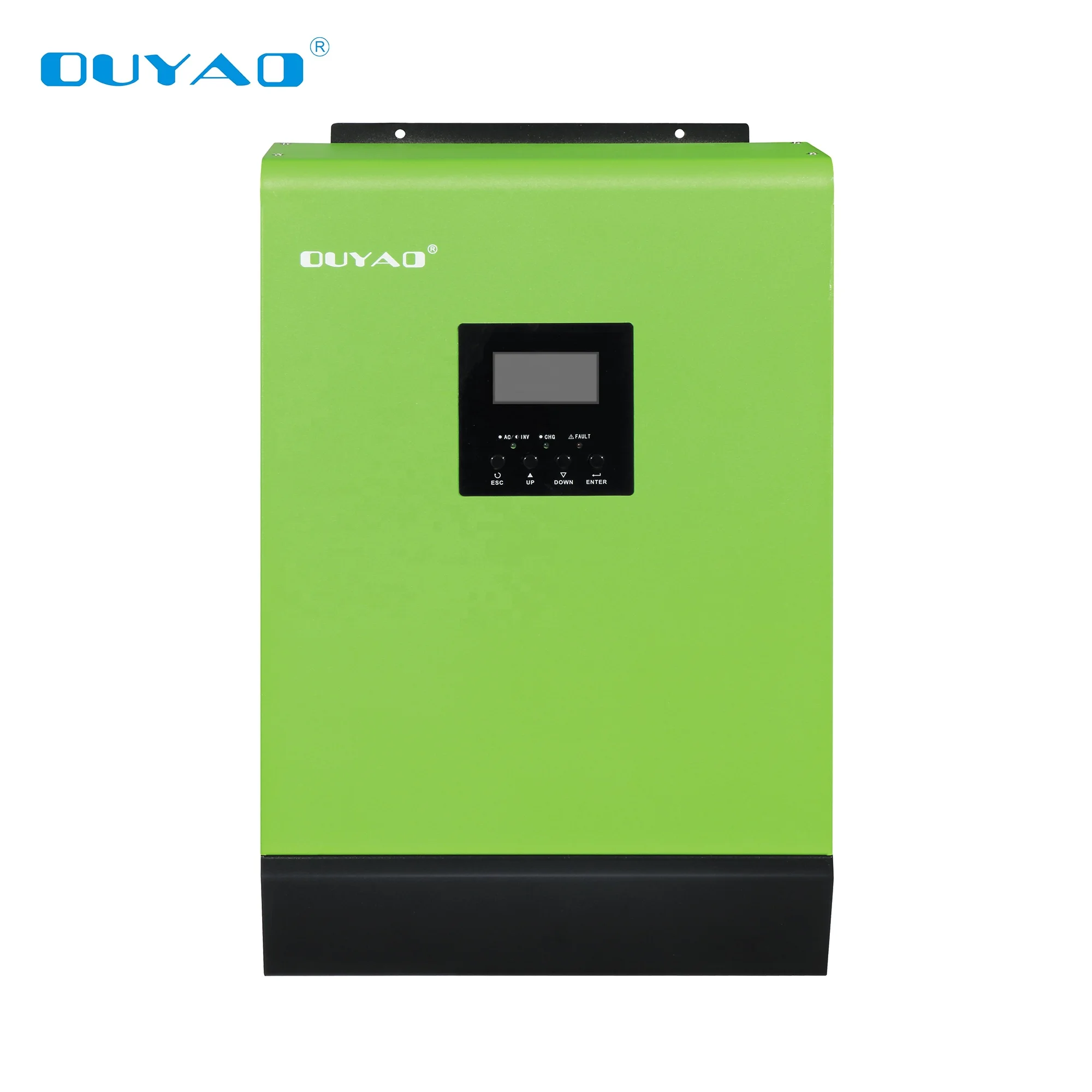

MKSII 5kw solar inverter 48v 80a mppt support parallel
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (62481122736):
Product Overview
Description
Product Description

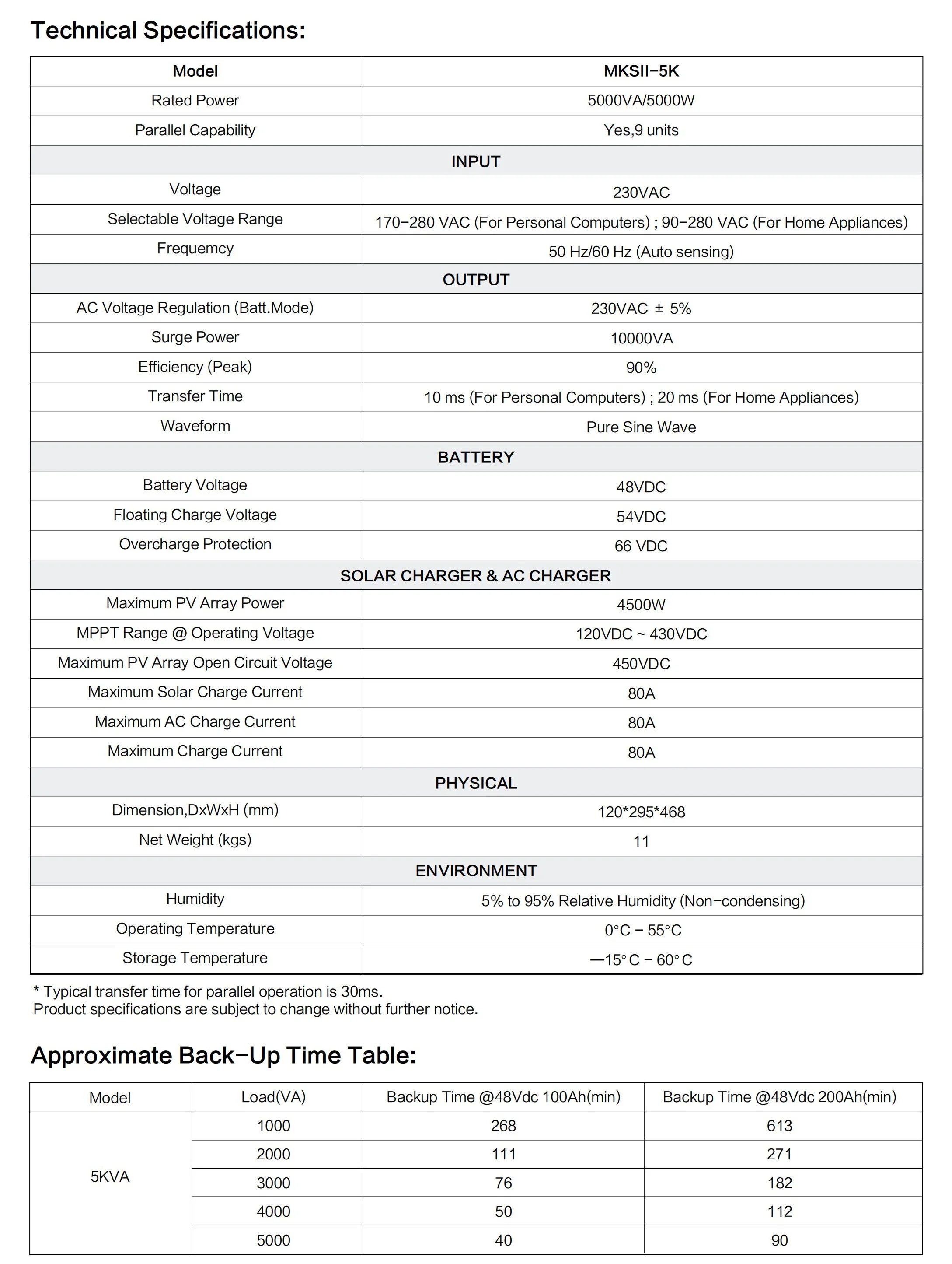

Specification
Model | MKSII-5K | |
Rated Power | 5000VA/5000W | |
Parallel Capabilty | Yes， 9 units | |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(For Personal Computers) ； 90-280VAC(For Home Appl lances) | |
Frequemcy | 50Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 10000VA | |
Efficiency(Peak) | 90% | |
Transfer Time | 10ms(For Personal Computers) ； 20ms(For Home Appliances) | |
Waveform | Pure SineWave | |
BATTERY | ||
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
Overcharge Protection | 66VDC | |
SOLAR CHARGER & AC CHARGER | ||
Maximum PV Array Power | 4500W | |
MPPT Range@ Operating Voltage | 120VDC-430VDC | |
Maximum PV Array Open Circut Voltage | 450VDC | |
Maximum Solar Charge Current | 80A | |
Maximum AC Charge Current | 80A | |
Maximum Charge Current | 80A | |
PHYSICAL | ||
Dimension， DxWxH(mm) | 120*295*468 | |
Net Weight(kgs) | 11 | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humid ty(Non-condensing) | |
Operating Temperature | 0C-55°℃ | |
Storage Temperature | -15°C-60°C | |
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | OUYAD |
Model Number | MKSII 5KVA |
Input Voltage | 48VDC/ 230VAC |
Output Voltage | 230V AC |
Output Current | 22A |
Output Frequency | 50HZ/60HZ |
Output Type | Single, Triple |
Size | 155*295*455mm |
Type | DC/AC Inverters |
Inverter Efficiency | 90% |
Certificate | CE, ROHS |
Warranty | 1 YEAR. Factory offer parts for repairing, buyer pay for delivery cost. |
Weight | 13KG |
Name | MKSII 5kw solar inverter 48v 80a mppt support parallel |
Frequency | High frequency |
Capacity | 5KVA 5000W solar inverter |
Controller type | MPPT hybrid solar inverter |
Rated DC input voltage | 48V |
Battery | With or Without battery |

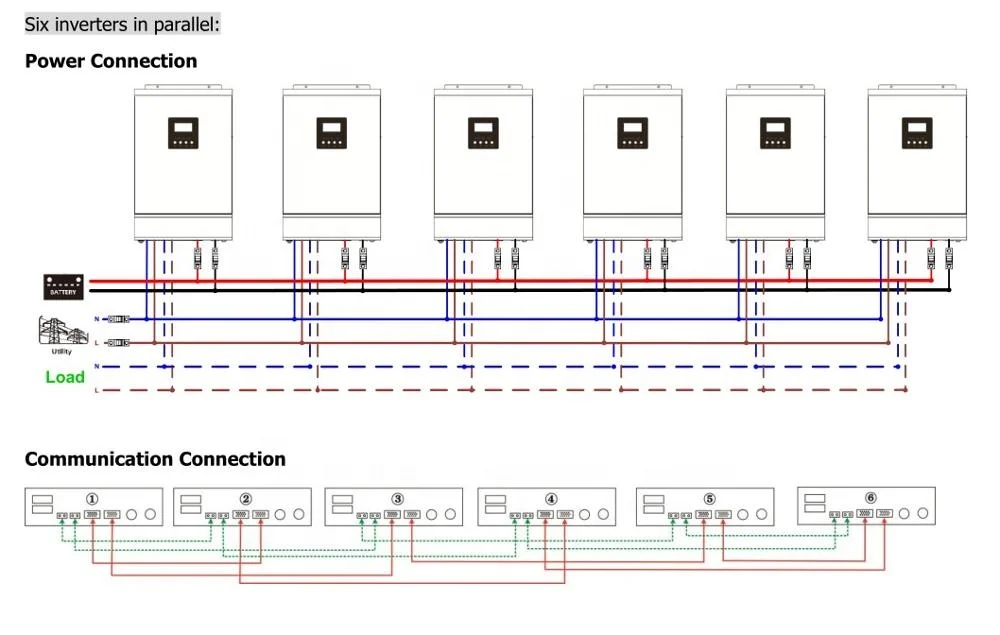

Parallel | support max. 9pcs in parallel |
Output waveform | Pure Sine Wave Solar Inverter |
Warranty | 1 Year |
OEM | SUPPORT |
Packing & Delivery
1pc/paper carton.
Company Profile
Company info. & Advantages
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter,Solar,Panel,Windturbine,Lithium Ion Battery
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter,Solar,Panel,Windturbine,Lithium Ion Battery
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
