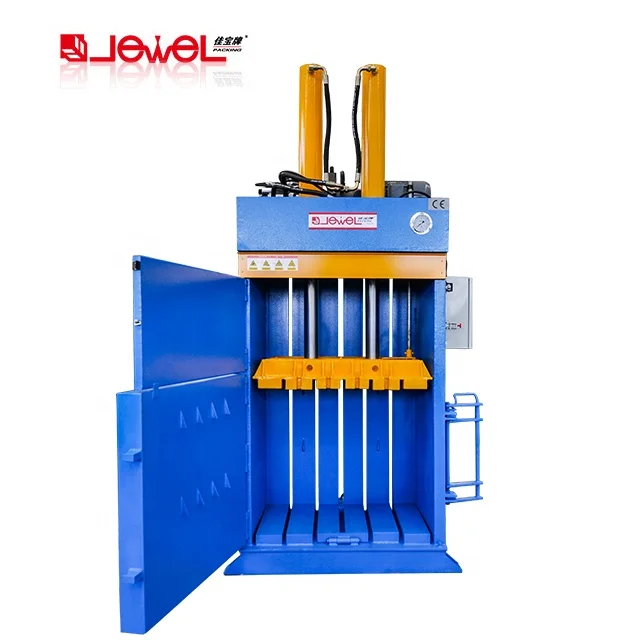

JEWEL factory price Hydraulic Vertical Scrap Aluminum Can Baler/waste plastic baling machine
- Category: >>>
- Supplier: Shanghai Jiajing Machinery Co. Ltd.
Share on (62481319692):
Product Overview
Description
Product Description
Scope：
Suitable for pressing hard plastics, PET bottles, hay, fibers, sponges, clothes and other materials with higher rebound force, also suitable for the materials that need outside package.
Suitable for pressing hard plastics, PET bottles, hay, fibers, sponges, clothes and other materials with higher rebound force, also suitable for the materials that need outside package.
Features:
* Suitable for compress hard plastic, drink bottle, hay, fiber etc.
* The machine use double cylinder balance compression, special hydraulic system, more stable.
* High load structure, safety and reliable.
* Adopt four side door opening type, the bale can be trapped in “#” shape.
* The dimension of bale can be customized according to loading into containers.
* U.S. or European standard lock device to ensure the safety of operation staff.
* Feeding chamber install preventing material rebound device, save charging time greatly.
* Adopt England brand sealing parts, improve the life time of oil cylinder.
* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
* Adopt Taiwan brand superposition type valve group.
* Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.
* Suitable for compress hard plastic, drink bottle, hay, fiber etc.
* The machine use double cylinder balance compression, special hydraulic system, more stable.
* High load structure, safety and reliable.
* Adopt four side door opening type, the bale can be trapped in “#” shape.
* The dimension of bale can be customized according to loading into containers.
* U.S. or European standard lock device to ensure the safety of operation staff.
* Feeding chamber install preventing material rebound device, save charging time greatly.
* Adopt England brand sealing parts, improve the life time of oil cylinder.
* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
* Adopt Taiwan brand superposition type valve group.
* Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.
Model | JPA070T80 | JPA070T120 |
Hydraulic power | 80Ton | 120 Ton |
Bale size（L*W*H） | 1000*700*(500-900)mm | 1000*700*(500-900) mm |
Feed opening size（L*H） | 1000*500mm | 1000*500mm |
Chamber Size（L*W*H） | 1000*700*1500 | 1000*700*1500 |
Output | 4-6bales/hour | 4-6bales/hour |
Voltage | can be customized | can be customized |
Power | 11KW/15HP | 15KW/20HP |
Machine size（L*W*H） | 1700*1300*3200mm | 1700*1300*3200mm |
Weight | 2600Kg | 3200 Kg |

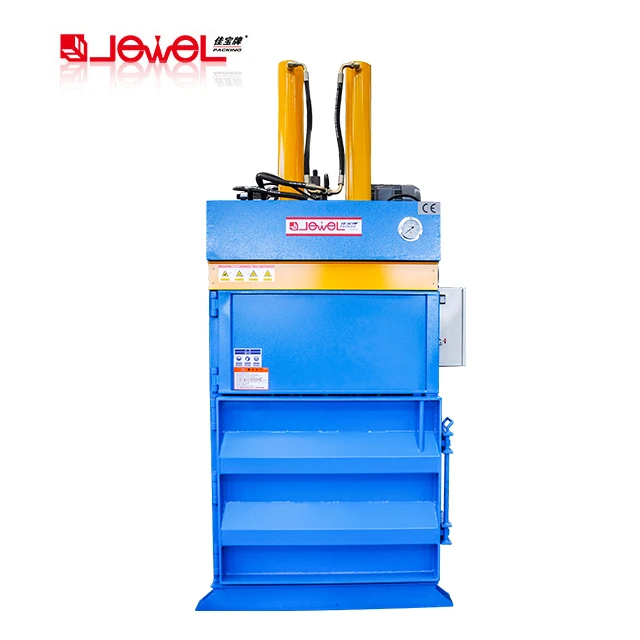

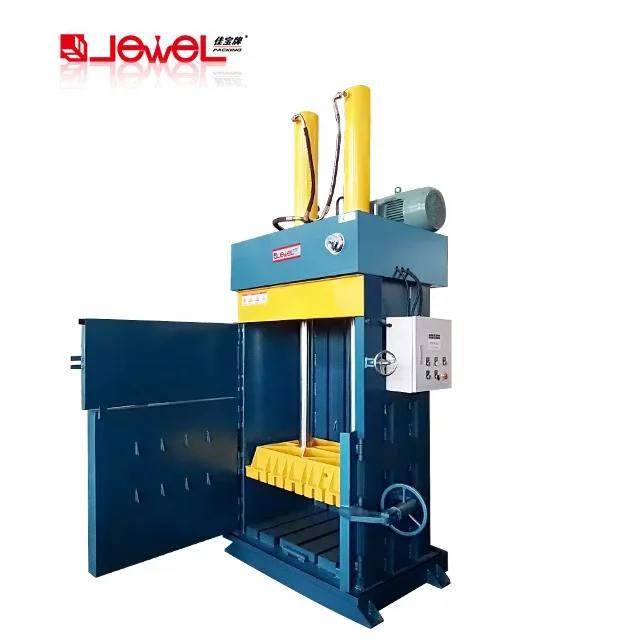

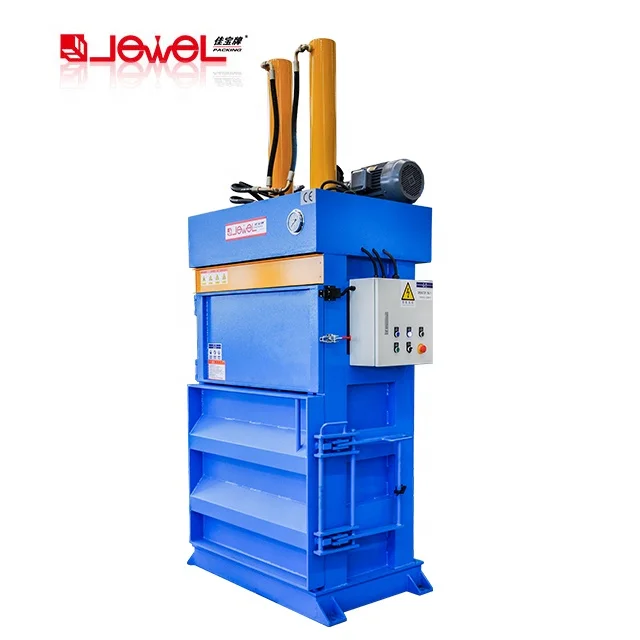

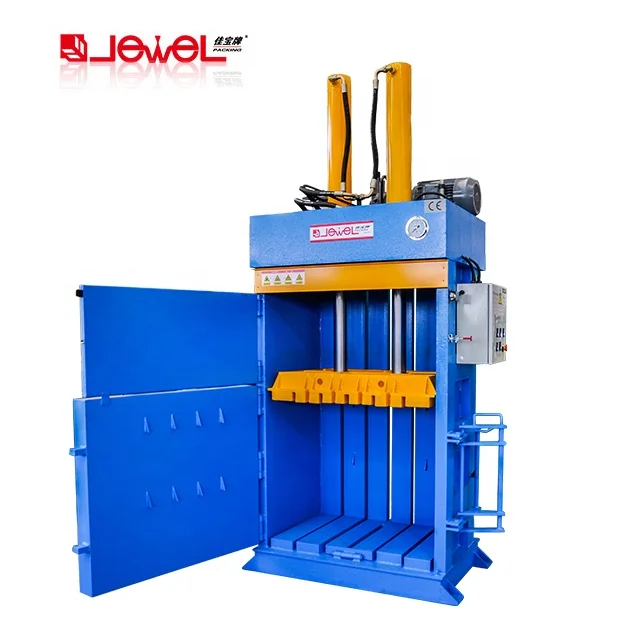

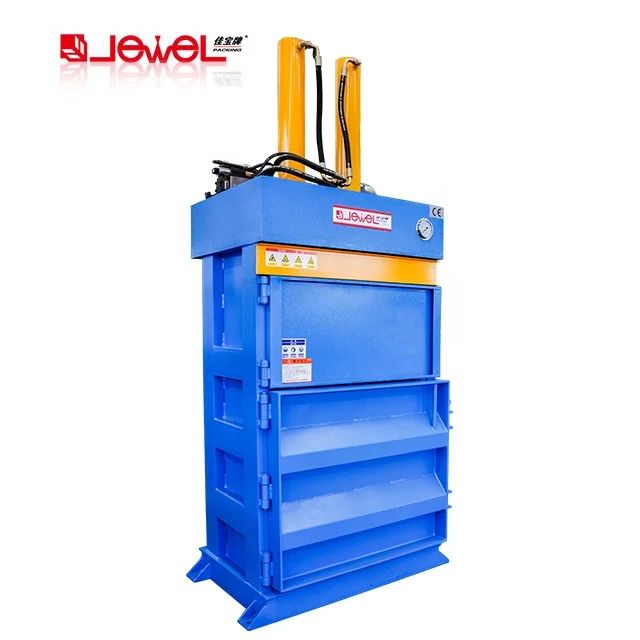

Product Picture
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Our company was established in 1995,we have 25 years manufacturing experience until now,our machines have been exported to more than 120 countries all over the world.Our plant is located in Nantong city,Jiangsu province,2 hours driving from Shanghai.Our factory covers an area of 33300㎡,welcome to visit!
After sale service
Pre-Sales
*We own pre-sales , selling and after sales service teams , to ensure provide professional and integration service for each project .
Selling
*We have engineer with rich project experience , who are available to prospect customer's site, formulate layout and confirm the feasibility of program, final participate the installation and system testing.
After-Sales
*7X24hours after-sales service
-Service phone line keep 24 hours unblocked
-All emails will get response within 10 hours
-Any needed machine parts can be supplied with professional guiding and ordinary.
-Collect after-sale-service feedback from customer, keep improving.
*we have rich experience after sale staff who have the ability of handling emergency situation, that can ensure machine normal working and customer's production go smoothly.
*We own pre-sales , selling and after sales service teams , to ensure provide professional and integration service for each project .
Selling
*We have engineer with rich project experience , who are available to prospect customer's site, formulate layout and confirm the feasibility of program, final participate the installation and system testing.
After-Sales
*7X24hours after-sales service
-Service phone line keep 24 hours unblocked
-All emails will get response within 10 hours
-Any needed machine parts can be supplied with professional guiding and ordinary.
-Collect after-sale-service feedback from customer, keep improving.
*we have rich experience after sale staff who have the ability of handling emergency situation, that can ensure machine normal working and customer's production go smoothly.
