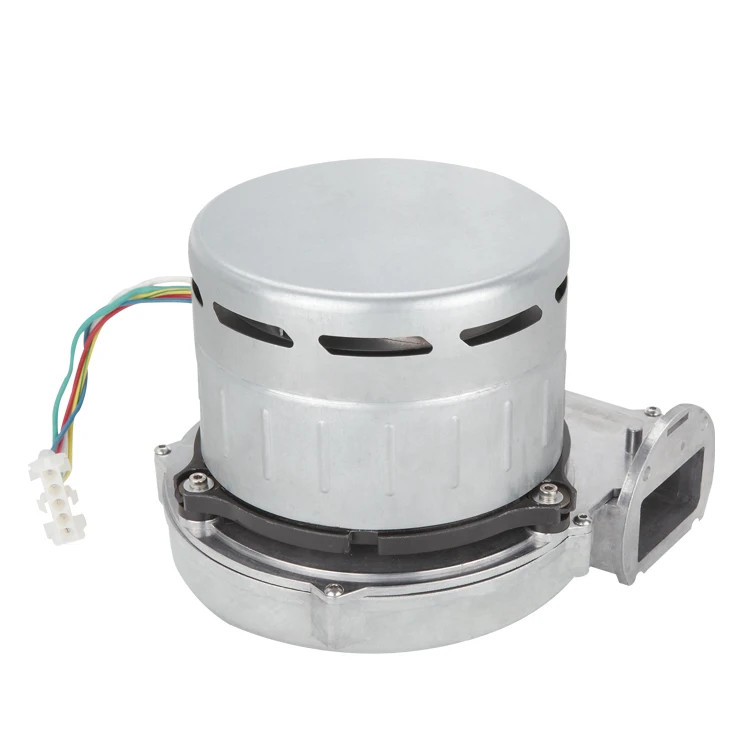

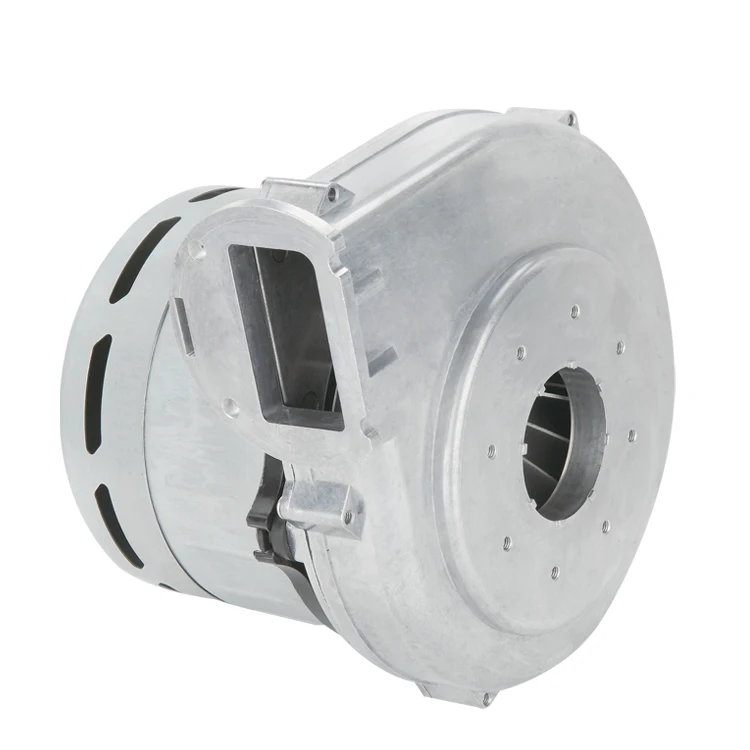

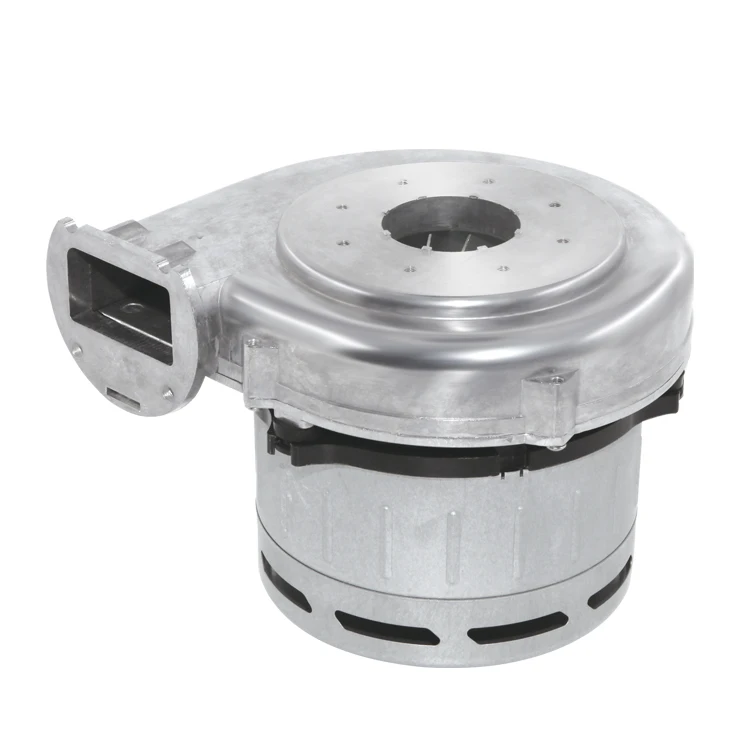

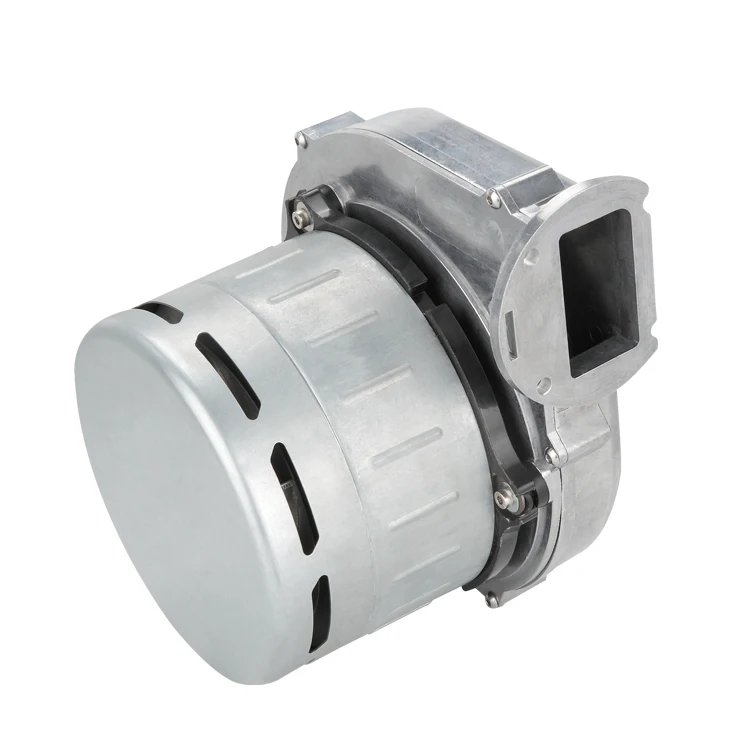

1200W brushless light weight brushless DC industrial centrifugal blower

Product Overview

Description













Motor Code	NXK73C700Z001	NXK73C1200Z001	NOTE
Max.Power	700W	1200W	Can be customized
Voltage	100~240V	100~240V
Frequency	50/60Hz	50/60Hz
Max.Air flow	264m3/h	296.4m3/h	Can be customized
	155.5CFM	174.6CFM	Can be customized
Max.Vacuum	7.4kPa	10.5kPa	Can be customized
	29.8inH2O	42.4inH2O	Can be customized
Max.Speed	12200rpm	15000rpm
Speed Control	0~10VDC/PWM	0~10VDC/PWM
Weight	2.5kg	2.5kg







             Ningbo Newthink Motor Co., Ltd. established in 2011, is a professional manufacturer engaged in the research, development, sale and service of  brushless motor, brushless blower and drive system.  we have obtained  ISO9001:2015  certificates  Our products are exported to clients in such countries and regions as Europe, America, Japan, Korea and other countries. We also welcome OEM and ODM orders.











1. Can I evaluate the sample for free?

Sorry, the samples are unable to be offered for free.

2. What's your MOQ?

Our standard products, there is no MOQ requirement. However, if customized products or the products which some changes base our standard products, automatic production need to start in one thousand set. Whatever, I'll try my best to arrange it.

3. Could you offer oversea after-service?

Engineers in NEWTHINK MOTOR has been and still are ready to supply the best solution for your problems.



4. May I ask for the technical information?

Dear sir or madam, What I'm able to offer is the former product test performance, showing in the EFFECT DATA. More information please send me your enquire in detail. I'll check it from engineers in electric and mechanical. BTW, secret data are unable to offer. Thanks for your consideration.
