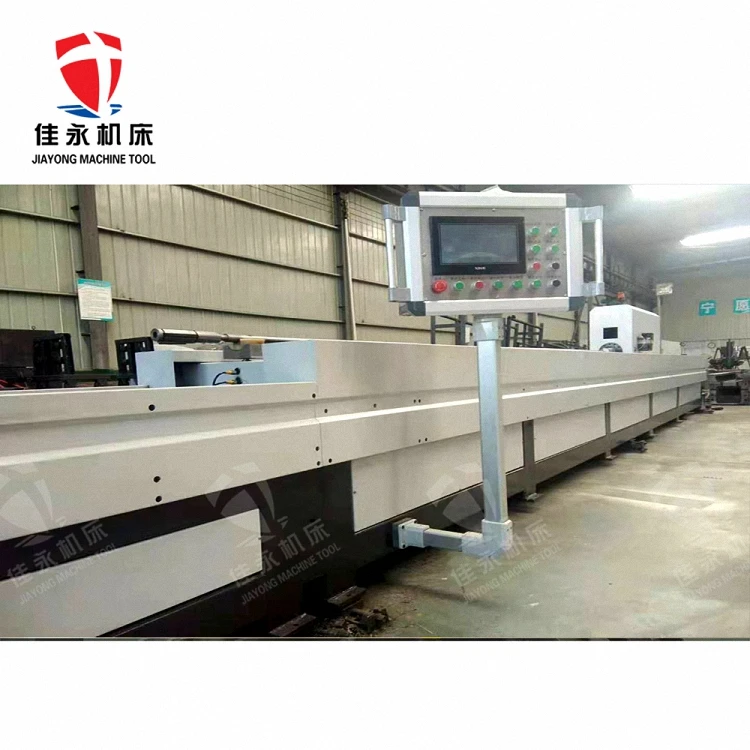

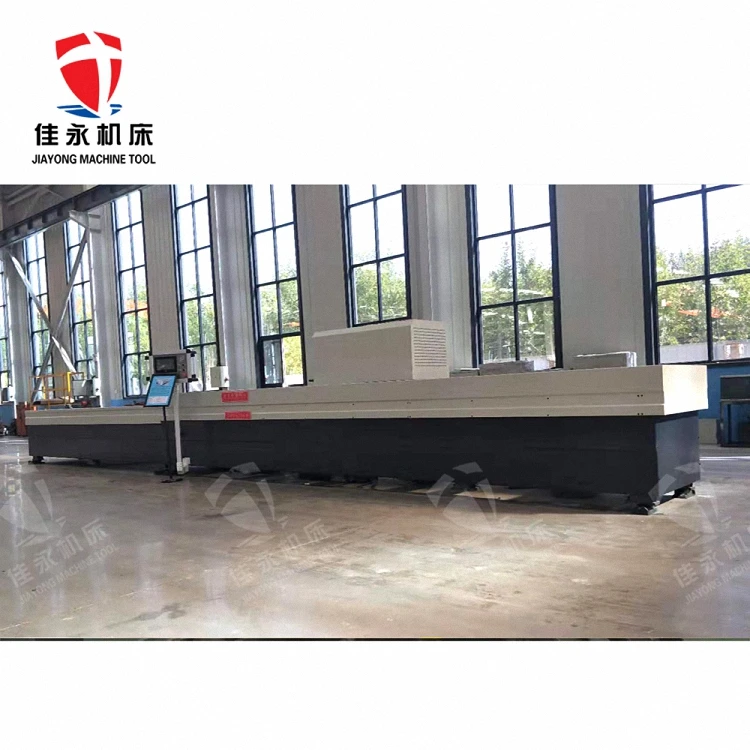

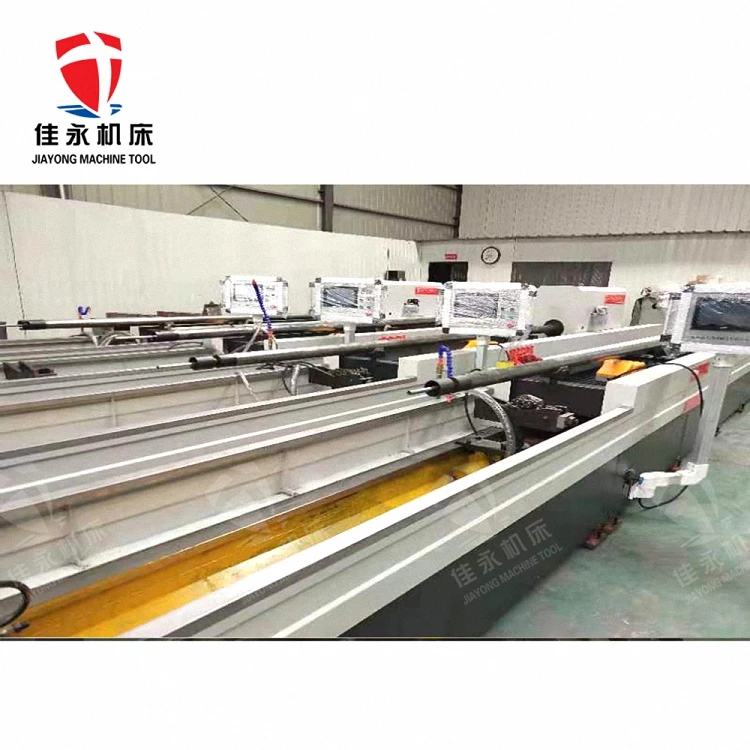

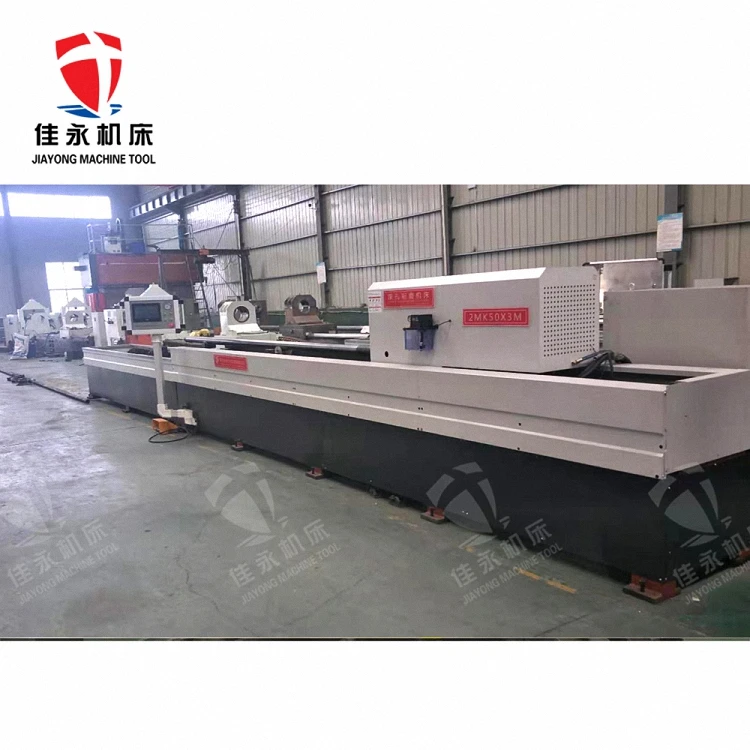

Boring Diameter CNC Deep hole Tube Cylinder Honing Machine
Machine introduction
The CNC honing machine is equipped with PLC numerical control system (optional), linear rolling guide, AC servo motor. The grinding rod adopts stepless speed regulation, the commutation is stable, the speed is convenient, and it is easy to ensure the accuracy of the aperture size and reduce labor intensity. During the honing process, the sand bar and the workpiece are always maintained at a constant pressure, so that the sand bar is strongly ground, which ensures the high efficiency of deep hole processing. It is suitable for rough and fine honing of general cylindrical deep hole parts after rough boring. The machine can also perform local honing to correct the taper and ovality of the part. Honed workpieces are made of cast iron and various types of steel, including hardened workpieces. If cold drawn steel pipes are used, direct honing can be performed directly. This machine tool is specially used for rough and fine honing of the inner wall of cylindrical deep hole parts such as various hydraulic oil cylinders and cylinders, and is especially good at processing stepped cylinders.
Machine Parameter
Project Name
Parameters
Working range
Honing diameter range
Φ30—Φ1000mm
Workpiece length
500-12000mm
Processing capacity
0.4-1mm
Grinding box spindle parameters
The height of center
100mm-600mm
Spindle change range
3-200r/min（Stepless speed regulation）
Boring bar torque
500-3000N.m
Feeding parameter
range of feeding speed
5-25000mm/min（Stepless）
Pallet move quickly
10m/min
Feed torque of boring bar
≥200N.m
Positioning length
0-12000mm
Working precision
Workpiece honing surface roughness
≤Ra0.8um
Workpiece polished surface roughness
≤Ra0.4um
Cylindricity of workpiece machining
≤0.02/500mm
Roundness of workpiece machining
≤0.02/100mm
Motor capacity
Moter power of boring bar
5.5-22KW
Hydraulic pump motor power
1.5KW
Feeding motor
3.7KW AC servo motor
Cooling motor power
1.1KW two groups
CNCsysterms
KND or customer choose
Product Fetures
1. High processing accuracy (≤0.03), high finish (≤Ra0.2-0.8)Dimensional accuracy (IT6) is easy and accurate to adjust. The honing head is opened tightly by the top of the oil cylinder. 2. Dimensional accuracy (IT6) is easy and accurate to adjust. The honing head is opened tightly by the top of the oil cylinder. 3. The length of the machine tool is controlled by a numerical control program, and the machining size is controlled by the number of honing reciprocations.
