What is The PRODUCT FEATURES of Our Rocker Switch?
KETO водонепроницаемые 12 В светодиодные моментальные (вкл.) ВЫКЛ. Автоматический Омыватель лобового стекла Переключатель стеклоочистителя
- Category: Rocker Switches >>>
- Supplier: Shenzhen Keto Technology Co. Ltd.
Share on (62481494827):
Product Overview
Description

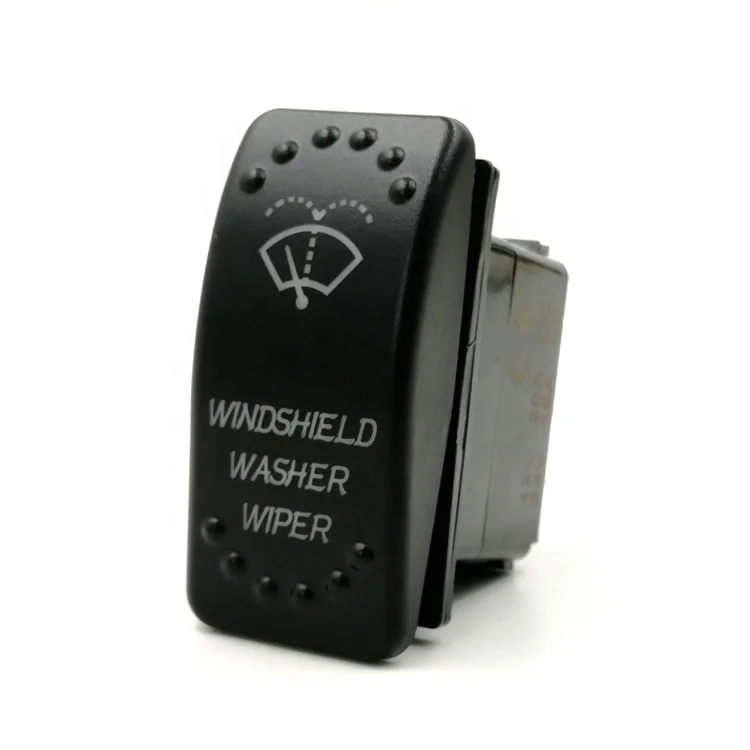

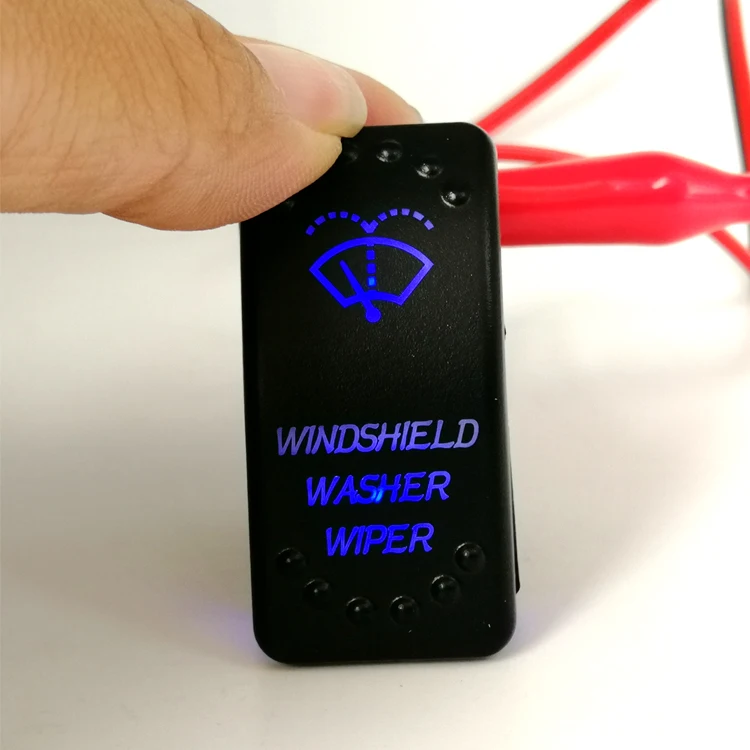

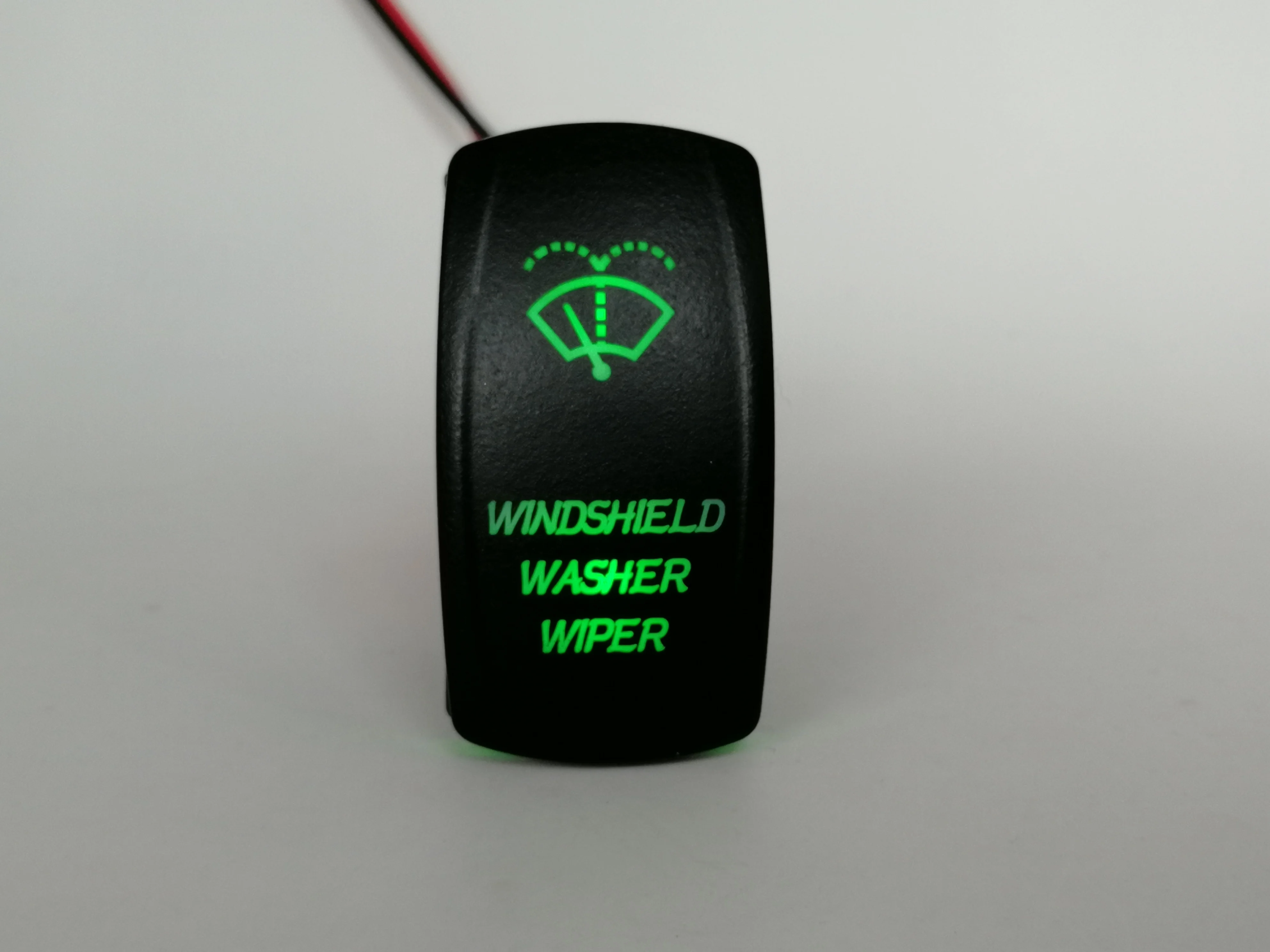

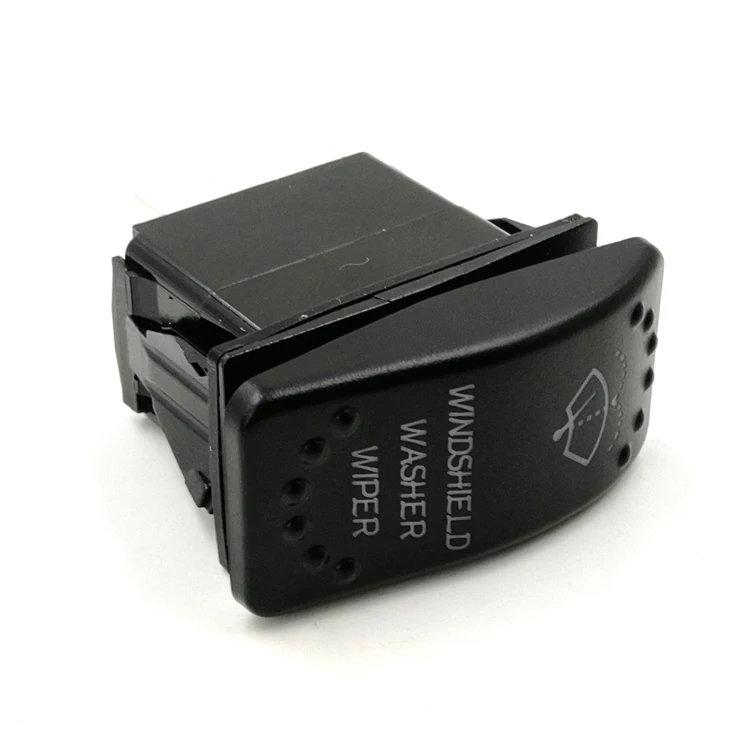

Waterproof 12V LED Momentary (ON)-ON-OFF Auto Windshield Washer Wiper Rocker Switch
For what industrial: | 12/24V vehicle, such as Beach Motorcycle, Bus, RV car, UTV ,SUV and Off-road rocker switch 12/24V Marine, Yatch, Boats rocker switch |
| Product Size | 49.57*24.4*49mm |
Installation Size | 37.2*21.2mm |
Product Weight | 30g |
Product Terminal | 3P/4P/5P/6P/7P/8P/10P |
Indicator Lamp Color: | White Red Blue Green Yellow Orange |

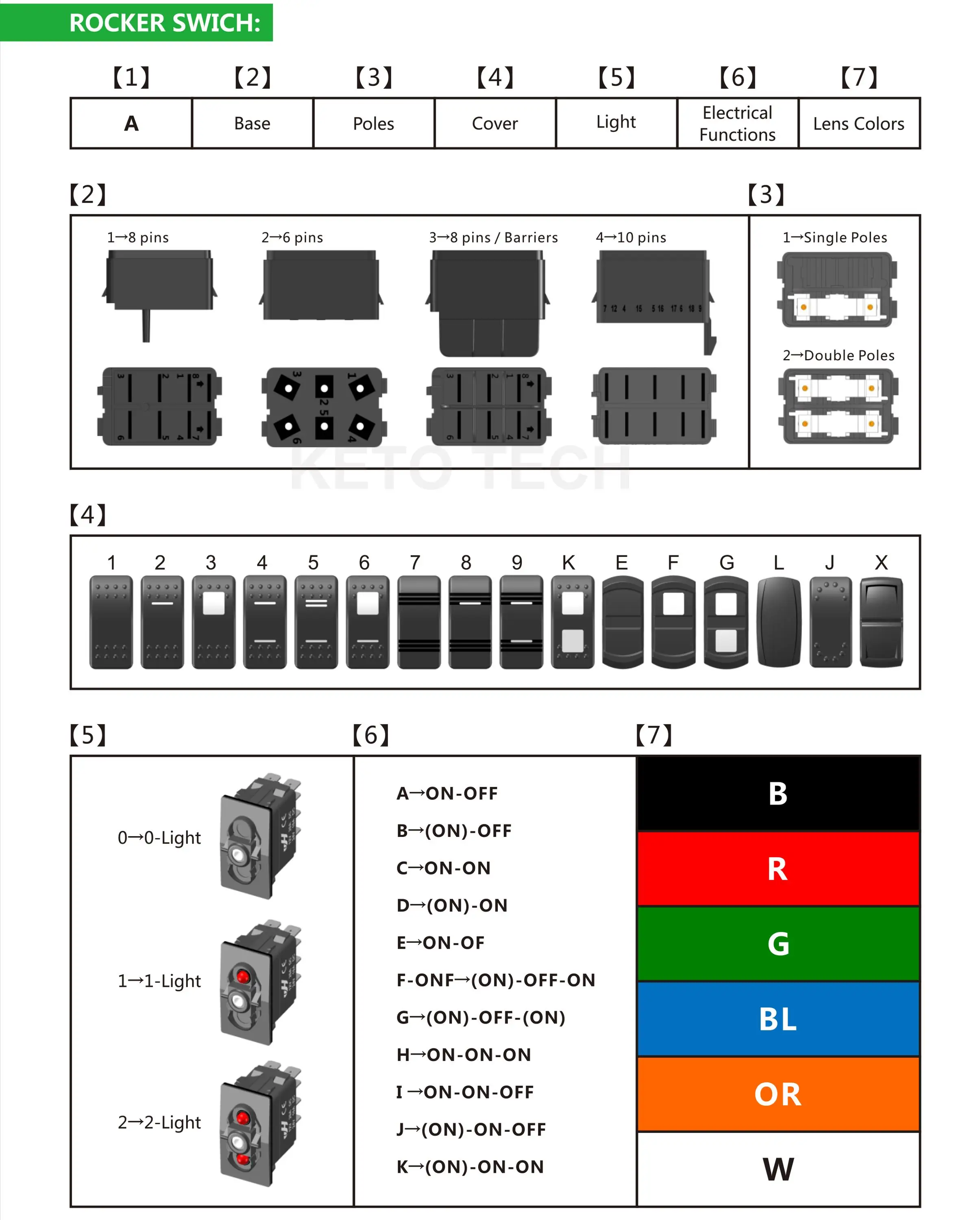

Electronic function: SPST/SPDT/DPST/DPDT | A On-OFF B (ON)-OFF C ON-ON D (ON)-OFF-(ON) E ON--ON-ON F ON-ON-OFF G (ON)-ON-OFF H (ON)-ON-ON
|
Maximum continuous load | AC 125V/10A ,12V/20A,24V/10A |
Maximum load and time | DC 12V/23A 24V/11.5A, 5 second /1 Cycle, 30 Cycles continuously |
DC maximum voltage | 30V |
| DC minimum voltage | 3V |
| Work cycle | 5 second /1 Cycle |
| Product life cycle without load | 20 000 Cycles |
| Product life cycle full load | 10 000 Cycles |
What is The PRODUCT FEATURES of Our Rocker Switch?
| Keto Rocker Switch | |
| Material | PA66 Nylon Flame Resistance Eco-friendly ABS plastic |
| Certificate | CE,Rohs,Reach, IP66,E-mark |

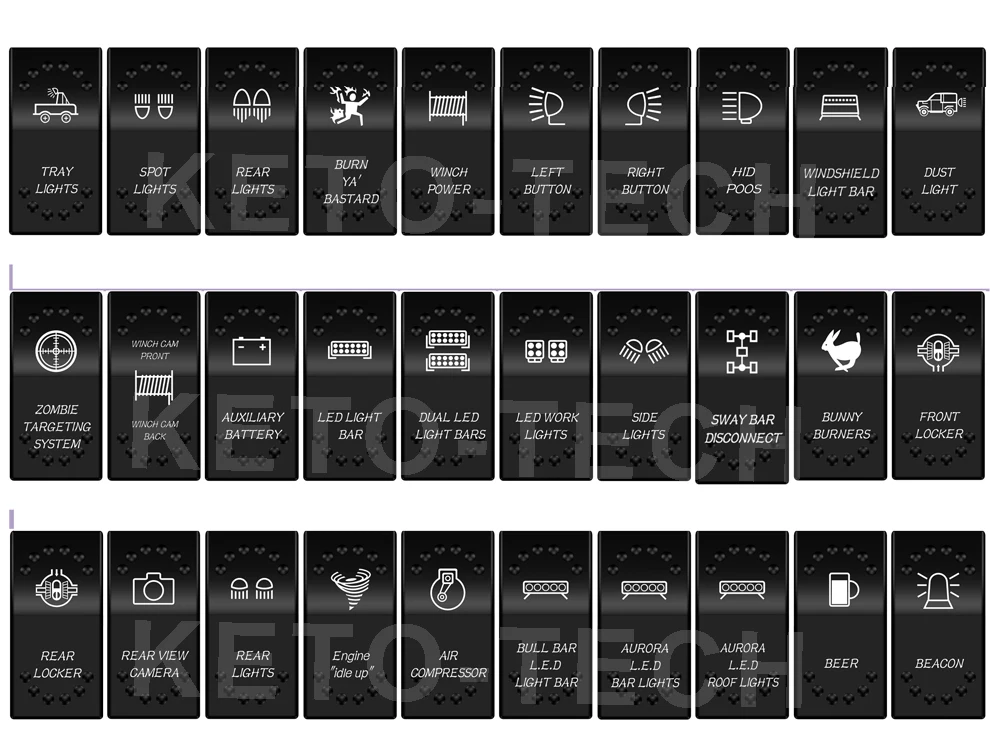

| Symbol | Silk printing or Laser for symbol in the acutator |
| Protection | Output circuit protection, overload protection, reverse polarity protection |
| OEM/ODM | OEM Rocker Switch accepted |
| MOQ | 50pcs for stock items |
Click for More Information!!!
Which Rocker SWITCH do I Need?
Rocker Switches are a popular range of durable and reliable switch body as used as automotive and marine equipment. Keto offers the rocker switch Contura II, V, XIV switches together with a range of dedicated switch mounts and accessories.
Off-On One-way switch to simply switch on and off, e.g. Spotlamps
Off-Mom Momentary switch which can be used as either a fog switch on the later Defender, or simply as a horn function. See Wiring Diagram.
On-On Single Pole ON-ON switch for 2-way operation of accessories with their own switched facility.
Off-On-On Three position switch allowing you to wire two auxiliary circuits through one switch. Typical application would be for controlling two pairs of spotlamps or two electric fans via the one switch. Click switch once to activate circuit one; click again to activate circuits one and two.
On-Off-On This alternative three position switch allows you to wire two auxiliary circuits through the one switch. This switch operates where circuits one or two are activated completely independently from one another.
This switch will replace the standard switch supplied with the popular Exmoor Trim/Waeco heated seat kits
Mom-Off-Mom Momentary spring loaded 2-way rocker switch. Use the DP switch wiring when using the momentary switch as an electric window control. Use the SP switch wiring when using the momentary switch as a winch control.
| Packaging | Normal bilster bulk packing , Cardboad blister packing |
| Carton Size | 36*33.5*56cm 500pcs per Ctn |
| Gross weight | 18KGS |
| Shipping | DHL/Fedex/UPS or by sea |
| MOQ | 50pcs/design for stocked symbol |
FAQ
- Q What is the MOQ ?
- A50pcs for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change
it. It is about 2 days after confirming the order. - QCan I get the pre-production sample ?
- AYes, we will send you production sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormally 15-20 working days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur factory production quality follow ISO9001:2015, We have 5 years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
