China Alibaba Supplier PVC Plastic Building Material Wall Panel and PVC Ceiling Panel Extrusion line
- Category: >>>
- Supplier: Yingkou Minzheng Plastic Machinery Co. Ltd.
Share on (62481696031):
Product Overview
Description
Product Description
Specifications
PVC Panel Production Line/ PVC Panel Extruding Line
1.for PVC decoration panel making
2.twin screw extruder
PVC Panel Production Line/ PVC Panel Extruding Line/PVC Sheet Extruding Line
JZ series PVC Panel Production Line is used for the PVC panel extruding, which is used for the indoor decoration sheet and pvc
hollow door.
Features:
1.It is composed of conical twin screw extruder,vaccum calibration table,haul-off unit,cutter and stacker.
2.It is also coordinated with different break-section and mould to produce PVC door and sheet. profiles,foamed special shaped
materials,decoration plates,profiles and multi-hole wire plastic products etc.
3.The capacity of main extruder from 150kg/h to 450kg/h for option.
4. Special design for caterpillar type haul-off machine by particular up and down technology, working stable, reliable and heavy
duty force
PVC Panel Production Line/ PVC Panel Extruding Line
1.for PVC decoration panel making
2.twin screw extruder
PVC Panel Production Line/ PVC Panel Extruding Line/PVC Sheet Extruding Line
JZ series PVC Panel Production Line is used for the PVC panel extruding, which is used for the indoor decoration sheet and pvc
hollow door.
Features:
1.It is composed of conical twin screw extruder,vaccum calibration table,haul-off unit,cutter and stacker.
2.It is also coordinated with different break-section and mould to produce PVC door and sheet. profiles,foamed special shaped
materials,decoration plates,profiles and multi-hole wire plastic products etc.
3.The capacity of main extruder from 150kg/h to 450kg/h for option.
4. Special design for caterpillar type haul-off machine by particular up and down technology, working stable, reliable and heavy
duty force
Item | PVC50 | PVC160 | PVC250 |
Specification | 16-50 | 63-160 | 160-250 |
Extruder | SJSZ48/112 | SJSZ65/132 | SJSZ80/156 |
Mould | 1 suit | 1 suit | 1 suit |
Vacuum shaped tank | 4000mm | 6000mm | 6000mm |
vacuum pressure(Mpa) | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 |
Max traction force(N) | 10000 | 15000 | 20000 |
Traction speed/min/max | 10 | 6 | 4 |
Effection traction length | 1000 | 1500 | 1500 |
Compressed air capacity m3/h | 0.4 | 1.0 | 1.2 |
Water consumption m3/h | 5 |
First Part

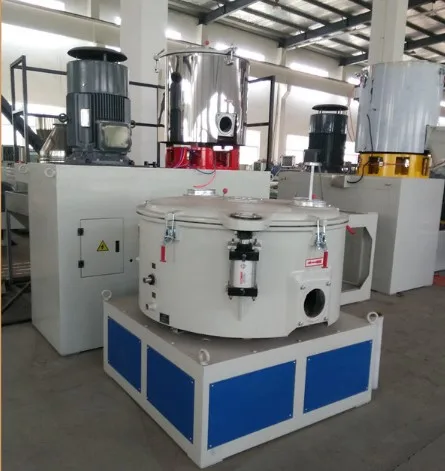

MIXER
Equipment operation conditions:
1. Model size:300/600
2. Power: 380 V,50 Hz,
3 phase
3. Compressed air: 0.4-0.6 Mpa G
3. Compressed air: 0.4-0.6 Mpa G
Second part-

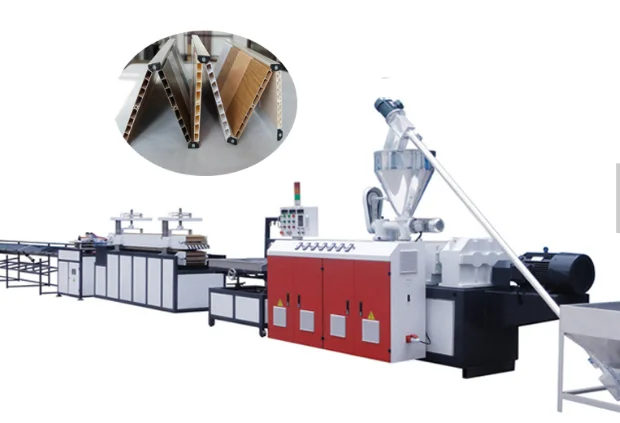

production line includes the following major parts:

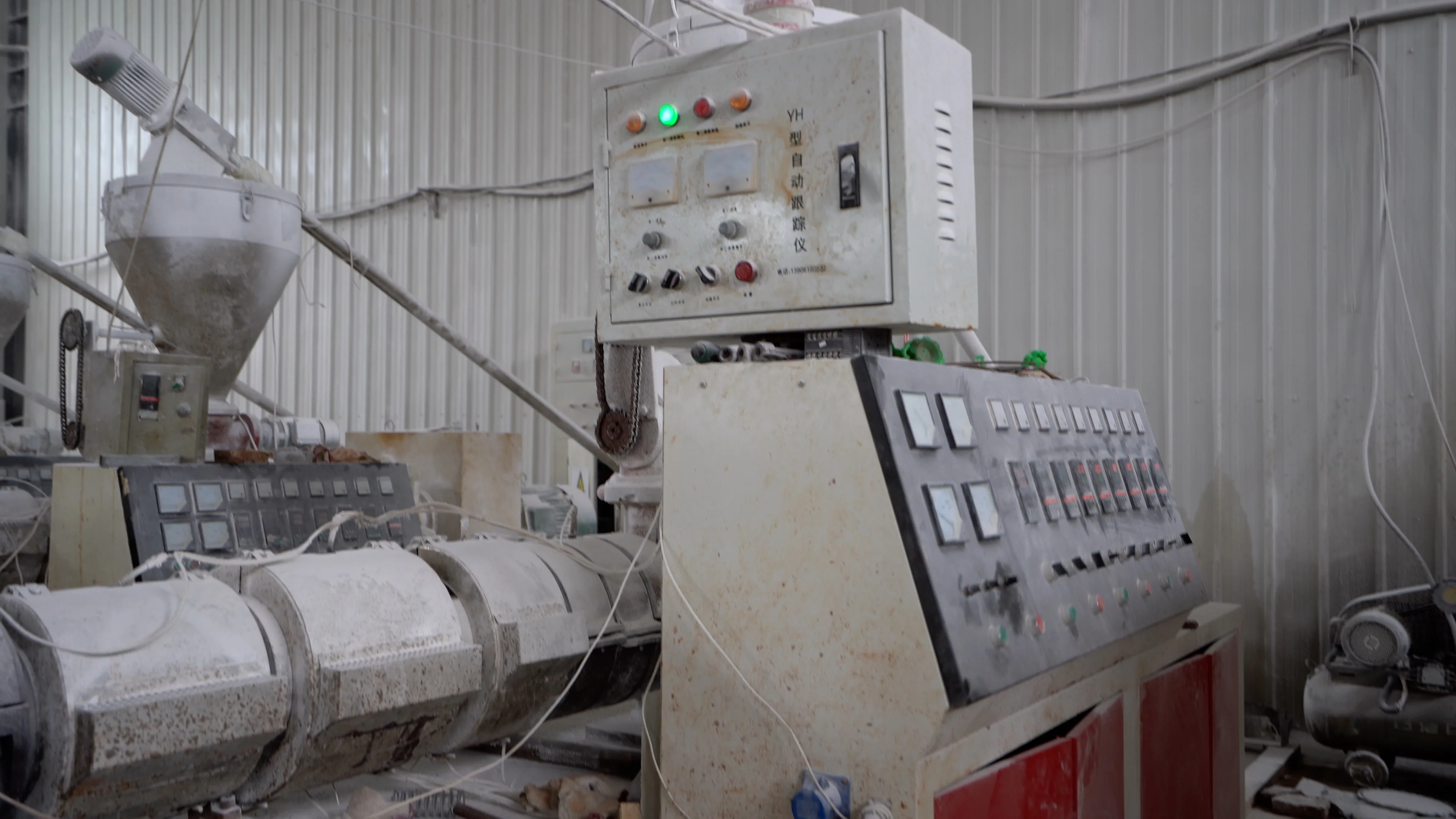

1. Conical twin screw extruder

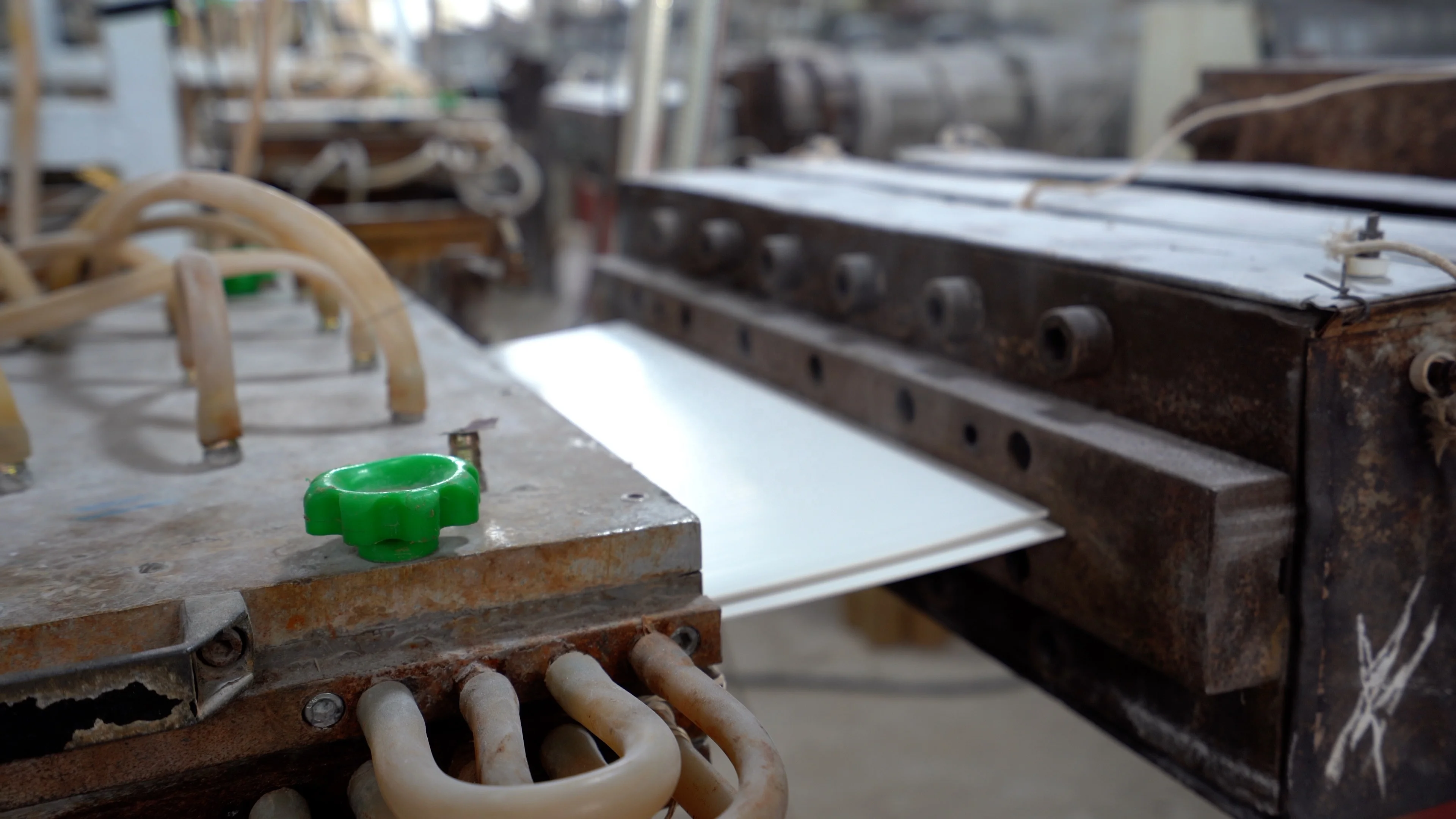

2. panel mould
3. vacuum caliber moulding machine
4. hauling off and cutting machine
5. panel stacker
Detailed Images
Size Information
Extruder model | Max output(kg/h) | motor power(kw) |
SJZ51/105 | 100 | 18.5 |
SJZ51/105 or SJZ55/110 | 100/150 | 18.5/22 |
SJZ65/132 | 250 | 37 |
SJZ65/132 | 250 | 37 |
SJZ80/156 | 350 | 55 |
SJZ80/156 | 350 | 55 |
SJZ80/156 | 400 | 75 |
Related Products
Packing&Shipping
After Sales Service
Services Online.
Available 24/7, in 9 languages, one-stop online shopping. help you to improve your line and maintain its performance.
Company Introduction
Yingkou Minzheng Plastic Machinery CO., LTD.(JZ Equipment) was founded in 1993, covering an overall of 8000㎡area. More than 100 people work together to render our service for you.
Our company is specialises in developing, designing and manufacturing SM30/40/50 spiral steel silo forming equipments and sales of its products are widely used in bulk cement, grain storage and etc.
Our company is specialises in developing, designing and manufacturing SM30/40/50 spiral steel silo forming equipments and sales of its products are widely used in bulk cement, grain storage and etc.
Our Services & Strength
Available 24/7, in 9 languages, one-stop online shopping. help you to improve your line and maintain its performance.
FAQ
Q1.How many days to make machine?
Normally,it takes about 45 days to finish all machine when customer order.
Q2.What is the payment terms?
TT or irrevocable LC at sight .
Q3.How long is the guarantee?
12 months.
Q4.How to install machine when machine arrive?
We will arrange our engineer to guide customer`s worker how to install and operate the machine.
Normally,it takes about 45 days to finish all machine when customer order.
Q2.What is the payment terms?
TT or irrevocable LC at sight .
Q3.How long is the guarantee?
12 months.
Q4.How to install machine when machine arrive?
We will arrange our engineer to guide customer`s worker how to install and operate the machine.
