The precision cutting machine is used to cutting stainless steel, copper strip, galvanized strip, aluminum strip, cold rolled metal. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.

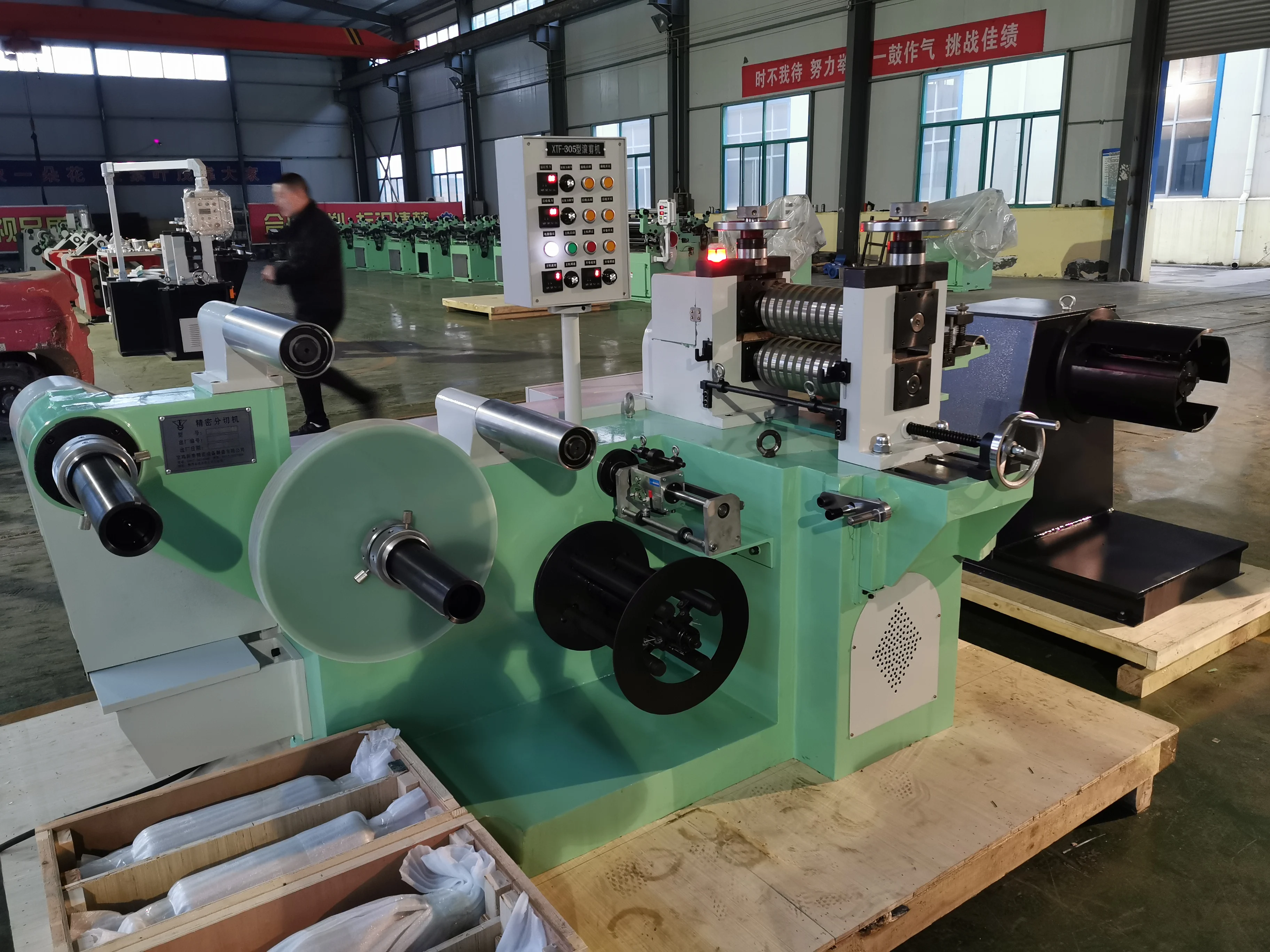

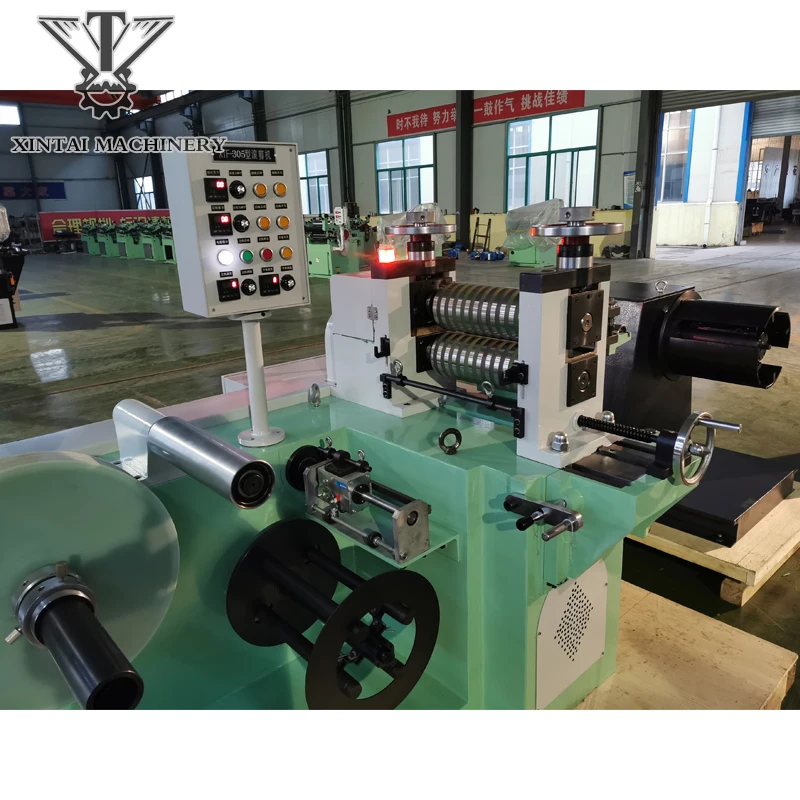

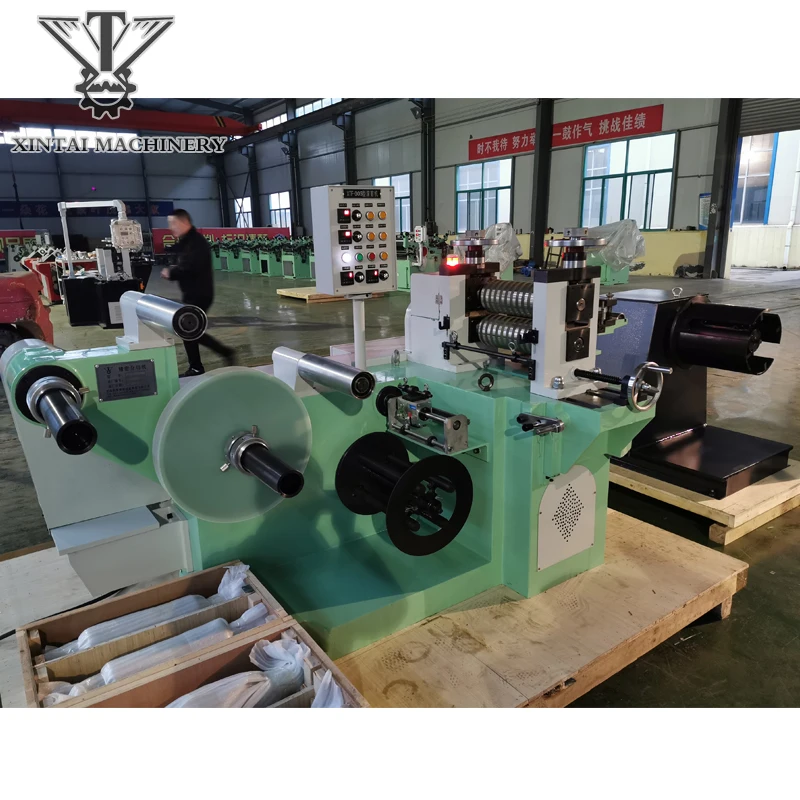

Slitting Machine For XTF-220
Type
XTF220
Raw materials thickness
0.05mm-0.6mm
Width of raw materials less than
220mm
Outer diameter of raw material
< 600mm
Raw material inner diameter
280mm-320mm (customizable)
Weight of raw materials less than
400Kg
Finished product width
2mm-220mm
Outer diameter of finished coil
≤350mm
Inner diameter of finished coil
80mm (customizable)
Number of sliced strips
25 (depending on the thickness of the cut)
Width tolerance of finished product
±0.02mm
Equipment speed
1-80 m/min
Coverage of equipment
L*W*H : 1.5m*1m*0.6m
Equipment weight
1T
Main Features
1. This machine is suitable for longitudinal shearing of rolling metal strips. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed. 2. Product warranty period is one year, non-human problems, free spare parts are provided during the warranty period, and the supplier is responsible for the lifelong maintenance of equipment. 3. Equipment color: black and white (customizable) 4. Date of production: 15 days 5. Support overseas after-sales service.

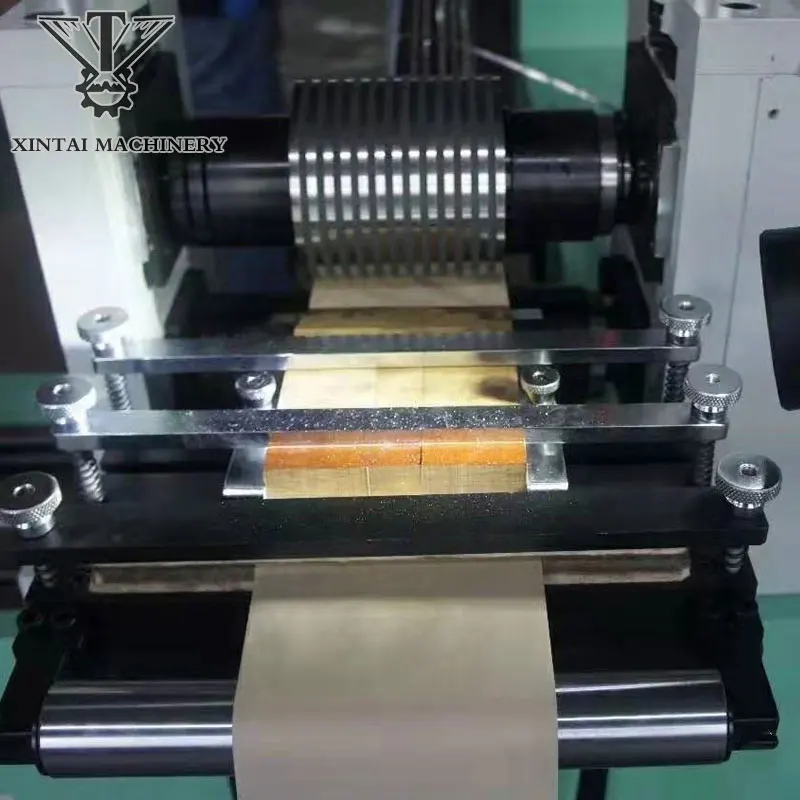

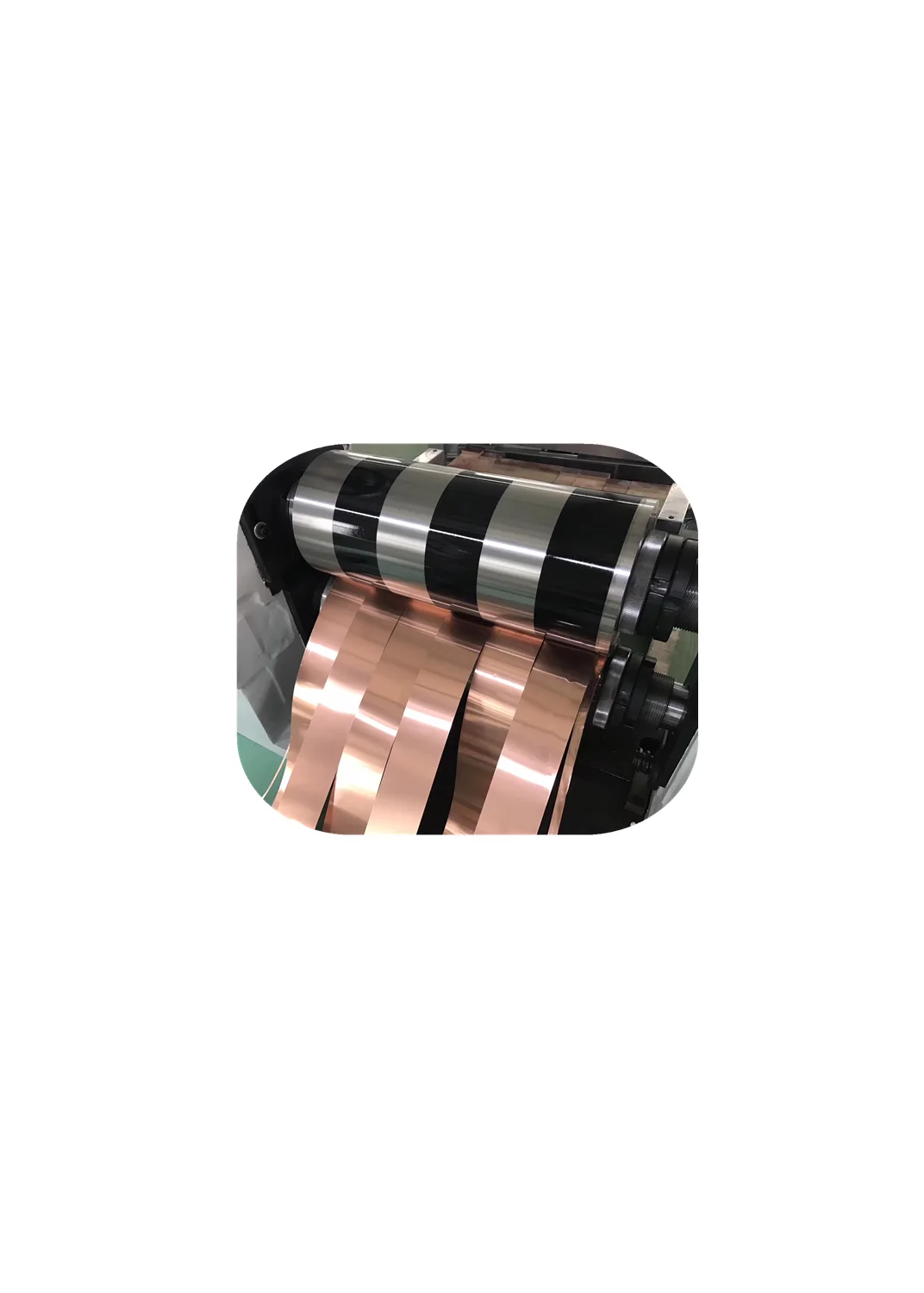

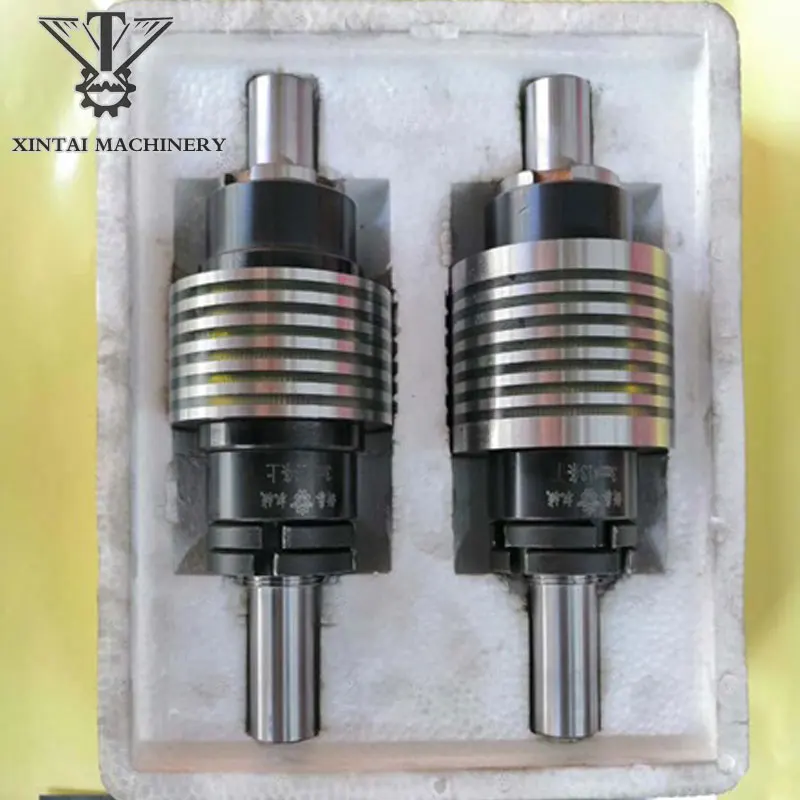

Detailed Images
Raw material parameter
1. Raw materials: stainless steel/copper strip/galvanized strip/aluminium strip/cold rolled and various metal strips 2. Slitting zone thickness: 0.05mm-0.6mm 3. Maximum feed width: <220 mm 4. Maximum Outer Diameter of Raw Materials: <600 mm 5. Raw material inner diameter: 280mm ~ 320mm (customizable) 6. Raw material weight: <400 kg

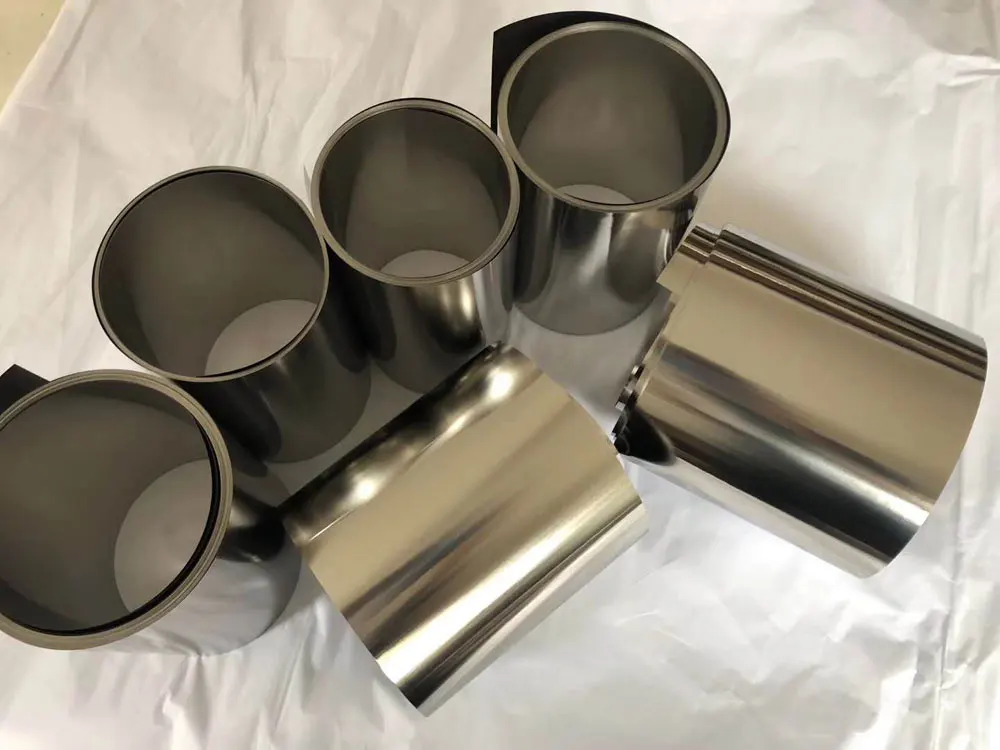

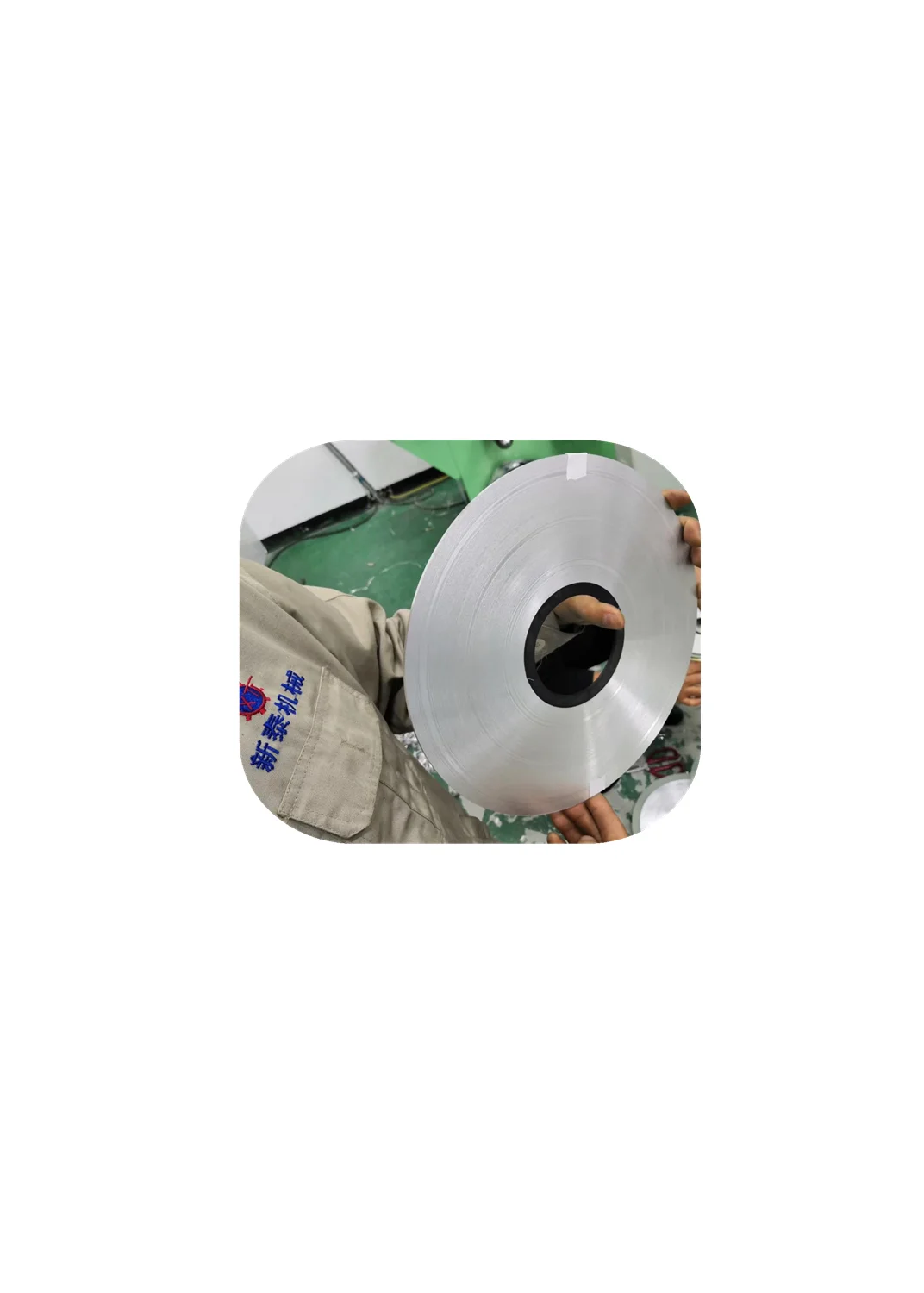

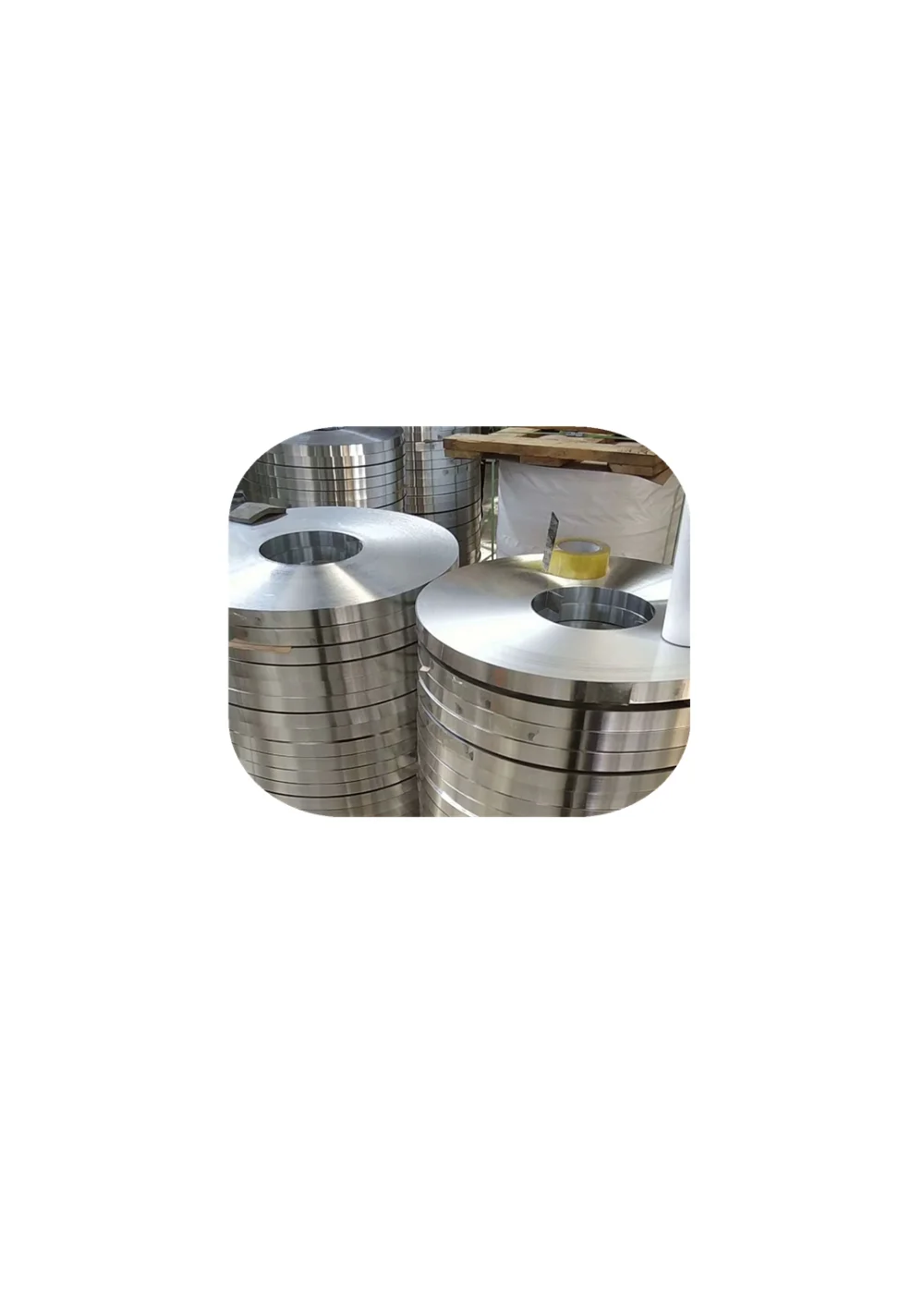

Finished product parameters
1. Material width of finished product: 2mm~220mm 2. Outer diameter of finished coil: <350mm 3. Finished coil inner diameter: 80mm (customizable) 4. Number of slices: 25 (depending on the thickness of the material) 5. Width tolerance of finished product: ±0.02mm
Device parameters
1. Operation direction of equipment: from right to left 2. Equipment speed: 1-80 m/min 3. Equipment capacity: 4KW 4. Equipment coverage L*W*H:1.5m*1m*0.6m 5. Equipment weight: 1T
Electrical parameters
1. Inverter: Audi (China) 2. Intelligent Voltmeter: French School (China) 3. Intermediate relay: Omron (Japan) 4. Electrical Switching Components: Zhengtai (China) 5. Equipment Power Supply: Sanhuo 101, AC380V, 50Hz 6. Motor: Wuxi, China 7. Reducer: Wuxi, China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* video support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
1.5m (L) * 1m (W) *0.6m (D)
Weight
1.1T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

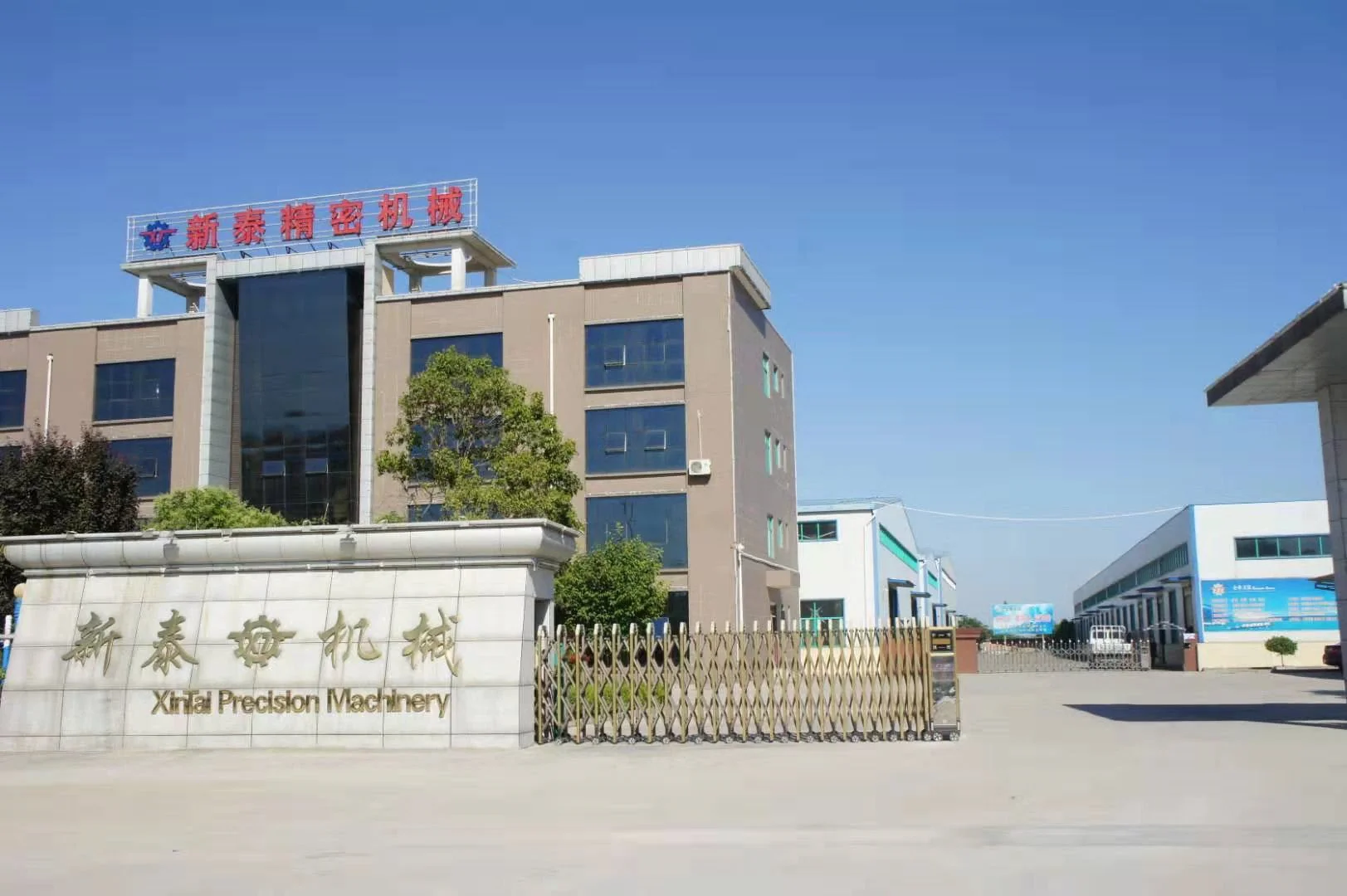

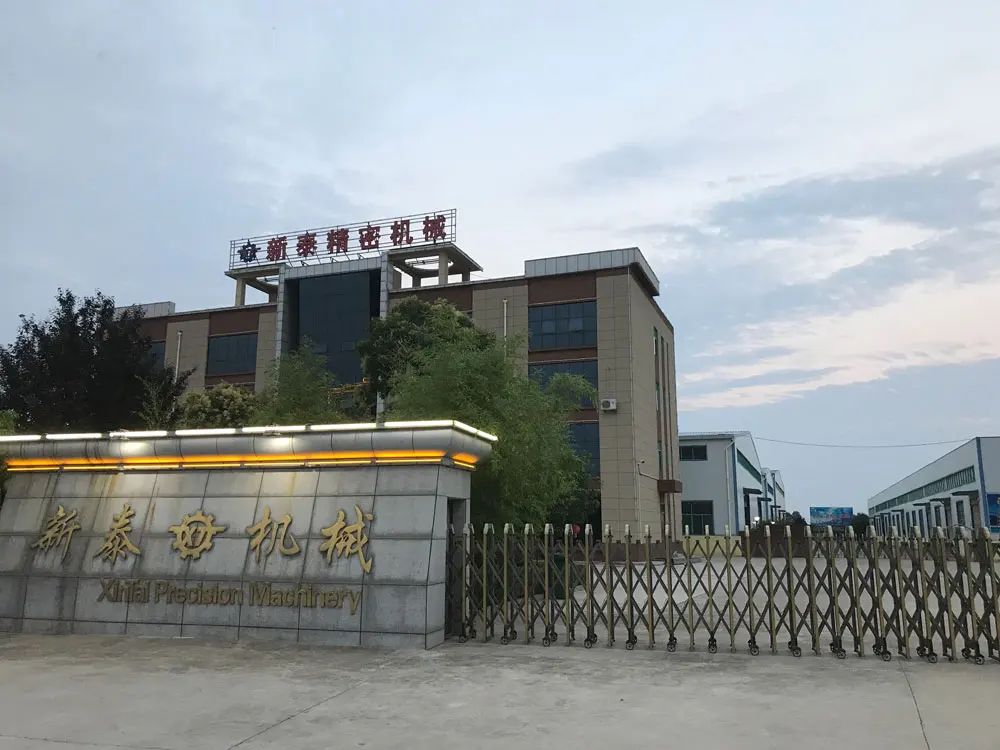

Our Company

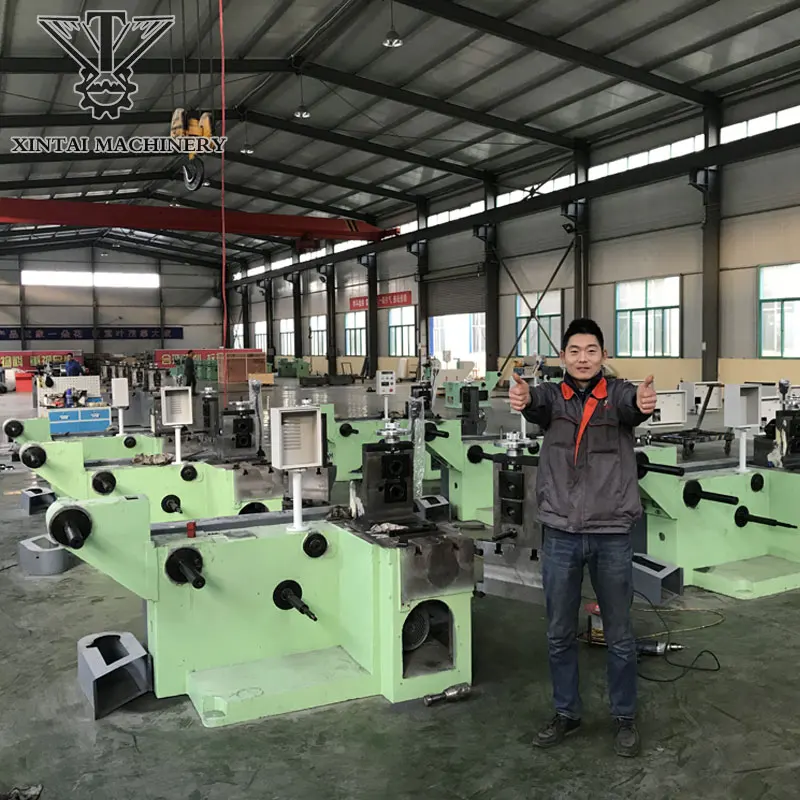

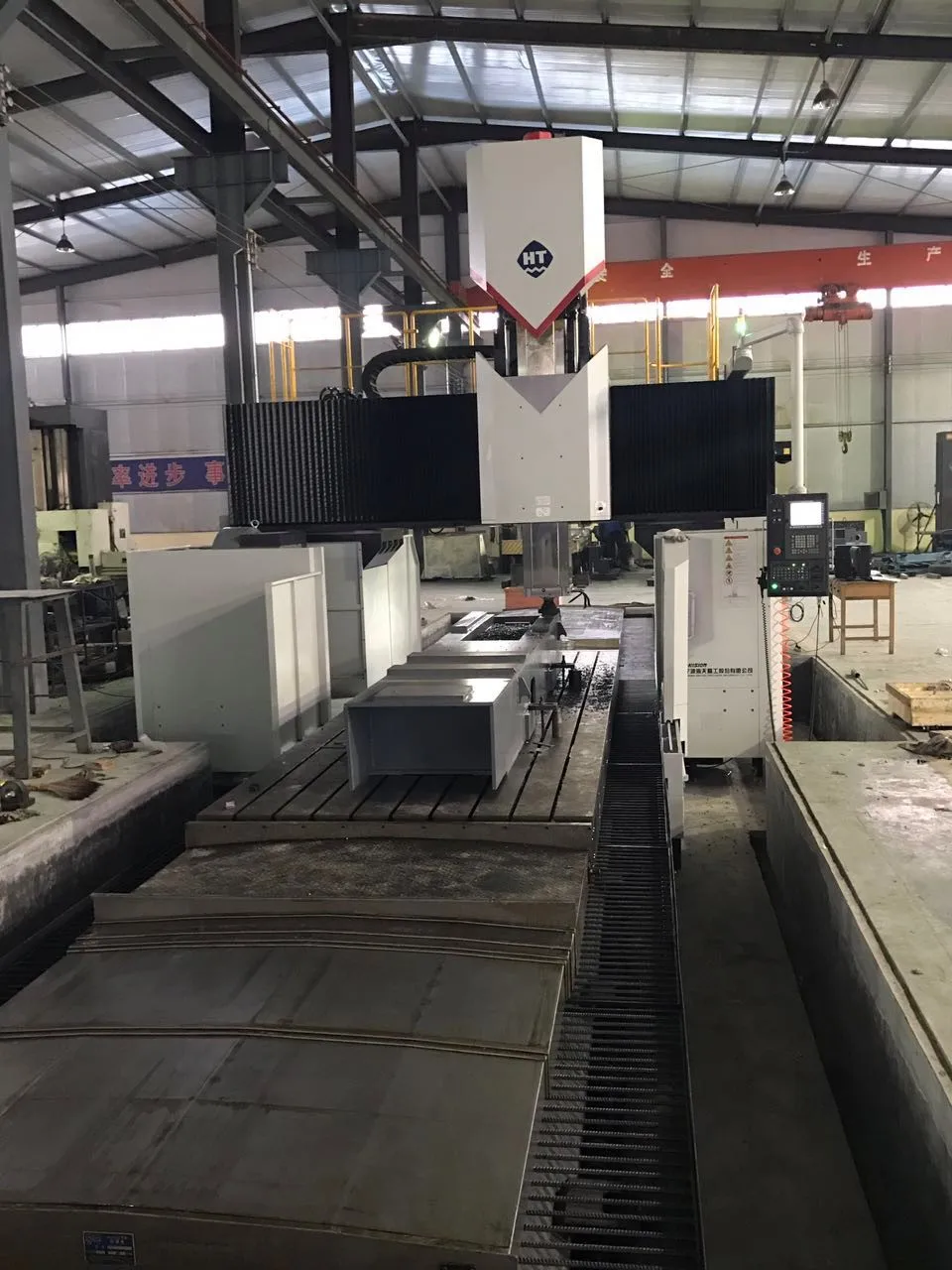

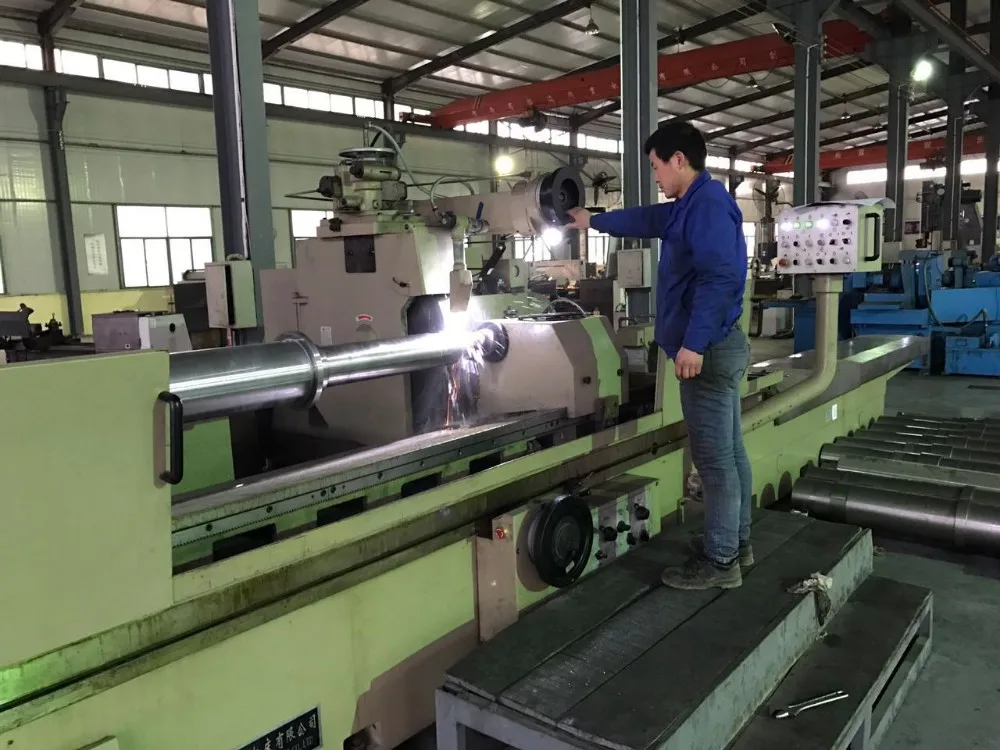

Production workshop
In our company, skilled men are more, all kinds of methods of production process are complete, product quality guarantee system and test system are complete. As per user requirements, we produce special equipment of different types. Abundant technology and advanced management idea constitute serious quality guarantee system and strong researching and devolvement ability.
Customer satisfaction is eternal target of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, high qualified, warm and thoughtful service are eternal commitment of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD for you.
Service commitment To ensure that the maintenance service and fault fixing are carried out in time, fast and effective, we are equipped with full time staff, spare parts and special savings.
We are equipped with full time maintenance engineers talking about business.
