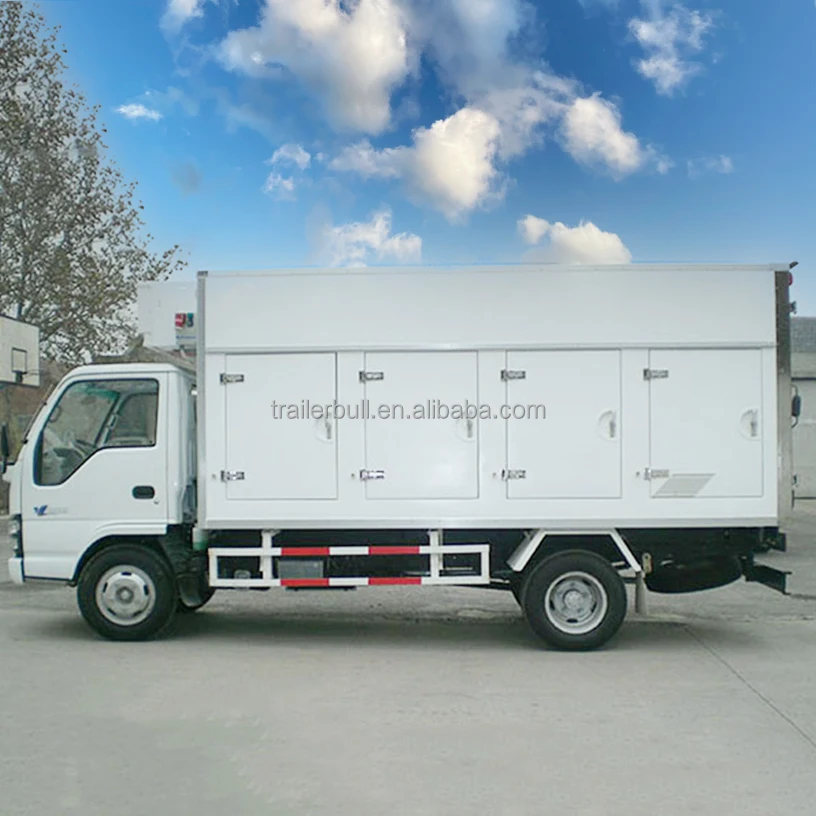

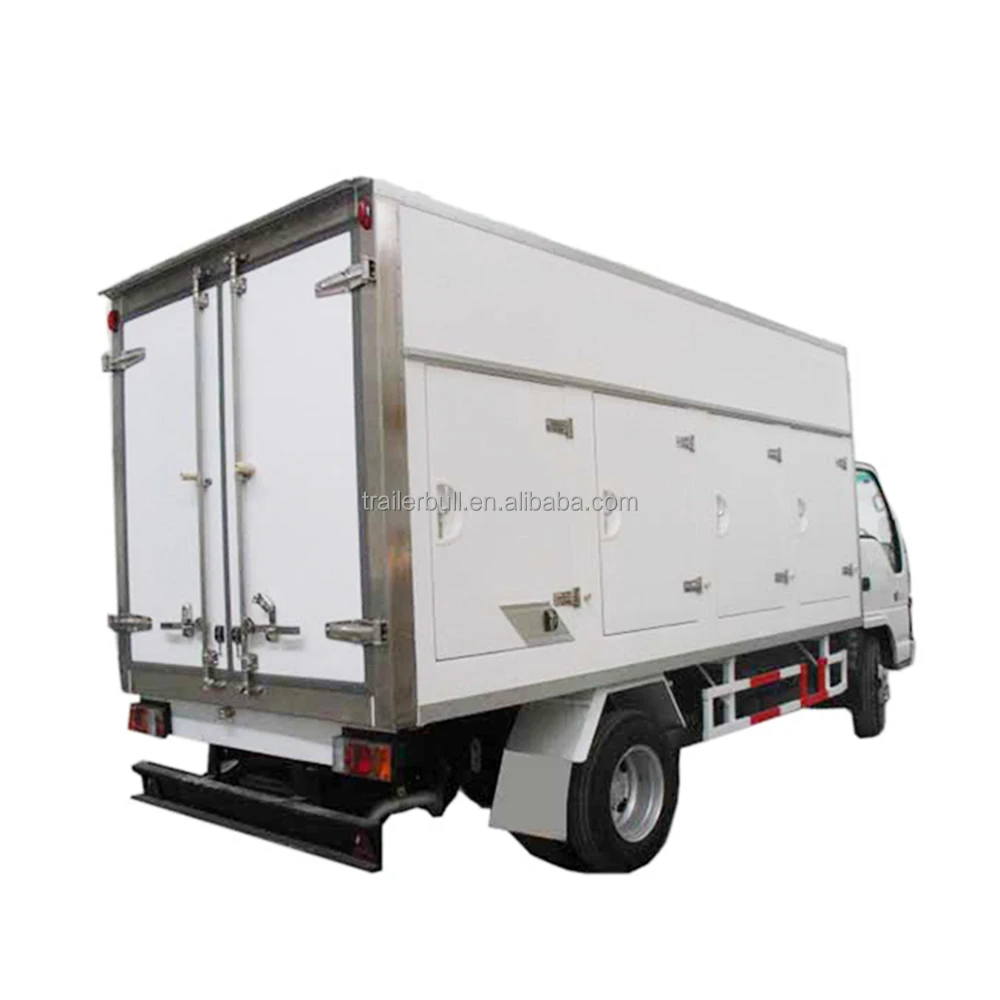

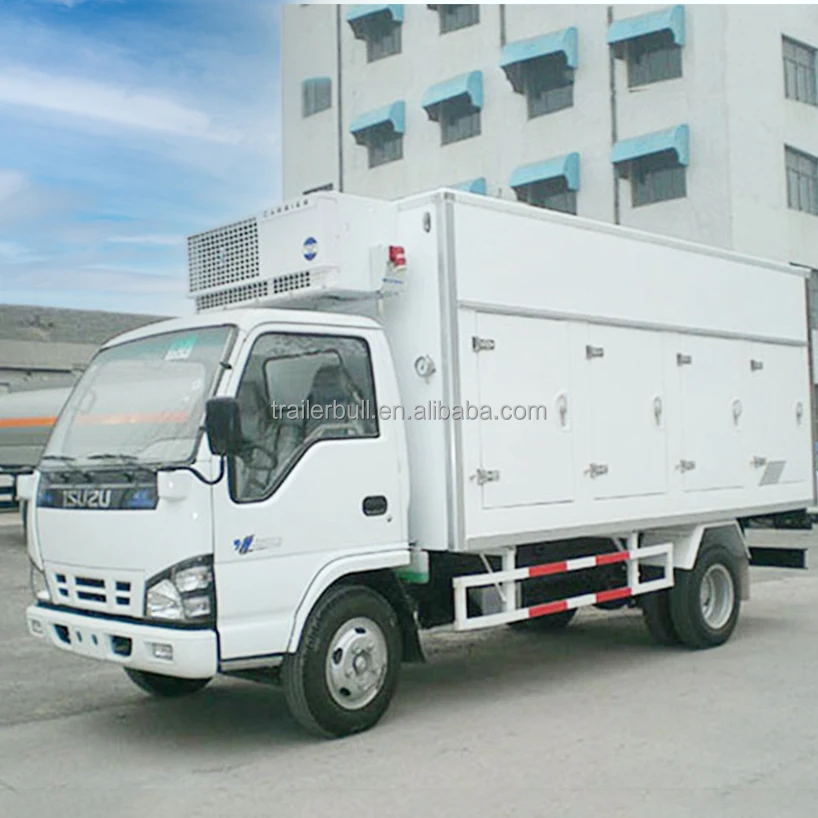

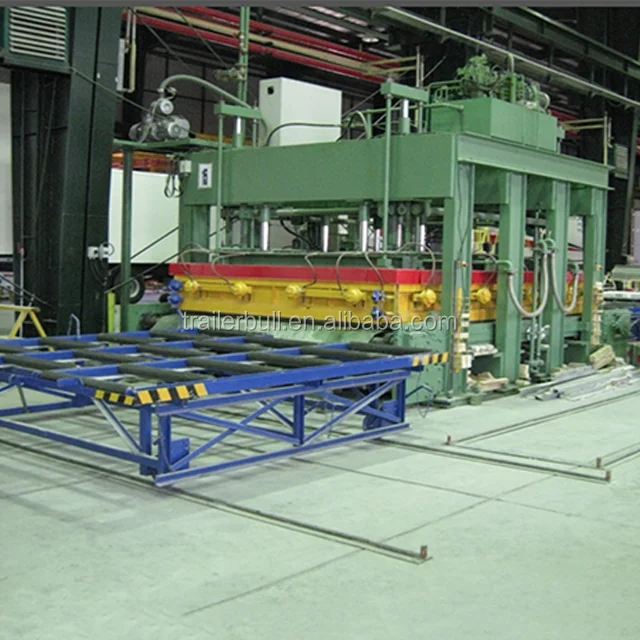

Охлажденный корпус грузовика для мороженого, изготовленный из FRP, изолированные сэндвич панели с эутектическими пластинами, холодильные установки для мороженого

1. MODEL:

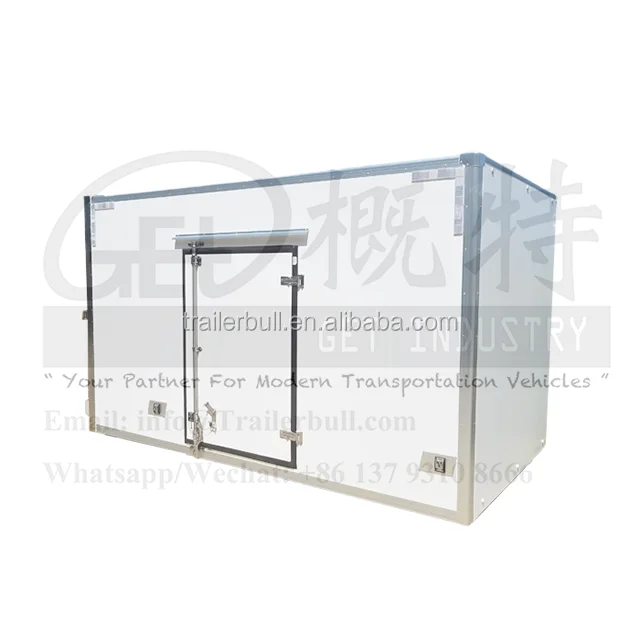

ALL-PLASTIC FRP BOX is a pre-installed truck box which can be mounted directly onto the chassis of the vehicle using its lower fixed frame, This TRUCK BODY made with our All-plastic Van body panels, can equip the Thermoking or carrier refrigerator units to transport the frozen or fresh food and vegetables with temperature from -18 ℃ to 15℃. can also be refitted to be the RV motorhome , expedition TRUCK BODY or Camper box with inside Furniture layout.

3. GENERAL

K .Value for the Composite Box

0.295 W/㎡ ℃

Max. Overall Length

48 ft

14,750 mm

0~14750mm can choose

Max. Overall Width

10 ft

3,200 mm

0~ 3200 mm can choose

Max. Overall Height

10 ft

3,200 mm

0~3200 mm can choose

Max. Floor Thinckness

4 .13 inch

105 mm

45-105mm can choose

Side Wall Thickness

3 .31 inch

84 mm

45-105mm can choose

Front Wall Thickness

4 .13 inch

105 mm

45-105mm can choose

Rear Door Panel

3 .31 inch

84 mm

45-105mm can choose

Roof Wall

4 .13 inch

105 mm

45-105mm can choose

4. Box Structure

super Structure

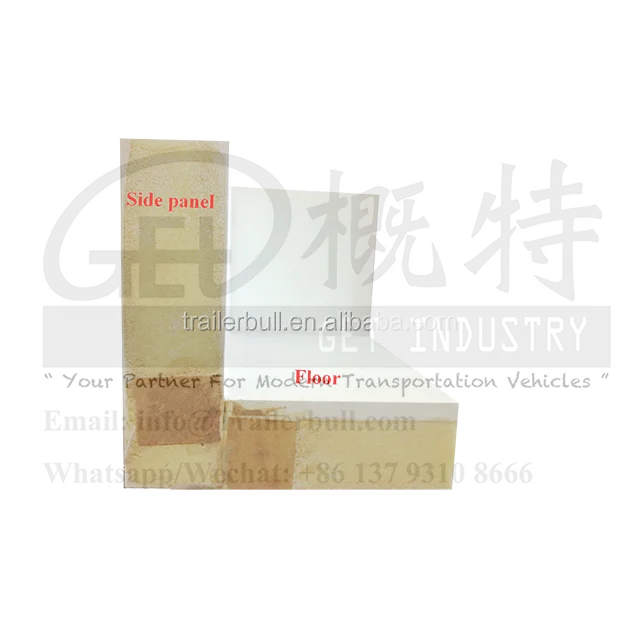

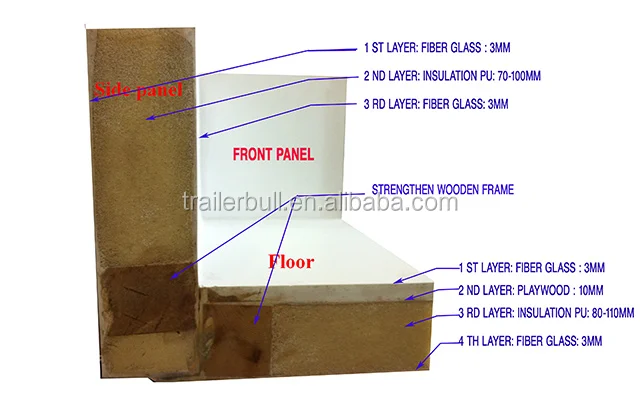

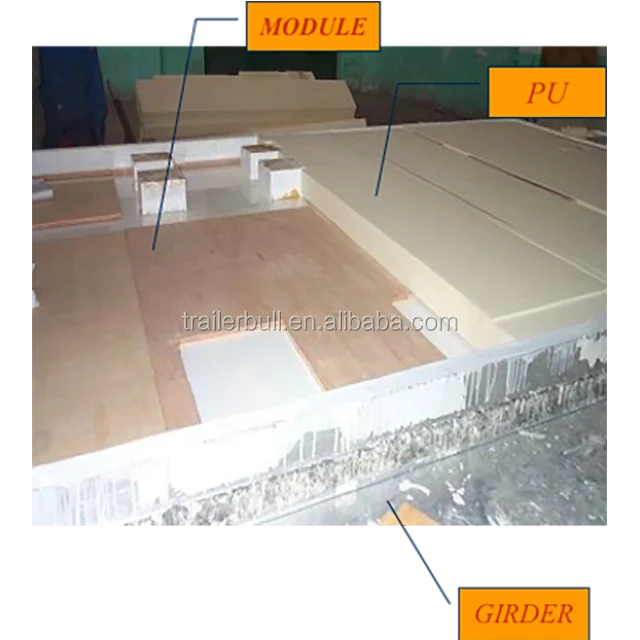

self-supporting body, without cross bars , inside and outside skin made of glass fibre reinforced polyester, reinforced with Z-Straps , the Core of hard foam with best insulation properties.
Without metallic carrier elements = without direct heat conductivity
The body are watertight
the plastic elements are flam resistant

Rear Wall

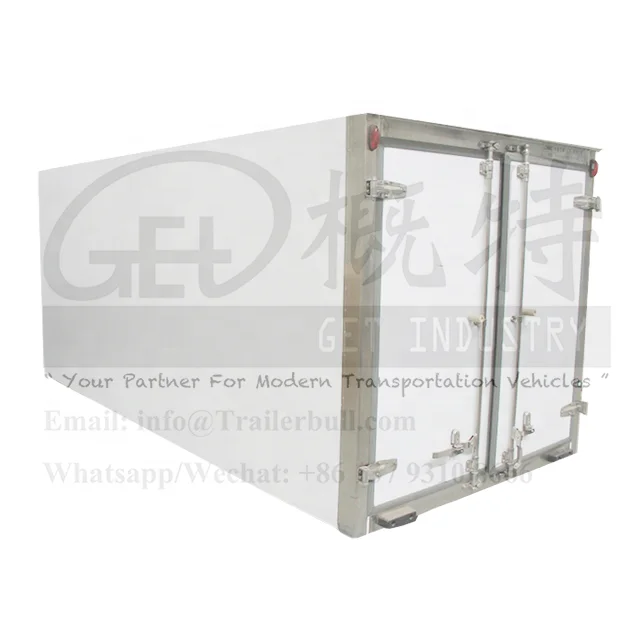

Three -wing Rear door , approx ,80 mm thick with 5-fold special sealing ,rigid frame joints.
Each Door Wing with 1 external power-brace lock with one -hand operation
Door Wings inclinable to the sidewalls with hold-open device (loose)

Portal

stainless Steel

Surface

The Plastic elements are painted white, White gelcoat colour both side, uv resistant, food grade approval

5. Installation:

It Is Very Easy To Assemble Our Insulated Bodies, Because Applying Polyurethane Adhesive To The Joint Area Of The All-Closed Sandwich Panels, Which Ensures The Joint Reliability And Optimum Insulation, Forms Them. All Bodies CKD We Provide Have Included All Necessary Accessories Such As Aluminum Angles, Aluminum Corner, Sealing Glues, Screws, Side Guards, Etc. Therefore, You Can Assemble Them By Yourself Without Purchasing Any Material. Generally, 3-4 Workers Can Assemble 5-6 Bodies Everyday. Moreover, At The Beginning We Will Assign Our Engineers To Supply You Some Technical Guidance.

CKD Panel Kits

1. Prepare the chassis
2. Mount the partial Sub-Chassis and the floor plate on the chassis with Supplied U bolts and other parts
3. Mount the side, front and the roof and the Rear Door Portal and the door with Glues approx.1.5 hours, with a set time At Least 8 h at +20 ℃ .
4. Install the required options
5. Finishing

CBU Box

1.Prepare the chassis
2. Mount the BOX together with subframes on the chassis
3. Install the required options
4. Finishing

6. Aluminum Profiles :

The used aluminum profile andonized silver , heat treated , harden metal which is made 6063 alloys,to wear resistance and strength to the box.

External Angle

Extruded Angle 100 X 150 X 3mm，Made Of Aluminum Include Front , Rear, Top And Lower Round Corners. To Protect The Corner And The
Side Of The Van.

Interior wrapping edge

Made of aluminum only the top side to arrange the wire of the light.

External wrapping edge

Made of aluminum alloy to protect the side edge of the van,vertical in the front is half round model, horizontal side is 90 degree
angle model.

7. Box profiles options:

Rear Doors

Tri-Wing rear door

Roll up rear door

Single-open side door

Double-open side door

Curtains for doors

Side door curtains

Rear door curtains

Floor profiles

M-coat floor-composite type

Alu. Checked plate floor 3mm -composite type

Stainless steel plate floor 1.5mm -composite type

Side air duct - alu.u channel vertical direction

Kick plate-aluminum 300*2mm-composite type

Aluminum Profiles

Cargo profiles

Cargo fix track

Side door steps

Evaporator proctor

Moveable compartment system ( box >5000mm can choose)

Meat carcass hanger system

Meat hang box design 3,4,5, 6 lines of sliding rail

Meat hooks

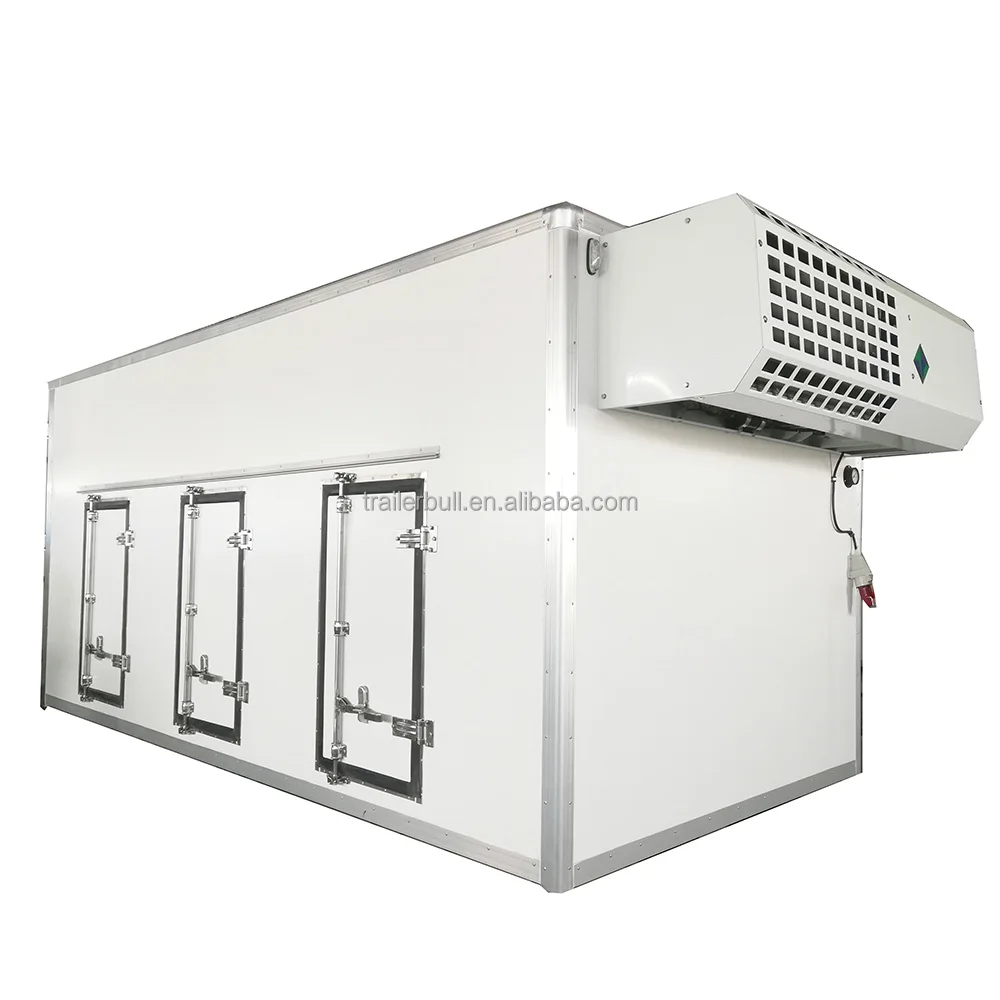

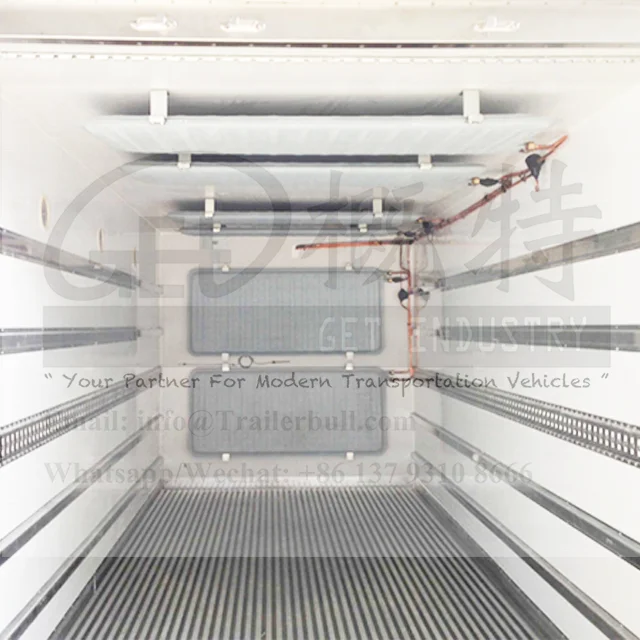

8. Temperature control

Refrigeration units

Refrigeration units: thermoking or Carrier with standby

Temperature sensor

Temperature sensors for medicine
two constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped
with an alarm system.

Temperature sensors for normal carogs:
one constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped
with an alarm system.

9. Hydraulic tail plate voltage: cantilever type 12/24v dc

1t model

Capacity:1000kgs

height: ≤1300mm

weight: 425kg (steel)

standard platform widthxheight: 1800*1650 mm

1.5t model

Capacity:1500kgs

height: ≤1300mm

weight: 620kg (steel)

standard platform widthxheight: 2300*1800 mm

2t model

Capacity:2000kgs

height: ≤1300mm

weight: 620kg (steel)

standard platform widthxheight: 2300*1800 mm
