Max.Speed Grade: -2
Temperature Grade: Industrial Grade

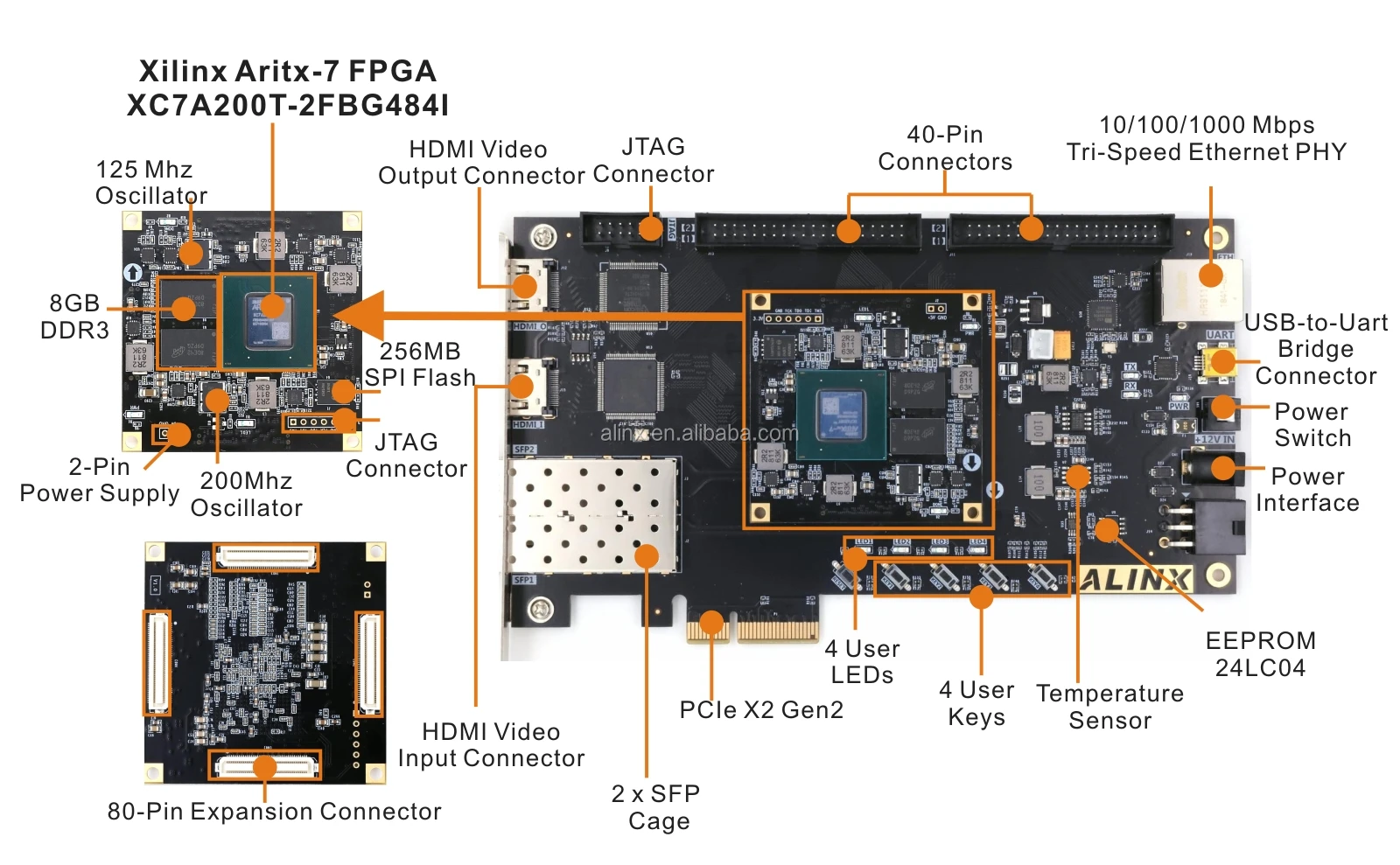

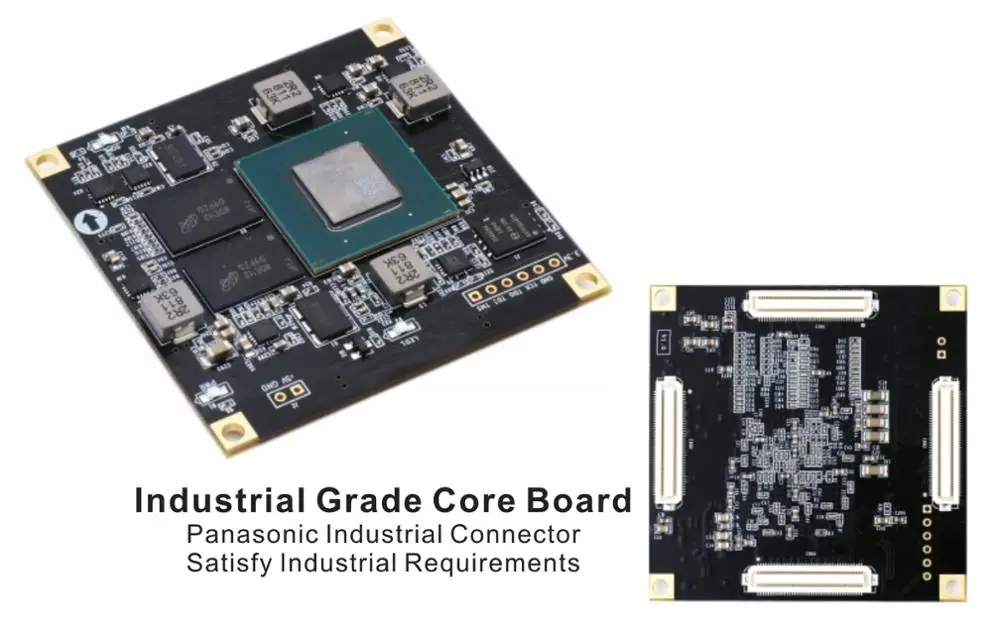

Core Board
FPGA: Xilinx Artix-7 XC7A200T-2FBG484I
Clocking:
Fixed Oscillator with differential 200MHz output, Used as the “system” clock for the FPGA and DDR Controller clock
Fixed Oscillator with differential 125MHz output, Used as SMA GTX reference clock input
Memory
8Gbit DDR3 SDRAM (2 pieces of 4Gbit) up to 400MHz / 800Mbps, 32bit bus
QSPI Flash: 128Mbit
Display:
3 LEDs (1 Power indicator LED, 1 Configuration Indicator LED and 1 User LED)
Reserved JTAG Testing poles, that user to weld if need.
Power: Reserved 2-pin power interface J2, that user to weld if user need to operate the core board independent, or power supply by carrier board.
Four 80-pin high-speed board to board connectors
Size Dimension: 2.36 inch * 2.36 inch

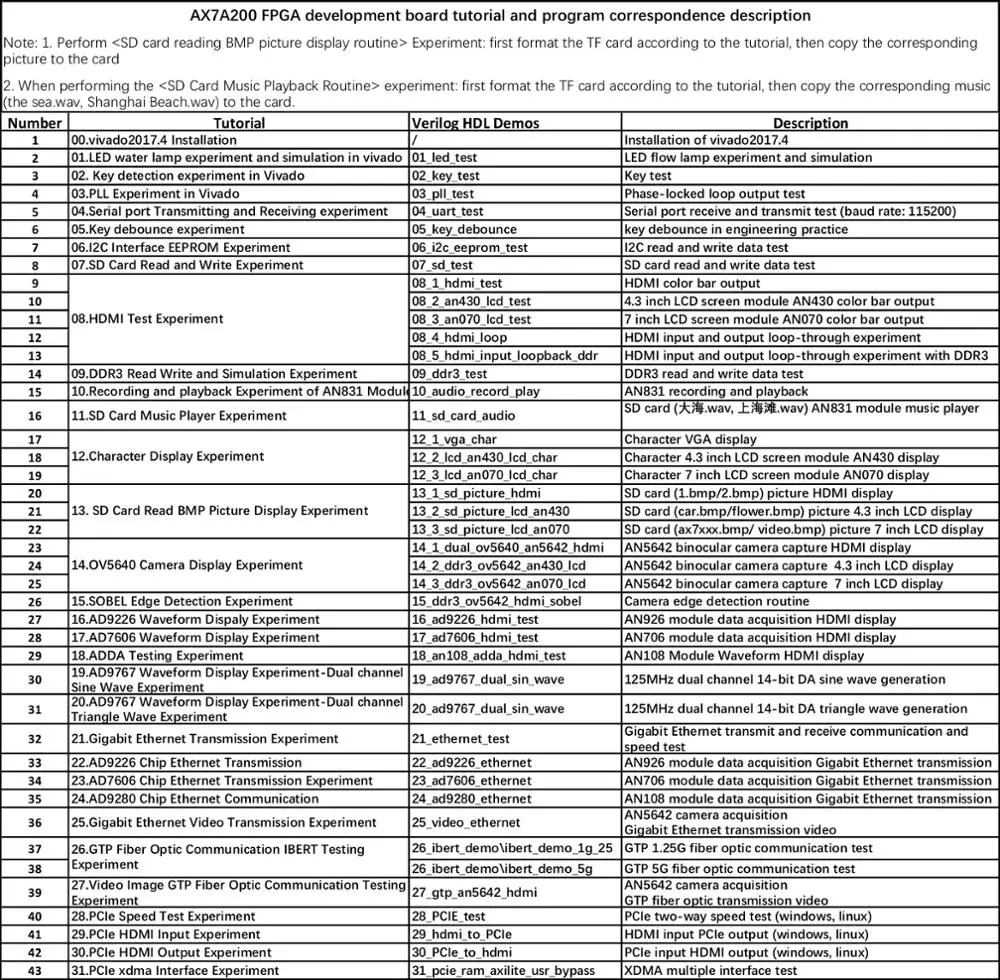

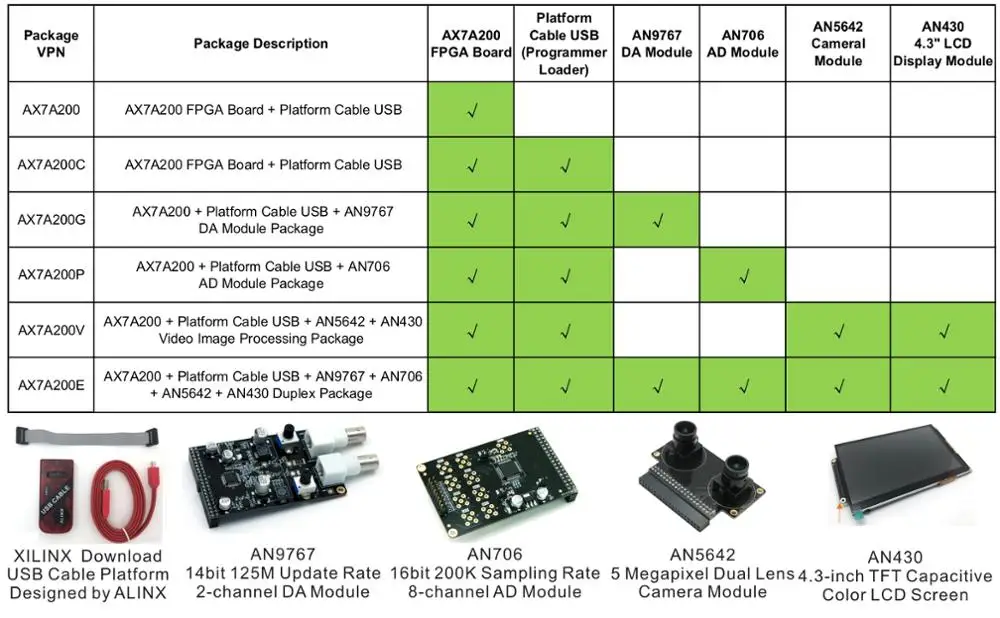

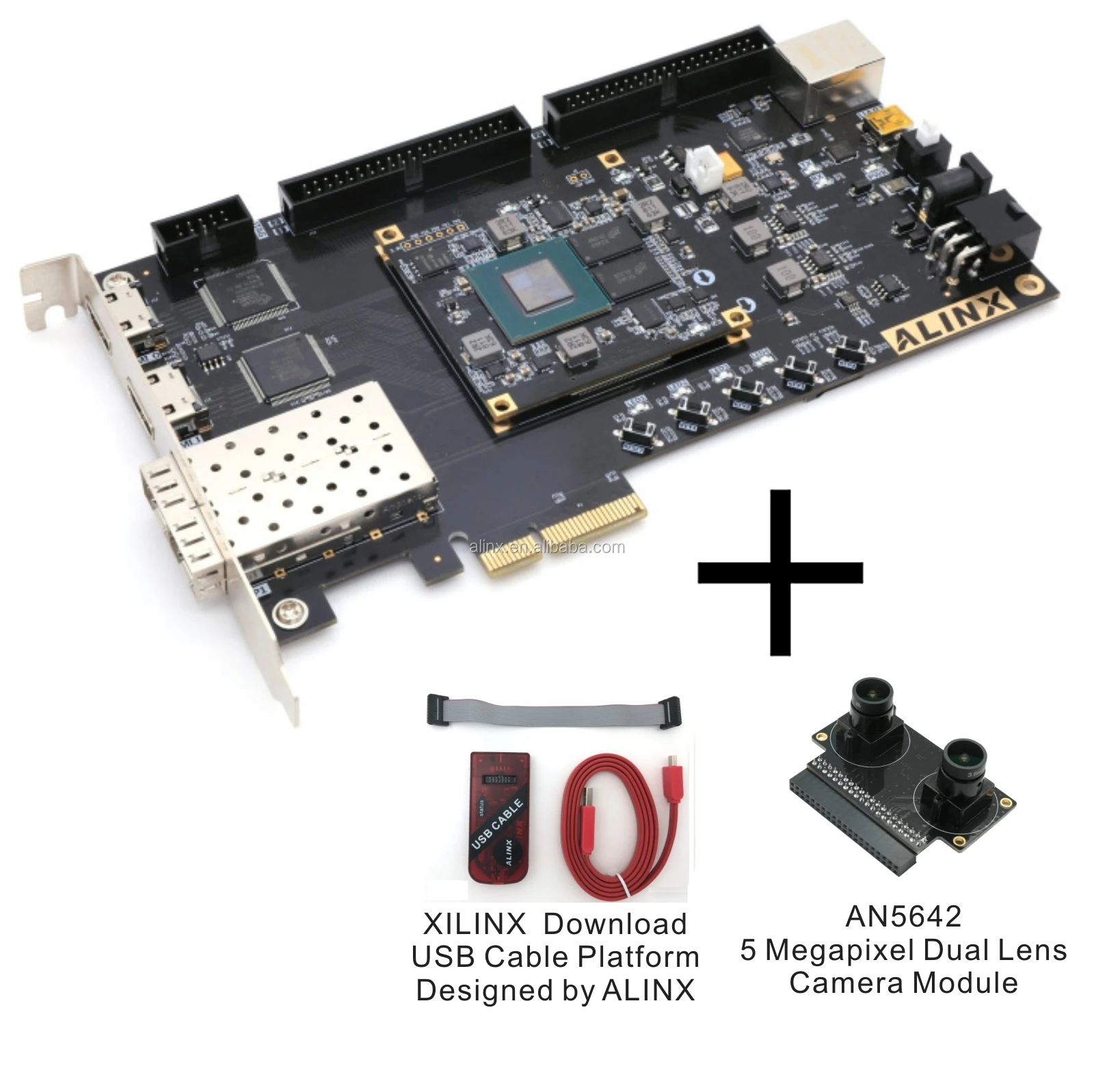

Carrier Board

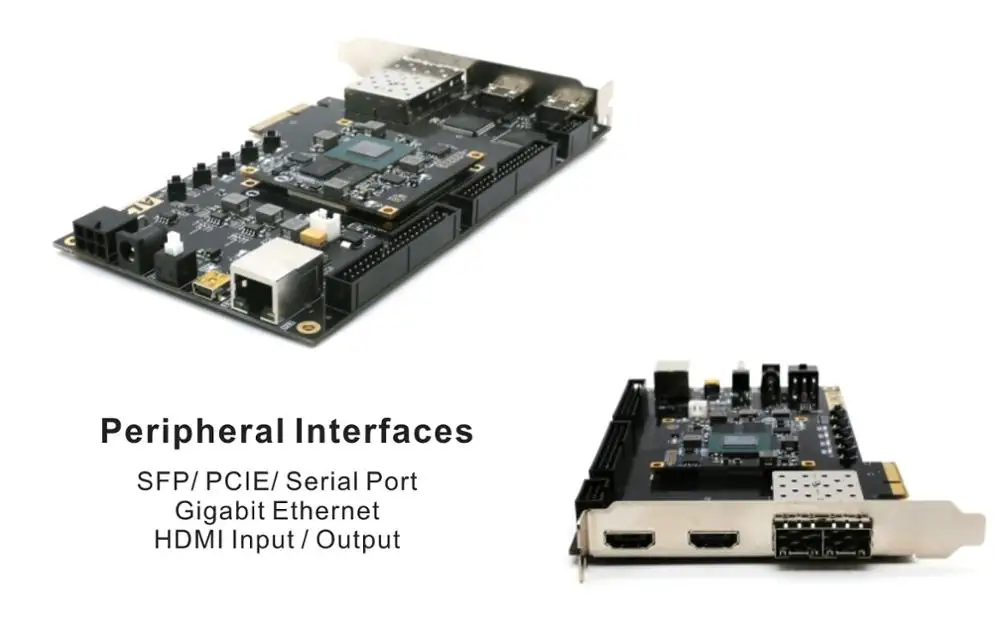

Communication & Networking
1-port 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY
2 x SFP/SFP+ Module Connectors
PCI Express 2-lane edge connector
USB-to-UART Bridge Connector
Display: HDMI video output; CMOS cameral module interface; 4 Buttons, 4 User LEDs.
Memory: SD Card Slot; IIC EEPROM: 4Kbit (2*256*8bit)
Digital: Temperature Sensor Input, the accuracy is 0.5 degrees
Expansion Connectors: 2-port 0.1 inch spacing standard 40-pin expansion headers
Configuration: Onboard JTAG header provided to use with ALINX Brand Xilinx download cables such as the Platform Cable USB II;
Power: 12V DC Adapter
Size Dimension: 4.17 inch * 7.40 inch
