Product Overview
Description
Product introduction

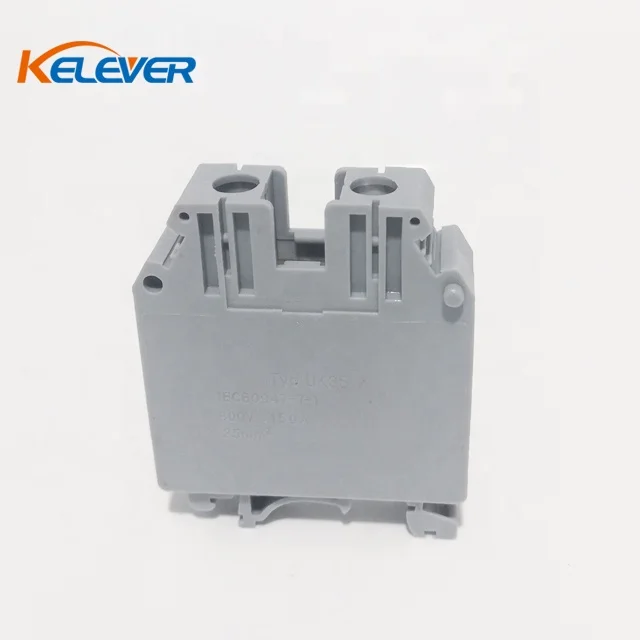

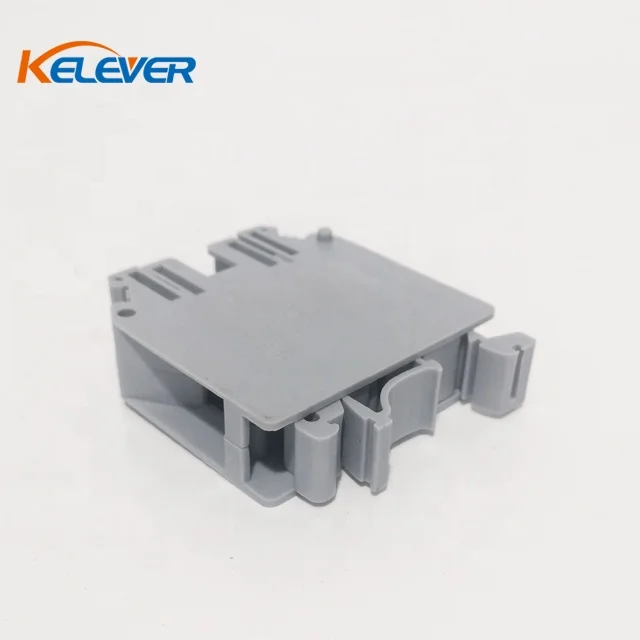

manufacturer price UK series 35mm screw type universal terminal block
1. The terminals have universal mounting feet and can be installed on U type guide rail of TH35-7.5 and G type din rail. The enclosed type screw hole guaran- tees ideal operation of screwdriver.
2. The terminal of multi sectional grades are equipped with unitive accessories, such as terminal
plated, grouping separator and so on.
plated, grouping separator and so on.
3.Electric potential distribution can be realized through the fixed bridgeware that is connected into center of terminal, or realized through the side-insertion bridge-ware that is connected into wiring chamber.
4.Earth terminal and N line terminal that have the same con- figuration with common terminals.
4.Earth terminal and N line terminal that have the same con- figuration with common terminals.

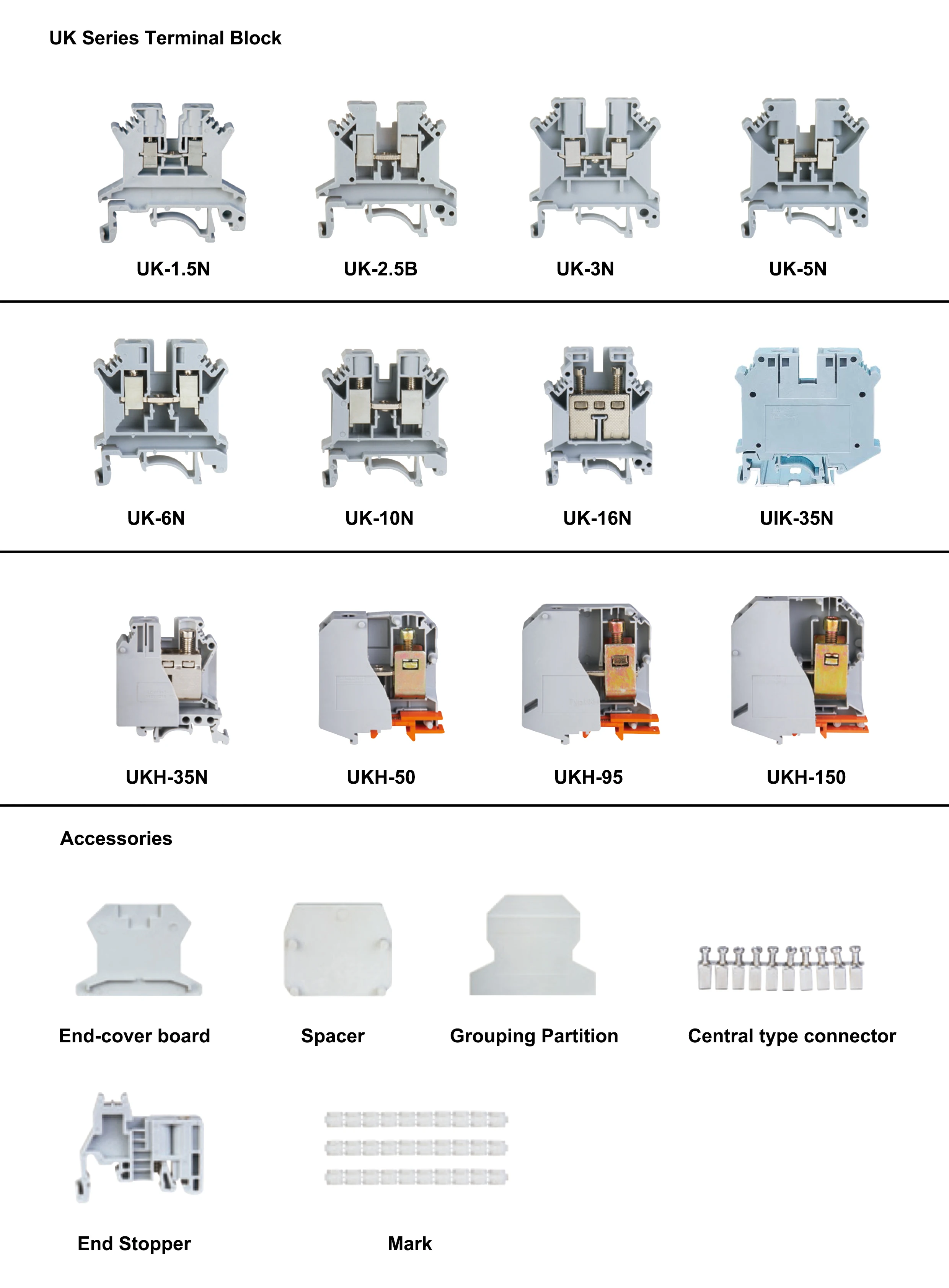

Model and Size
Model | Wire Section | Current | Voltage | Width | Thickness | Height | ||
Solid Wire | Stranded Wire | |||||||
UK-1.5 | 0.14-1.5mm² | 0.14-1.5mm² | 17.5A | 800V | 42.5mm | 4.2mm | 42mm | |
UK-2.5B | 0.2-4mm² | 0.2-2.5mm² | 32A | 800V | 42.5mm | 6.2mm | 42mm | |
UK-3N | 0.2-4mm² | 0.2-2.5mm² | 32A | 800V | 42.5mm | 5.2mm | 47mm | |
UK-5N | 0.2-10mm² | 0.2-4mm² | 41A | 800V | 42.5mm | 6.2mm | 47mm | |
UK-6N | 0.2-10mm² | 0.2-6mm² | 57A | 800V | 42.5mm | 8.2mm | 47mm | |
UK-10N | 0.5-16mm² | 0.5-10mm² | 76A | 800V | 42.5mm | 10.2mm | 47mm | |
UK-16N | 2.5-25mm² | 4-16mm² | 101A | 800V | 42.5mm | 12.2mm | 46.5mm | |
UK-25N | 2.5-25mm² | 4-16mm² | 101A | 800V | 42.5mm | 14.2mm | 46.5mm | |
UIK-35N | 10-35mm² | 10-35mm² | 125A | 800V | 55mm | 15.2mm | 56mm | |
UKH-35N | 10-35mm² | 10-35mm² | 125A | 800V | 50mm | 15.2mm | 67mm | |
UKH-50 | 16-50mm² | 25-50mm² | 150A | 800V | 70.5mm | 20.1mm | 83.5mm | |
UKH-95 | 25-95mm² | 35-95mm² | 232A | 800V | 83mm | 25.2mm | 97.5mm | |
UKH-150 | 35-150mm² | 50-150mm² | 309A | 800V | 100mm | 31.0mm | 119mm | |
UKH-240 | 70-240mm² | 70-240mm² | 415A | 1000V | 100mm | 36mm | 129.5mm | |

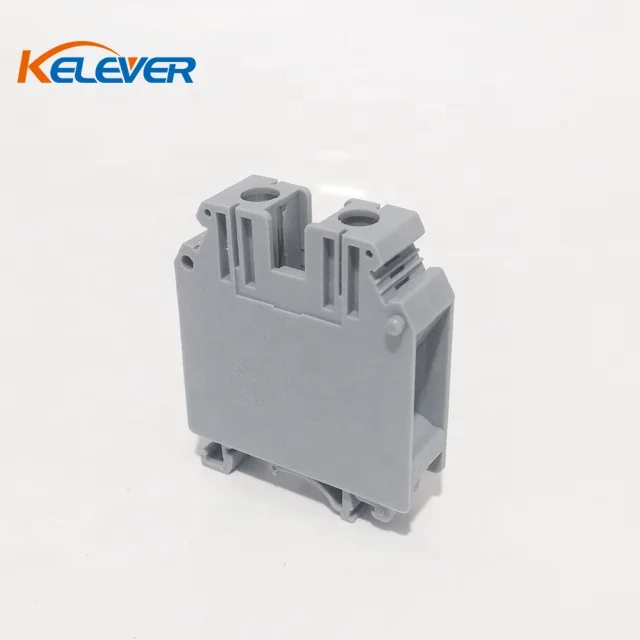

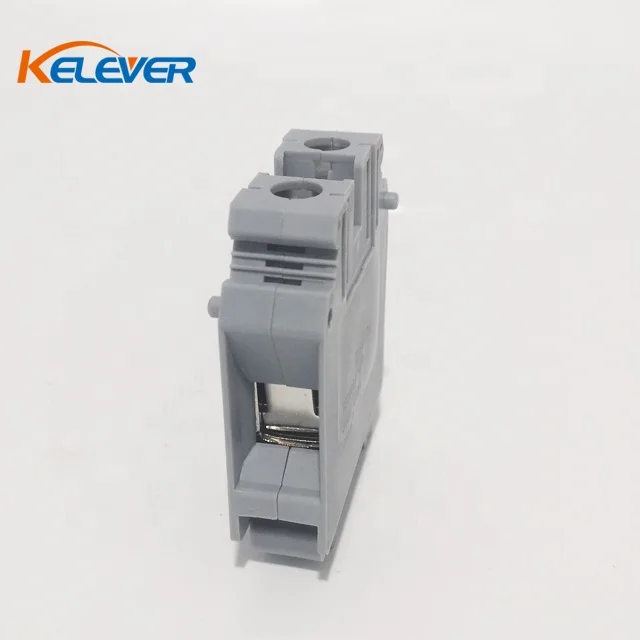

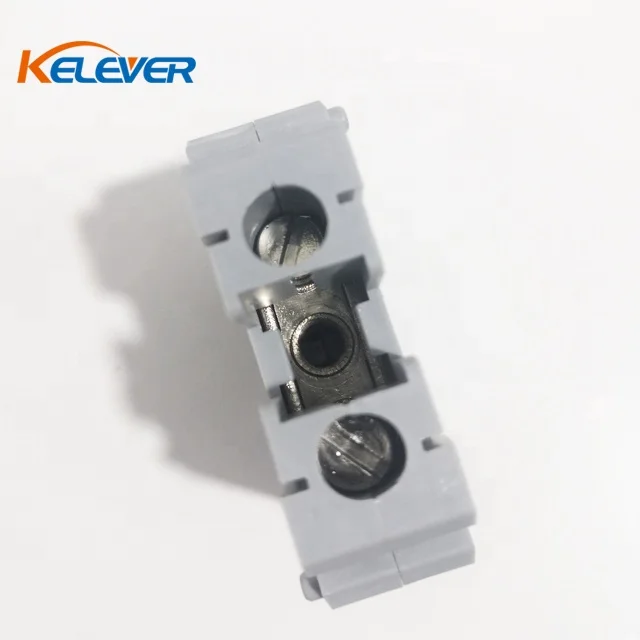

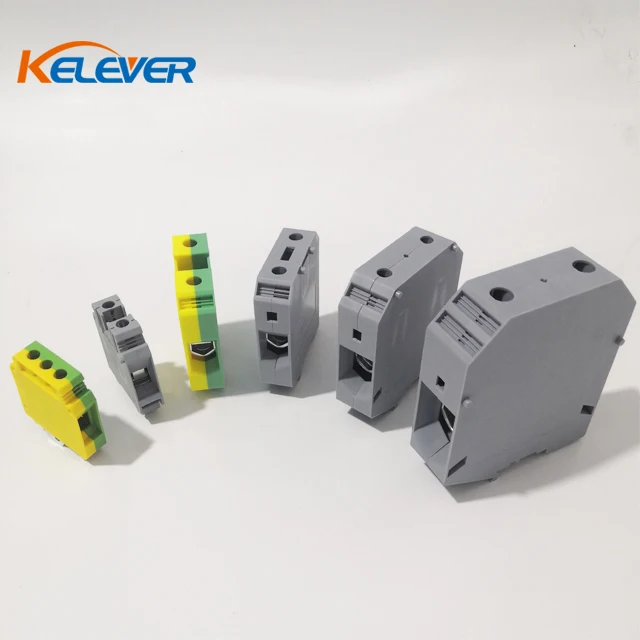

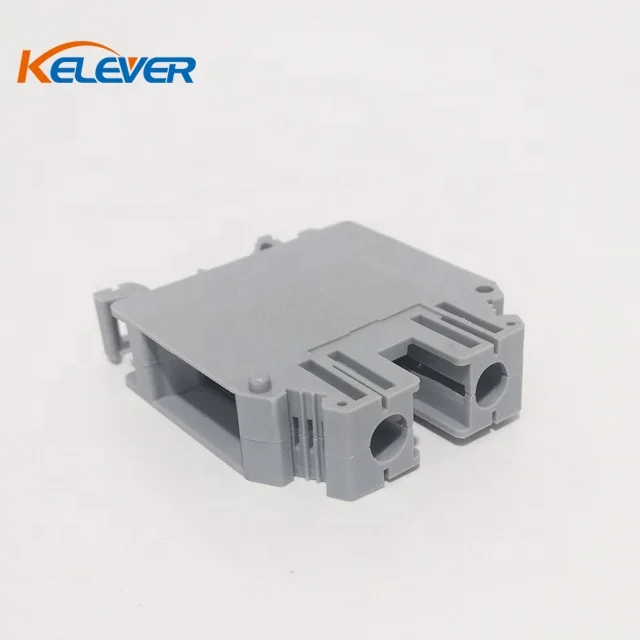

Details Images

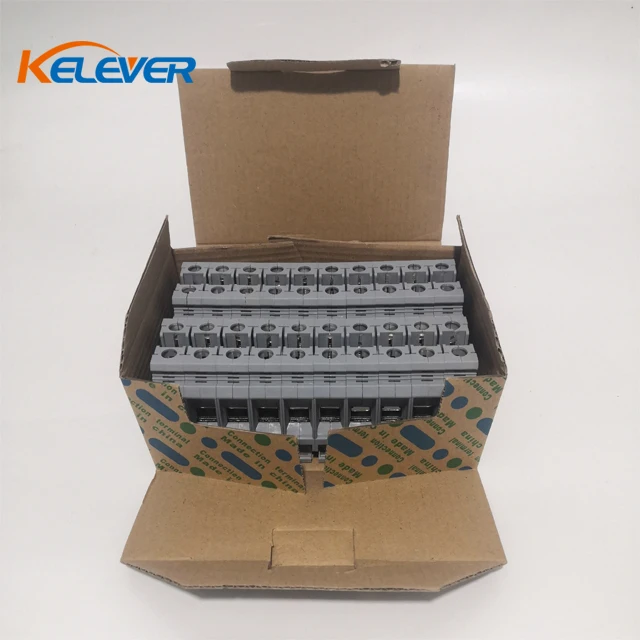

Packing&Shipping
