Poding Cylinder Stainless Steel Cell Cases Lithium Battery Grooved 18650 Cylinder Cell Case For 18550 Test Cell Materials
- Category: >>>
- Supplier: Shenzhen Meirui Zhida Technology Co. Ltd.Shenzhen Ltd.
Share on (62482176510):
Product Overview
Description
Product Description
Poding Cylinder Stainless Steel Cell Cases Lithium Battery Grooved 18650 Cylinder Cell Case For 18550 Test Cell Materials

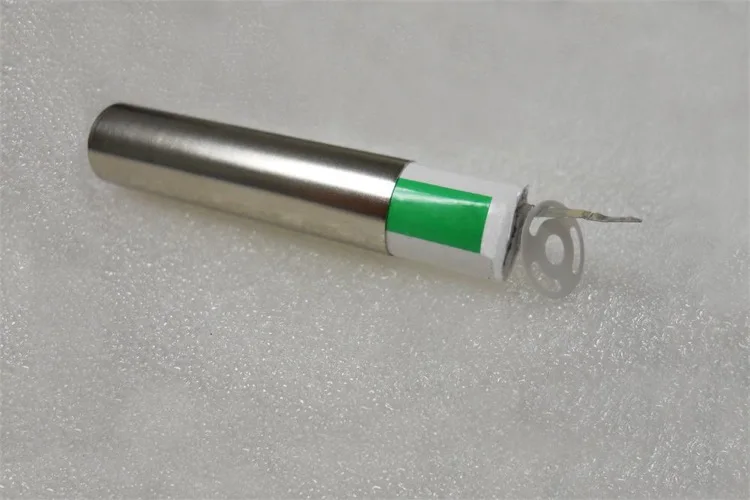

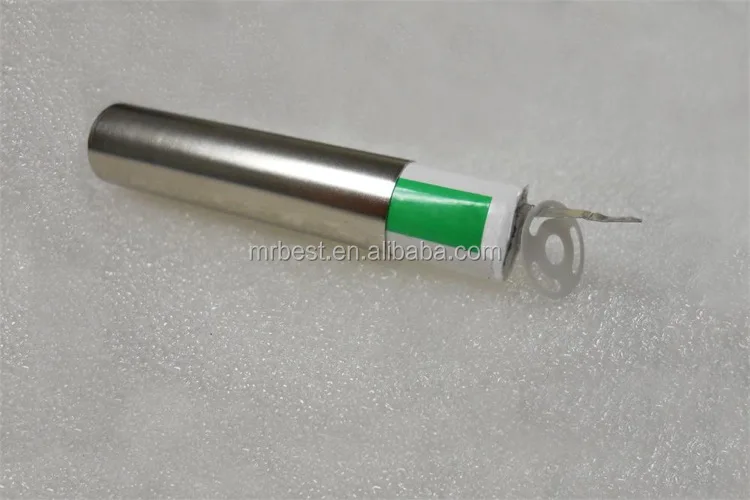

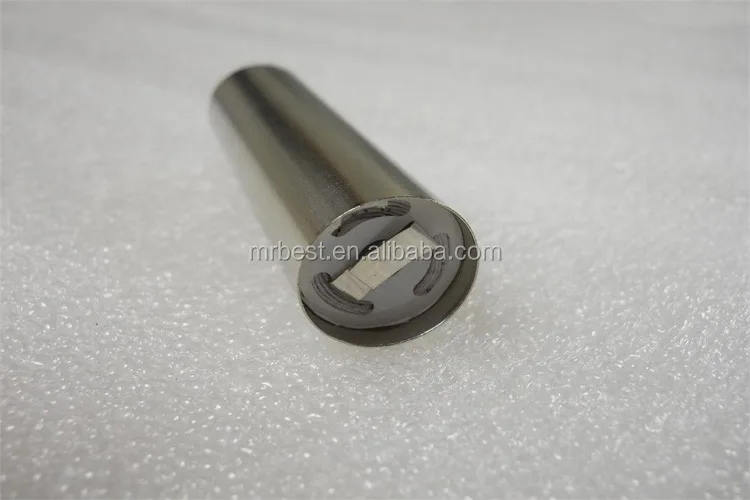

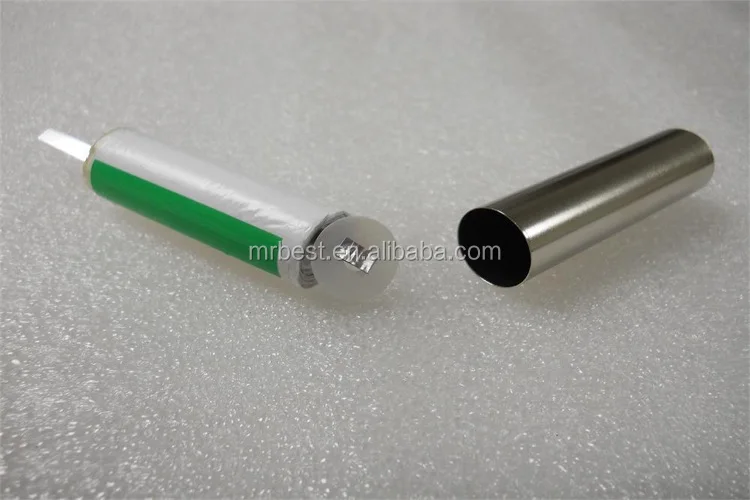

18650 cylinder cell case
Specifications | ||
Cap | * Cap with Built-in PTC Thermistor for overcurrent protection * Cut-off current is about 7A | |
Dimensions (Dia x Height) | * Case: 18mm(OD) x 17.5mm(ID) x 67mm(H) * Top Cap: 17.5mm(D) x 4.05mm(H) * Top Insulator: 12.5mm(D) x 0.19mm(H) * Bottom Insulator: 12.5mm(D) x 0.19mm(H) | |
Materials | * Case and cap are made of Nicke plated A3 steel * Seal O-ring and spacer are made of nylon * The insulating gasket is made of PET | |
Weight | 9.50 g/pcs | |
Note | * Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode) * 18650 case's grooving and sealing machine is available upon request | |
Options
* PTC Thermistor will break the current when heated to 120ºC
26650 cylinder cell case
Specifications | ||
Dimensions (Dia x Height) | * Case: 26mm(OD) x 25.5mm(ID) x 68mm(H) * Top Cap: 25.5mm(D) x 5mm(H) | |
Materials | * case and cap made of Nicke plated A3 steel and seal O-ring made of nylon | |
Weight | * 18.75 g/pcs | |
Note | * Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no explosion from the can) | |
32650 cylinder cell
Specifications | ||
Dimensions (Dia x Height) | * Case: 32mm(OD) x 31.5mm(ID) x 68mm(H) * Top Cap: 31.5mm(D) x 5.3mm(H) | |
Materials | * case and cap made of Nicke plated A3 steel and seal O-ring made of nylon | |
Weight | * 28.85g/pcs | |
Note | * Min. order: 60 pcs per package * Positive Temperature Coefficient (PTC) Thermistor is built into the cap | |
Our Services
We can provide a full range of lithium battery materials and equipment
1.) full set of lithium battery materials, including :
LiMn2O4, LTO,LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Aluminum foil, copper foils, battery separator etc.
2.) full set of lithium battery equipment, for example:
Mixing machine -- coating machine--oven--rolling machine--welding machine--slitting / cutting machine --winding machine--sealing machine etc.
1.) full set of lithium battery materials, including :
LiMn2O4, LTO,LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Aluminum foil, copper foils, battery separator etc.
2.) full set of lithium battery equipment, for example:
Mixing machine -- coating machine--oven--rolling machine--welding machine--slitting / cutting machine --winding machine--sealing machine etc.
3) full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
We can design the laboratory and production line according to customer's request.
Company Profile
Shenzhen Meirui Zhida Technology Co., Ltd is specialized in designing, manufacturing and marketing of Battery Research Equipment. Located in Shenzhen, China, near Guangzhou!
MRBEST products have passed the CE certification, ISO9001 certification system, products for global sales, exported to North America, South America, Western Europe, Africa, the Middle East and other more than 80 countries and regions!
MRBEST is committed to providing customers with high quality and low-cost precision machines for material research and R&D Labs, including high-temperature oven, tube furnace, and complete set of equipment for research of rechargeable battery materials. Simple to operate, low cost and commitment to our customers is our priority.
MRBEST secured online store provides one-stop shopping convenience for our customers with transparent price, so you can enjoy shopping directly online with 100% confidence and save time.
MRBEST VALUES:
we serve everyday with INTEGRITY,
manufacture with INNOVATION,
work as a TEAM, PASSION for what we do,
create a WIN-WIN POLICY and
APPRECIATE all that support us.
we serve everyday with INTEGRITY,
manufacture with INNOVATION,
work as a TEAM, PASSION for what we do,
create a WIN-WIN POLICY and
APPRECIATE all that support us.
MISSION:
To deliver products and service that reaches beyond customers expectation.
To realize and maintain both internal and external partnerships, industry knowledge and future potentials.
To achieve our yearly growth targets and increase our international foot-prints.
To deliver products and service that reaches beyond customers expectation.
To realize and maintain both internal and external partnerships, industry knowledge and future potentials.
To achieve our yearly growth targets and increase our international foot-prints.

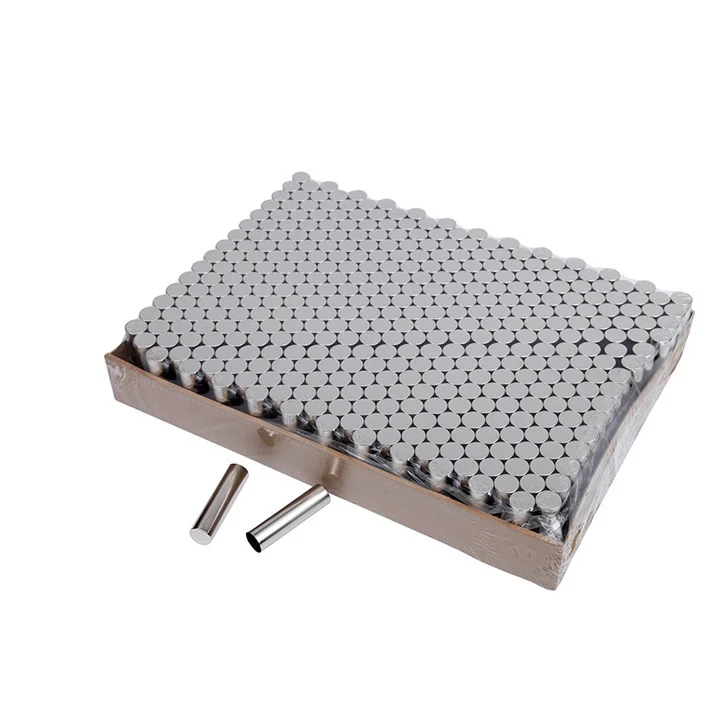

Product packaging
1. Standard exported package : Internal anticollision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way,
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way,
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
Customer Show
FAQ
1.How can I get the price?
'-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote.
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
'-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
'-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
'-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
7. How to get technical support after purchasing?
-Our factory provide online techincal support in English, you can easy catch us online
by SKYPE, WHATSAPP, WECHAT or EMAIL, if you need any remote assistant support,
we will support you through TeamViewer Software.
-Our factory provide online techincal support in English, you can easy catch us online
by SKYPE, WHATSAPP, WECHAT or EMAIL, if you need any remote assistant support,
we will support you through TeamViewer Software.
8. What's the warranty for the items?
-We are very confident in our products, and we pack them very well, so usually you will receive it
in good condition, any quality issue, we will deal with it immediately.
-Warranty for equipment is a year (12 months), if the equipment parts are damaged due to non-human
factors within one year, we will provide replacement parts free of charge.
-We are very confident in our products, and we pack them very well, so usually you will receive it
in good condition, any quality issue, we will deal with it immediately.
-Warranty for equipment is a year (12 months), if the equipment parts are damaged due to non-human
factors within one year, we will provide replacement parts free of charge.
