Product Overview
Description
API oil well cementing tool Liner Hanger with top packer
Product Description

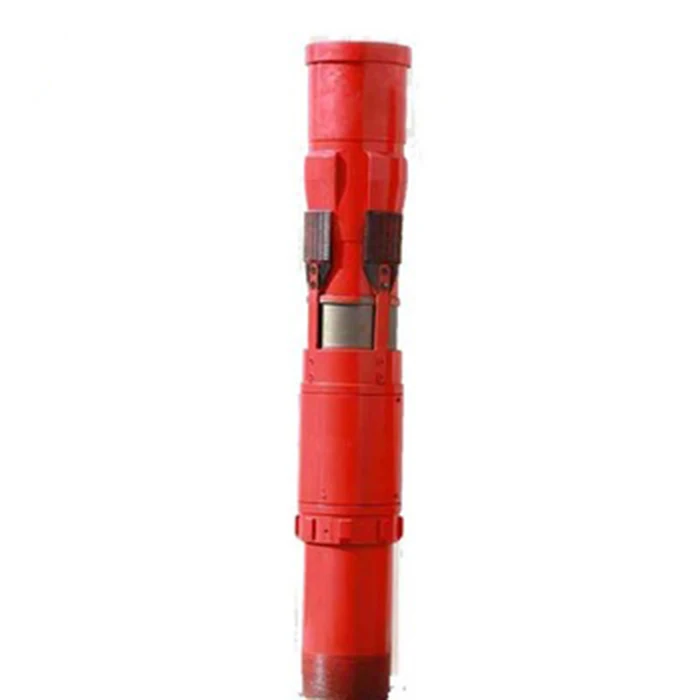

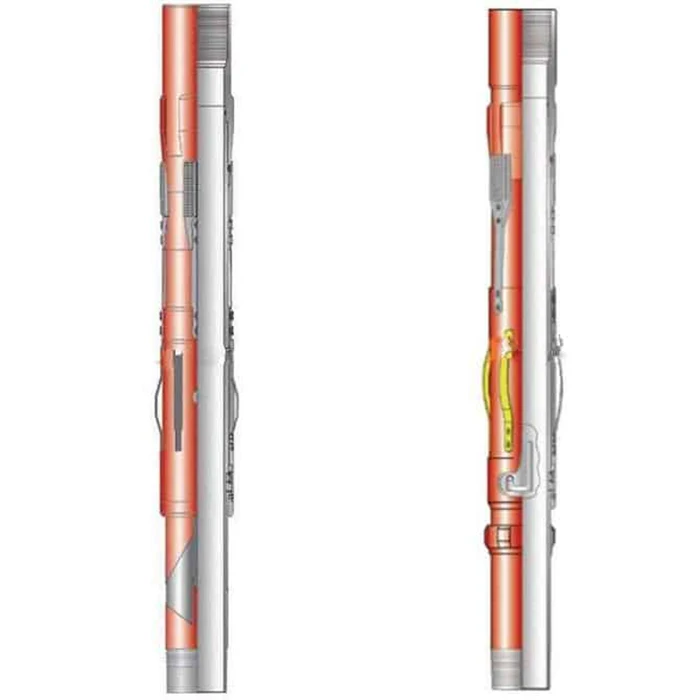

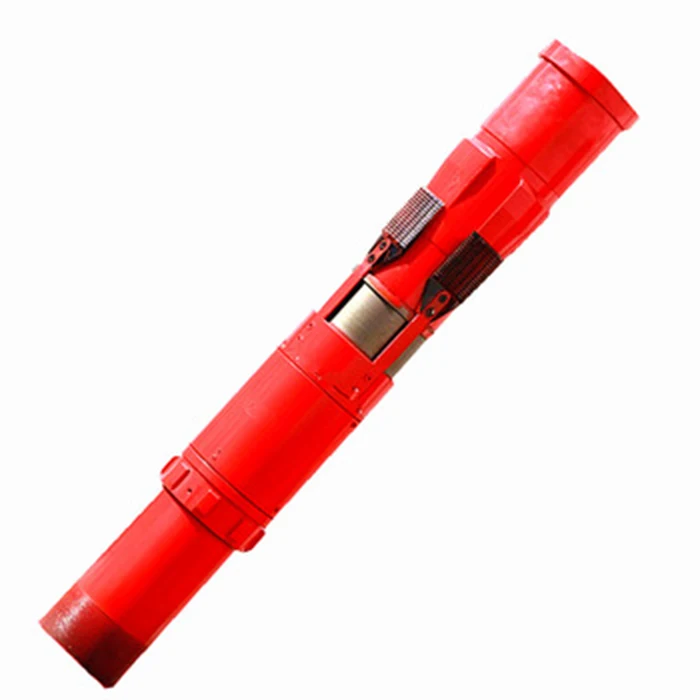

Mechanical Liner Hanger
Features:
The SSX-A Mechanical Liner Hanger, with double cones, double-row slips and double cylinders, is set hydraulically by applying pressure through the run-in string. A setting ball is circulated or dropped to the ball seat built into the landing collar. Applied pressure pushes slips up the cone to the set position.
1. The SSX-A is applicable to different wells, especially to deep wells.
2. With two different setting mechanisms,the SSX-A can set easily.
3. Working with SQ setting-ball carrier,the DYX-C is suitable for applications in horizontal or highly-deviated wells.
4. The piston sealing element is made of nitrile/fluorine rubber for higher pressure and temperature ratings.
5. Main parts are fabricated with high-strength alloy steel providing high burst/collapse resistance.

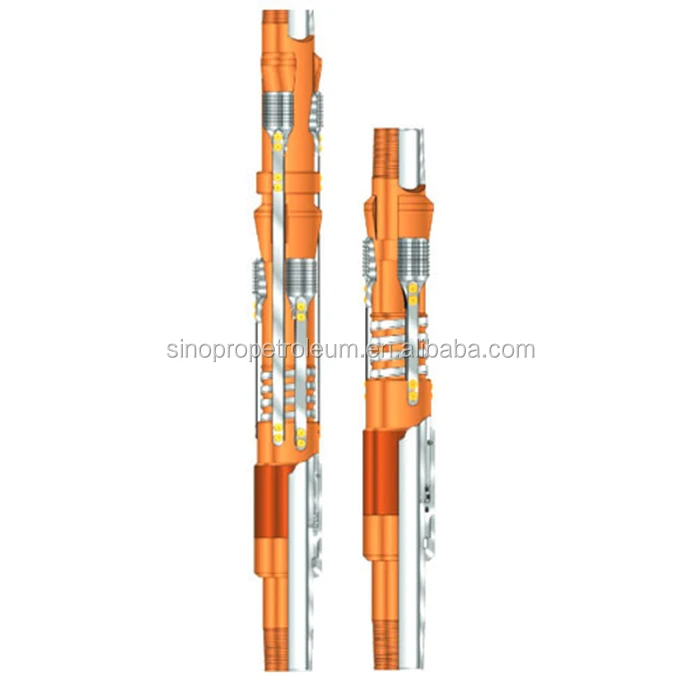

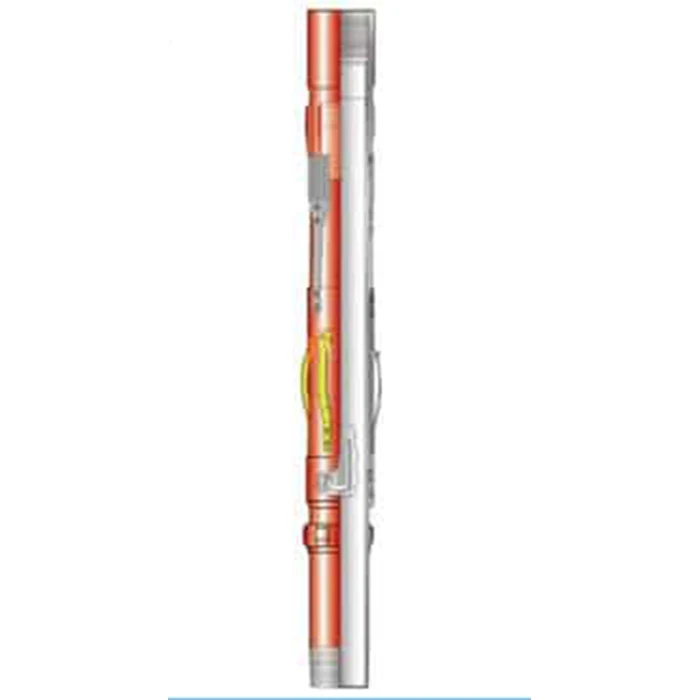

Hydraulic Liner Hanger
Features:
The DYX-C is hdraulically set by applying pressure through the run-in string.A setting ball is circulated or dropped to a ball seat built into the landing collar.Applied pressure acts on the internal piston and moves slips up the cone to the set position.
1. The DYX-C is to be set hydraulically, which is designed for applications in all types of wells.
2. Working with SQ setting-ball carrier,the DYX-C is suitable for applications in horizontal or highly-deviated wells.
3. The piston sealing element is made of nitrile/fluorine rubber for high pressure and temperature ratings.
4. Main parts are fabricated with high-strength alloy steel providing high burst/collapse resistance.
Specifications
API oil well cementing tool Liner Hanger with top packer
Mechanical Liner Hanger
Specification (mm) | Φ244.5 X Φ177.8mm/139.7mm | Φ339.7mm X Φ244.5mm |
Rated Load (t) | 160 | 240 |
Sealing Capacity (MPa) | 25 | 25 |
Shearing Pressure of Pins in Cylinder (MPa) | 7~8 | 7~8 |
Casing Wall Thickness (mm) | 10.03 | 9.65 |
11.05 | 10.92 | |
11.99 | 12.19 | |
Casing Weight (Kg/m) | 59.52 | 54.5 |
64.73 | 68 | |
69.94 | 85 | |
Body Max O.D. (mm) | 215 | 308 |
Body Min I.D. (mm) | 155 | 220.5 |
API oil well cementing tool Liner Hanger with top packer
Hydraulic Liner Hanger
Specification (mm) | Φ244.5 X Φ177.8mm/Φ139.7mm | Φ177.8 X Φ127mm/Φ114.3mm |
Rated Load (t) | 120 | 50 |
Sealing Capacity (MPa) | 25 | 25 |
Shearing Pressure of Pins in Cylinder (MPa) | 7~8 | 7~8 |
Casing Wall Thickness (mm) | 10.03 | 9.19 |
11.05 | 10.36 | |
11.99 | 11.51 | |
Casing Weight (KG/m) | 59.52 | 38.69 |
64.73 | 43.15 | |
69.94 | 47.62 | |
Body Max O.D. (mm) | 215 | 152 |
Body Min I.D. (mm) | 155 | 108 |

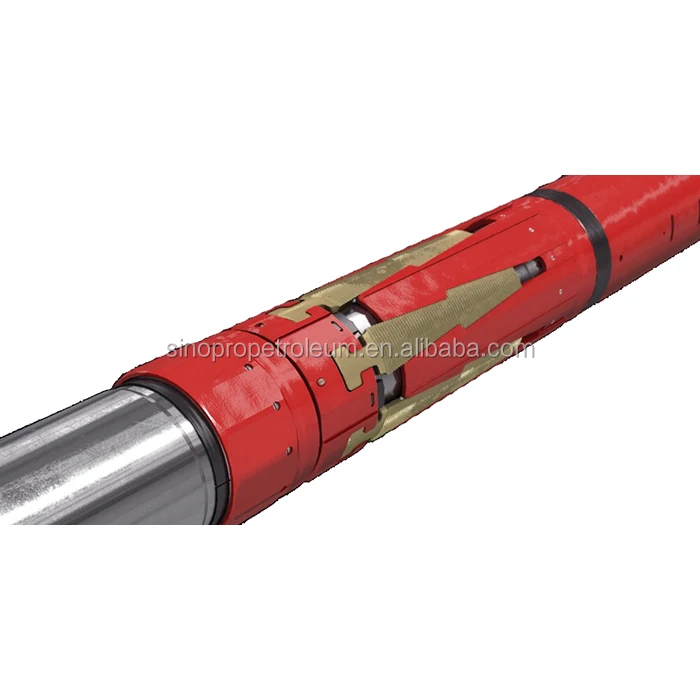

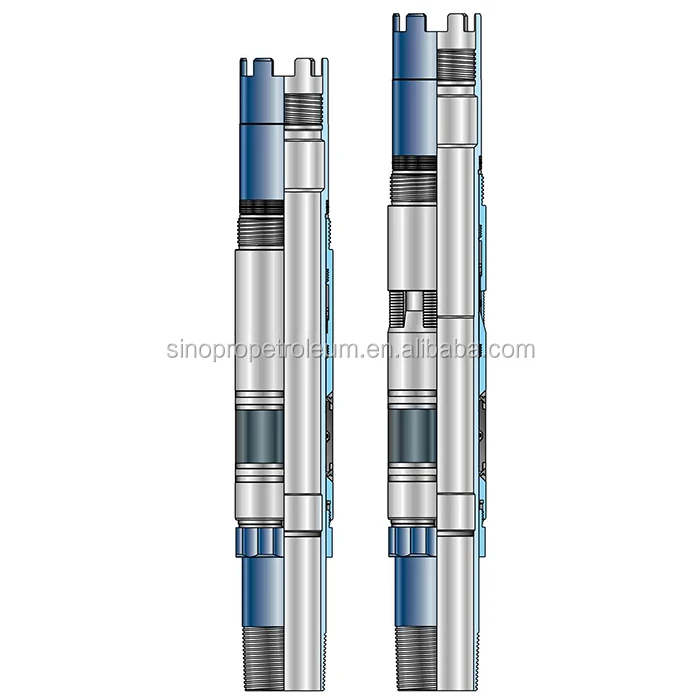

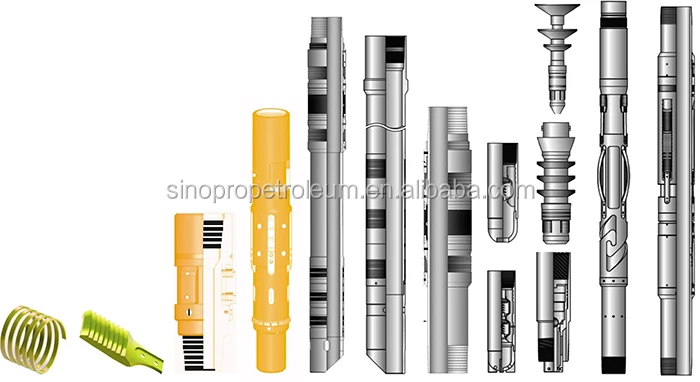

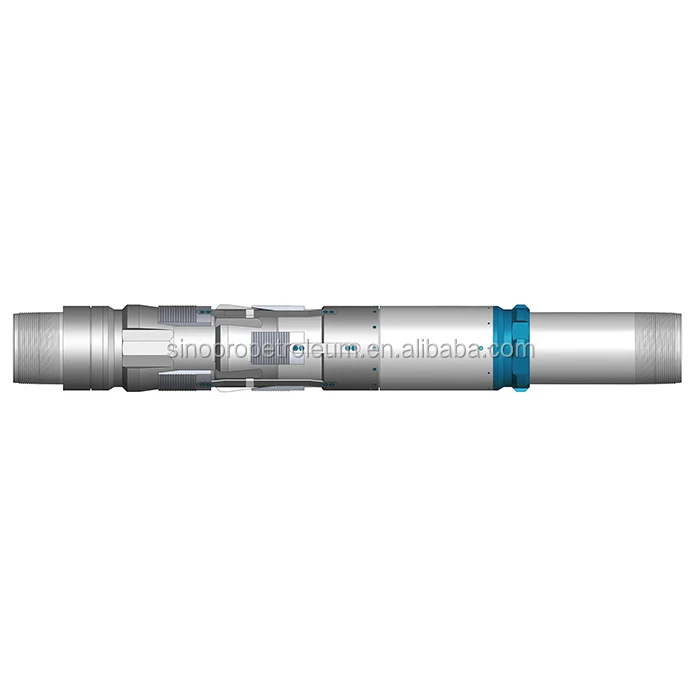

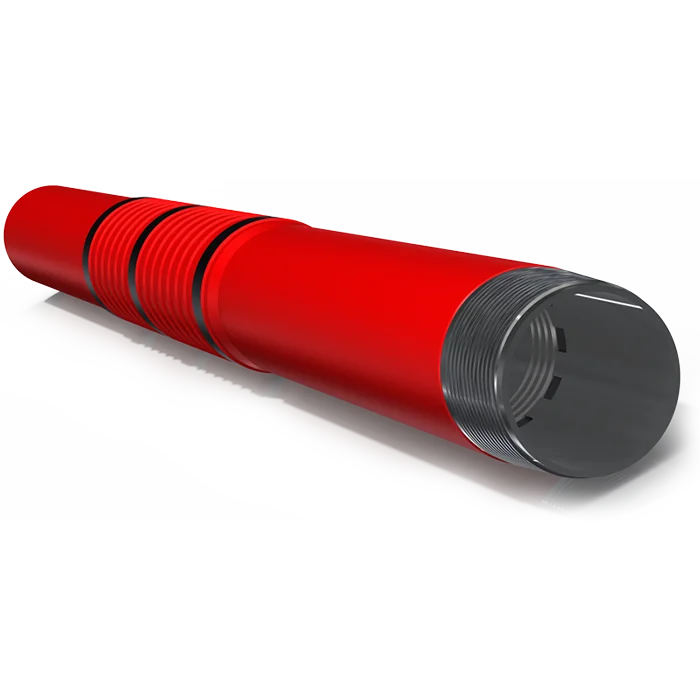

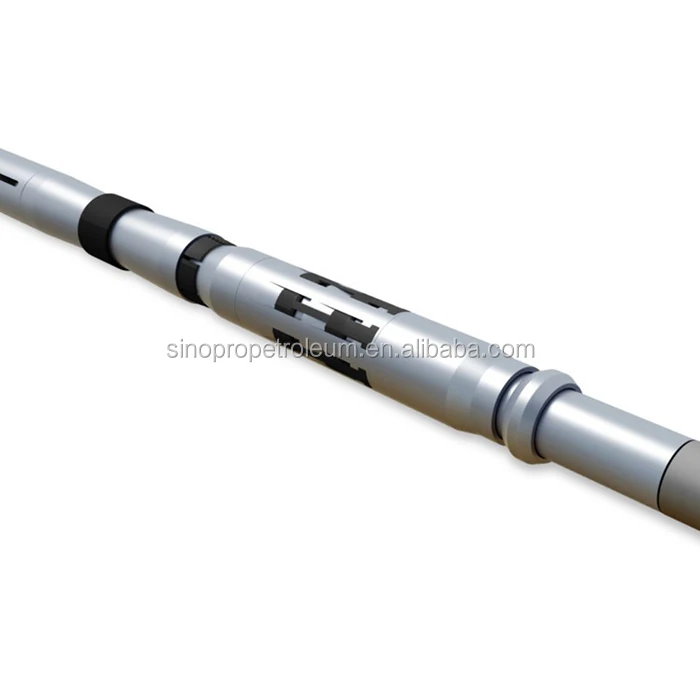

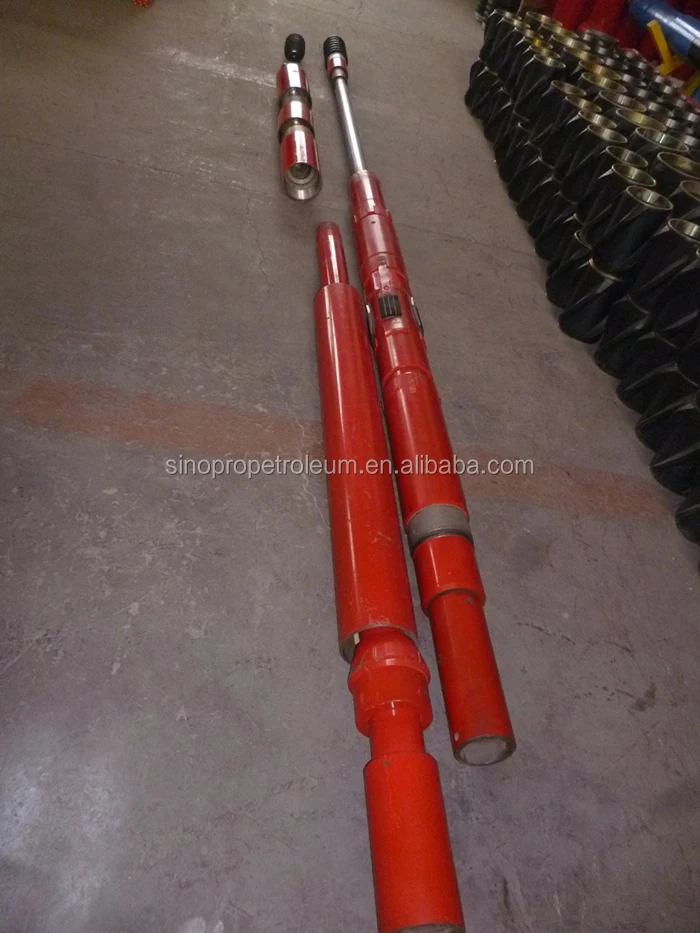

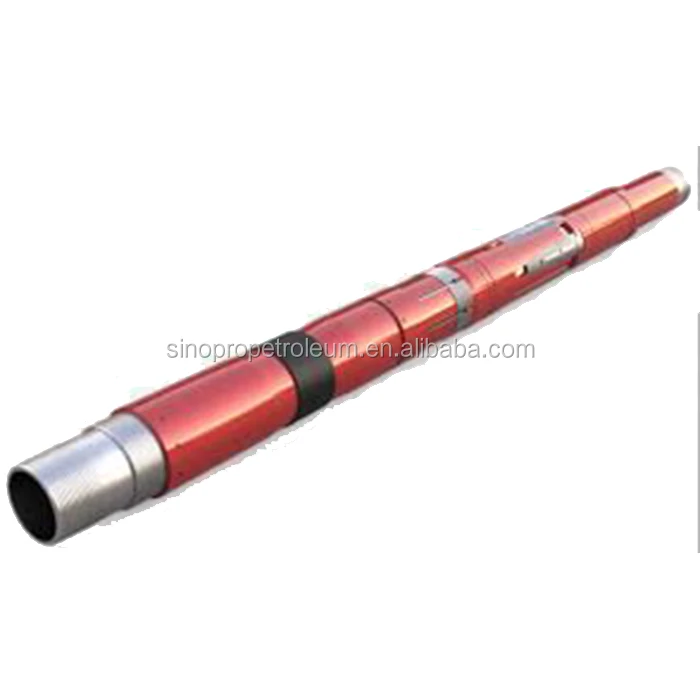

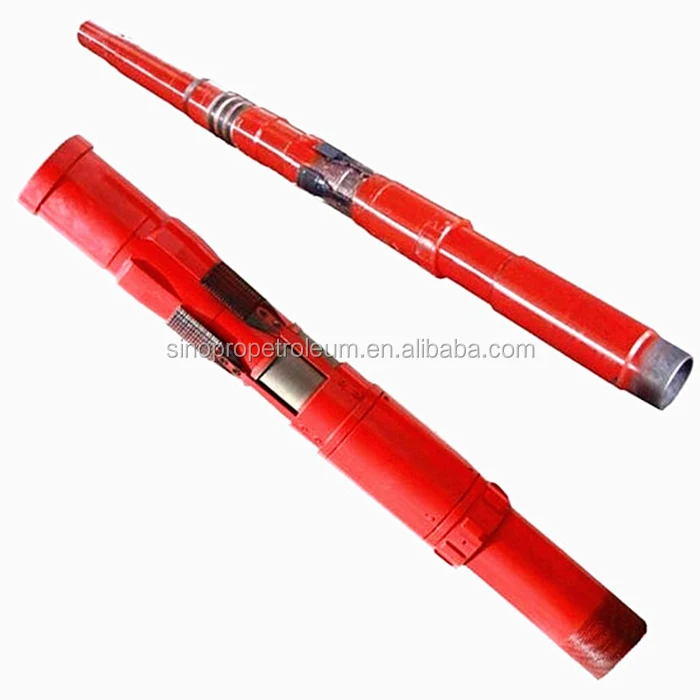

Detailed Images
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
API oil well cementing tool Liner Hanger with top packer
