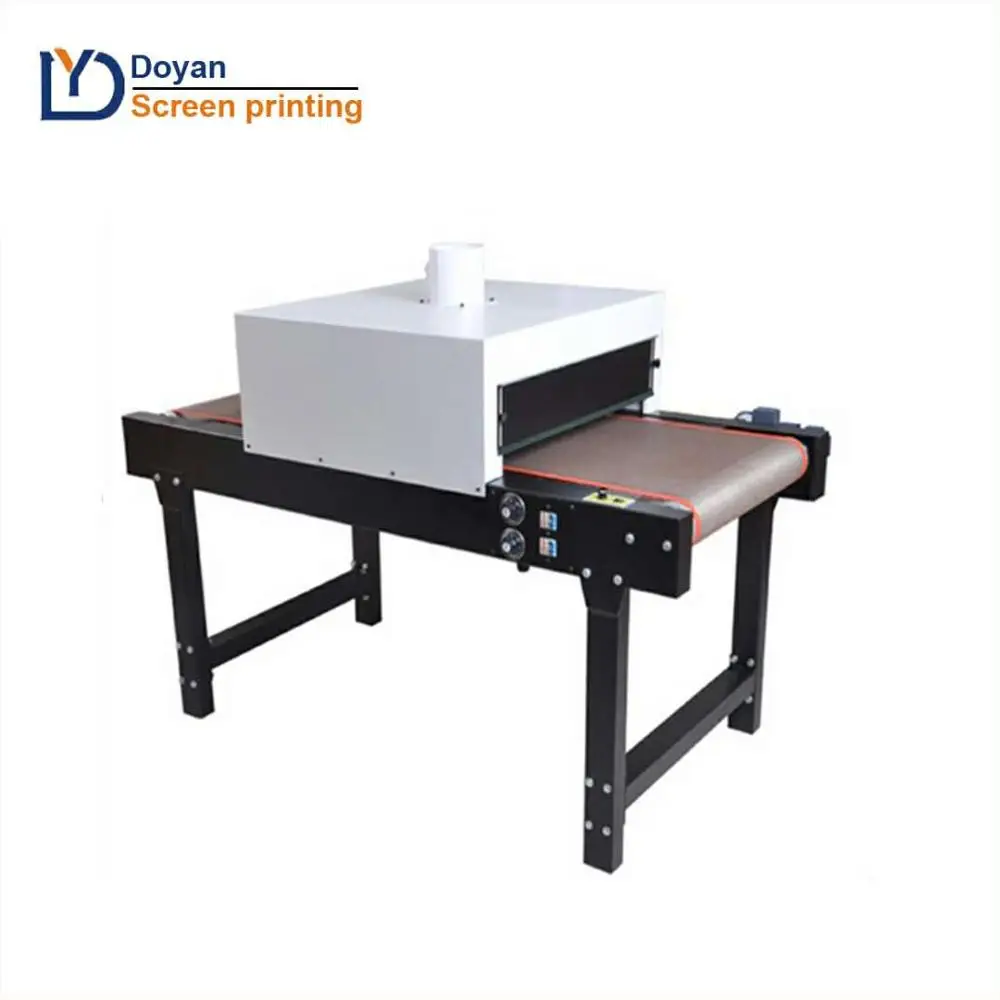

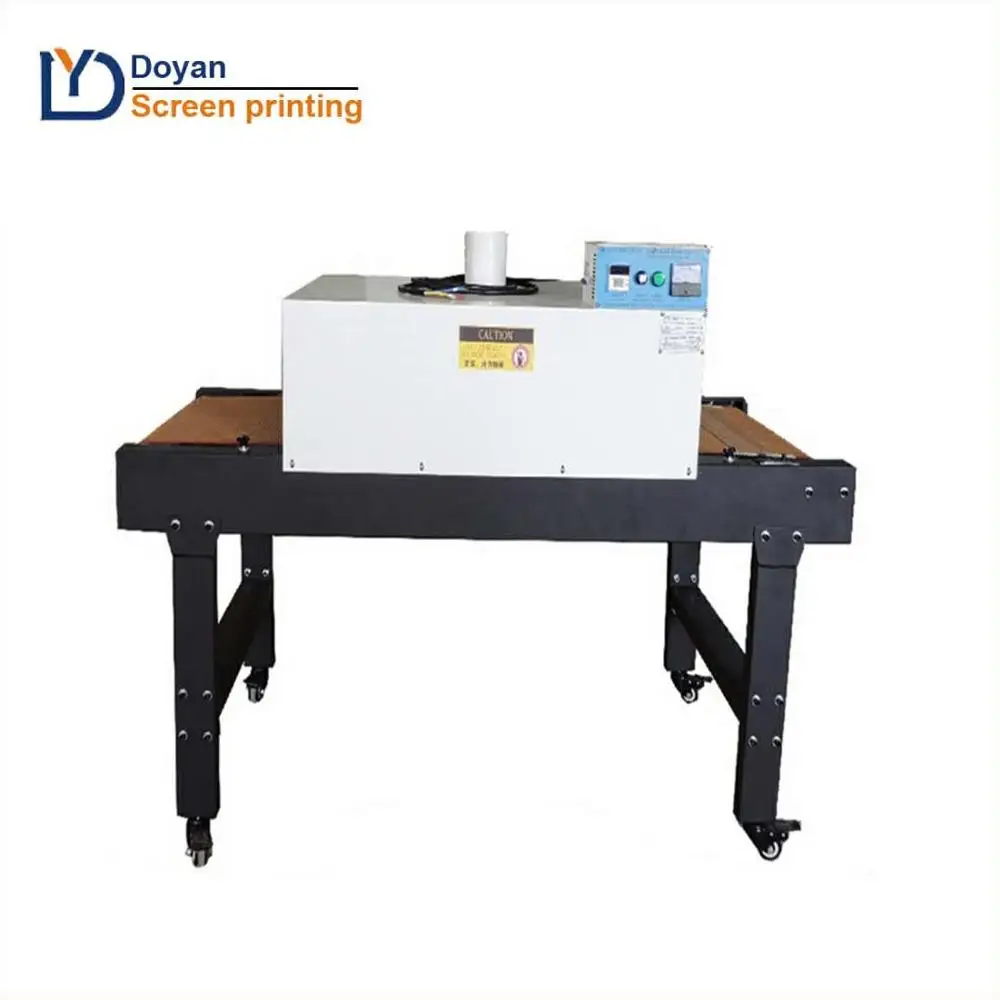

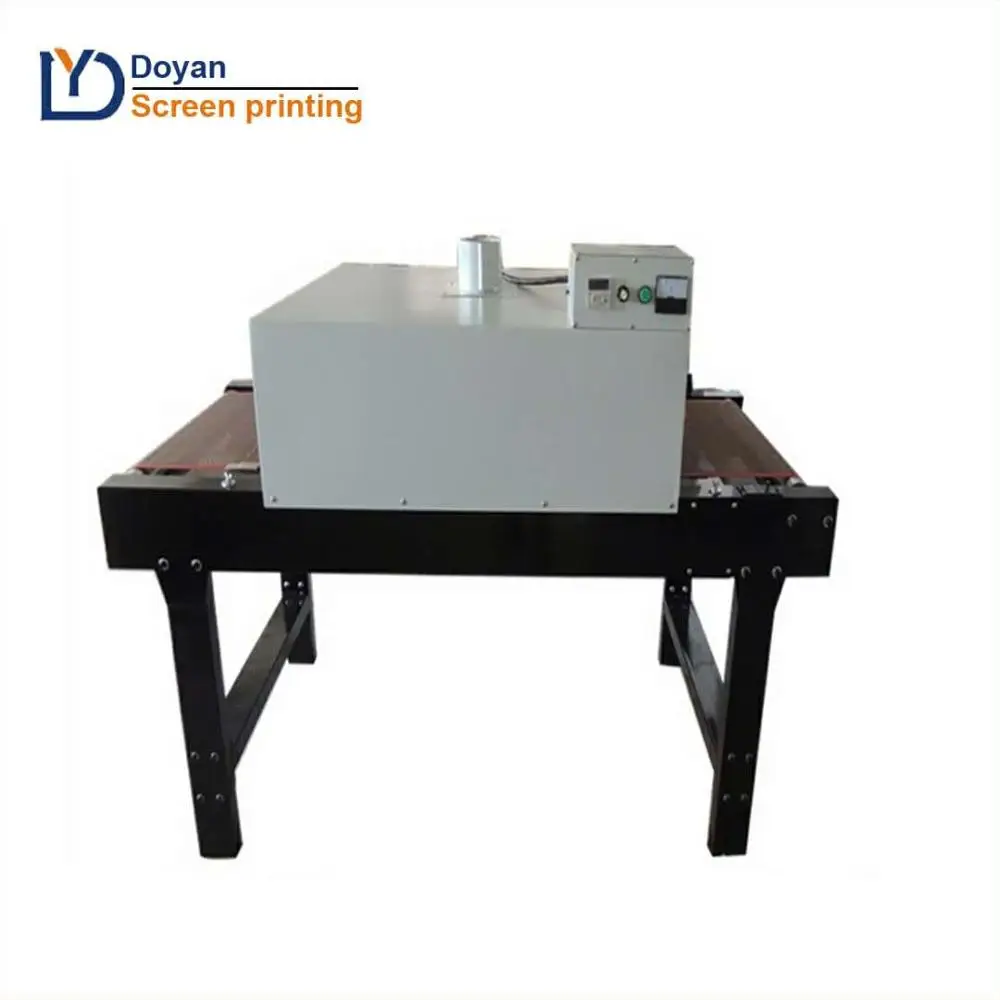

IR Tunnel Drying Machine Conveyor Belt Dryer

Tunnel dryer

Description:

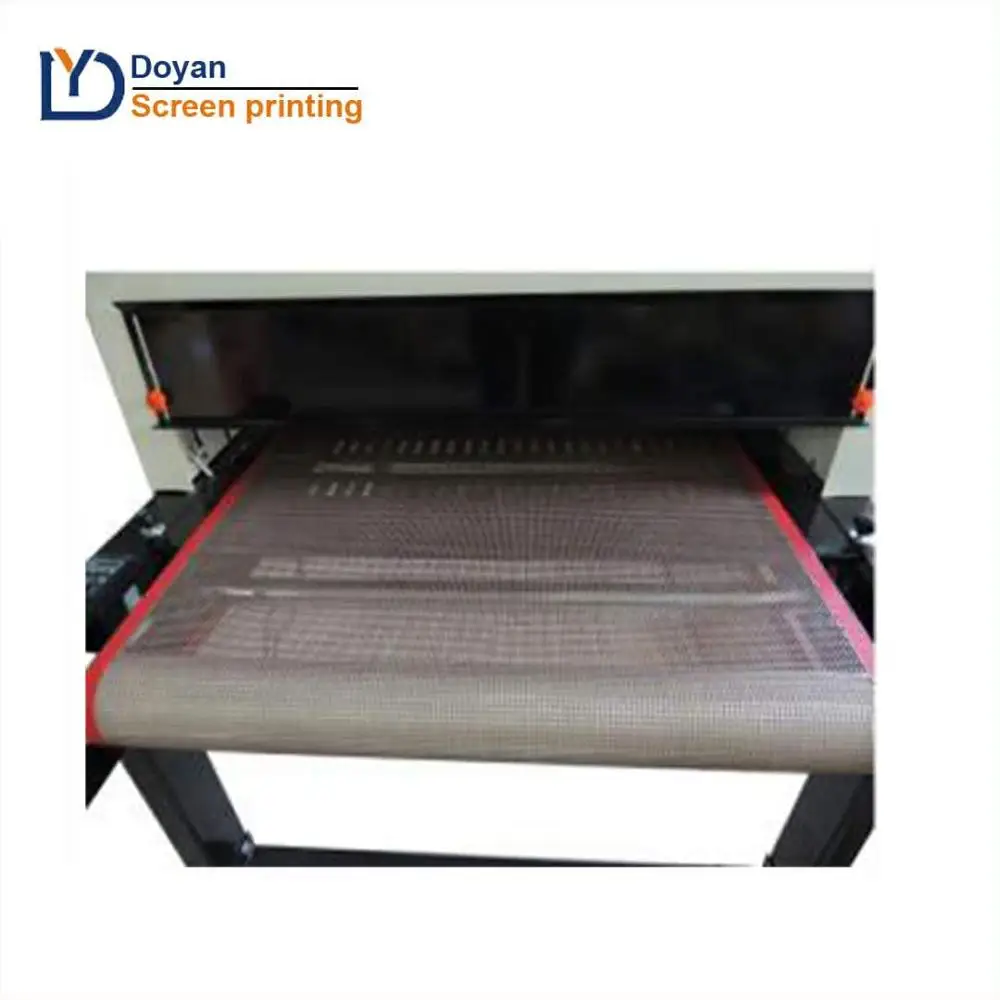

The Tunnel Dryers are specially designed for the cure of inks on various materials. This dryer is available in various dimensions due to the modular design. The specially developed airflow plate in this dryer ensures even heating over the whole drying area. It uses the latest burner technologies. Due to this technology and attention to fuel efficient design, these dryers have a proven record of low gas consumption. Optionally available with infrared, uv or electric elements. Besides that, the tunnel is easily accessible for cleaning because of the lifting hood which is equipped with gas springs.

Specification

Model No.

SDT100*65

SDT150*65

SDT300*65

CE dimension

180cm

250cm

400cm

Drying area

100x65cm

150x65cm

300x65cm

IR heating tube

Yes

Yes

Yes

Voltage/Power

220v/4.8kw

220v/7.2kw

380v/12kw

Temperature

0-250℃

0-250℃

0-250℃
