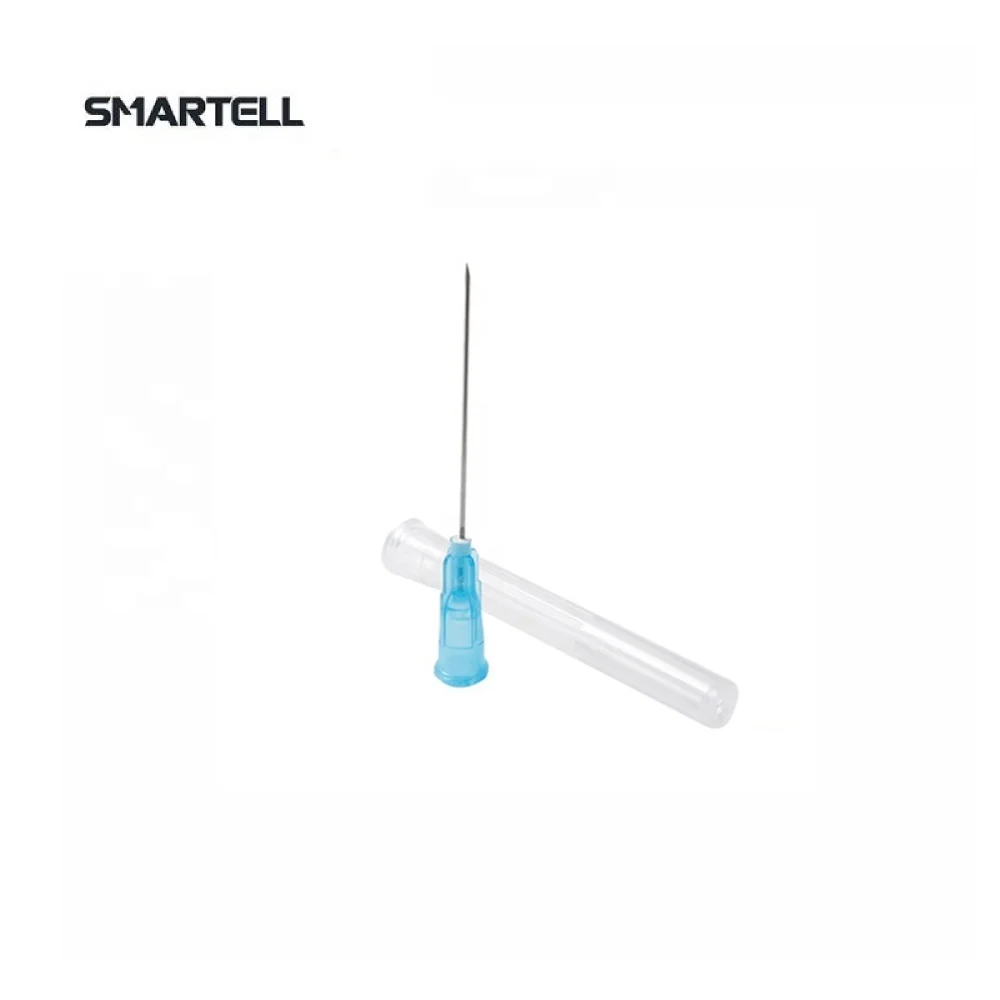

Automatic Syringe Micro Needle Assembly Machine to Assembe Needle Hub Cover and Tube

Product Overview

Description

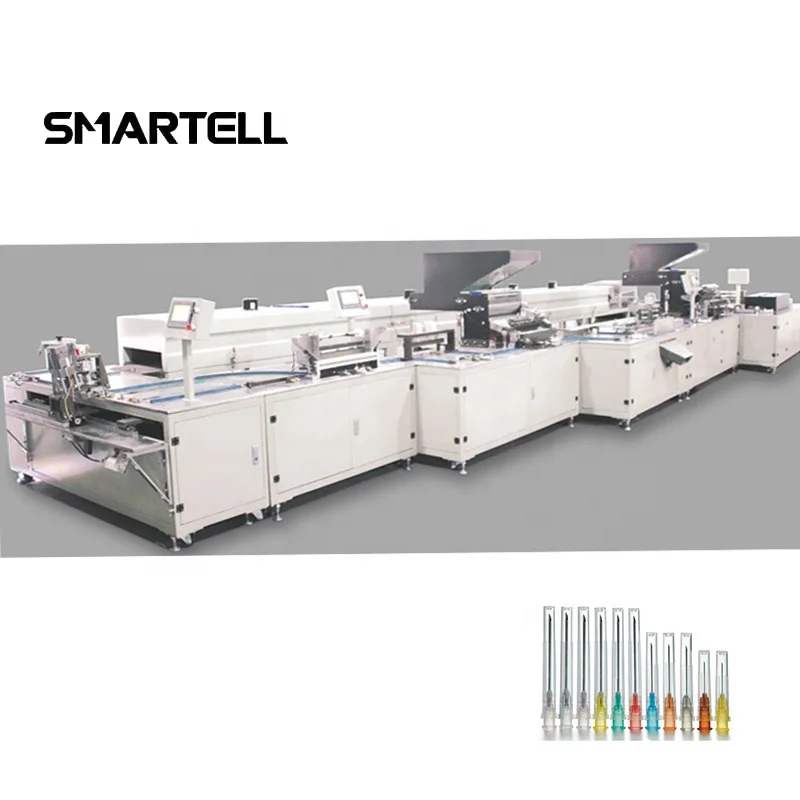

Hypodermic Needle Assembly Machine

Automatic needle feeding base station - Automatic needle feeding - Automatic glution - Drying-

Automatic block checking - Automatic waste rejecting - Automatic oil soaking - Automatic jacketing

- Automatic pressing sleeve and blangking

1.Simultaneity assembly 50pcs Cannula each time.

2.It can assembly following size needle with different needle positioning.

3.Small type It applied to diameter range 0.4~0.55mm)

4.Average type (It applied to diameter range 0.6~0.8mm)

5.Large type( It applied to diameter range 0.9~1.2mm)

6.Extra large type( It applied to diameter range1.2~1.6mm)

7.Capacity:25,000~35,000pcs per hour (for master)

8.Operation of worker: 6 person( including 4 operators and 2 inspectors)

9.Extra air pressure: ≥0.60Mpg

10.Extra airflow: ≥800Nl/min

11.Power supply: 380V * 50Hz*15Kw*3P+N+PE

12.8Kw for Normal working time

13.15Kw for working after half an hour

14.Dimension: 7m(L)*2.2m(W)*1.7m(H)

15.Weight: abt. 3ton
