CABO CBB61 Sh best price table fan capacitor 2.5uf 350vac lonch ceiling fan capacitor iec 60252 1
- Category: >>>
- Supplier: CABO Electronics(Foshan) Ltd.
Share on (62482582377):
Product Overview
Description
Product Description
RoHs VDE UL CQC CB TUV(S3)
· Low D.F.(Disspation Factor)
· Dry type structure
· Core-Tech of Transition metal layer
· Non-inductive construction
√ P0 & P2 &S3 protection level available
√ A,B,C,D life level available
√ The first batch of TUV S3 protection class
Electrical Parameter
Capacitance | 0.1～15μF |
Temperature | -40℃～+85℃ |
Capacitance Tolerance | ±5%(J);±10% (K) |
Rated Voltage | 110V.AC ~630V.AC |
Test Voltage between | 12Un/10s |
Dissipation factor | ≤0.004 (1KHz,20℃) |
Insulation Resistance | ≥5000S |
Leads | Pins,tinned copper lugs,wire |
Lifetime Expectancy | A:30,000Hours/B:10,000Hours/C:3,000Hours |

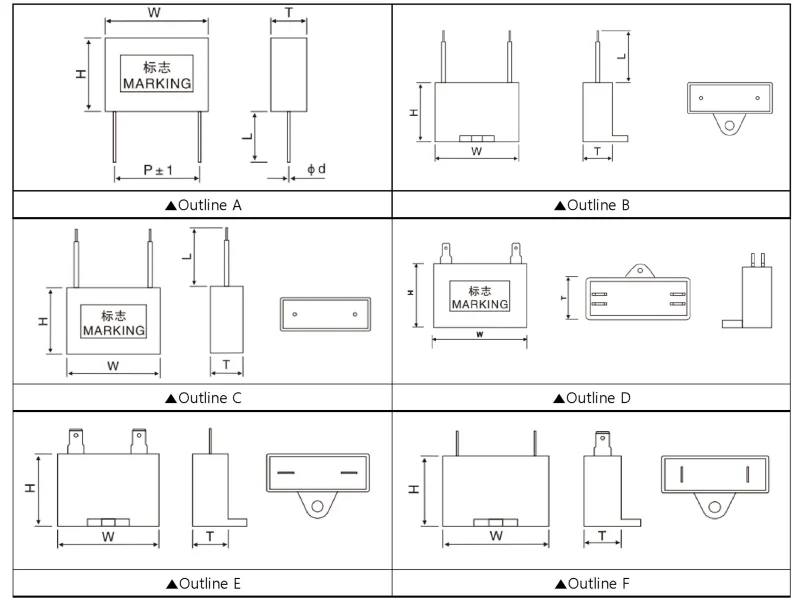

Outline Drawings

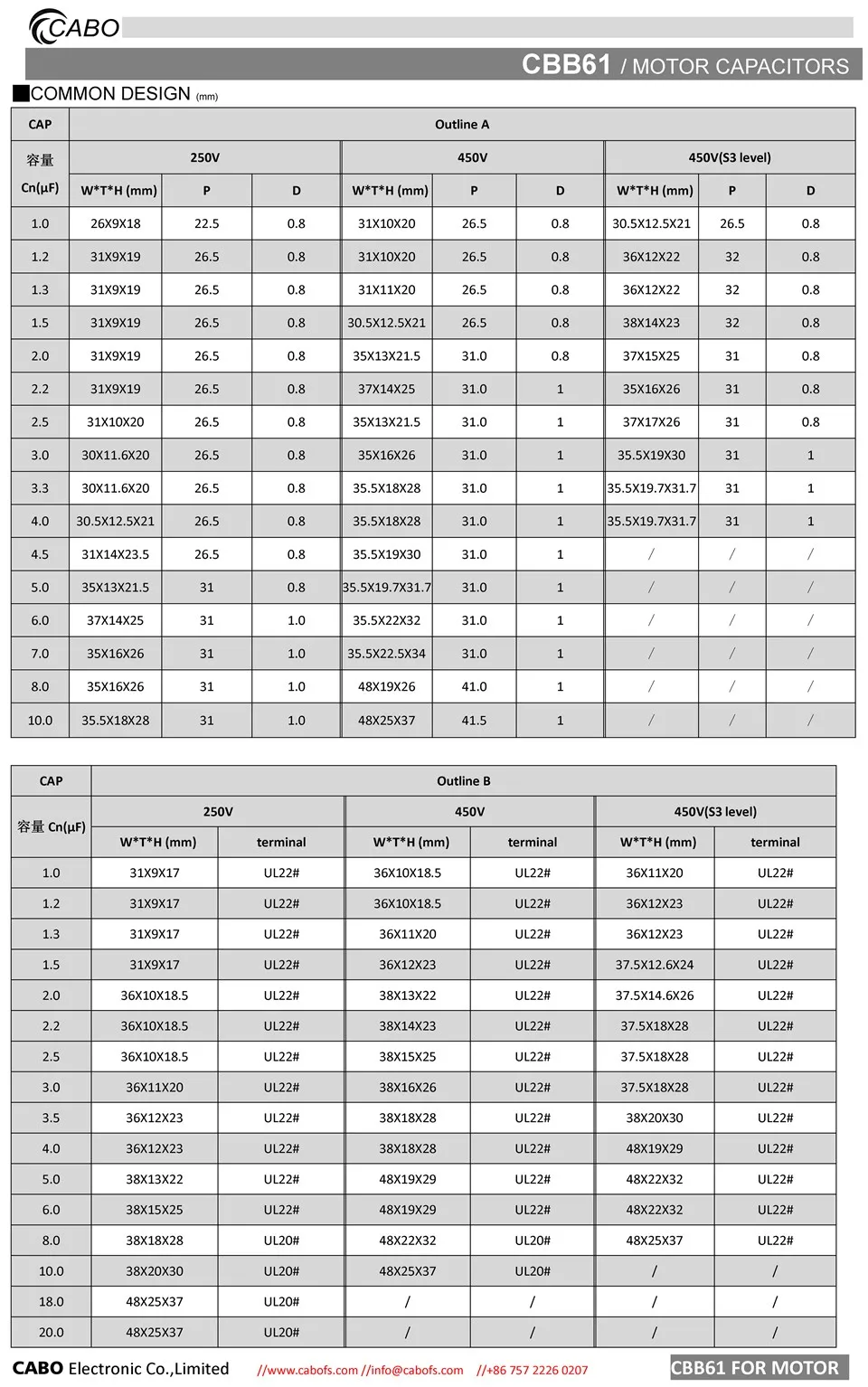

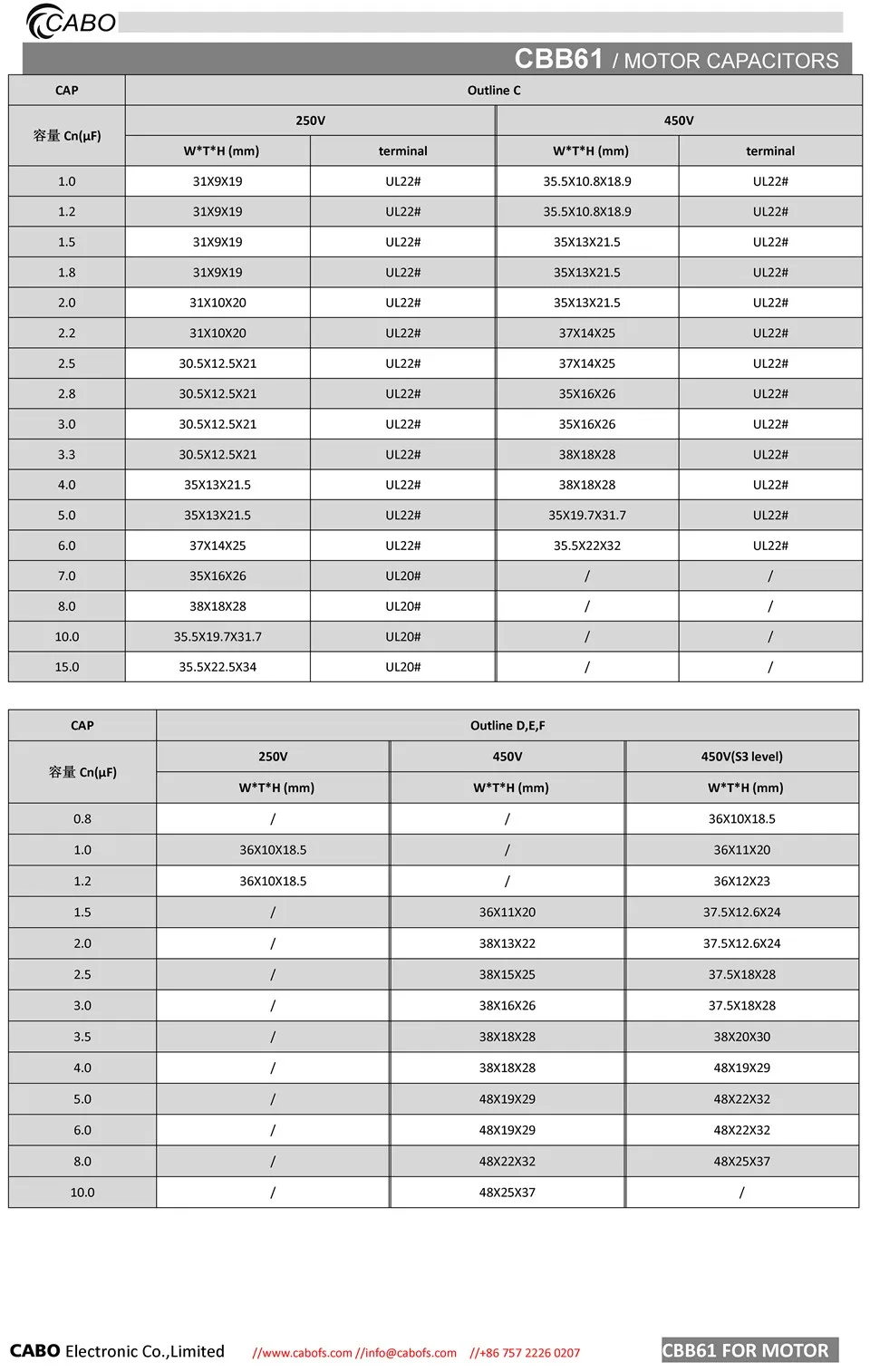

Common Design

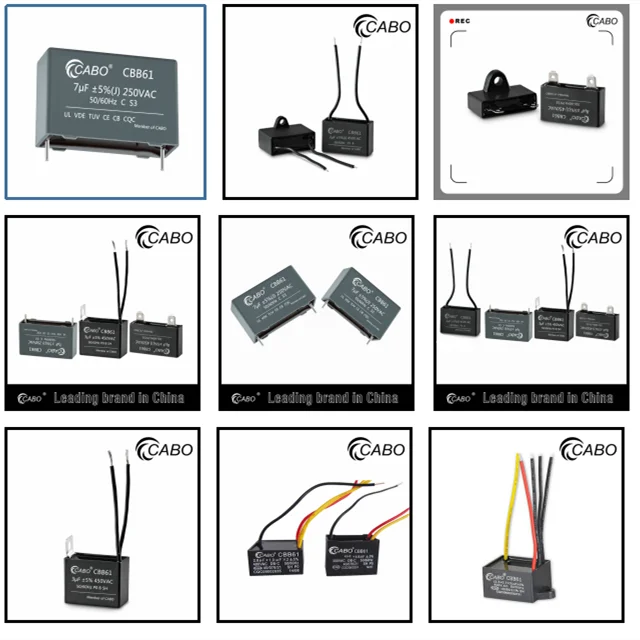

Detailed Images
Packing & Delivery
Be a environment friendly enterprise, CABO under control of IS0 9001 and ISO 14001 quality and environment standard.
All of our packing materials are environmentally friendly.
CABO is a leading manufacturer of electric & electronic components in China.It have 4 factories in China: Nantong city, Shenzhen city, Dongguang city and Foshan city,all of our factories are under control of ISO9001 quality control standard.
Competitive Price and stable Quality are the foundation for supporting our rapid development.
As the supplier of Midea ,Haier and airmete, 60% of our capacitors were sold to fortune top 500 companies.
And the percentage are keep rising.
Household/consumer capacitor R&D center started from 1988, it is one of earliest capacitor technology importer and Chinese capacitor patent holder.
