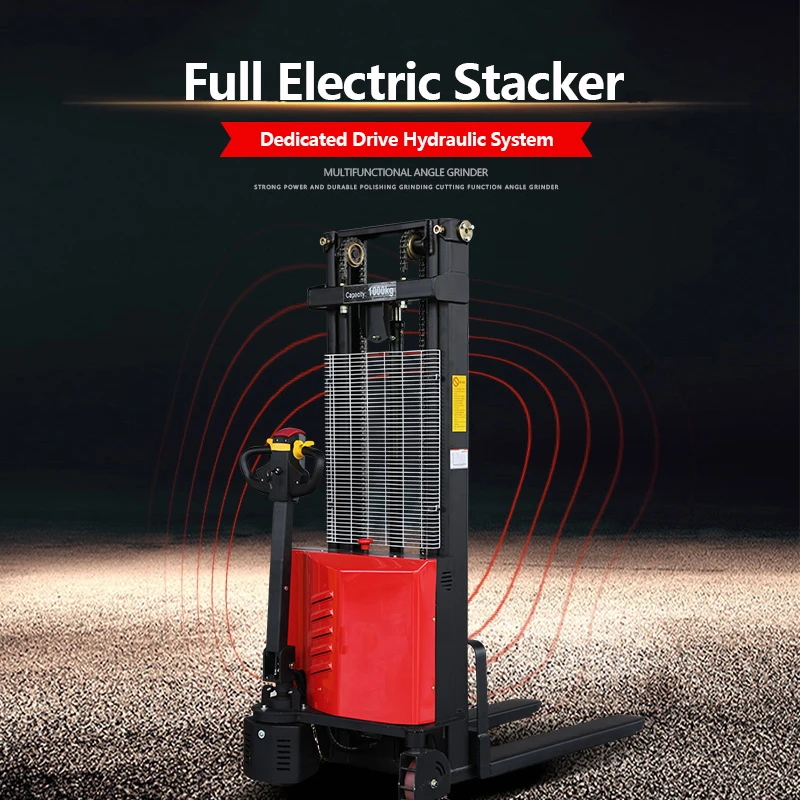

Self loading Full Automatic Pallet Small Boom All Terrain Electric Stacker Forklift
- Category: >>>
- Supplier: Zhejiang Chaoyang Machine Co. Ltd.
Share on (62482611182):
Product Overview
Description
Product Description
| Model | ESC12M25-T (Composite steel) | ESC12M30-T (Composite steel) | |
Drive type |
|
Horizontal | Horizontal |
| Operation type |
| walk | walk |
| Load | Kg | 1200 | 1200 |
| Load center distance | mm | 600 | 600 |
| Wheelbase | mm | 1255 | 1255 |
| Self weight (without battery) | kg | 560 | 580 |
| Self weight (with battery) | kg
| 610 | 630 |
| Wheel material | PU | PU | |
| Wheel size, front wheel | mm | φ78 | φ78 |
| Drive wheel size | mm | φ220 | φ220 |
| Balance wheel size | mm | 124 | 124 |
| Number of wheels | Psc | 6 | 6 |
| Height when the gantry is retracted | mm | 1735 | 1985 |
| Maximum height of the vehicle | mm | 3150 | 3550 |
| Fork lift | mm | 2500 | 3000 |
| Overall length | mm | 1770 | 1770 |
| Fork width | mm | 160 | 160 |
| Body width | mm | 820 | 820 |
| Fork size | mm | 1150 | 1150 |
| Outer fork width | mm | 560/680 | 560/680 |
| Minimum height of fork | mm | 90 | 90 |
| Ground clearance | mm | 30 | 30 |
| Turning radius (without handle) | mm | 1460 | 1460 |
| Body height | mm | 760 | 760 |
| Minimum right angle stacking channel width, (tray) | mm | 2540 | 2540 |
| Minimum right angle stacking channel width, (tray) | mm | 2600 | 2600 |
| Driving speed, full load / no load | Km/h | 2.5/3.0 | 2.5/3.0 |
| Increase speed, full load / no load | mm/s | 75/90 | 75/90 |
| Falling speed, full load / no load | mm/s | 85/75 | 85/75 |
| Climb, full load / no load | % | 5/7 | 5/7 |
| Drive motor power | kW | 0.65 | 0.65 |
| Increase motor power | kW | 2.2 | 2.2 |
| Battery voltage / rated capacity | V/Ah | (12V/75Ah)x2 | (12V/75Ah)x2 |
| Battery size (length X width X height) | mm | (260x172x214)x2 | (260x172x214)x2 |
| Brake | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake |
Company Information
exhibition
Packaging & Shipping
FAQ
A: We are manufacture.Our factory has been specializing in all kind of casters,electric forklift wheel,hand pallet truck wheel and so on since 1985.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your package ways?
A:Generally,carton+wooden pallet.We can also pack according to customer's requirement.
Q:What is your delivery time?
A: Generally,within 25 days. It also depends on the order quantity.
