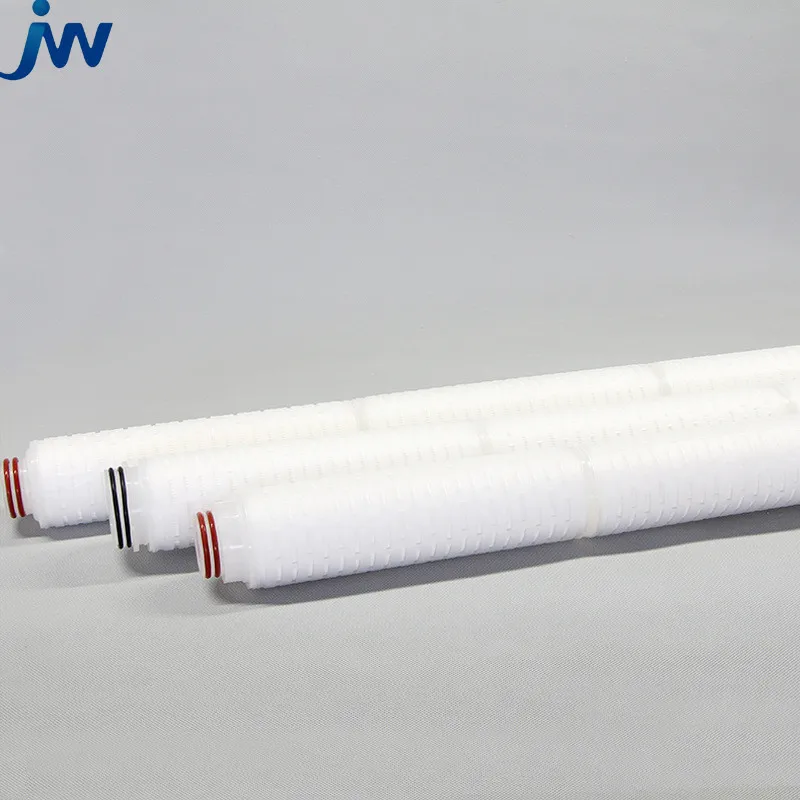

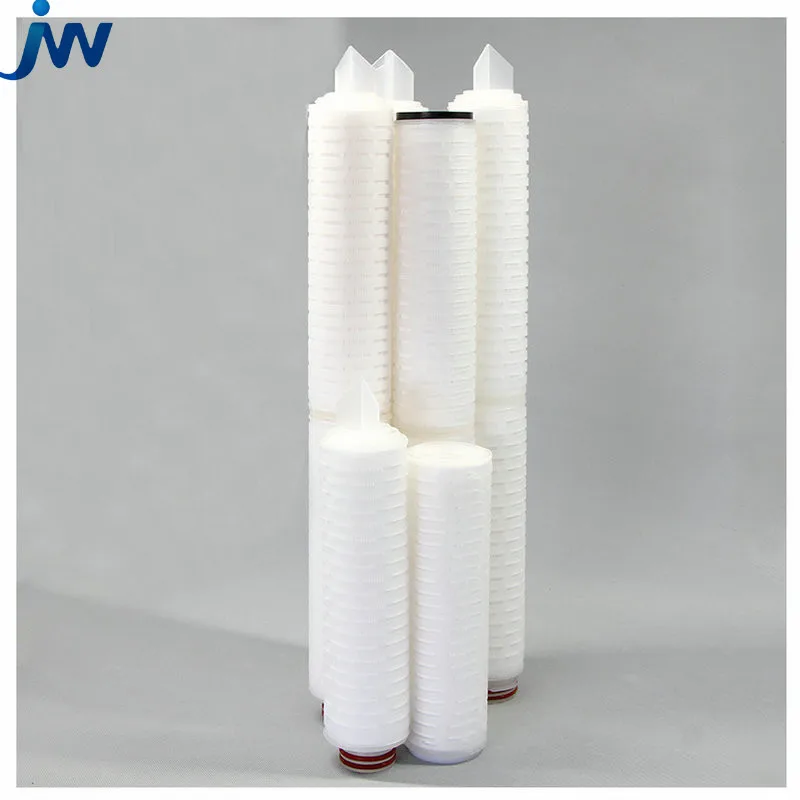

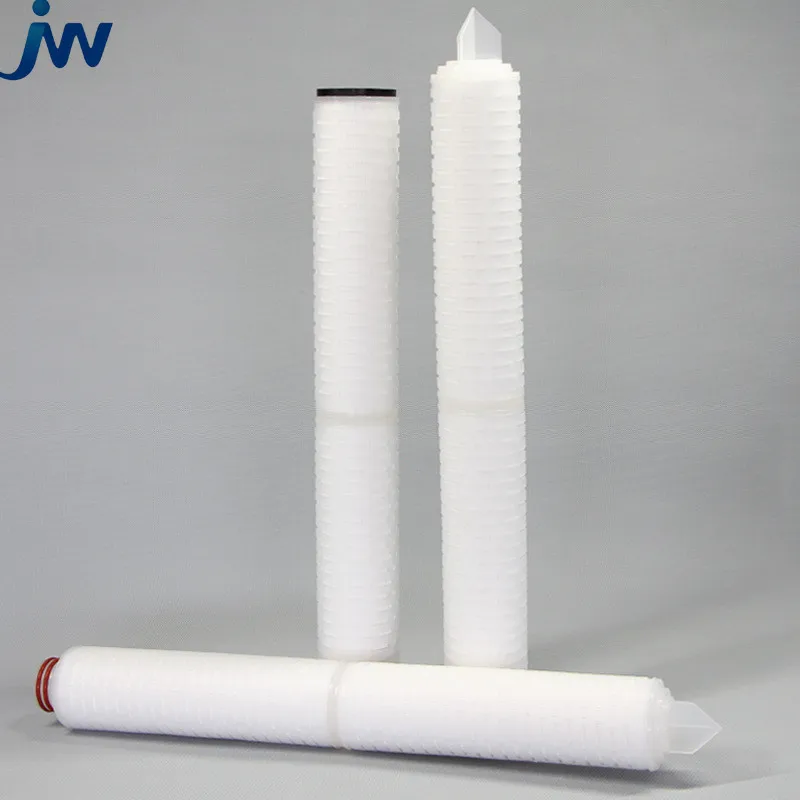

Guangzhou PES membrane Pleated filter cartridge for Water Purifier
- Category: >>>
- Supplier: Guangzhou Yilongfa Trading Co. Ltd.
Share on (62482620136):
Product Overview
Description
Product Description
The Polypropylene (PP) membrane filter cartridge has high flow rate and dirt holding capacity, 100% quality polypropylene construction with excellent chemical compatibility.
PP Pleated Filter Cartridge cater to high efficiency filtration requirement. They are constructed of high purity polypropylene materials which increasing dirt holding capacity. The materials comply with FDA related requirement.The high surface area enable high flow rates and long service life. The series of cartridge with multiple layered microporous ensure stable performance and broad chemical compatibility.
Specifications
| Filter Media: | Polypropylene Membrane |
| Support Layers: | Polypropylene |
| Micron Rating: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 25, 50 um |
| Inner core: | Polypropylene |
| Outer Cage, End caps: | Polypropylene |
| Seal Method: | Thermal Bonded, No Adhesives |
| O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon, etc |
| Outer Diameter | 69mm(2.75'') |
| Inner Diameter | 33mm(1.30'') |
| Length(based on DOE end caps) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm |
| Filtration Area(m2) | 0.65 m2 per 10'' |
| Normal Operating Temperature: | Up to 60℃ (140℉) |
| Max.Operating Temperature | 80℃ (172℉) at P≤1.0 bar (14psi) |
| Normal Flow direction: | 4.2 bar (60 psi) at 25℃ (77℉) |
| Reverse flow direction: | 2.1 bar (30psi) at 25℃ (77℉). |
| PH Value compatibility | 1-13 |
Applications
Application areas
* FPN filter is an economical filter, which can be used as an alternative to membrane filter.
* Post-filtration of ion exchange bed;
* As a pre-protected filter element for expensive terminal fine filtration;
* Filtration of bulk chemicals;
* For filtration of fluid polymers, coatings and inks;
* Capturing and filtering of bacteria in beer
Polypropylene membrane filter
Polypropylene filter element is a fixed-pore deep-layer filter element with ultra-fine polypropylene fiber filter material as the filter medium. The filter material meets FDA requirements. Filtering precision range
From 0.1um to 60 um, its unique low pressure difference, high flow capacity and long service life make it the first choice for prefiltration. Full polypropylene structure with
Stable performance and extensive chemical compatibility.
Product specifications and technical parameters
Filter media: polypropylene fiber membrane
Upstream support material: polypropylene
Support frame and structural elements: polypropylene
Filtering accuracy: 0.1, 0.22, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 30, 60 (um)
Filter length: 5 ", 10", 20 ", 30", 40 "
Sealing materials: silicone rubber, nitrile rubber, EPDM rubber, fluorine rubber
Sealing method: hot melt welding
Effective filtering area: 0.4 ~ 0.7 m / 10 "
Filter diameter: 69.0 mm
Maximum working temperature: 80 ℃, 0.28MPa
Maximum positive pressure difference: 0.42MPa (25 ° C)
Maximum back pressure difference: 0.28MPa (25 ° C)
Sterilization condition: 121 ℃ 30 min
Typical application areas:
Pharmaceutical industry: filtration of medicinal solution, cell debris, biological products, etc.
Chemical industry: filtration of organic solvents, chemical reagents, inks, plating solutions, etc.
Food industry: drinking water, mineral water, beverages, beer, wine, fruit wine, etc.
Electronics industry: pre-filtration of reverse osmosis water system, pre-filtration of deionized water system
Gas filtration: filtration of compressed air, nitrogen, carbon dioxide, etc.
Other industries: photoresist, magnetic media, etc.
Pure water flow reference table: 10 "filter element initial value L / min ( P = 0.01MPa, 1 centipoise viscosity, 25 ℃)
Accuracy um
