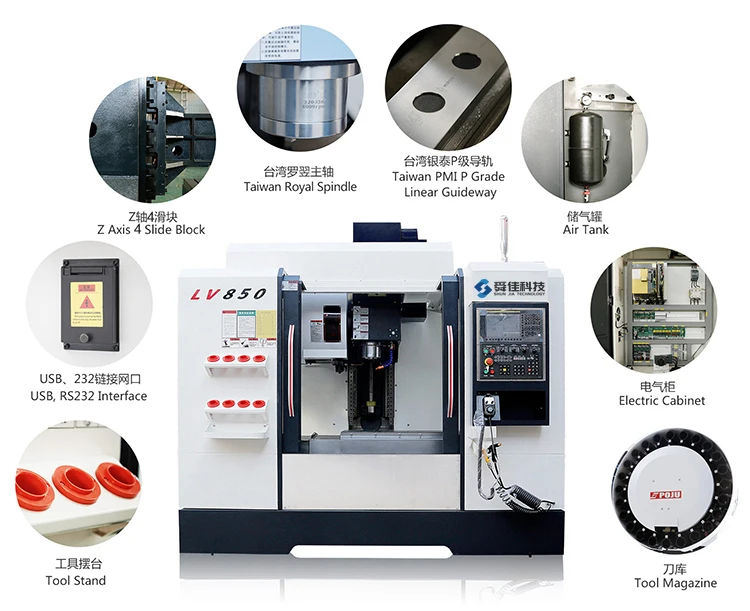

LV 850 FANUC CNC Controller 4 Axis Vertical CNC Milling Machine VMC
- Category: >>>
- Supplier: Jiangsu Shunjia Intelligent Technology Co. Ltd.
Share on (62482704728):
Product Overview
Description
A.The overall framework is made of high toughness and high grade casting iron. High efficient annealing treatments relieves internal stress to ensure the lasting best rigidity and high precision.
B.The long span Y type column design leads high rigidity and high stability. Assembled with solid and stable large casting bed base can guarantee the workpiece’s accuracy.
C. Using P3 class precision ball screw on 3 axes with double nuts and washers pre-loading to pre-eliminate back lash achieves position accuracy and repeatability accuracy with high stability
D.3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.
E.The ball screw connected with AC servo motor directly on 3 axes feed driving system. Running smoothly without back lash. Also having good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.

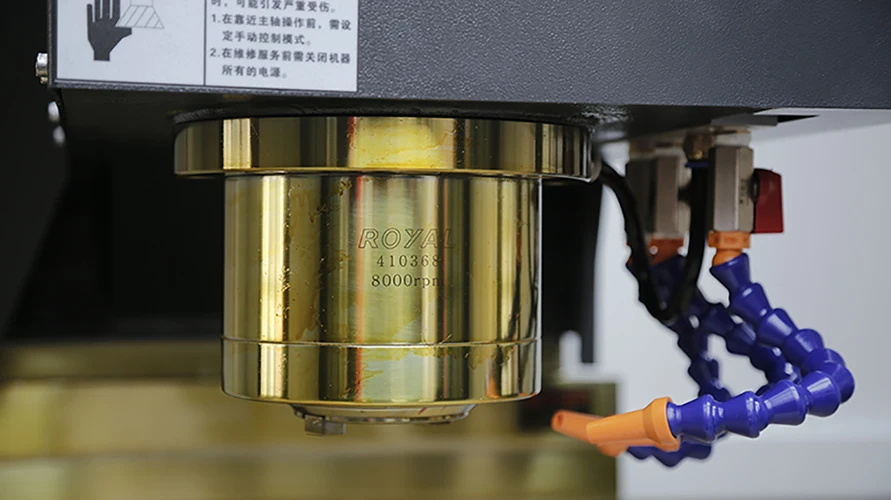

F.The high speed precision spindle connected with AC servo motor by synchronous belt. Low noise, low vibration and low heat. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing. and tapping and other machining processing. processing.
B.The long span Y type column design leads high rigidity and high stability. Assembled with solid and stable large casting bed base can guarantee the workpiece’s accuracy.
C. Using P3 class precision ball screw on 3 axes with double nuts and washers pre-loading to pre-eliminate back lash achieves position accuracy and repeatability accuracy with high stability
D.3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.
E.The ball screw connected with AC servo motor directly on 3 axes feed driving system. Running smoothly without back lash. Also having good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.
F.The high speed precision spindle connected with AC servo motor by synchronous belt. Low noise, low vibration and low heat. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing. and tapping and other machining processing. processing.
X/Y/Z-Axis Travel | mm | 800/500/550 |
Distance From Spindle Nose TO Table | mm | 120-620 |
Distance From Spindle Center To Column Guideway | mm | 550 |
Spindle Motor Power | kw | 7.5/11 |
Spindle Speed | rpm | 8000/10000/12000 |
Spindle Taper | / | BT40(φ140) |
Positioning Accuracy | mm | ±0.003 |
Repeatability Accuracy | mm | ±0.0015 |
Working Table Size | mm | 1000*500 |
Max.Working Table Load Capacity | kg | 600 |
T-Slot Qty-Width-Distance | mm | 5-18-100 |
X/Y/Z-Axis Rapid Feed Speed | m/min | 48/48/48 |
Feed Speed | mm/min | 1-10000 |
Dia.of X/Y/Z-Axis Ball Screw | mm | φ40 |
X/Y/Z-Axis Servo Motor Power | kw | 2.0/2.2/3.0 |
Linear Guideway Width and Type/Qty/Block Qty | X-Axis Y-Axis Z-Axis | 35 Roller/2/4 35 Roller/2/4 35 Roller/2/4 |
Controller | / | FANUC/Siemens/Mitsubishi/GSK |
Max.Power Consumption | kw | 15 |
Net Weight | ton | 4.8 |
We have own factory
Because we have our own factory, we can guarantee the product quality and the best price for our customers
Skilled experienced workers
All of our workers have an average of ten years of work experience, most of which come from Taiwan factories
Customer inspection
Domestic and foreign customers came to China to inspect the factory and won the trust of customers
Domestic and international exhibitions
We participate in famous domestic and international industrial exhibitions to let customers know more about our products and trust our products
Certificates
In foreign trade, we can provide all kinds of certification materials required by customers
Q:Are you trading company or manufacturer ?
A:We are the leading manufacturer engaged in CNC machining center, CNC lathe and other machine tools with 15 year's experience inChina.
Q: Can you do customized orders?
A:YES, ODM/OEM are available according to your design and requirements.
Q: What is the MOQ?
A:Only one set for CNC machining center.
Q: How long is the warranty?
A:We provide one year's warranty and we also provide free lifelong remote support.
Q: How long is your delivery time?
A:Normally 45 days after order confirmed. If we have stock, we can deliver within 7 days.
A:We are the leading manufacturer engaged in CNC machining center, CNC lathe and other machine tools with 15 year's experience inChina.
Q: Can you do customized orders?
A:YES, ODM/OEM are available according to your design and requirements.
Q: What is the MOQ?
A:Only one set for CNC machining center.
Q: How long is the warranty?
A:We provide one year's warranty and we also provide free lifelong remote support.
Q: How long is your delivery time?
A:Normally 45 days after order confirmed. If we have stock, we can deliver within 7 days.
