<h2>Vacuum Pressure Impregnation Plant</h2>
Product Description
Vacuum pressure impregnation plant is mainly used for VPI treatment of motor coils.
Under the circumstance of vacuum pressure,motor coil is dehydrated and degassed to reduce the impact of water and air on insulation. And in the impregnation stage, the inner and outer structure is permeated by insulating varnish to upgrade insulation and to improve overall electrical performance.

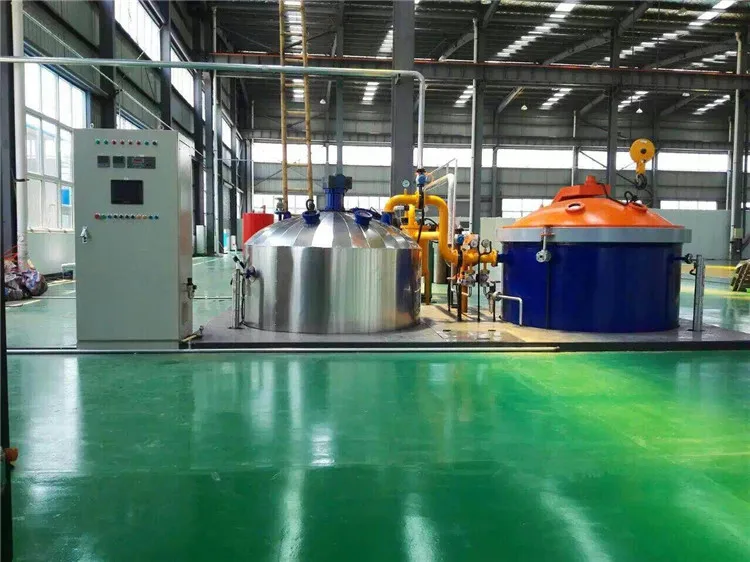

Components
1 Vacuum pressure impregnating tank system, one
2 Paint storage tank system, one
3 Vacuum system, one
4 Hydraulic system, one
5 Water cooling system, one
6 Pressurized air drying system, one
7 Pneumatic valve system for repainting, one
8 Electric control system, one
9 Ventilating system, one

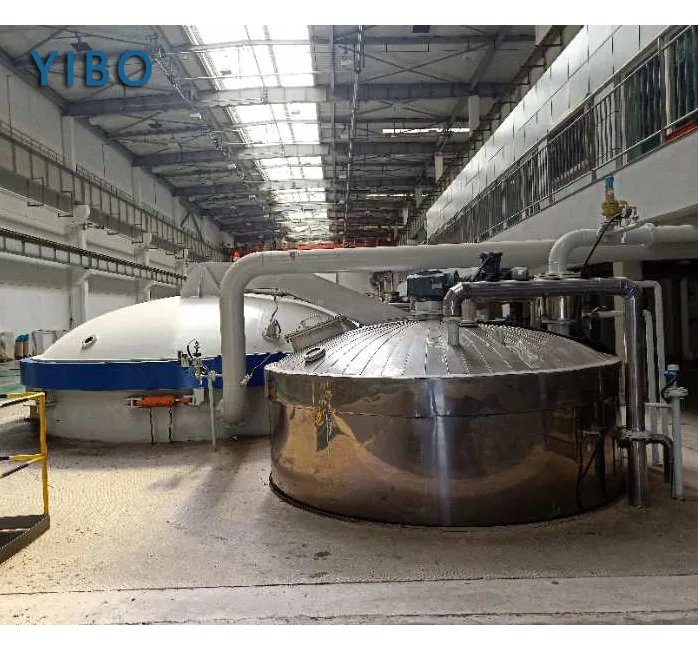

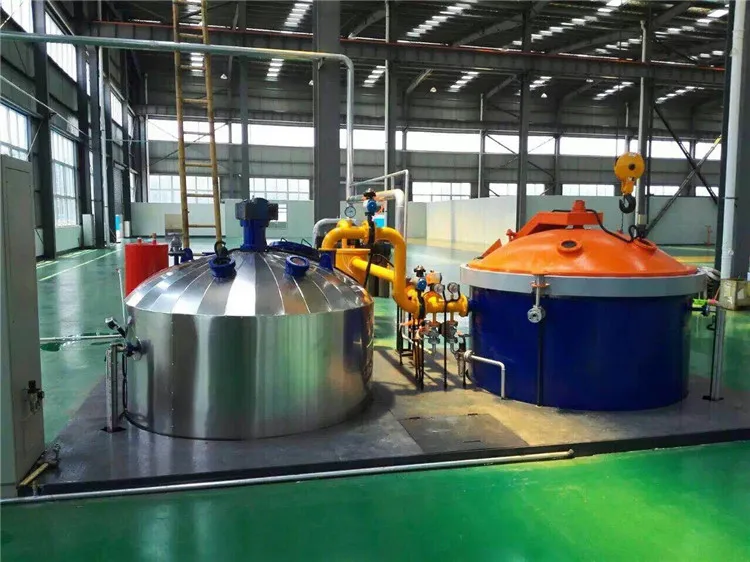

Our existing model as demonstration ----Vacuum-pressure impregnating tank system (2500 x 2500mm) vertical
3.1.1 Main parameters
Effective dimension | Φ2500 x 2200mm (H) |
Ultimate pressure | |
Working pressure | 0.5MPa |
Ultimate vacuity | 50 Pa |
Working vacuity | 80~10000Pa |
0.6Pa·m3/s | |
Tank body material | Q345R |
Tank structure:
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l Air inlet and safety valve.
l Temperature: Room temperature 80℃
l DN108 unloading mouth on the bottom
l Safety interlocking system, one set
l overpressure alarm and automatic decompression valve device, one set

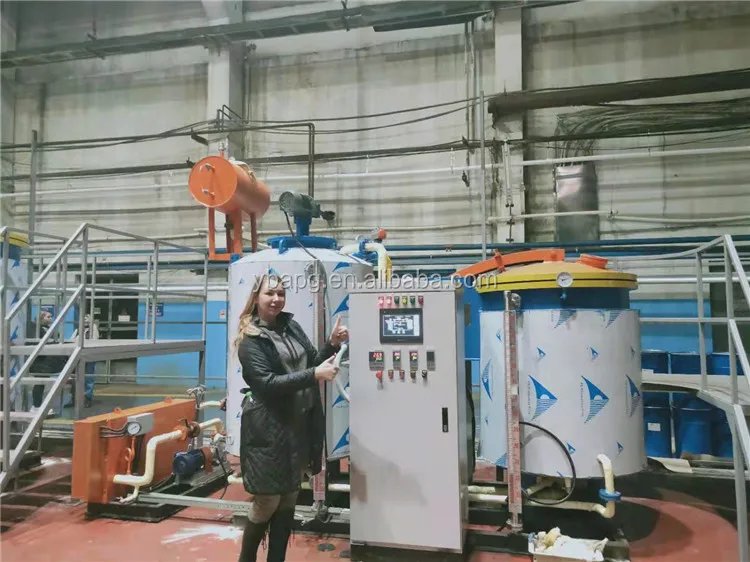

3.2 Paint storage tank system
Tank structure
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l DN20 stainless steel ball valve on the sample outlet and inlet parts,
l Magnetism paint filter 200 mesh.

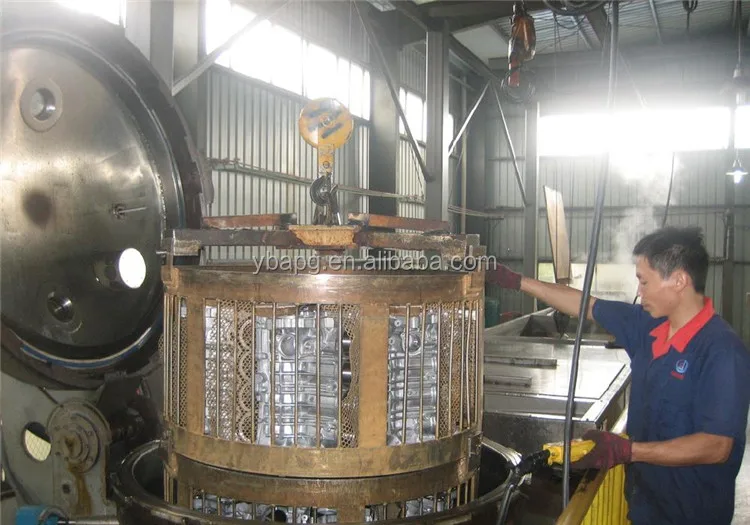

Application

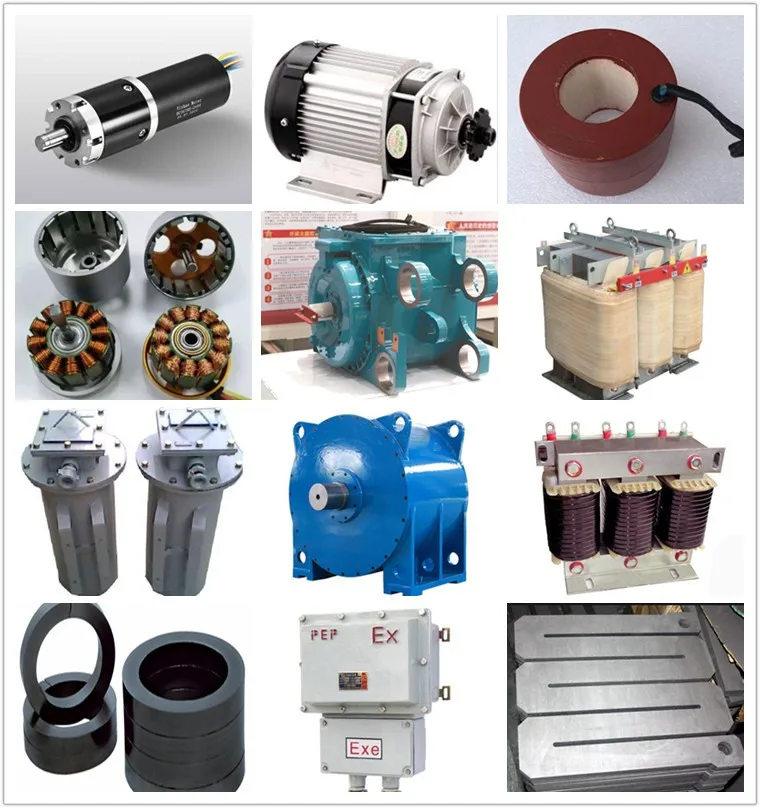

Permanent magnet motor paint dipping equipment, electric vehicle motor paint dipping equipment, new energy motor vacuum pressure paint dipping machine, hydrogen energy graphite board vacuum dip equipment, hydrogen energy graphite sheet dip equipment.vacuum dipping equipment.
