High Precision Manual 2d Measurement Metrology Equipment For Dimension

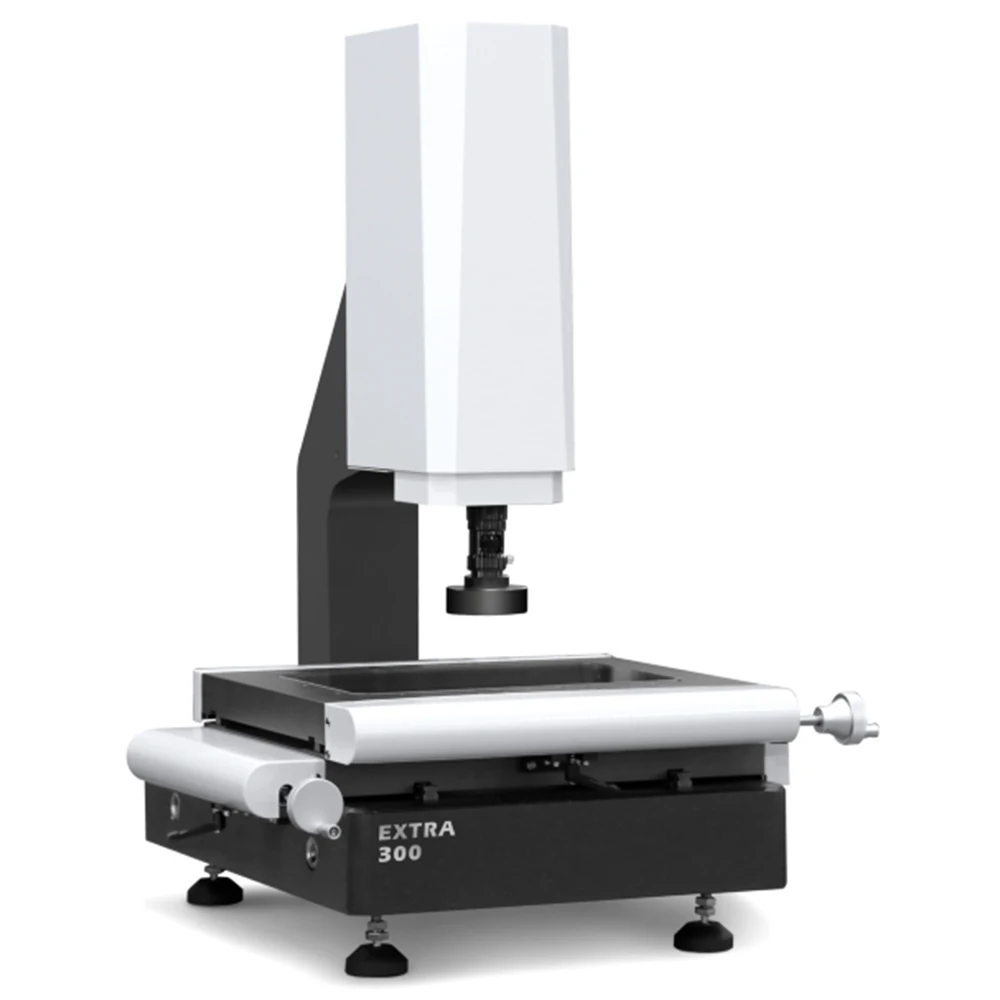

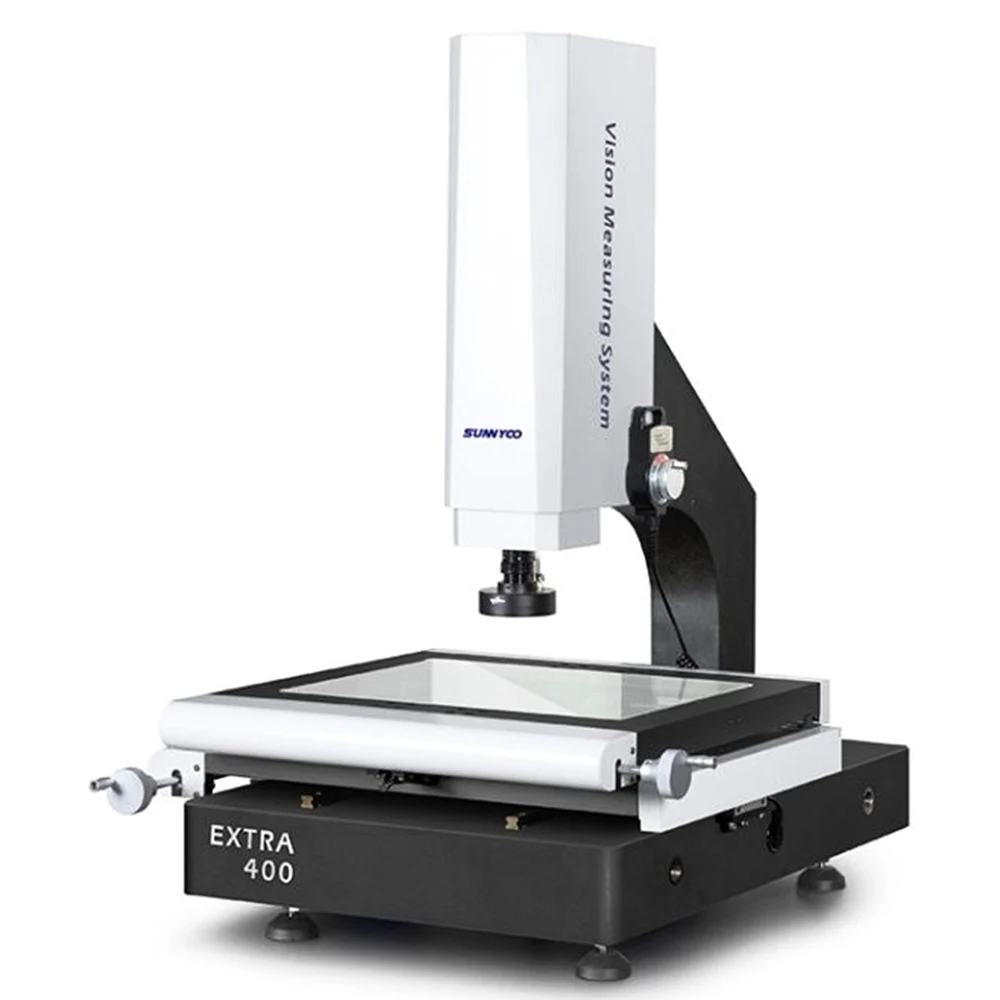

The EXTRA series manual vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. We use light weight design on the machine frame, makes the structure more slim, but keep the high rigidity and stability, allows the users to get the max measuring range in smallest space.

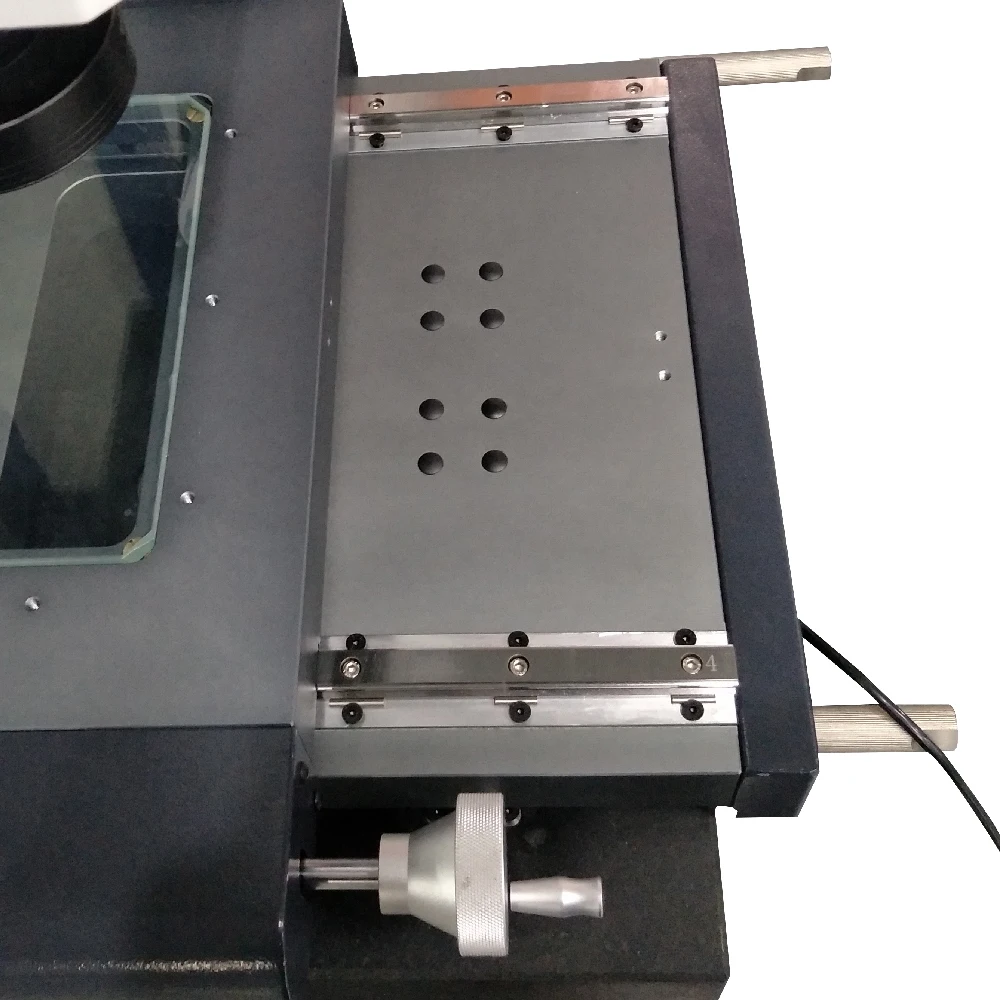

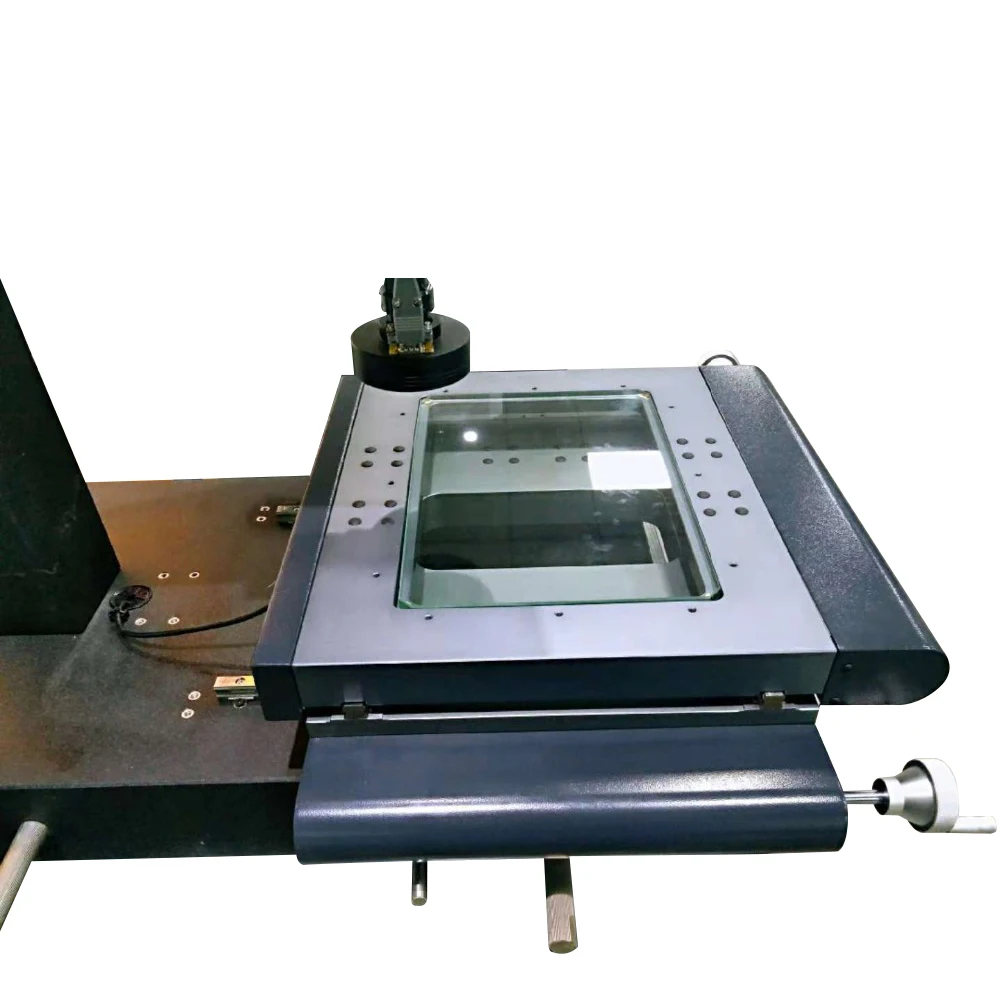

The EXTRA series is using high accuracy linear slide way, which is totally different from the cross slide way used for other
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.


Details Images






Wider Application

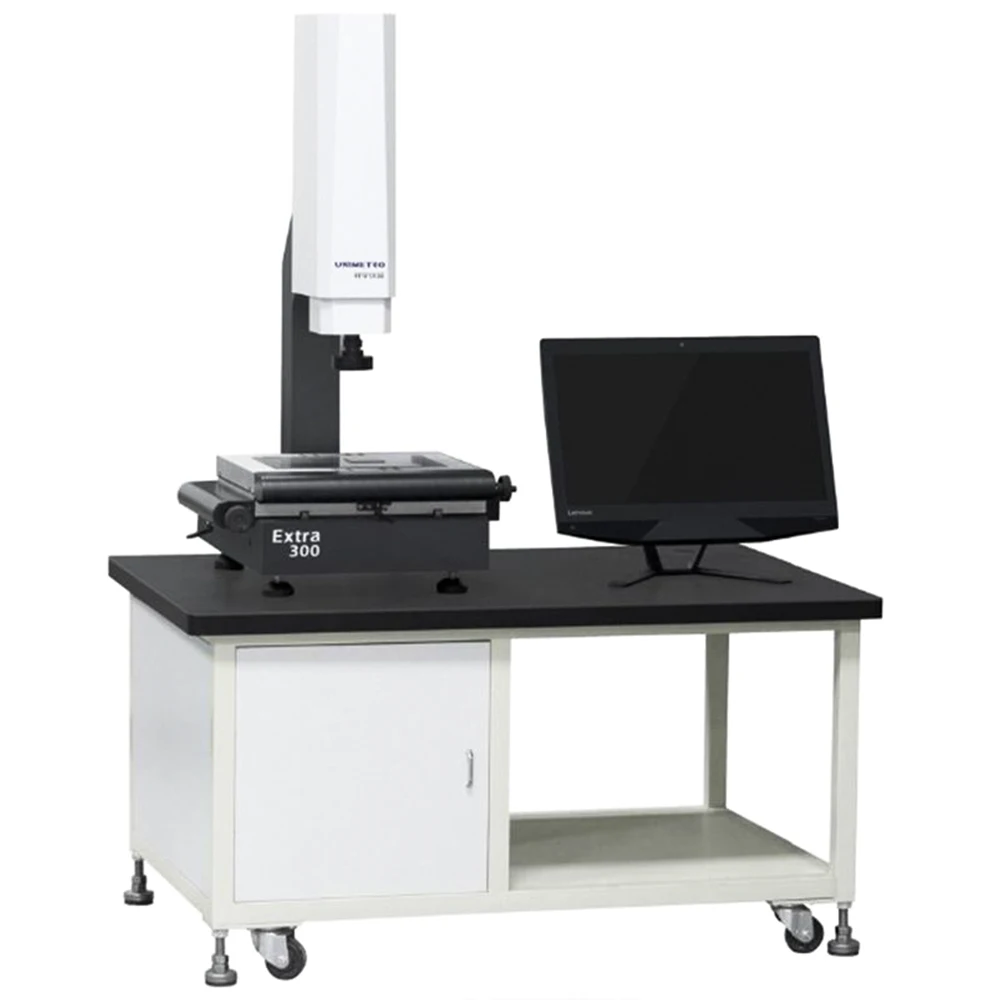

Thanks to the light weight structure design, the EXTRA series metrology equipment is offering much wider application range. The EXTRA series is able to be used in labs, QC rooms, even R&D center which has really limit space as a desk top precise measuring device. In the mean time, the outstanding measuring accuracy of the EXTRA series makes it more adaptable to strict measuring requirement. It is a powerful measuring device for metals, electronics, 3C products, PCB or plastic industries etc.




Specification


Items
EXTRA200
EXTRA300
EXTRA400
EXTRA500
Dimension(mm)( L * W * H )
500*540*930
600*740*980
700*840*980
800*940*980
Measuring range (mm)( X * Y * Z )
200*100*150
300*200*200
400*300*200
500*400*200
Measuring Accuracy ( µ m )
2.5+L/100
2.5+L/100
2.5+L/100
3+L/100
Repeatability ( µ m )
2.5
2.5
2.5
3
Weight ( kg )
140kg
190kg
240kg
290kg
Image and Measuring
CCD
Industrial grade color CCD camera
Lens
Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
Magnification
18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View
8.1~1.3mm
Working distance
108mm
Linear scale resolution
0.5 µ m ( 0.1µ m for option )
Driving system
X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available
Illumination
Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for optio


Product packaging




About us


UNIMETRO helps you to build your own business!
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.










Our service


Unimetro focus on per step in business process including the design, manufacture, installation and after sales service.
On-site service and guidance:
* 24 Hours online by phone, email, whatsup, skype, youtube, facebook…etc.
* Spot stock, Fast delivery
* After sale service
1 year warranty service and Free test software upgrades.
Technical training for technical engineers.
Provide matching testing solutions.
Site installation equipment and usage instructions.
