Automatic positioning module for packing box of heaven and earth cover in 2020
- Category: Post-Press Equipment >>>
- Supplier: Guangdong Lishunyuan Intelligent Automation Co. Ltd.
Share on (62482891354):
Product Overview
Description
Product Description

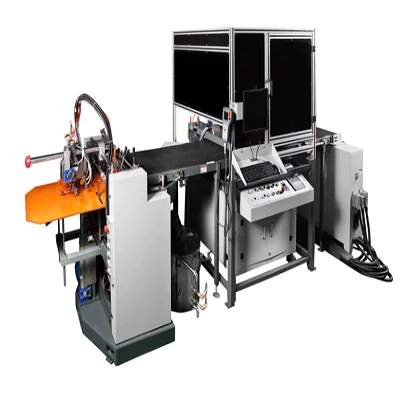

Automatic positioning module for packing box of heaven and earth cover in 2020, the parts of Feida feeding, gluing and conveyor belt use independent servo drive. The positioning part adopts YAMAHA robot arm and Japanese camera to visually position the inner box which can realize high-accuracy in different kind of box ( rigid box, cylindrical box,octagon box, drawer box etc.). It is suitable for making high quality boxes.
Technical Parameters
Paper Size | L: 180-880mm |
W:95-600mm | |
Production Capacity | ≤35pcs/min |
Second time positioning accuracy | ±0.1mm |
Paper thickness | 80-300g/m2 |
Max.paper stacking height | 400mm |
Cardboard thickness | 1-3mm |
Glue tank volume | 50kg |
Machine weight | 1500kg |
Air pressure | 0.6-0.8MPa |
Power Supply | 380V/50Hz/3phases |
Constant power | 18KW |
Machine dimension | L7500*W1500*H2000mm |
Product features
* Using two industrial cameras with five mega pixels, and YAMAHA robot arm to position, high positioning accuracy±1mm
* High-speed production, rigid box production rate ≤35pcs/min.Forming speed up to 25-35pcs / min.
* Using independent automatic control system, transfer machine time is short and fast transfer version.
* Feeding stably, not easy to feed double sheets, reduce the product rejection rate.
* The independent gluing & positioning module, can optionally match with edge mounting machine, splicing board box making machine, pneumatic machine, etc.
* The independent gluing & positioning module, can optionally match with edge mounting machine, splicing board box making machine, pneumatic machine, etc.According to the product features & cost-effective,you can choose the most suitable configuration,it's entirely up to you to use either LY-600A fiber servo positioning system or LY-600B Visual robot arm positioning system.
* High-speed production, rigid box production rate ≤35pcs/min.Forming speed up to 25-35pcs / min.
* Using independent automatic control system, transfer machine time is short and fast transfer version.
* Feeding stably, not easy to feed double sheets, reduce the product rejection rate.
* The independent gluing & positioning module, can optionally match with edge mounting machine, splicing board box making machine, pneumatic machine, etc.
* The independent gluing & positioning module, can optionally match with edge mounting machine, splicing board box making machine, pneumatic machine, etc.According to the product features & cost-effective,you can choose the most suitable configuration,it's entirely up to you to use either LY-600A fiber servo positioning system or LY-600B Visual robot arm positioning system.
Excel cut consists of following sections:
Feeder
1 . Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
Positioning

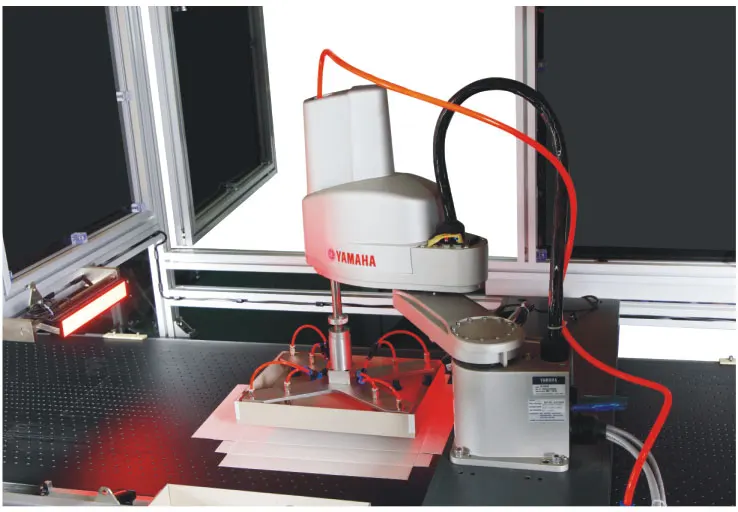

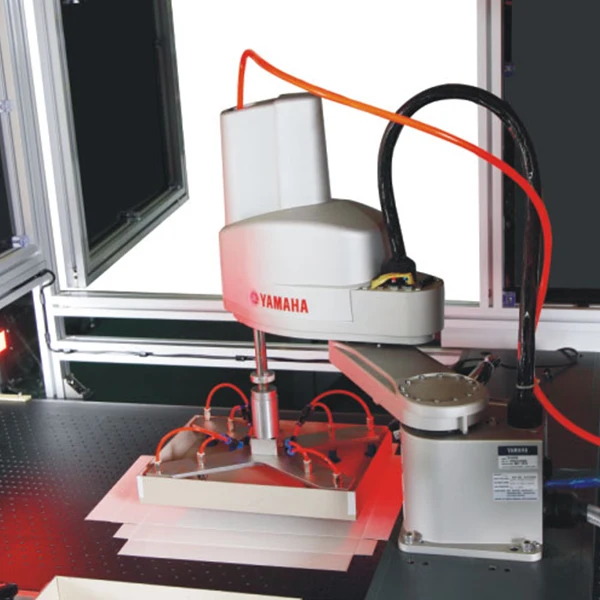

1 . SCARA (Selective Compliance YAMAHA Robot Arm) for spotting the grey board box

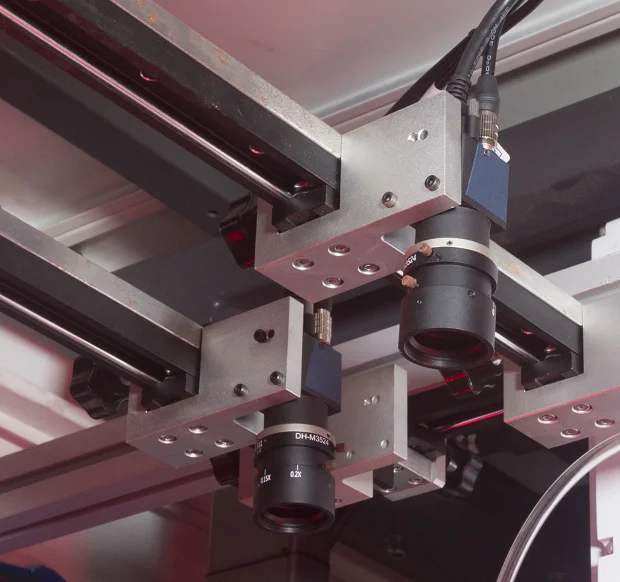

2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.
Packing&Shipping
Vacuum packing on the inside and wooden cases on the outside
Workshop
Workshop office Area
Partial Install Area
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Our Services & Strength
We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the box machine and providing extensive after sales service.Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each individual client’s requirements.
