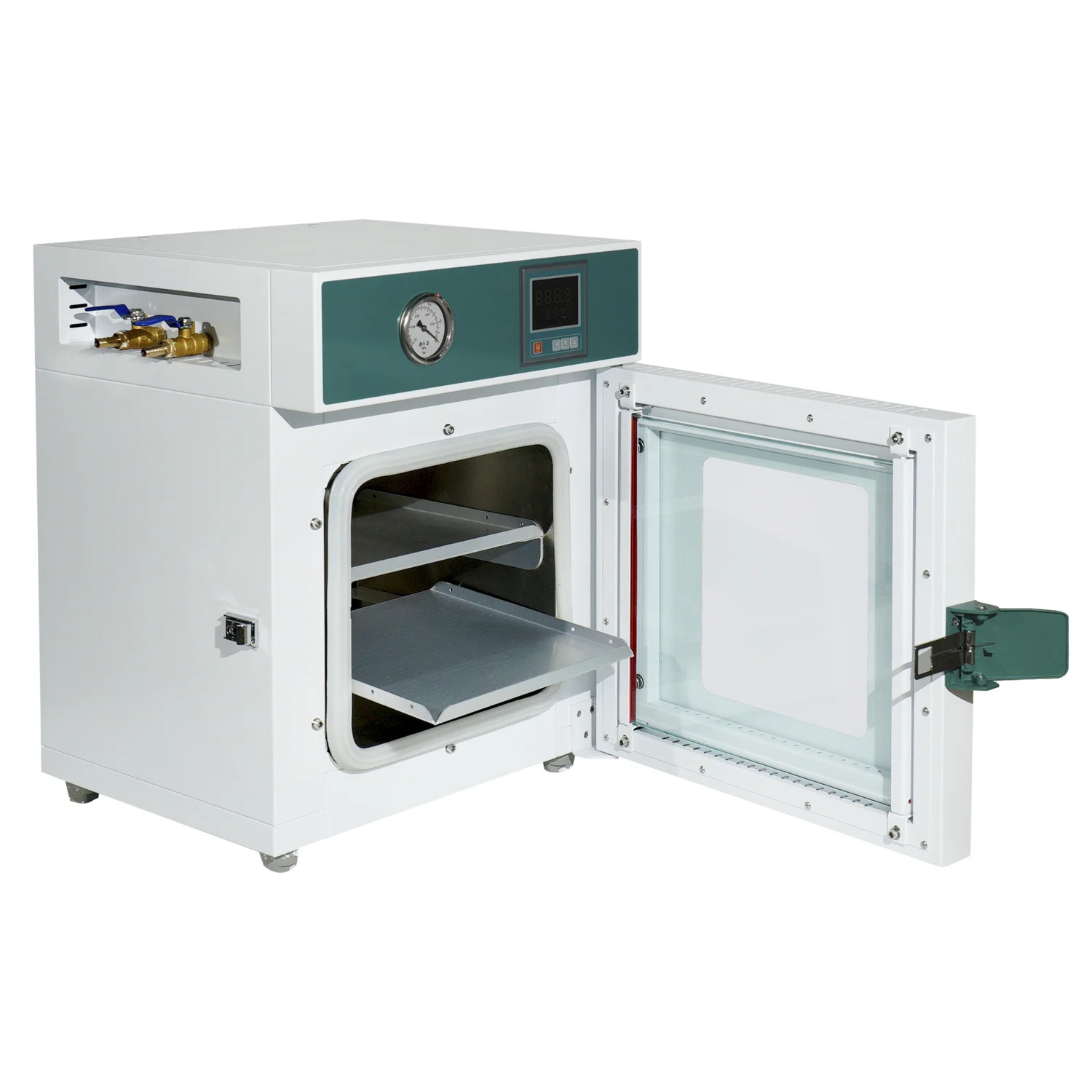

91L Thermo Vacuum Drying Oven With optional vacuum oven pump CE and ISO
- Category: >>>
- Supplier: Faithful Instrument (Hebei) Co. Ltd
Share on (62482992526):
Product Overview
Description

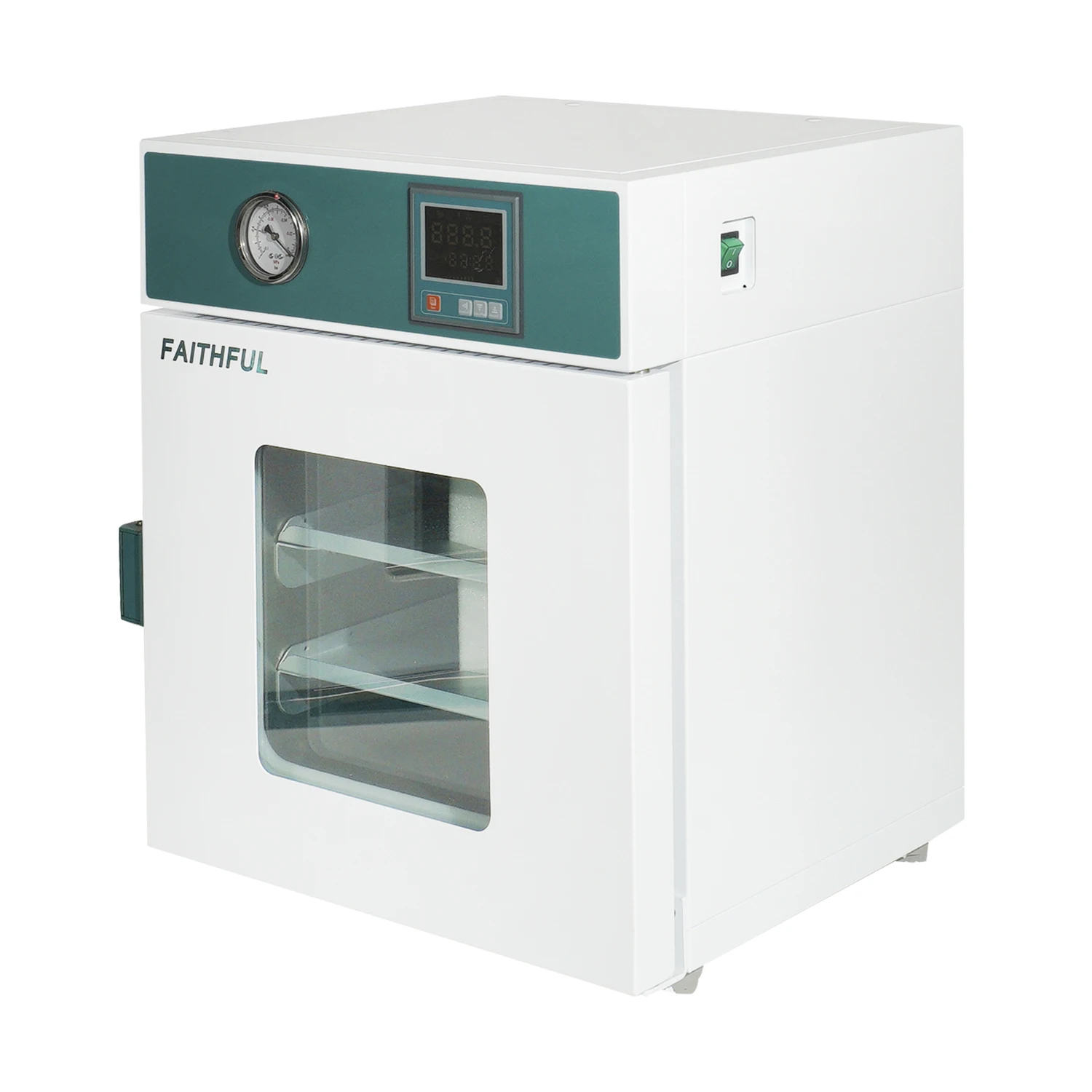

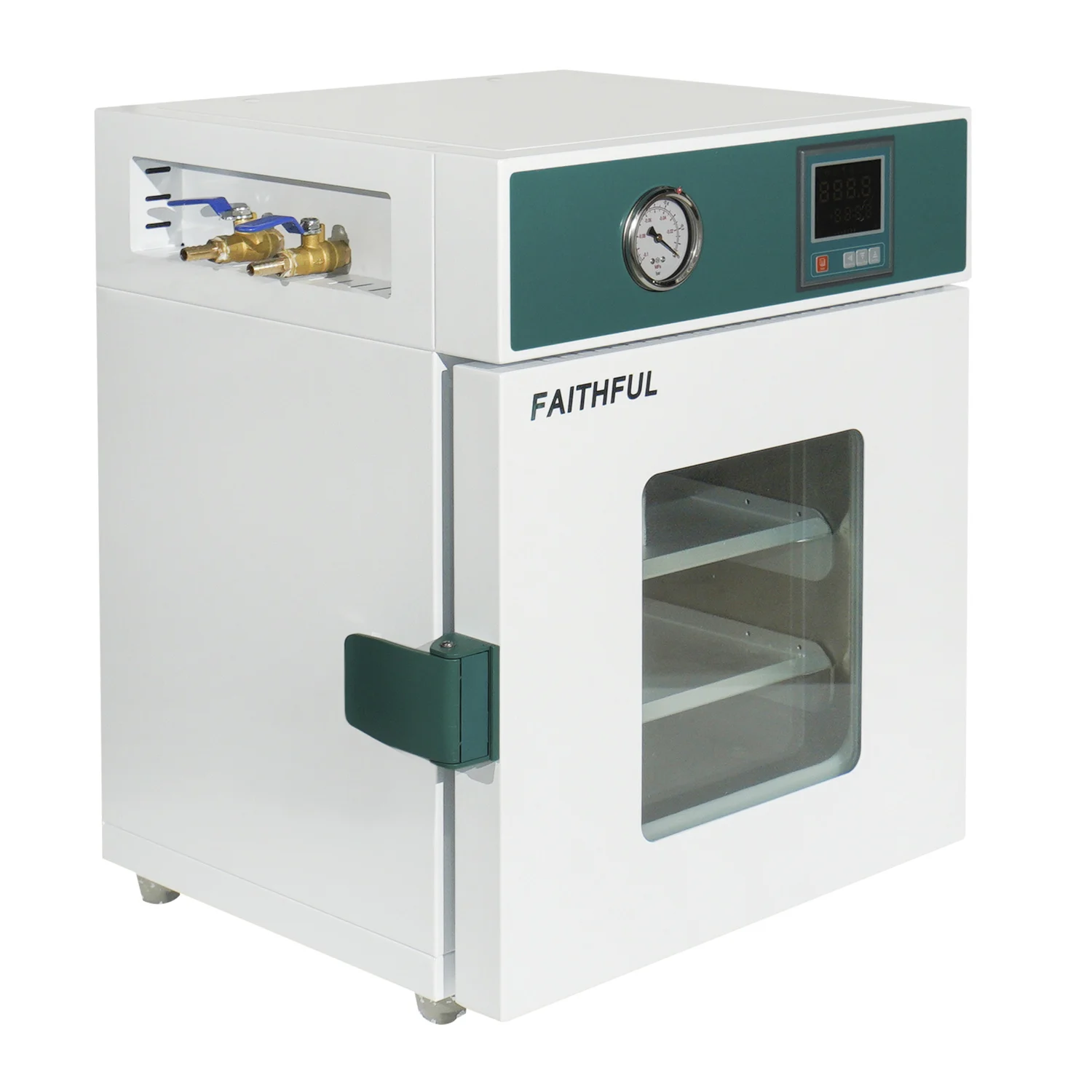

Vacuum Drying Oven
| Model | DZ-3BCII |
| Volume | 91L |
| Temperature Range | RT+10-250℃ |
| Power | 2.0kW |

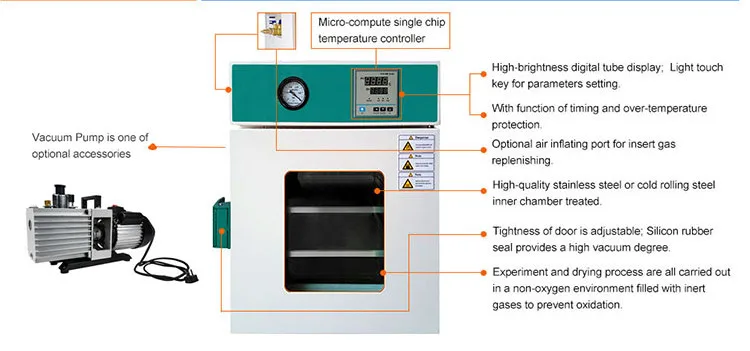

Uses:

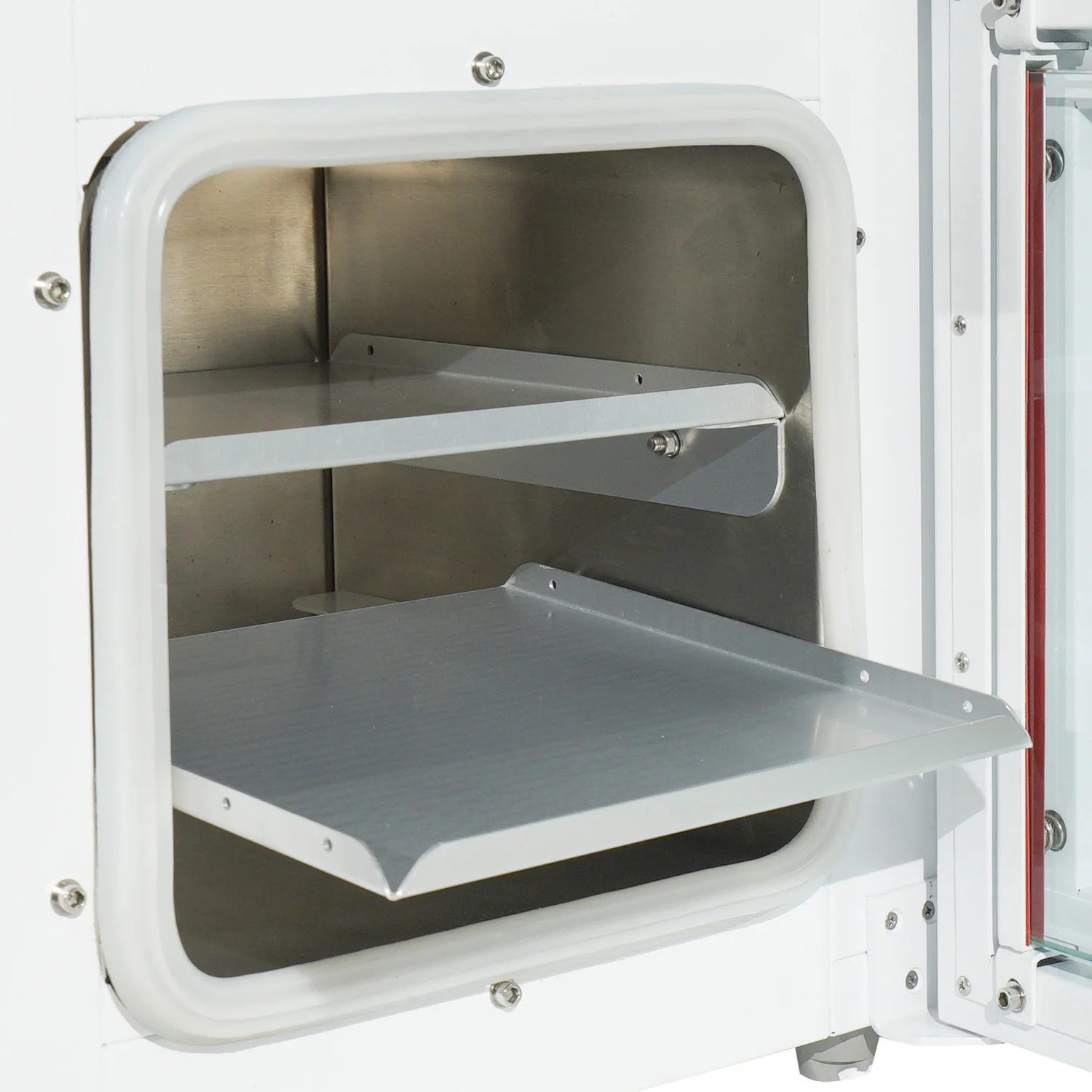

1. 4-sides Heating method, Temperature conduction by shelves, more efficiency.
2. With inflatable port, once-forming thermostability Silica gel Sealant strip, with good tightness
3. Double Observation glass window, inner is explosion - proof glass, outsite is resin protection plate, more safety.
4. Fastening handle, convenient for opening and closing.
Main parameters:
| Model | DZ-1BCⅡ | DZ-2BCⅡ | DZ-3BCⅡ | |
| Heating mode | Four walls heat conduction and decompression | |||
| Function | Temp. Range | RT+10-250℃ | ||
| Useful vacuum degree Range | <133Pa | |||
| Temp. Resolution Ratio | 0.1℃ | |||
| Temp. motion | ±1℃ | |||
| Heating-up time | 80min | 100min | 120min | |
| Structure | Inner Chamber | High quality hairline stainless steel sheet; | ||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Insulation layer | Aluminum silicate fiber | |||
| Heater | Stainless steel electric heating tube | |||
| Observation window | Bullet proof glass, acrylic exterior protection | |||
| Vacuum meter | Pointer type, accuracy class 2.5 | |||
| Nozzle diameter | 10mm | |||
| Power rating | 0.8kW | 1.4kW | 2.0kW | |
| Controller | Temp. control mode | Two temperature section PID intelligent | ||
| Temp. setting mode | Touch button setting | |||
| Temp. display mode | Measuring temperature: display on the four digital tubes upper row ; setting temperature: display on the lower row | |||
| Timer | 0-9999min(with timing wait function) | |||
| Operation function | Fixed temperature operation, timing function, auto stop | |||
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||
| Sensor | pt100 | |||
| Safety device | Over temperature sound-light alarm | |||
| Specification | Inner Chamber size(W*L*H) (mm) | 300*300*270 | 415*370*340 | 450*450*450 |
| Exterior size (W*L*H)(mm) | 480*480*606 | 560*540*680 | 640*590*780 | |
| Packing size (W*L*H)(mm) | 590*550*750 | 704*620*814 | 739*700*889 | |
| Volume | 24L | 52L | 91L | |
| Number of shelf | 2 | |||
| Load per rack | 15kg | |||
| Shelf space | 100mm | 140mm | 185mm | |
| 50/60HZ) Current rating | AC220V/3.6A | AC220V/6.3A | AC220V/9.1A | |
| NW/GW (kg) | 42/52 | 67/92 | 82/105 | |
| Accessory | Shelf | 2 | ||
| Shelf frame | 4 | |||
| optional accessories | Silica gel connecting pipe, vacuum pump | |||
Company Information
Huanghua Faithful Instrument Co.,TLD founded in the last century 90s. Huanghua Faithful Instrument Co.,LTD is a specialized supplier of scientific and laboratory instruments and have our own brand TYFSF® and FAITHFUL®. Huanghua Faithful Instrument Co.,LTD founded in 90s and located in coastal city-Huanghua,our factory covered in 40,000 square meters,with more than 200 employees. Not only the good quality products sell in the Domestic Market,also exported to Germany , France , Spain , Turkey , Brazil , USA , Canada, Argentina, Mexico , Chile,Indonesia,Iraq and etc. And we have received widely good reputation from worldwide customers. We sincerely thank our customer for the supports,and we are willing to build long-term cooperation with new and old friends.
Faithful has established enviable reputation for its ability to design and manufacture high quality products,now we are dedicated to developing and manufacturing instruments as well as distributing world-renowned products and offering unmatched scientific performance and proven value.We have obtained CE certificate and passed the ISO9001. Our main products include:Drying Oven,Incubator,Magnetic Stirrer,Heating Mantle,Stainless Steel Water Still,Growth Chamber with Humidity Control,Ceramic Muffle Furnace,Water Bath, Laminar Flow Cabinet,Disintegrator,Vortex Mixer and etc.
FAQ
Q: Are you a manufacturer or a distributor?
A:Yes,We are a lab equiments of manufacturer FAITHFUL
Q:What about your products?
A:We have many high quality prducts(the more information)
Q:what is the Packaging & Delivery?
A:We used high quality export carton or standard export woodern case
Q:what is the time about the delivery?
A:The Delivery Time between 10 and15 DAYS after the payment
Q:What is the website about your factory?
A:Our website is:https://labinstrument.en.alibaba.com/
Q:How to contact with you ?
Packaging & Shipping
1. Packing Type: Carton and wooden case, also can be packed according to customers' requirements.
2. Modes of Transportation: by sea, by air or land transportation. For small amount, Express is available too.
