ZYTEST biochemical analyzer ZYPFT PLC ZYCGF basic ZYMICRO ultra-pure water
Product Description

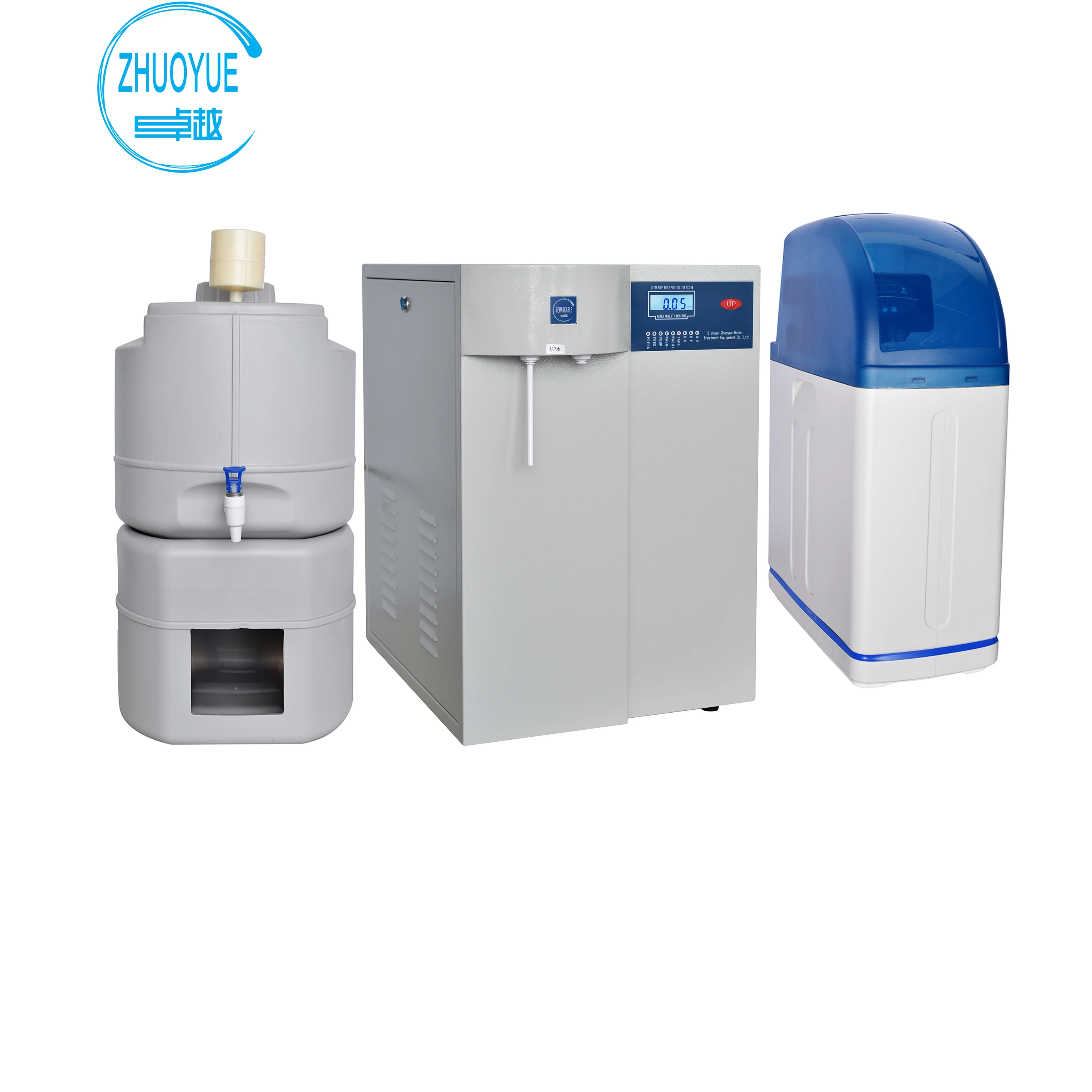

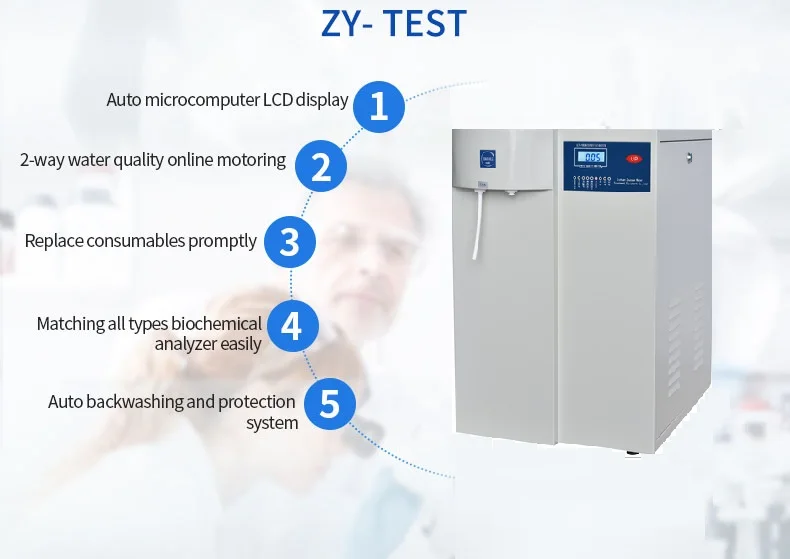

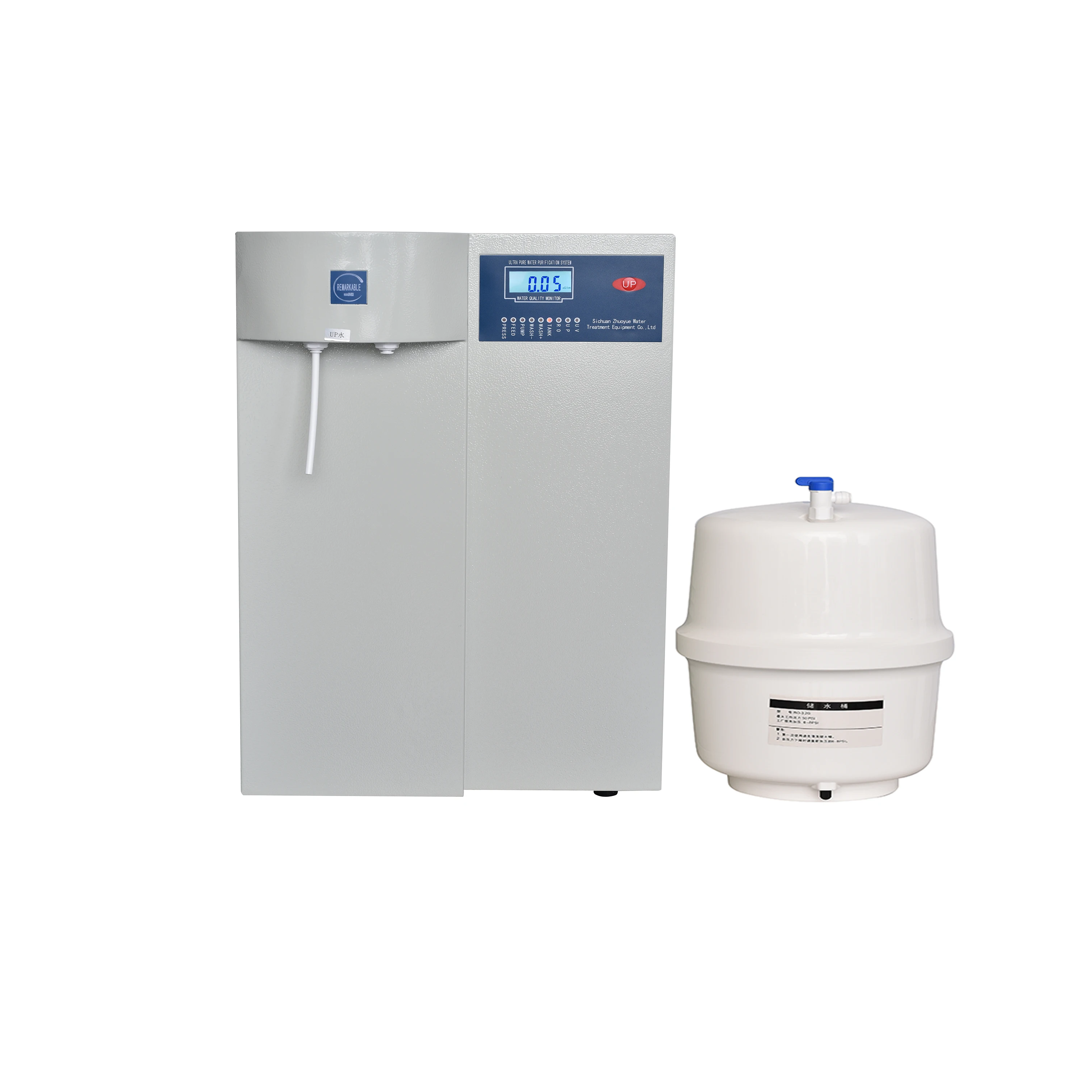

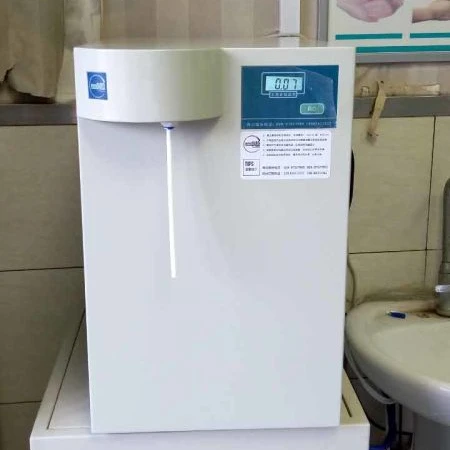

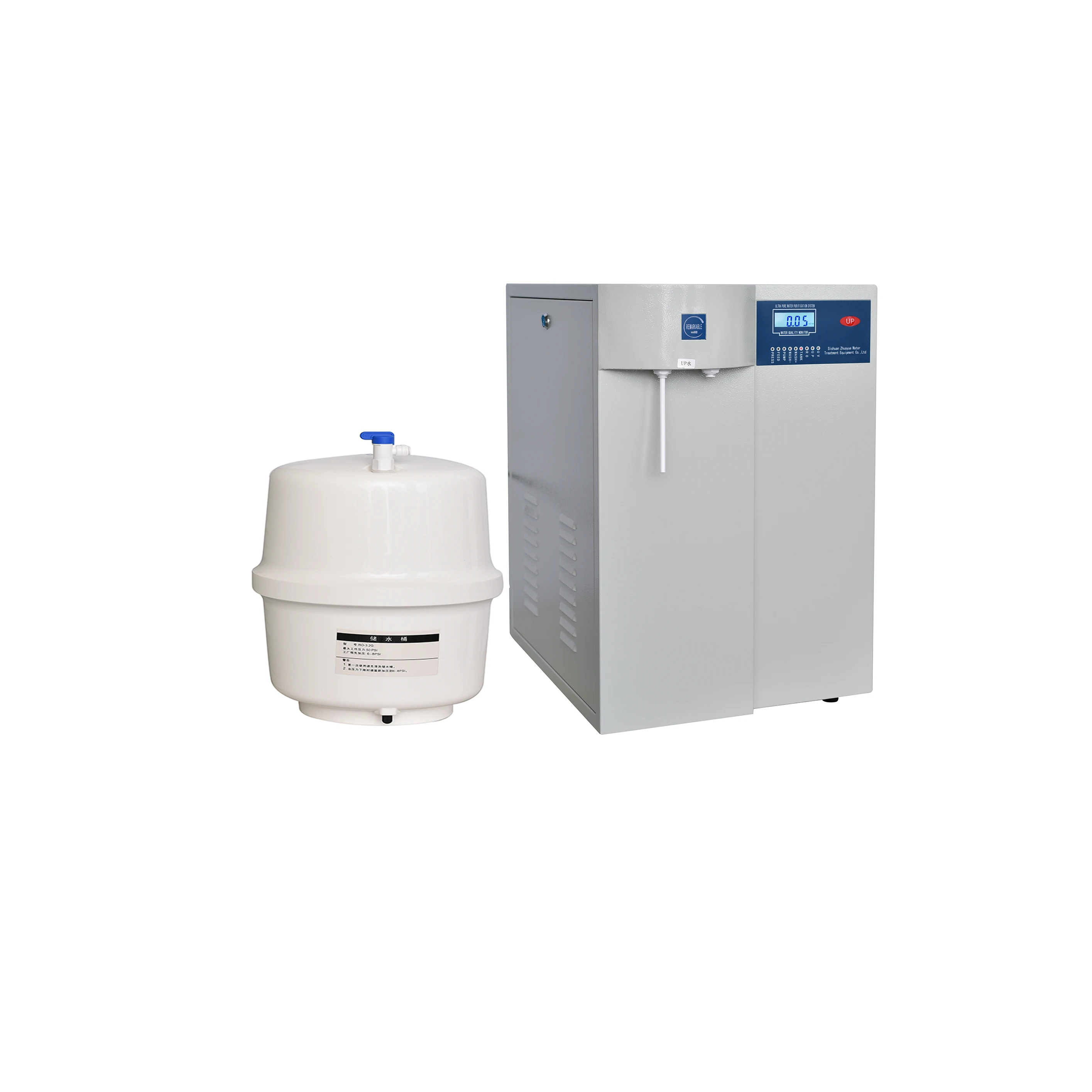

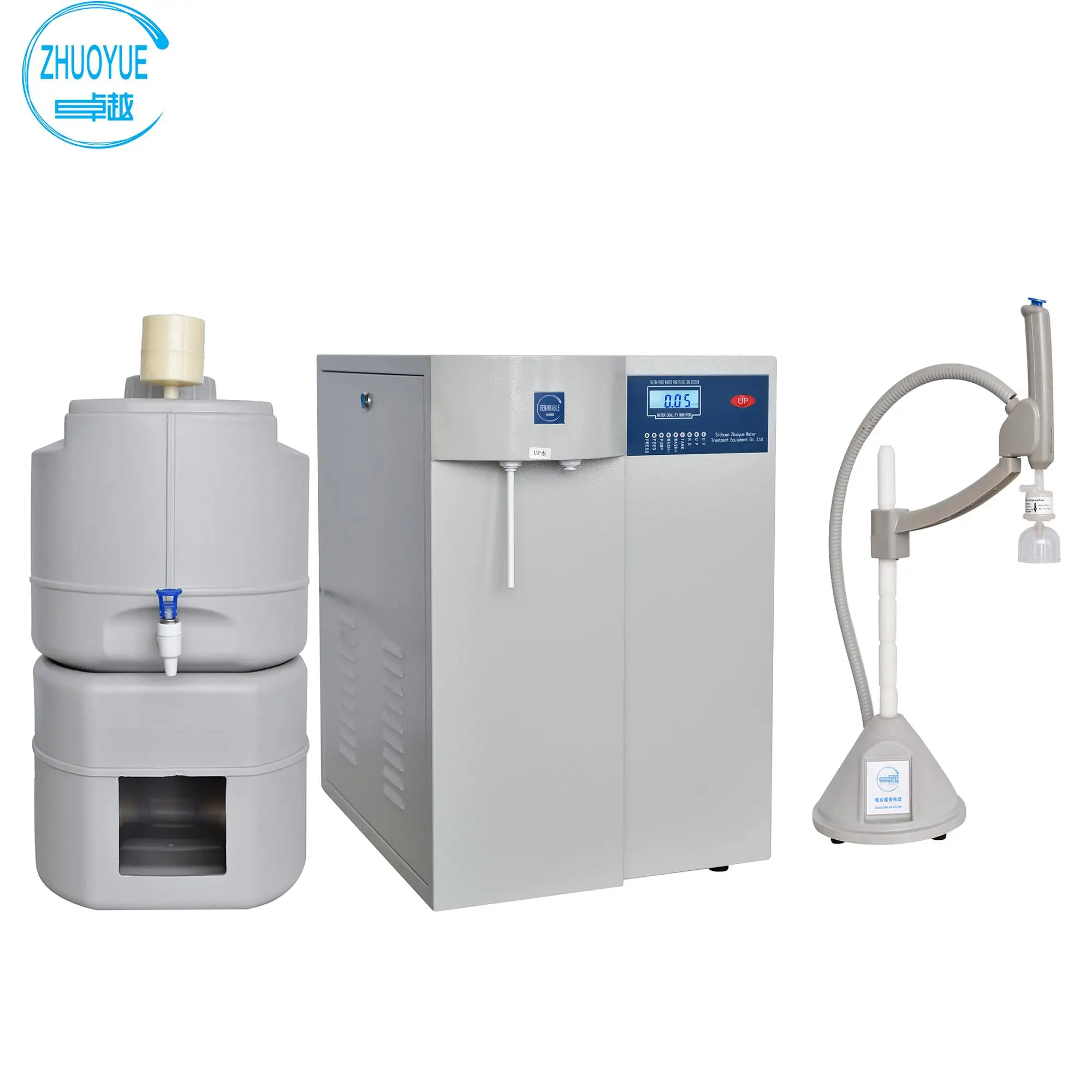

ZYTEST-- Water Purification System

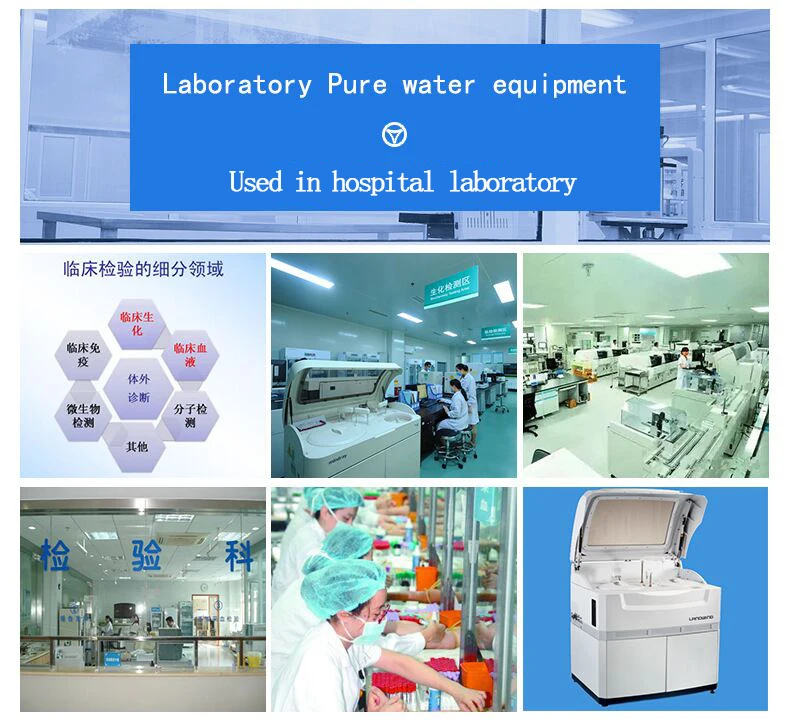

ZYTEST Water Purification System for Hospital Test is usually used for rountine chemical laboratory analysis instruments especially biochemical analyzer. The equipment with simple and generous appearance can easily produce water grade II (0.1-1 us/cm ultra-pure water) and water grade III (2-10 us/cm pure water for glass ware washing) which meets standard ASTM, CAP, NCCLS, GB and T6682-2008.
The Parameter of Water Purification System
| Model | TEST-I | TEST-II |
| Bench type (capacity) | 5/10/20L | 5/10/20L |
| Floor stand type (capacity) | 20/40/60/80/100/150L | 20/40/60/80/100/150L |
| Raw water's requirements | Tap water or underground water (TDS < 200 ppm) | |
| Power supply | 220 ±10% V; 50/60Hz | |
RO water quality (us/cm) | conductivity < 0.1-1 us/cm ( monitoring on-line); resistivity ≥ 1-10 MΩ.cm. Micro particles (0.2 um) < 1 unit/ml; microorganism < 1 cfu/ml. bacteria removal rate ≥ 99%. | |
UP ultra-pure water quality (MΩ.cm) | --------------- | Resistivity: 18.25MΩ.cm Heavy ion < 0.1ppb TOC < 10ppb Micro particles (0.2um) < 1 unit/ml Microorganism < 0.1cfu/ml |
| Configuration | conductivity meter | conductivity&resistivity meter, ultrapure cartridge |

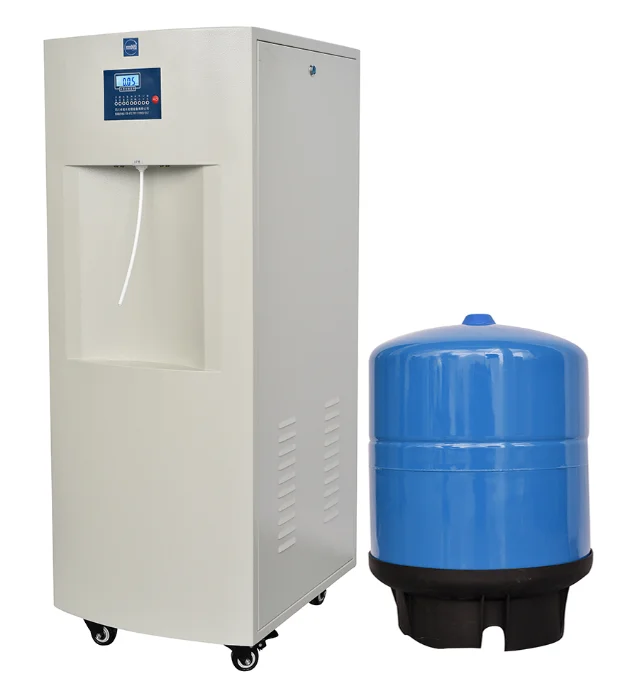

| Main engine's size (mm) | 510*380*570 mm (bench) 530*420*1120 mm (Floor) | |
| Main engine's weight (kg) | 30-35kg (bench) 40-65kg (Floor) | |
| Power (w) | 30-50w (bench) 50-100w (Floor) | |
| Water application | Biochemical analyzer: Hitachi, Olympus, Beckman, Toshiba, Mindray, etc. Routine physical and chemical testing; Analysis experiments. | Biochemical analyzer: Hitachi, Olympus, Beckman, Toshiba, Mindray, etc. AA (Atomic Absorption); AES (Atomic Emission); HPLC; |
| Optional water tank | 1. 3.2G pressure water tank 40L water tank (Bench); 2. 40L water tank (Floor); 3. 100L water tank (Floor); | |
| Special configuration | Power: 100-150w | Weight: 90-110 kg |
| Main engine: 700*520*1470 mm | ||
*Automatic control, smart and safe;
*3 stage fitration pretreatment system PP+AC+PP to systematically and completely filtrate silt, rust, suspended matter, algo, colloid, particles, residual chlorine, odor, color, etc.
*More than 99% desalinization rate of RO membrane can efficiently remove salt ions, organics, microparticles, heavy metal ion, impollutant matter, etc.
*Filling specialty polishing resin ultrapure cartridge stably produce grade II ultrapure water(0.1-1us/cm).
*Automatic buzzer alarm: substandard water, water shortage.
*Safety system: post, water full shutdown, low pressure.
*Automatic RO membrane flushing to extend the working life.
*On-line monitoring conductivity meter to show the water quality timely.
Technical Support

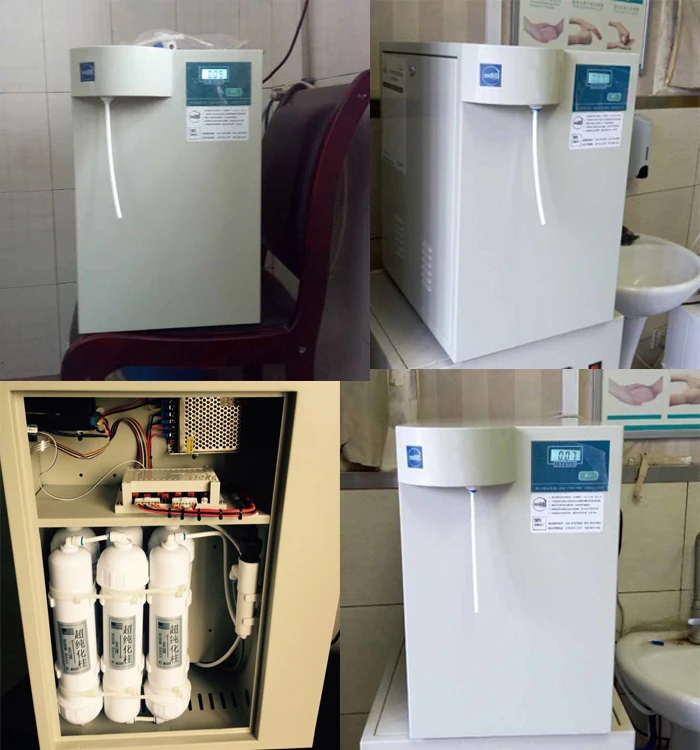

Working Process of Water Purification System
1. Source water pretreatment system: PP fiber filter + AC filter + G-PHOS
(1) PP cotton: efficiently filtrate silt, rust, algo, colliod, suspended matter and other inpurities whose diameter is over than 5 um in the water.
(2) AC filter: adsorb residual chlorine, pigment, off-flavor and parts of organic matters.
(3) G-PHOS: remove Ca2+ and Mg2+ to prevent scale.
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria, organic matter, endotoxin, etc.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure water for nuclear grade resin, the water resistance of up to 10 MΩ.cm.
4. UV sterilizer: to disinfect the product ultrapure water.
Company Information

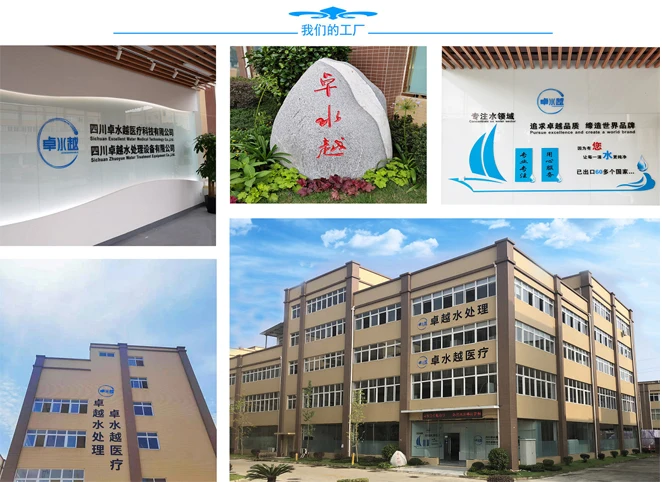

Sichuan Zhuoyue Water Treatment Equipment Co.,ltd is a integrated water treatment manufacturer with scientific research, design, production, sales, installation,after-sales services in Chengdu City, Sichuan Province, China, specializing in the production of laboratory ultra-pure water machine, medical water machine, pure /ultra-pure water equipment,water softener and other related water treatment equipment. Our 1500 square meters modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 30 square meters. Sales Department office is located in Jinfu International Building, Jinniu District. Nowadays, the number of company staff is up to 100 and more. And also a complete after-sales service network is set up all over the country.
Packaging & Shipping
Water Purification System
FAQ
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
