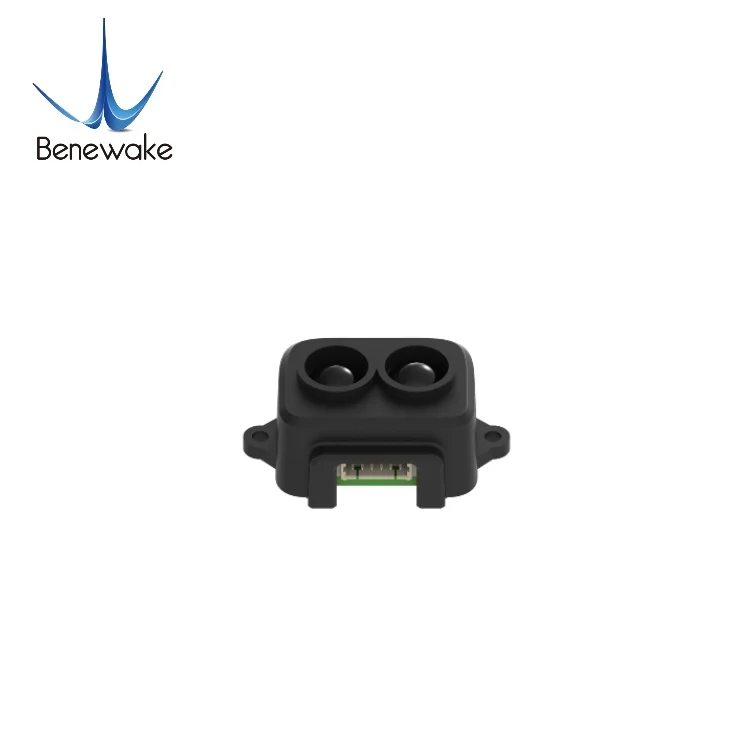

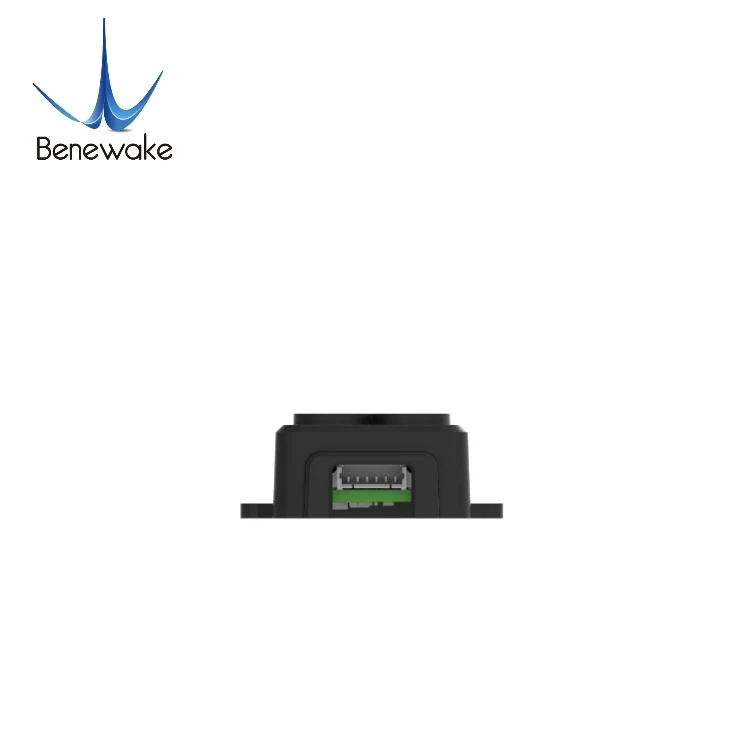

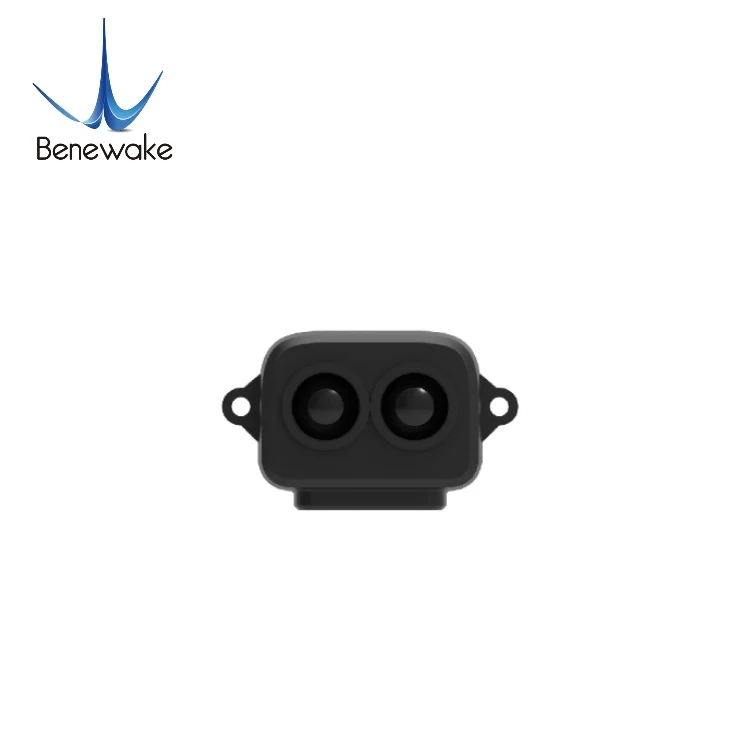

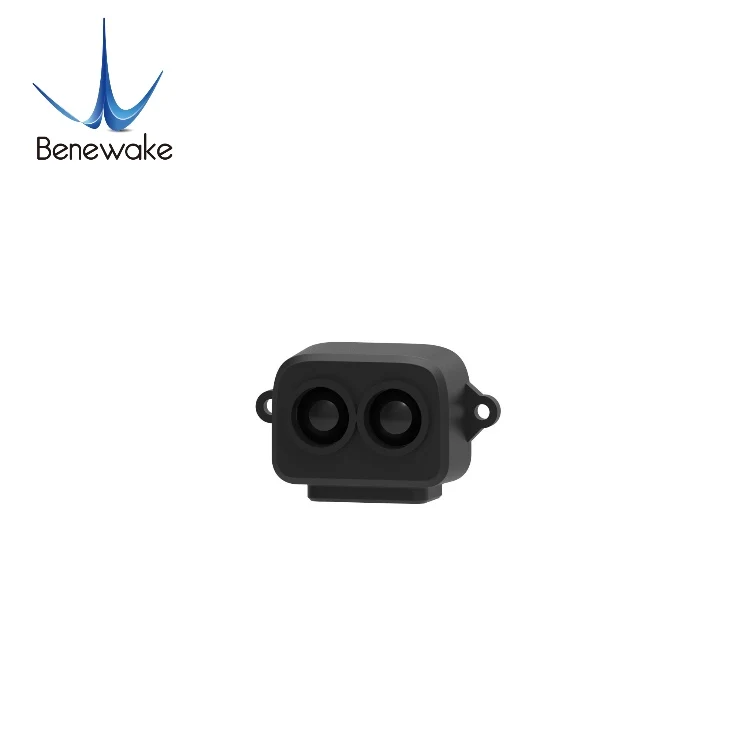

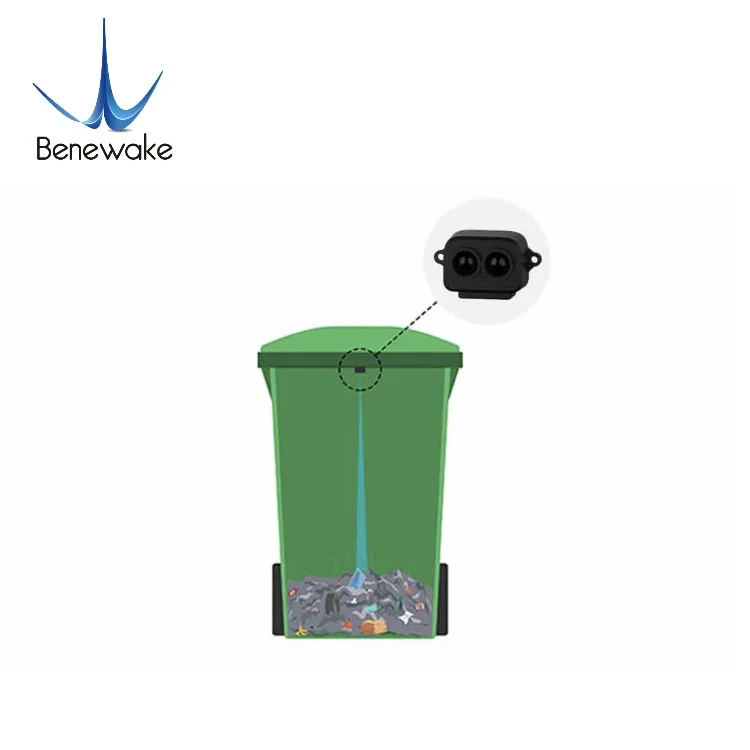

Benewake 2020 8m TF Luna ToF laser distance LiDAR sensor for garbage can level detecting
- Category: >>>
- Supplier: Benewake (beijing) Co. Ltd.
Share on (62483052181):
Product Overview
Description
Quick Details
| Operating range: | 0.2m~8m(90%reflectivity) |
| Theory: | Optical sensor |
| Size: | ToF Sensor |
| Voltage Rating: | 5V±0.1V |
| Current - Supply (Max): | 150mA |
| Function: | Rangefinder |
| Accuracy: | ±6cm@(0.2m-3m)2 ±2%@(3m-8m) |
| Package / Case: | ABS+PC |
| Technology: | ToF |
| Measuring Range: | 0.2m~8m(90%reflectivity) |
| Average current: | ≤70mA |
| Output: | Digital Sensor |
| Amplifier Type: | Infrared |
| Operating Temperature: | -10℃~60℃ |
| Usage: | Level Sensor |
| Place of Origin: | Beijing China |
| Operation temperature: | -10°C~60°C |
| Frame rate: | 1-250Hz |
| Size / Dimension: | 35mm*21.25mm*13.5mm (L*W*H) |
| Current - Supply: | ≤70mA |
| Model Number: | TF - Luna |
| FOV: | 2° |
| Brand Name: | Benewake |
| Supply voltage: | 3.7V-5.2V |
| Power consumption: | ≤0.35W |
| Ambient light immunity: | 70Klux |
| Frequency: | 100Hz |
| Application: | Industrial Automation |
| Interface: | I2C and UART |
| Resolution: | 1cm |
| Distance resolution: | 1cm |
| Packaging Detail: | 1 x TF-Luna LiDAR Module 1 x 6-Pin Communication Cable |
| Selling Units: | Single item |
| Single package size: | 11X7X2 cm |
| Single gross weight: | 0.06 KG |
| Package Preview: | https://sc02.alicdn.com/kf/H9df672d93e04442287c9ae79b53eaaa7v.jpg_640x640.jpg,https://sc02.alicdn.com/kf/H679d7be89bdd45a99db505635da3e581m.jpg_640x640.jpg |
