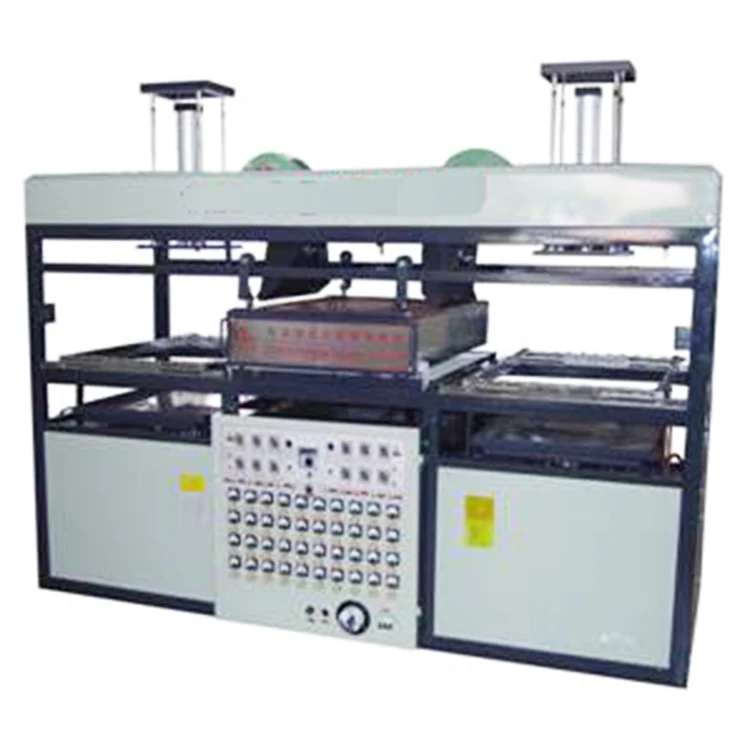

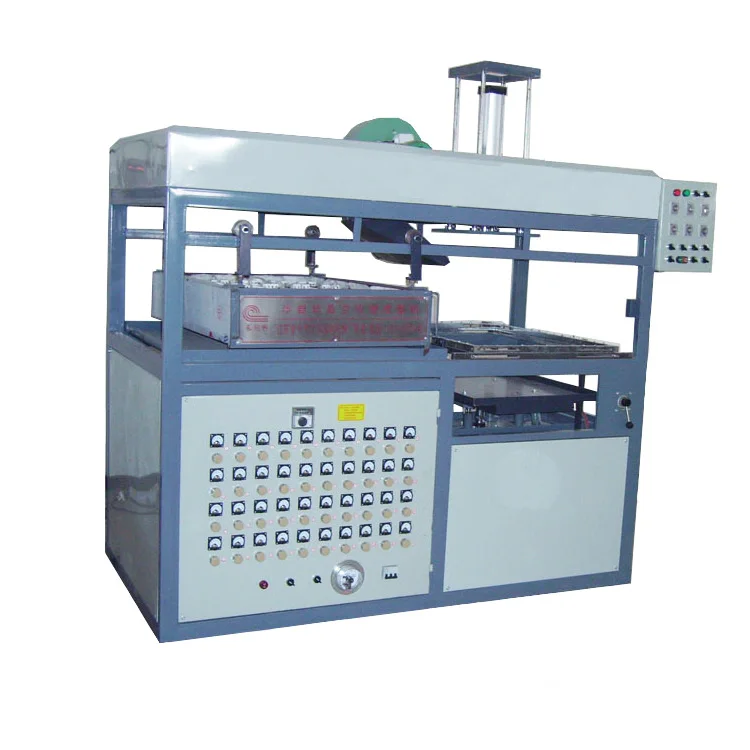

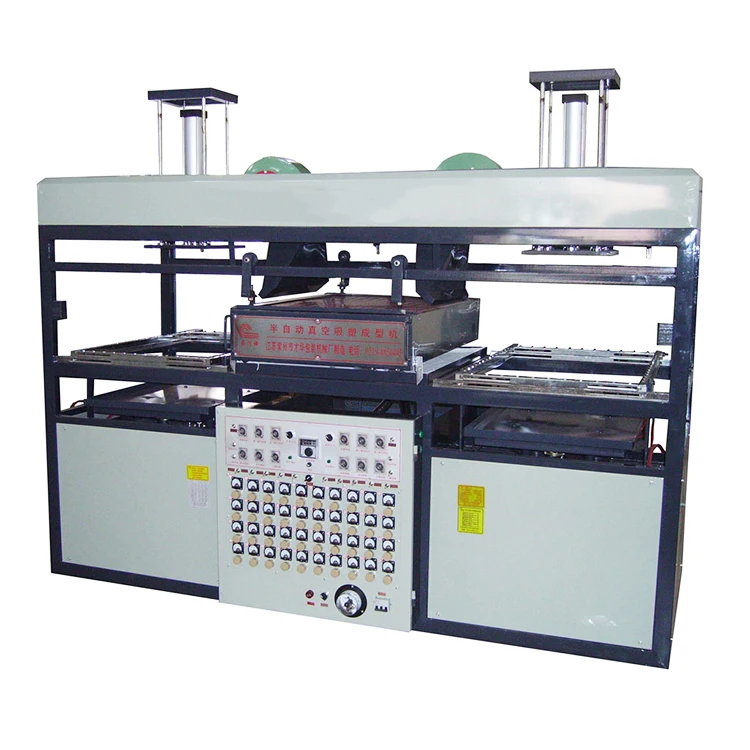

abs vacuum forming plastic cover / plastic sheet cover thermoforming machine
principle:
The plastic sheet or plate is heated and softened, and then sealed with the mold. By vacuuming, the softened plastic is stretched closely against the mold surface, and after cooling and hardening, the plastic becomes exactly the same shape as the mold.
The plastic sheet or plate is heated and softened, and then sealed with the mold. By vacuuming, the softened plastic is stretched closely against the mold surface, and after cooling and hardening, the plastic becomes exactly the same shape as the mold.

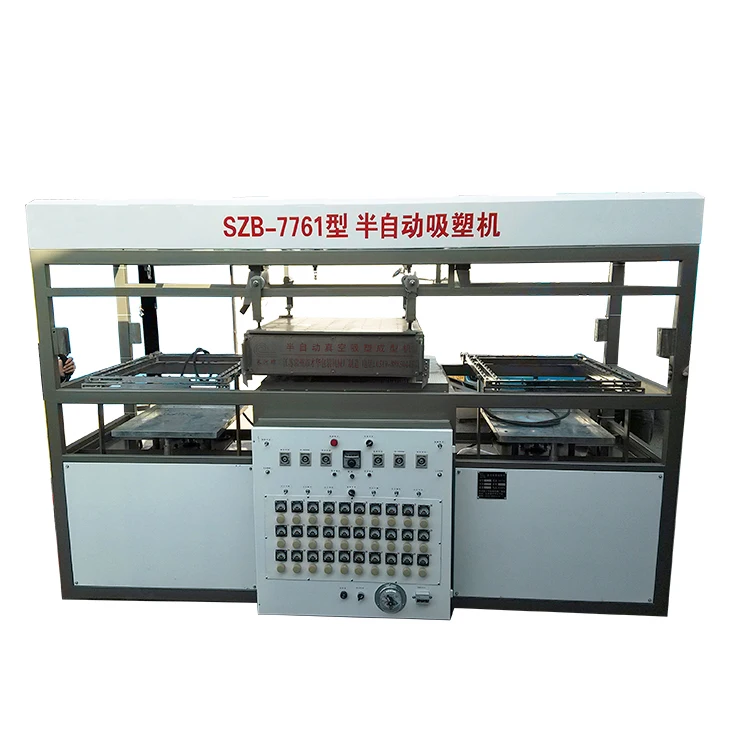

model | SZB-4860D | SZB-7761D | SZB-7761S | ||
Forming length | 400-600mm(adjustable) | 500-710mm (adjustable) | 380-550mm (adjustable) | ||
Forming width | 300-480mm(adjustable) | 380-550mm (adjustable) | 380-550mm (adjustable) | ||
Forming height | 180mm | ||||
Sheet thickness | 0.1-3mm | ||||
Production speed | 2-5 times / minute (depending on product shape and sheet thickness) | 2-5 times / minute (depending on product shape and sheet thickness) | |||
power | 8-10KW | 15kw | 15kw | ||
Heating brick arrangement | 4*5=20 blocks | 5 × 6 = 30 blocks | |||
Overall size | L1000*W1100*H2200mm | L2700* W1500 * H1800mm | L3200* W1500 * H1800mm | ||

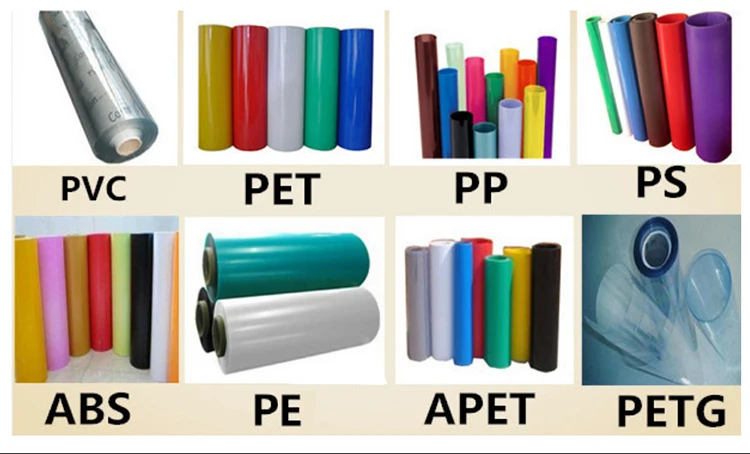

Applicable materials | PVC, PP, PS, PET, PE, ABS, etc. | ||||
power supply | AC380V / three-phase four-wire 50/60HZ | ||||
Air compressor power | 4kw (customer-supplied) | 4kw (customer-supplied) | 4kw (customer-supplied) | ||
In addition to the standard models, we can also customize according to the size and function you need,
Working Processes of Vacuum Forming Machine:
Carry materials manually→ clamp the materials → move the material into the oven,(while we can use blow function to keep material not drap down), after the material to soft →take the material to forming area → Bubble blow the material before vacuum (this is important function) → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.
We can also customize various molds

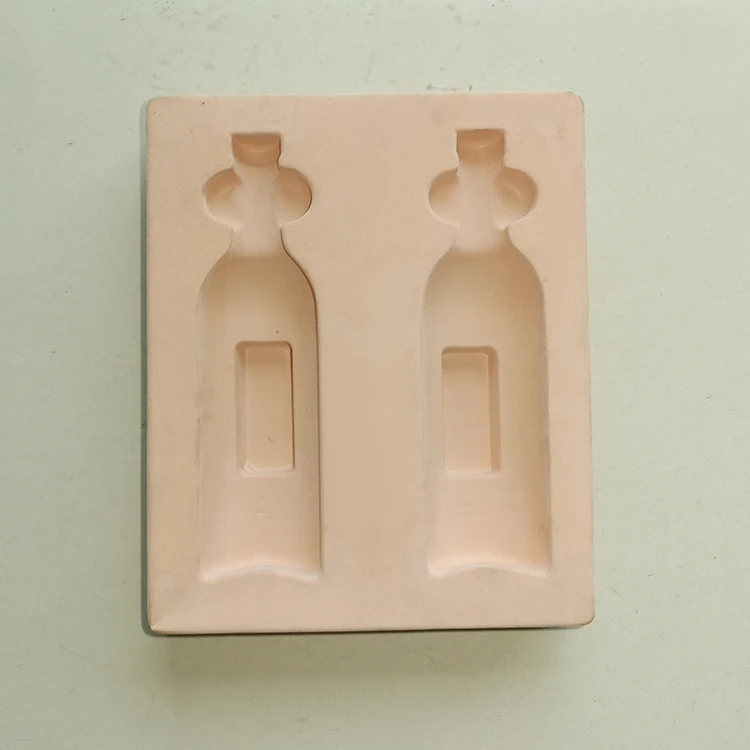

There are generally gypsum molds, copper molds and aluminum molds, each of which has advantages and disadvantages.

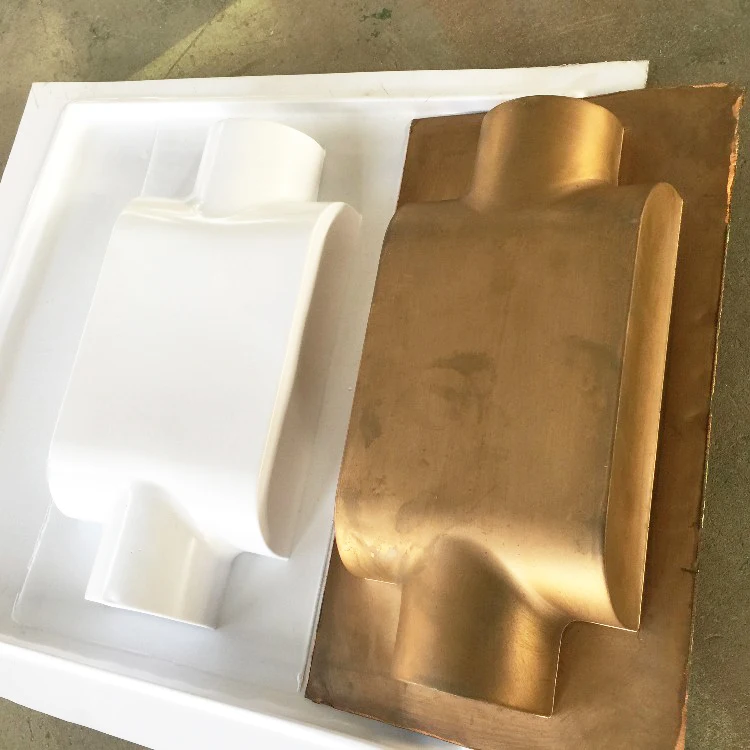

Copper mould

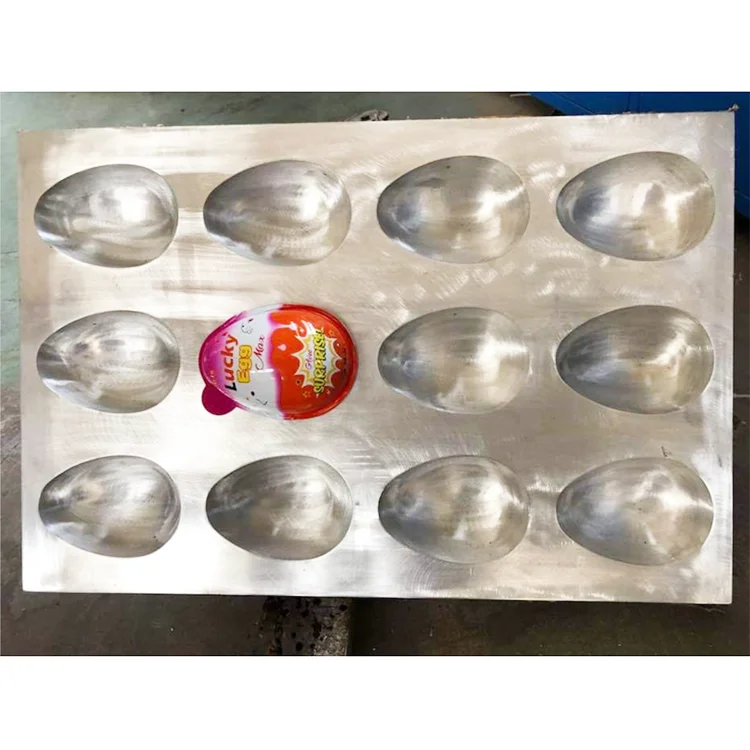

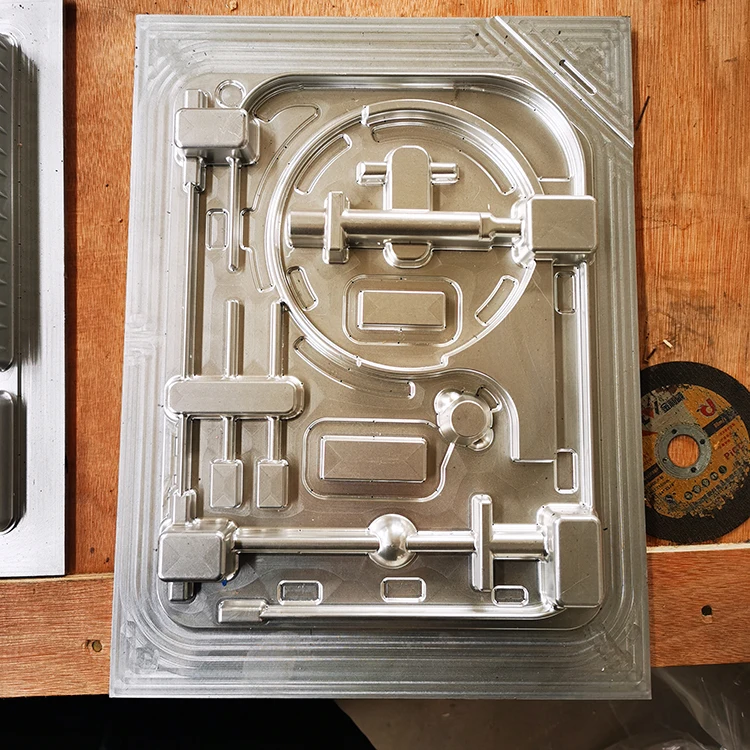

Aluminum mold
Aluminum mold
Product Application
Various plastic sheets such as PVC, PE, PP, PS, PET, PETG, ABS, acrylic, etc. can be molded into various shapes of cover boxes, which are widely used in hardware, toys, stationery, tableware, tools, food, electronics, Packaging of medicines or molding of thin plastic products.
Main Features
main features
1. Independent temperature control, using far-infrared ceramic heating elements to heat, can individually control the temperature of each heating element, and can turn off any heating element, and is equipped with a mold function, which is more suitable for the production of complex products.
2. The secondary vacuum is more suitable for producing difficult products.
3. Equipped with wide-mouth fan, it can ensure good cooling of the product, fast forming speed and high production efficiency.
2. The secondary vacuum is more suitable for producing difficult products.
3. Equipped with wide-mouth fan, it can ensure good cooling of the product, fast forming speed and high production efficiency.

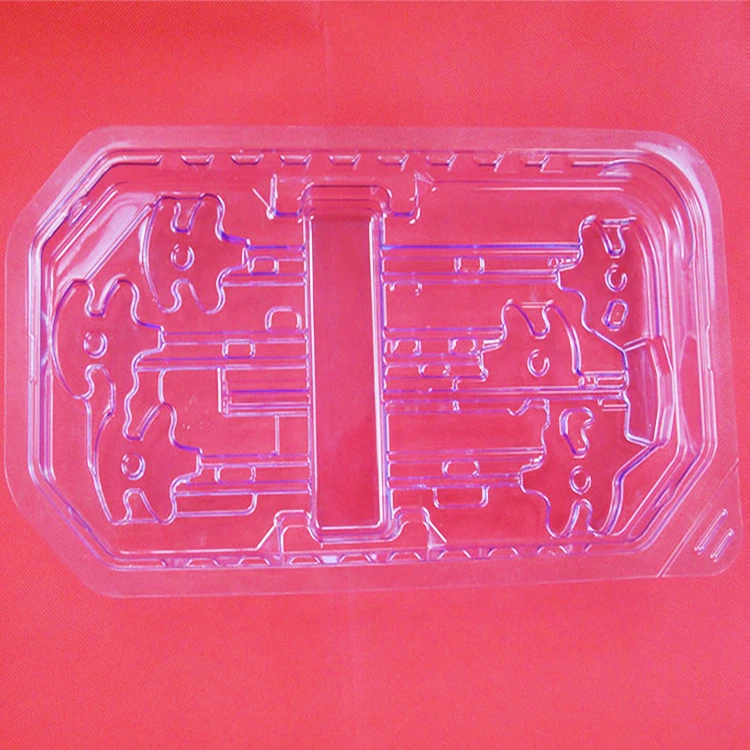

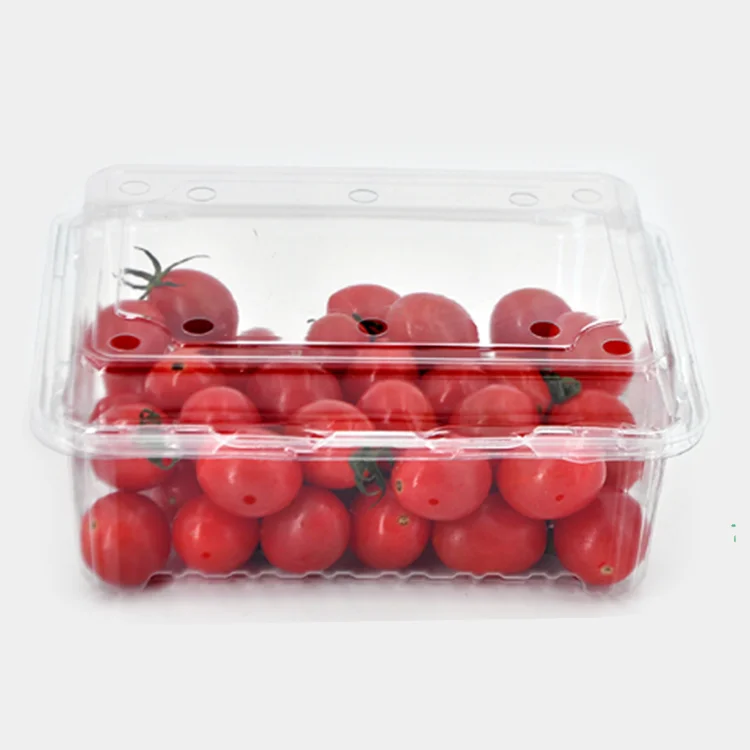

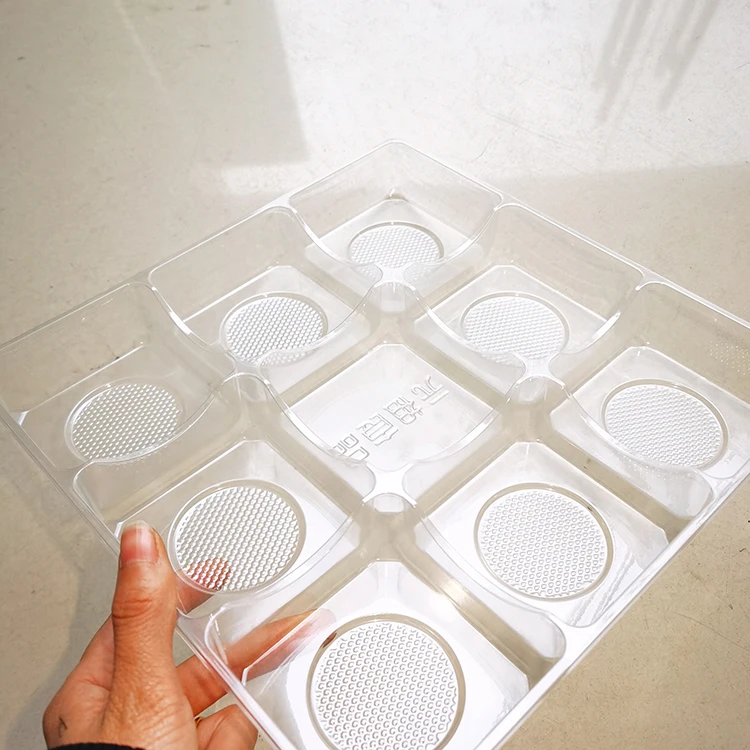

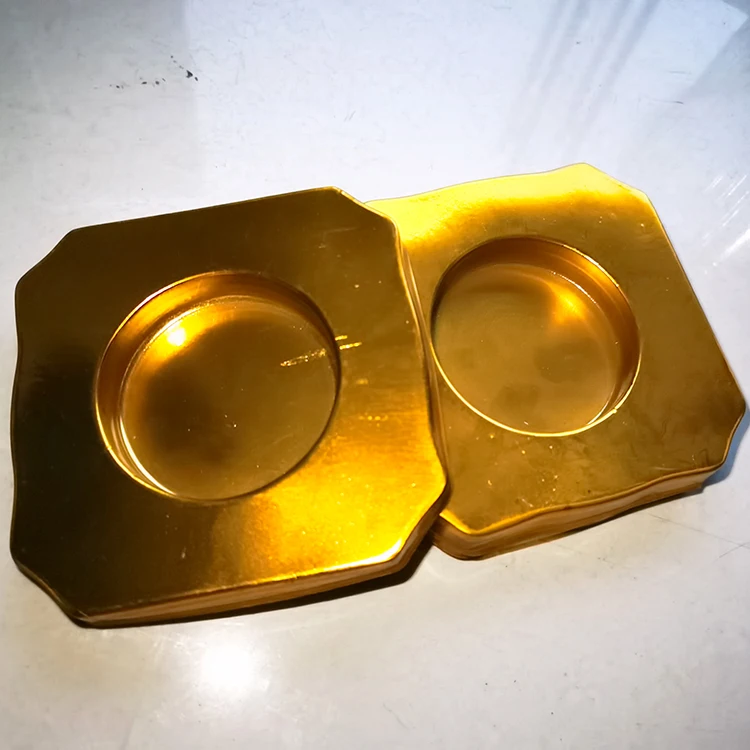

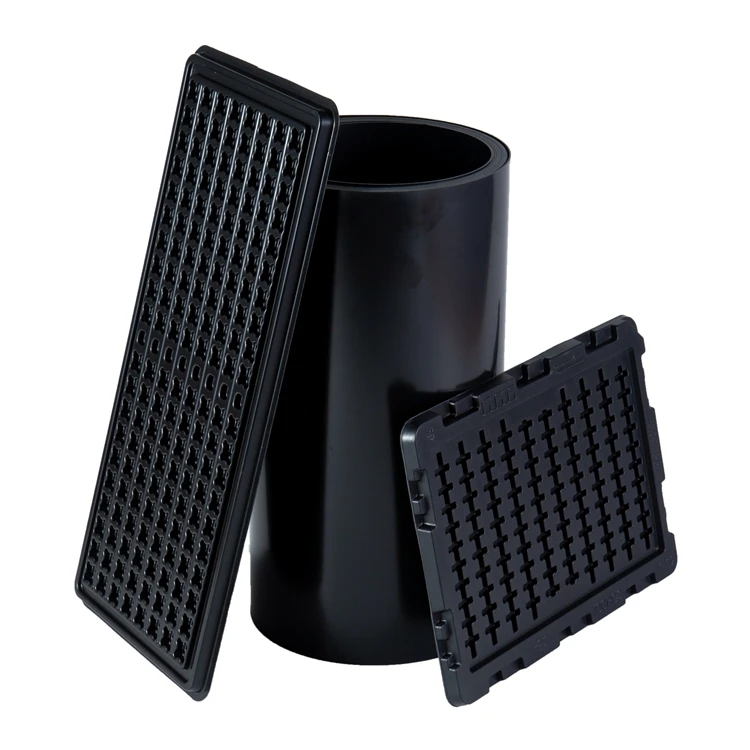

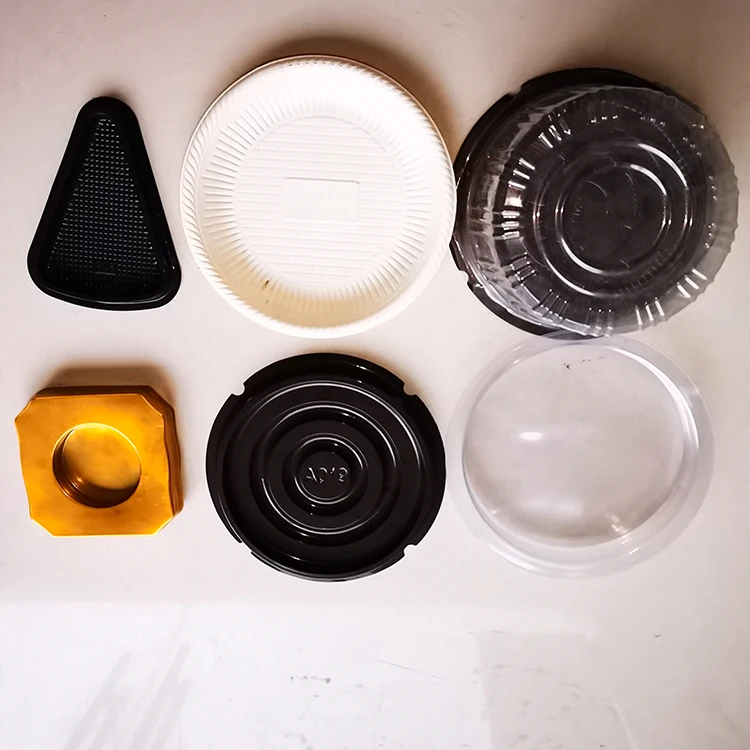

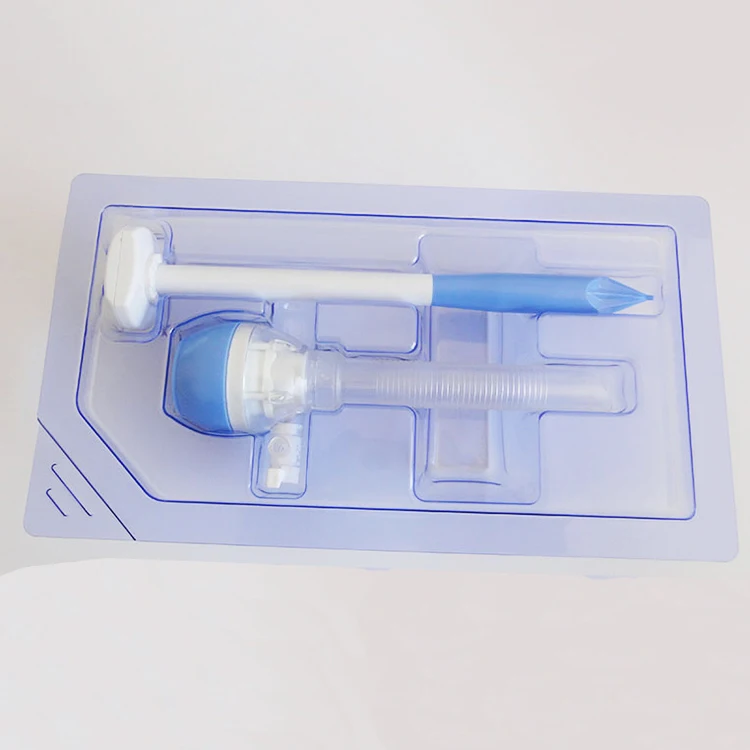

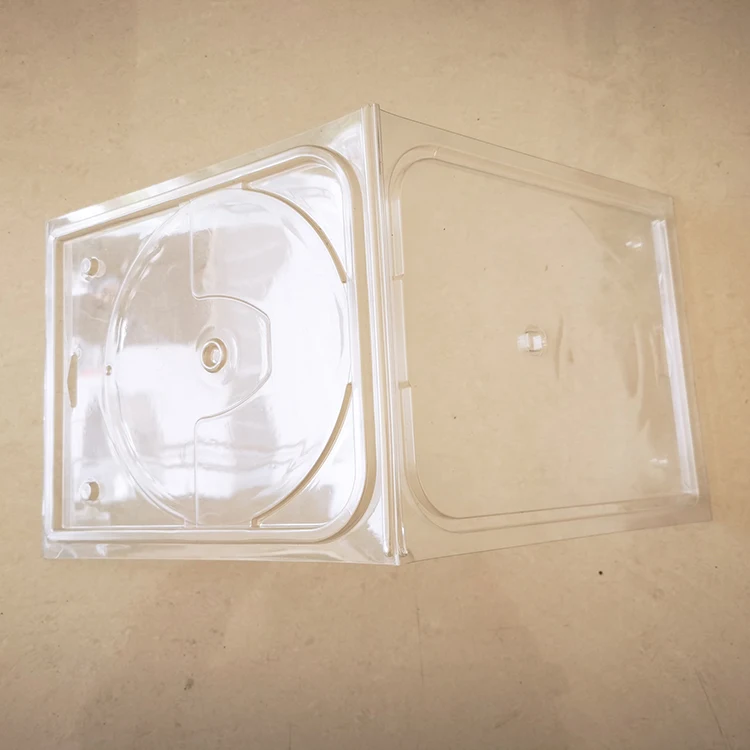

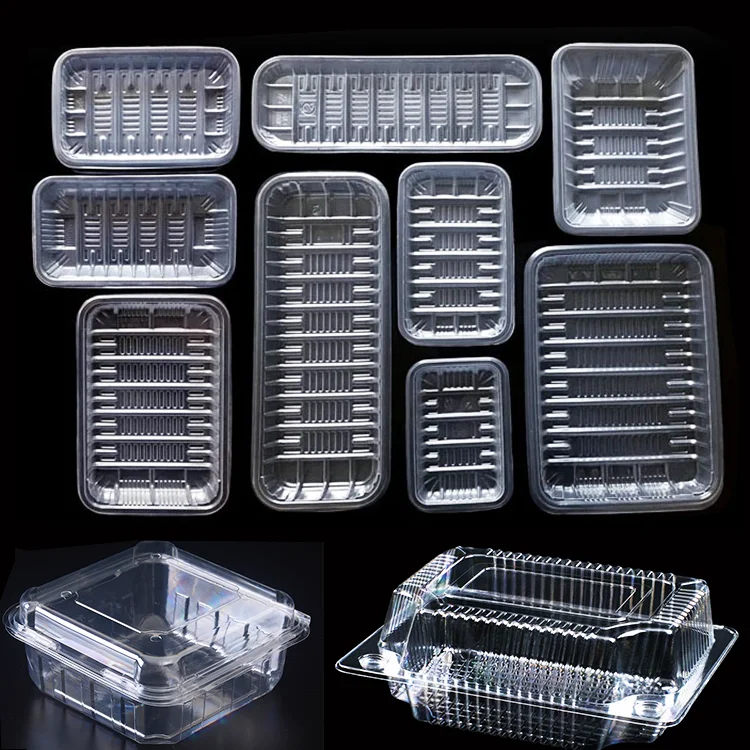

Sample

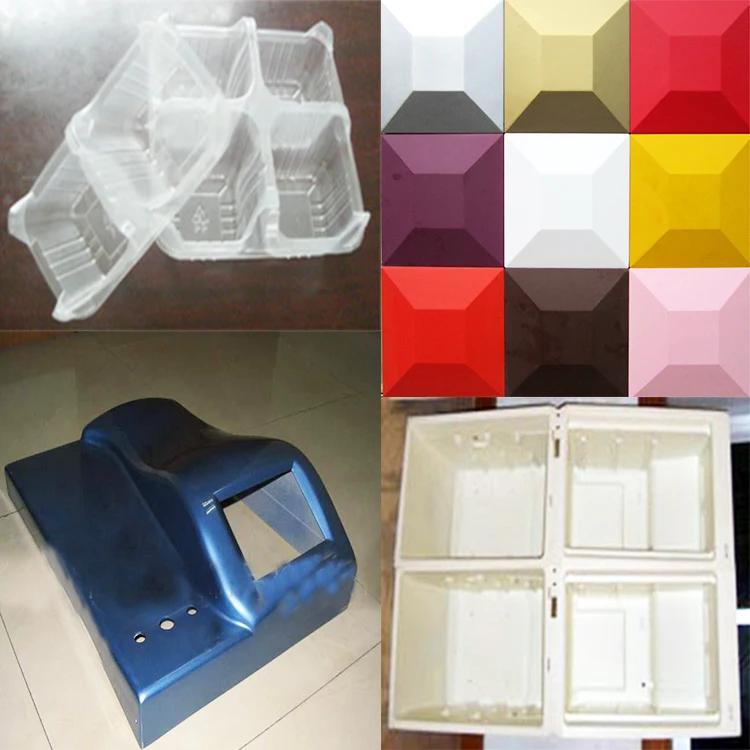

It can blister PVC, PP, PS, PET, PE, ABS and other plastic sheets into various shapes of cover boxes, which are widely used in the packaging of hardware, toys, stationery, tableware, tools, food, electronics, medicines, etc. . The product is transparent and beautiful, anti-corrosion and moisture-proof, and can also produce ceilings, floors, billboards, automobile plastic parts, etc.
