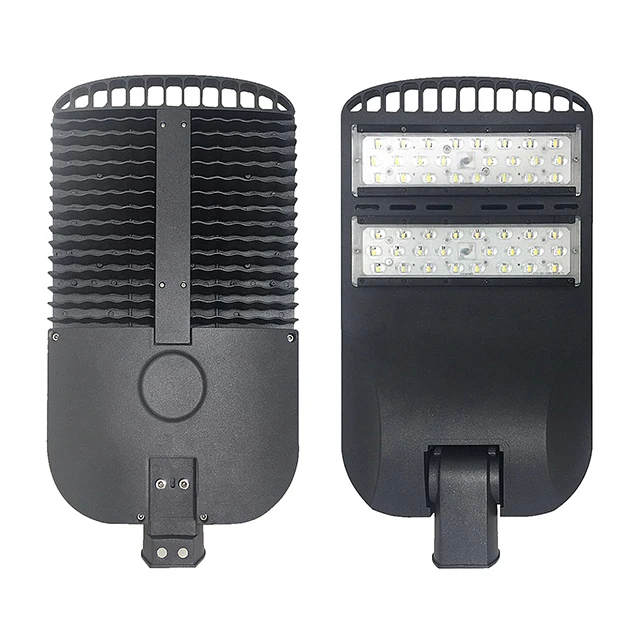

NEMA 7 pin LORA gateway IP68 LED street light
- Category: >>>
- Supplier: Shenzhen Leyond Lighting Co. Ltd.
Share on (62483256239):
Product Overview
Description

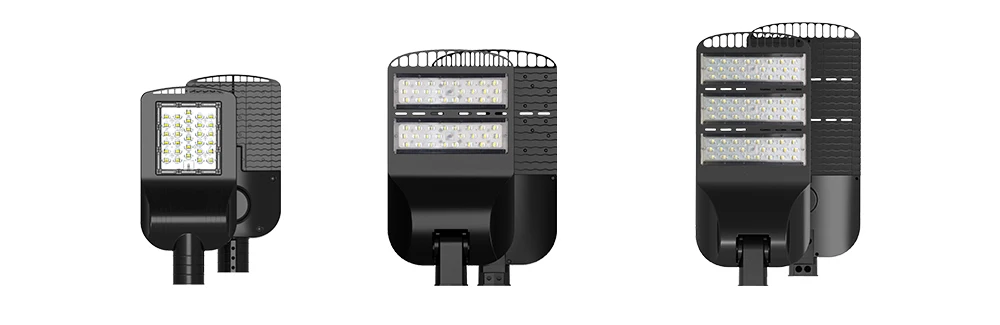

20w-60w series
70w-120w series
130w-200w series

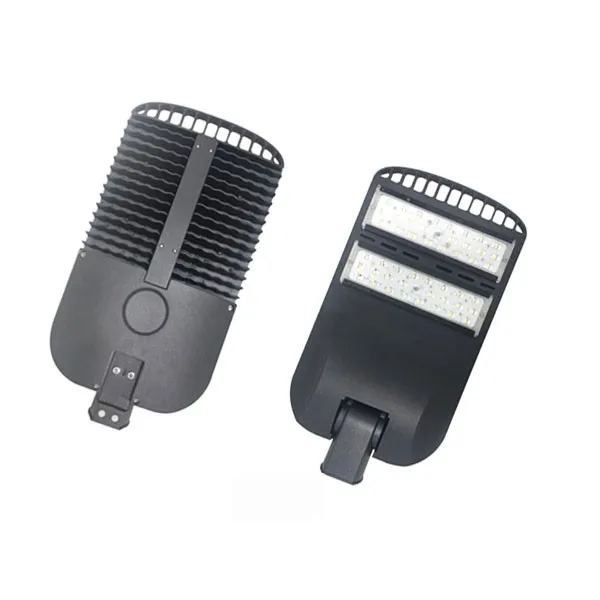

Product Pircture

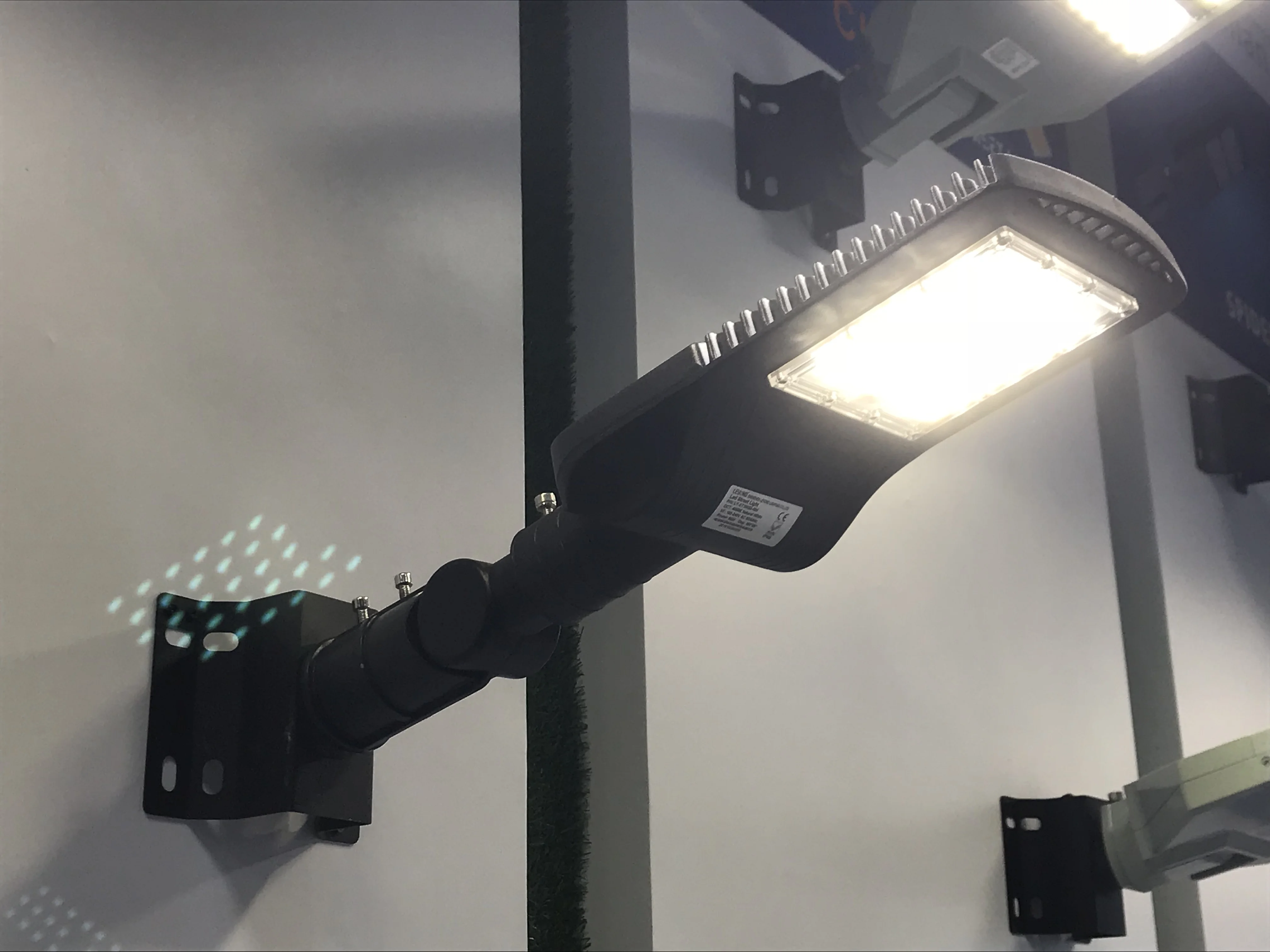

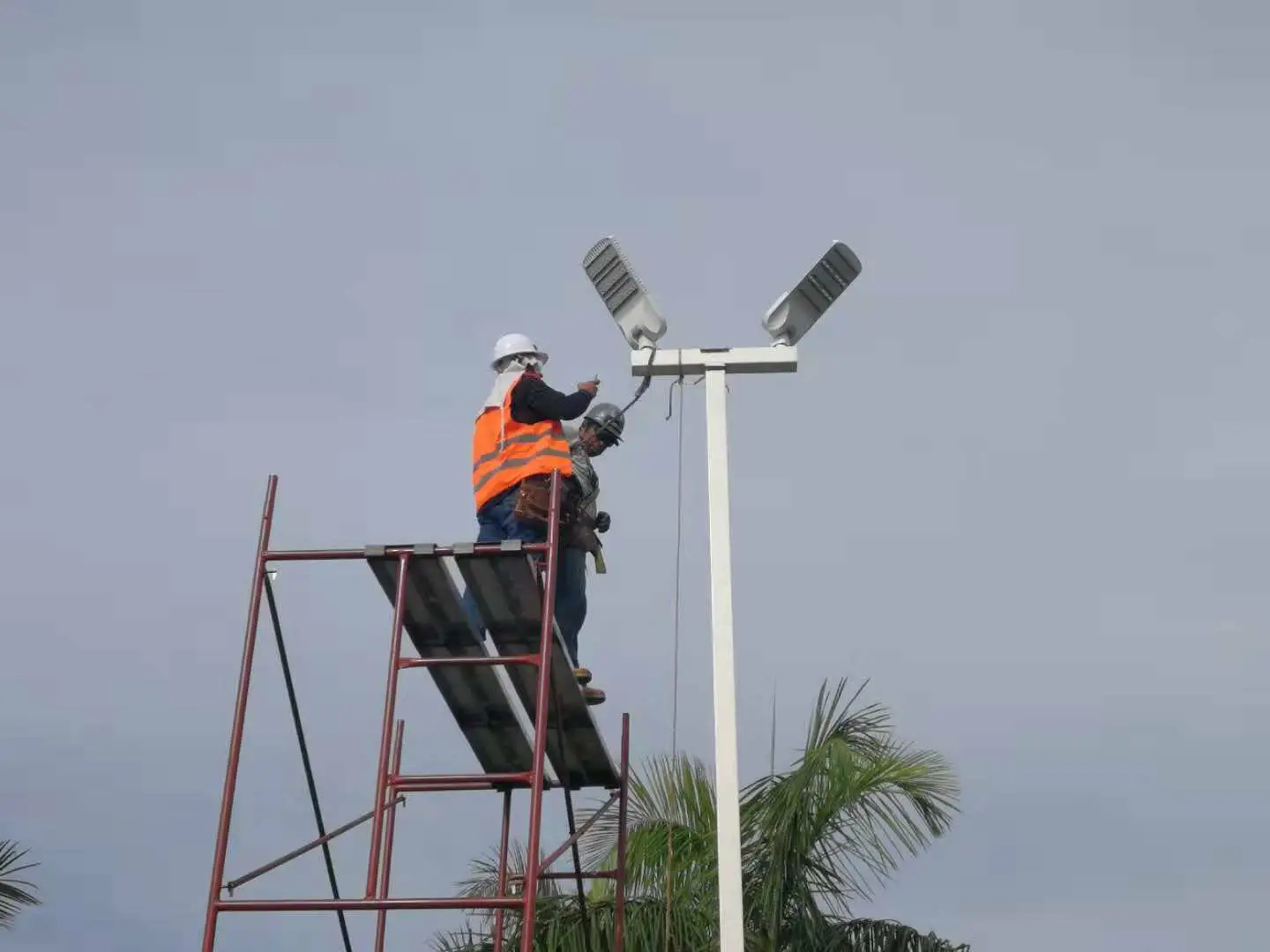

Project cases
Parts of the Installation cased of the sword streetlight throughout the word
Installation Instructions
1. The ex-factory of the standard components of the LED street lights include a 3*1mm2 cable .The power supply
wire should suffer the voltage ≥300/500V,the copper cross-section ≥ 0.75 mm2 of 3 copper wires inside.The
installation and wiring connection should be carried out after turning the power off. Before wiring connection,the
operator must check the polarity of power supply to prevent the damage of controller fuse and lamp.The mode of
connection is shown by the picture as below:
2. Insert the street light holder into the pole arm . The diameter of pole arm is 50 mm.The length of
connective part is 60-65mm.Adjust lamp to desired level ,wrench the M8 secure screws until tightened.
3. Switch on the power and make sure the light is on.Then the installation is done.

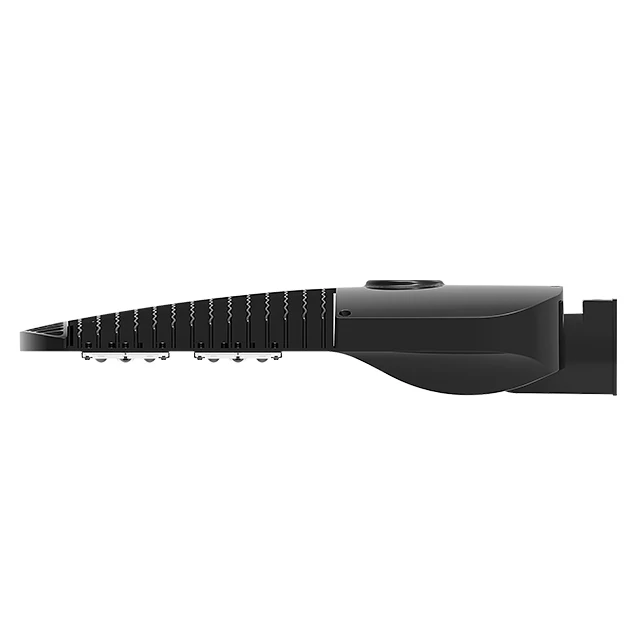

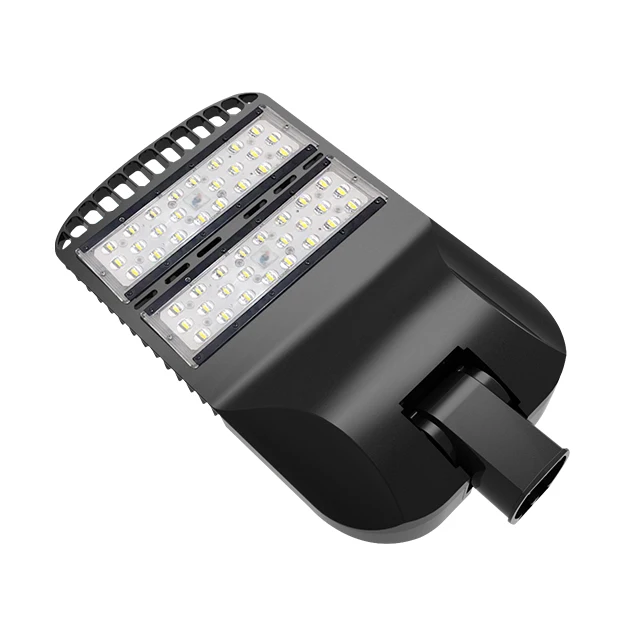

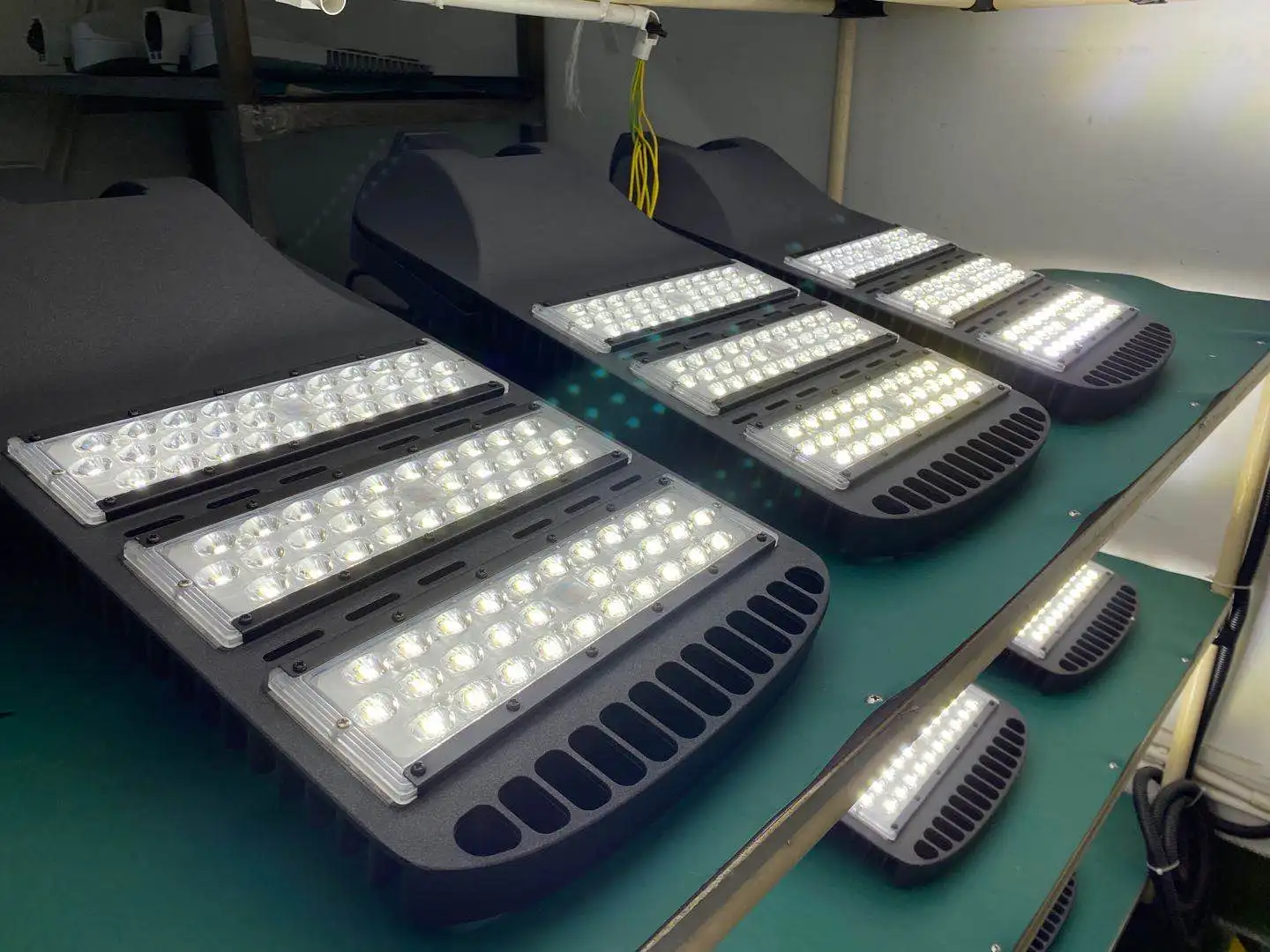

Detailed Images
Product details

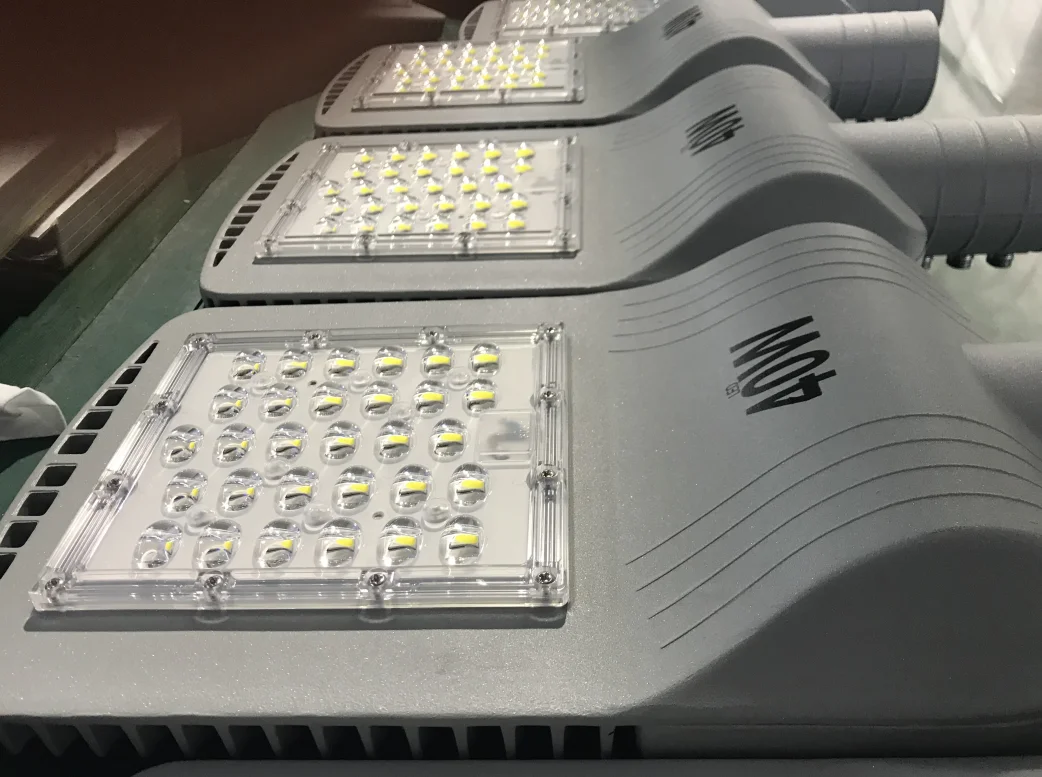

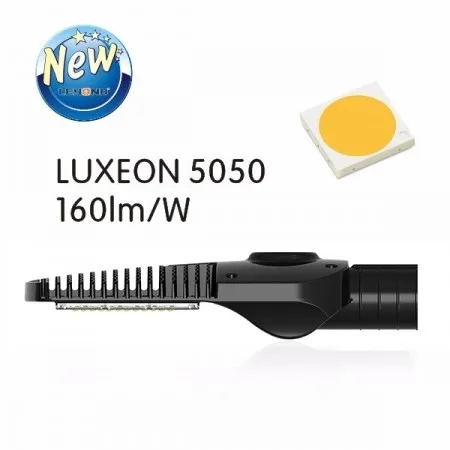

Adopting LUMILEDS 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, high light transmittance up to 98%.
Very high quality MW power supply, input voltage AC 85-277V. The power efficiency is more than 90%, power factor greater than 0.98.
Absolutely unique DESIGN, nothing on the market like it. Make your lighting special and fantastic.
Introduction of product advantages or application effect or application mode

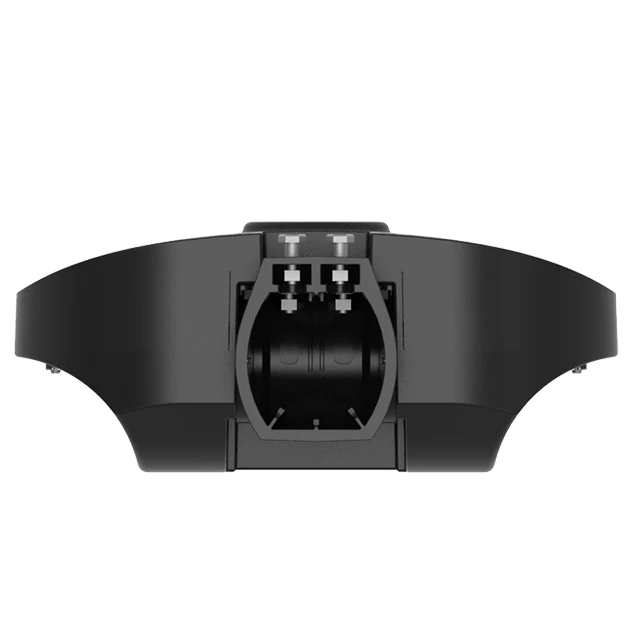

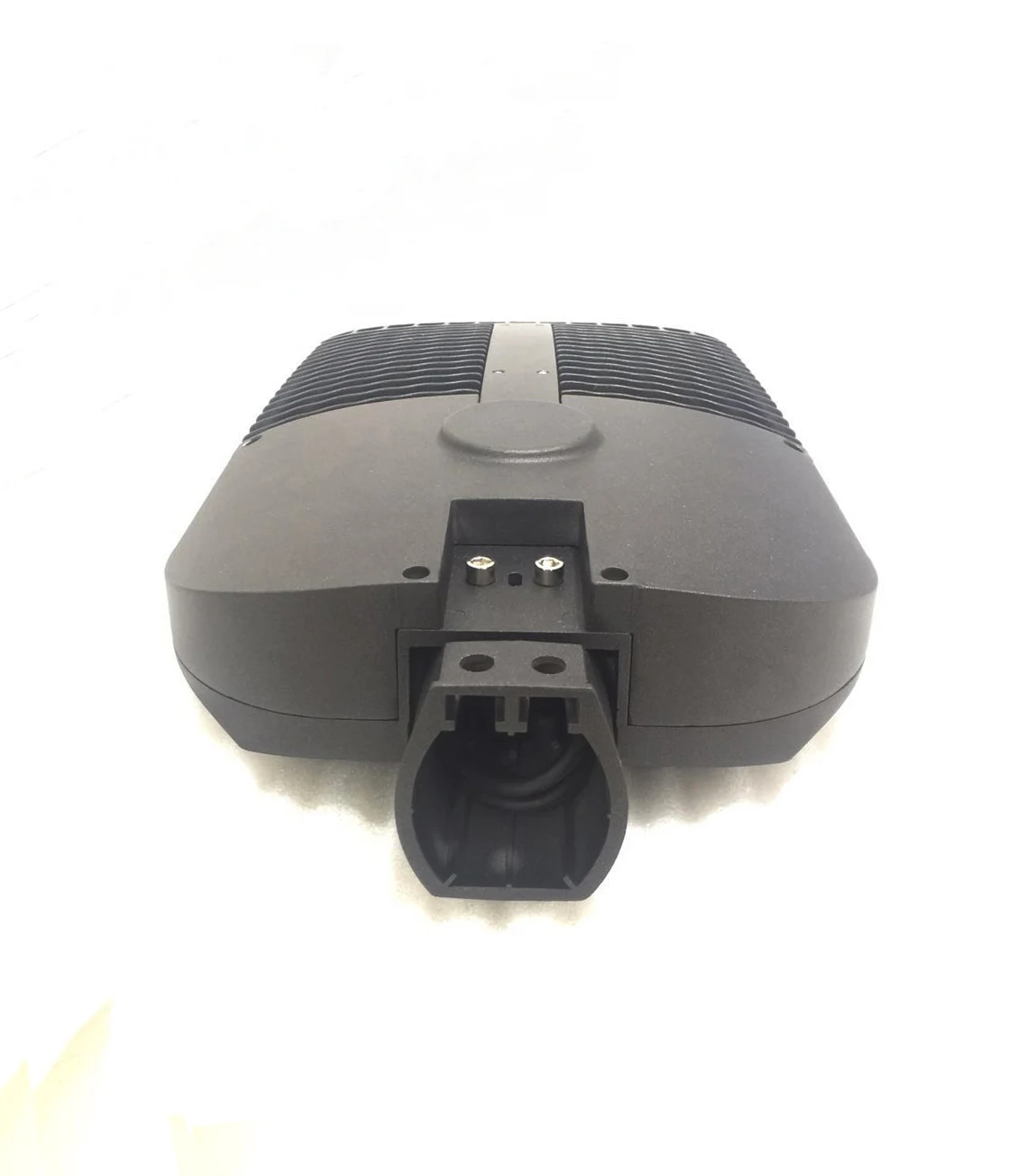

Connect to the pole when install the lamp
Lamp tail adopt 60mm diameter, fitness for all the market throughout the world.
Install angle adjustable from 90-30 degree.
AC electrical wiring length 90 mm for standard product, If special length sure its available, just negotiate more.

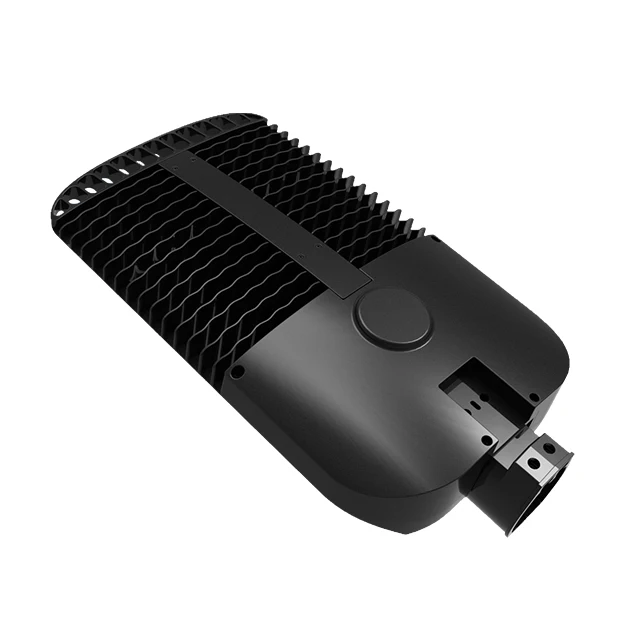

Back hood hole could be drilled, for extend function eg: NEMA 7 pin socket, daylight sensor socket.

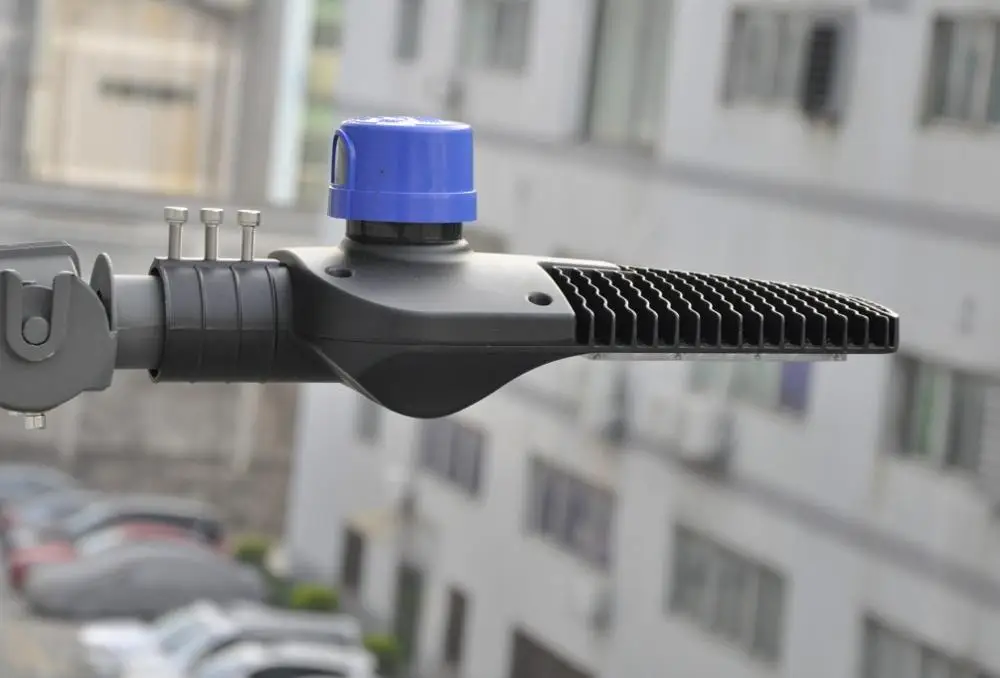

NEMA 7 pin Socket
The most popular extend function of the smart dimming street light in this day and age.
Connect the 0-10v driver, Meanwell brand or Inventronics or Sosen optionable
By control the LORA gataway to control each LORA master on the NEMA socket.

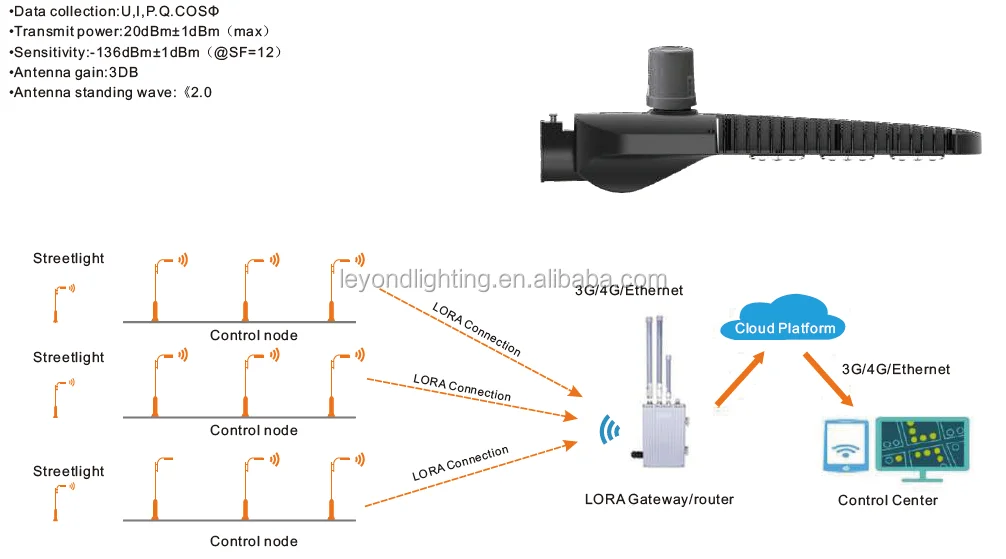

The way of Smart lighting system
LORA Gateway dimming system diameter
In order to make it compatible with your market LORA gataway, we suggest you take the LORA knobs and LORA master from your local supplier.
Of course if you wanna take the system from us here is warmly welcomed. contact Pure for more details.
Optical daylight sensor 3 pin introduction
When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the light turn on automatically;
After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection), the light turn off automatically.
Product Presentation
Product General Infomation
Product Name | LED Street Light |
Material | Die Casting Aluminium |
Power | 20w - 30w - 40w- 50w- 60w - 70w - 80w - 90w - 100w - 120w 130w- 150w - 180w - 200w or special requests pls contact Mr Pure to discuss more |
Voltage | AC Input 85-265V |
Type of Lamp-house | Unique design housing |
Model | Small / Middle / Huge |
Color Tempreture | Pure White: 6500K / 5700K / 5000K Natural White: 4000K Warm white: 3000K |
Product weight & package info & installation tips
Power | Lamp module | lamp weight | lamp tail diameter | wire length | Install height |
50W | 1 module | 2.75 KG | 50mm / 60mm | 90mm | 4-8m |
100W | 2 modules | 5.5 KG | 60mm | 90mm | 6-10m |
150W | 3 modules | 6.9 KG | 60mm | 90mm | 8-14m |

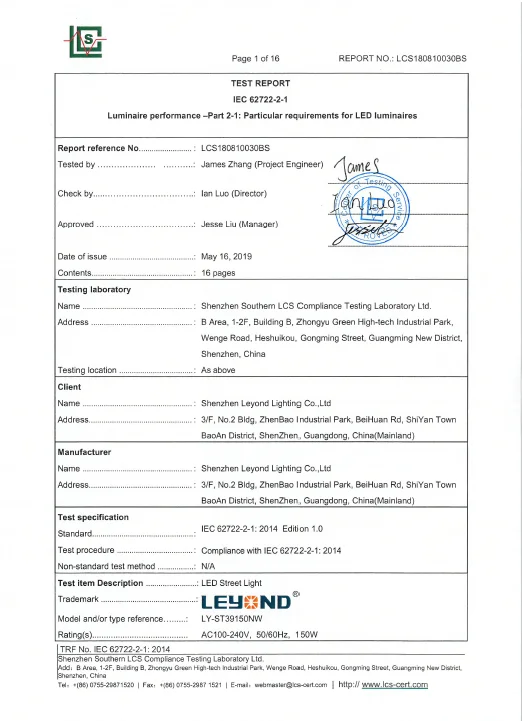

Certificate
