30kw CNG LNG Gas Turbine Natural Gas Generator
30kw CNG LNG Gas Turbine Natural Gas Generator
30kw CNG LNG Gas Turbine Natural Gas Generator
30kw CNG LNG Gas Turbine Natural Gas Generator

30kw CNG LNG Gas Turbine Natural Gas Generator

Share on (62483289848):


Price:

Quantity:


Product Overview

Description


Product Introduction

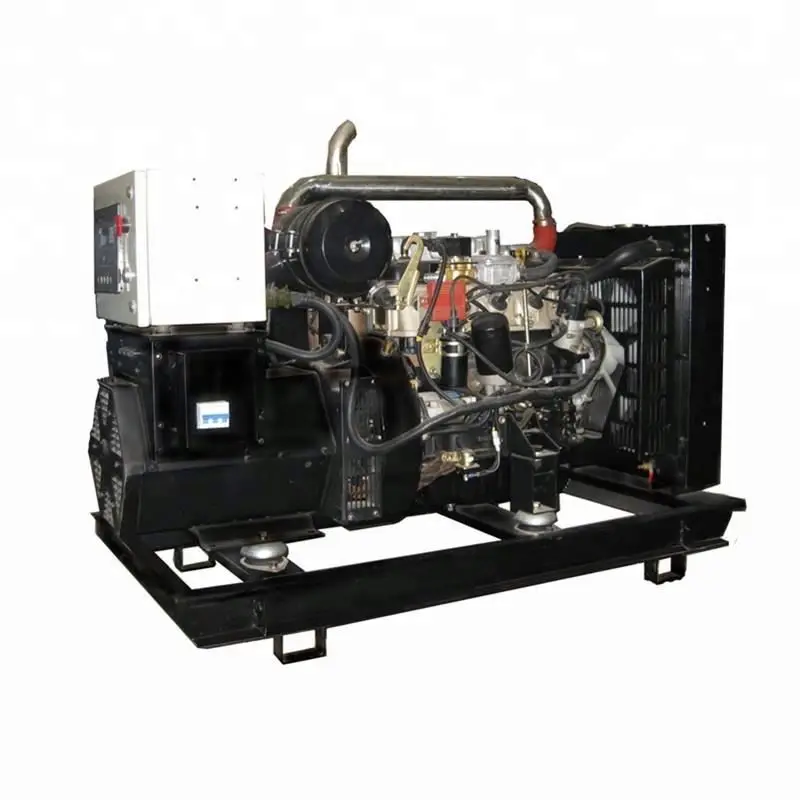

30kw CNG LNG Gas Turbine Natural Gas Generator

Gas based power generation projects are now in many different applications. Natural gas systems focus on high effiecieny generation, which has the lowest carbon emissions of all fossil fuels.
At present, LY-G series products have been widely applied in custormer from Southeast Asia, Africa, Europ and other region and already get high recognition.

Product Parameters
\t
Output
\t
Rated Power(NG)
\t
30kW
\t
Rated Speed(rpm)
\t
3000
\t
Rated Voltage(V)
\t
230 [230/400]
\t
Power Factor
\t
1.0 [0.8]
\t
Phase
\t
Three phases
\t
Frenquency(Hz)
\t
50
\t
Engine
\t
Warranty(Year)
\t
1
\t
Starting Method
\t
Electronic
\t
Engine Model
\t
491
\t
Start motor specification
\t
QDY1205 12V 1.2KW
\t
Displacement(cc)
\t
2.2
\t
Fuel Type
\t
NG
\t
Compression Ratio
\t
9.5:1
\t
Bore*Stroke(mm*mm)
\t
L4-91×77
\t
Ignition System
\t
ECM Electric ignition
\t
Intake Method
\t
Naturally Aspirated
\t
Cooling Method
\t
Closed liquid cooling
\t
Oil Capacity(L)
\t
3.5
\t
Genset
\t
Warranty(Year)
\t
1
\t
NG consumption 100% load m3 / h
\t
12
\t
Protection Level
\t
IP 23
\t
NG Inlet pressure range kPa (in.H2O)
\t
1.3-3.5(5-14)
\t
Emergency stop switch
\t
Yes
\t
Genset size (length × width × height) mm
\t
1290×825×940
\t
Closed muffler
\t
Yes
\t
Package size (length × width × height) mm
\t
1350×880×1100
\t
Sound Arrester
\t
Sheet metal + cotton insulation
\t
Net weight( kg)
\t
450
\t
Noise output dB(A)
\t
64-70
\t
Gross weight(kg)
\t
500

Warm note:

1.Gas source: natural gas, methane(CH4) concentration ≥90%.
2.Natural gas engine special lubrication oil is needed.
3. Customized requirement for above is available upon request.
4. Supplier is responsible for quality failure parts in one year or 2000hrs, without any other incidental expenses. If need to extend warrenty to 5000hrs, additional cost is needed.

Why Choose Us

QUALITY CONTROL

Each individual gas engine will be tested in our lab to ensure its high performance. The test includes power, gas consumption, intake system, etc. We can provide test video and test report if customer requested.

PROCESS FLOW

COMPANY PROFILE

Outstanding Cases
Exhibition
FAQ

1. What is the warranty ?
12months or 2000 running hours whichever occured first. We are responsible for the damaged parts during the gas generatorwarranty.

2. Which fields or what's the application of your natural gas biogas generator?
According to different power, the natural gas biogas generator can be used in residental, industrial, marine, generating, power plant, etc. Used with continuous running genset, it can be in large coal mine site, fieldwork area and powerstation. With backup genset, it can be in hospital, factory, hotel, datacenter, supermarket, high-rise building.

3. Will you test your gas generator before shipped?
Yes, every product will be tested individually in our test lab in and test report and test vidoe can be provided.

4. What's the lead time and delivery time for your gas generator?
Usually 15-35 days for lead time. Delivery time is according to your choice of shipping method and quantity.

5. What's the payment method do you accept?
We accept Alibaba trade assurance, west union, TT, etc. If you have speical requirement, welcome to contact us.

6. Are you manufacturer?
Yes, we are both manufacturer and foreign trade company, cooperating with many famous brand suppliers. Welcome to visit our factory.
