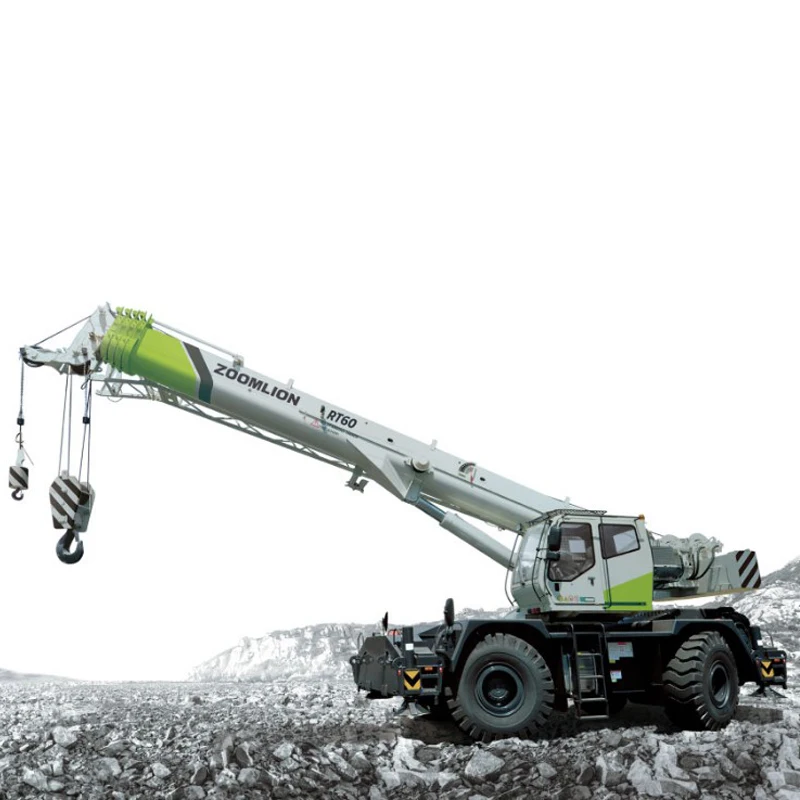

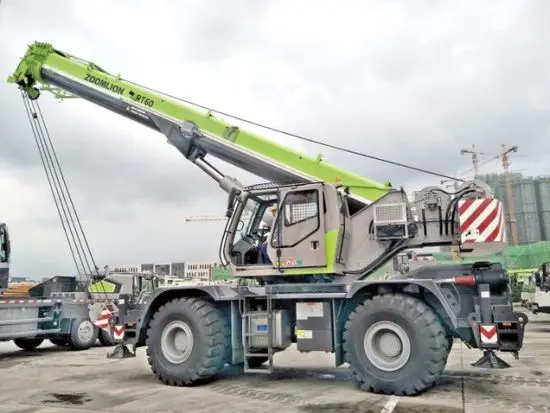

High quality zoomlion RT60 4x4 60 ton hydraulic rough terrain truck crane for sale
Product Description
1.Maneuverable and robust drive
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer; short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites
2.Excellent off-road capability
Big ground clearance and departure / approach angle offer excellent off-road capability.
3.Strong gradeability
• Cummins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance, the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle’ s drive performance to its maximum, suitable for any bad roads and job sites.
4.Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out”On tires“Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.
5.Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver’ s or operator’ s fatigue, thus improves the working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units, advanced data bus technology, error check and audible & acoustic alarm ensure the safety and high efficiency of the operation.
Main Parameter
Item
Unit
Value
Work performance
Max. rated lift capacity × work radius
kg.m
60000×2.8
Max. load moment of basic jib
kN.m
1991
Max. load moment of max. length main boom
kN.m
1166
Max. lifting height of max. length main boom
m
45.4
Max. lifting height of jib
m
62.2
Dimensions
Overall dimensions(L×W×H)
mm
13662×3300×3750
Distance between outriggers (Longitudinal × transversal)
mm
6900×6900
Main boom length (Completely retracted - completely extended)
mm
11400 - 43000
Jib length (Jib section 1,jib sections 1+2)
mm
10000-17000
Boom angle
°
-3 - 78
Swing range
°
360°unlimited swing(Full range)
Work Speeds
Max. hoist rope speed (Main winch)
m/min
150
Min. boom telescoping out time
s
140
Min. boom telescoping in time
s
120
Min. boom derrick up time
s
60
Min. boom derrick down time
s
65
Swing speed
r/min
0-2
Hydraulic system
Rated working pressure
MPa
28
Rated working flow
L/min
400
Hydraulic oil tank capacity
L
730
Mass
Complete vehicle kerb mass
kg
44260
Front axle load
kg
25220
Rear axle load
kg
19040
Driving
Max. driving speed (Forwarsd / backwards)
km/h
39
Wheelbase
mm
3950
Treads (Front / rear)
mm
2605
Max. gradeability
%
75
