RTS 12V Motorcycle Tachometer with Backlight and Pointer Modification Speedometer Tacho Gauge in Motorbike Accessories

Product Overview

Description

12V Motorcycle Tachometer with Backlight and Pointer Modification Speedometer Tacho Gauge in Silver Motorbike Accessories

Description

Product Features:
1. Product Name: Tachometer with Backlight
2. Product Color: Silver
3. Material: stainless steel
4. Operating voltage: DC 12V

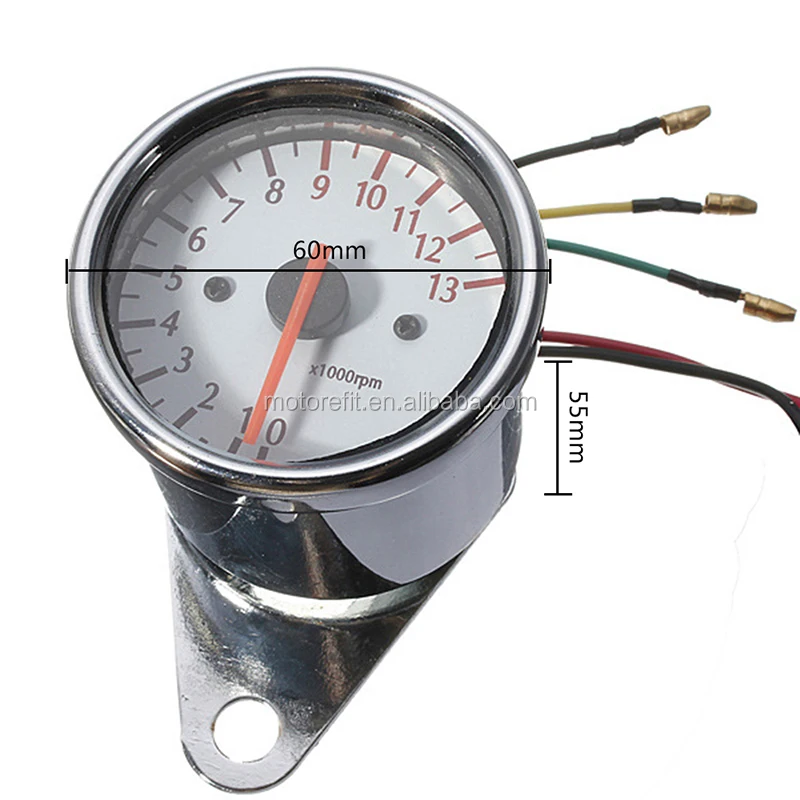

5. Product size:
diameter of the dial: about 60mm/ 2.36in
height: about 55mm/ 2.17in
diameter of the mounting hole: about 10mm/ 0.39in

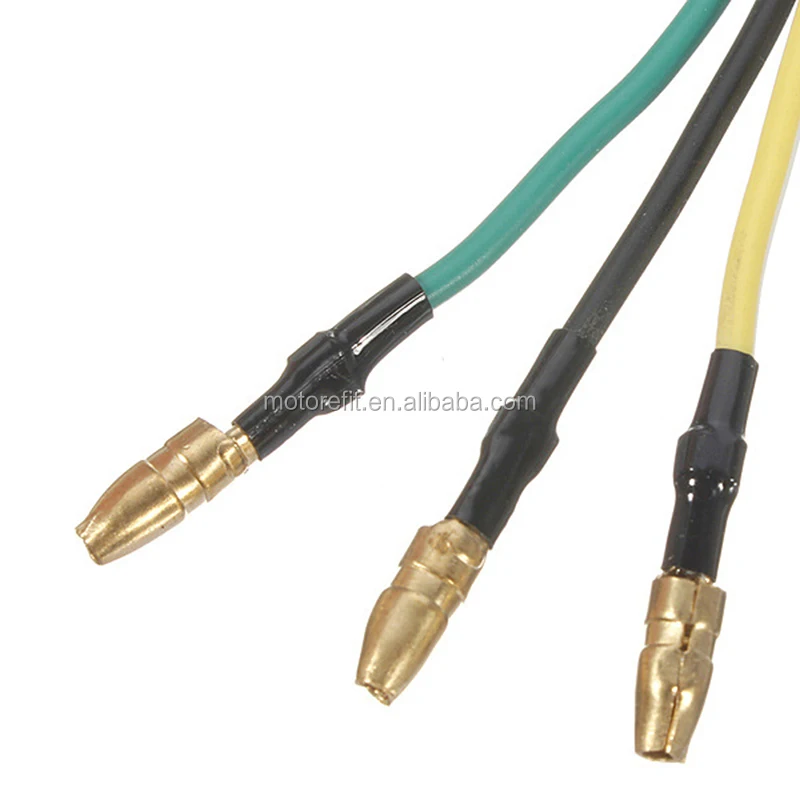

6. Wiring method:
Two long wires: connect the red one to the positive electrode;
connect the black one to the negative electrode.
Three short wires: connect the black one to the positive electrode;
connect the green one to the negative electrode;
connect the black / yellow one to the engine speed signal wire.

Product Name	12V Motorcycle Tachometer
Material Type	Stainless steel
Item Size	6* 6* 5.5cm
Item Weight	0.22kg
