1kw Small Mini Natural Gas Turbine Generator
- Category: >>>
- Supplier: Xiangyang Shengxin Machinery Co. Ltd.
Share on (62483643085):
Product Overview
Description
Product Introduction
1kw Small Mini Natural Gas Turbine Generator
Fuel type: Natural gas(CH4>90%), Compressed natural gas, LNG, Biogas , Biomass, human or animal waste etc.
Customized gas engine power range: 1KW to 1000KW.
Product Parameters
Output | ||||||
Rated Power(NG) | 4kw | Rated Voltage(V) | 230 [230/400] | |||
Phase | Single [three phases] | Rated Speed(rpm) | 3000 | |||
Power Factor | 1.0 [0.8] | Frenquency(Hz) | 50 | |||
Engine | Genset | |||||
Warranty(Year) | 1 | Warranty(Year) | 1 | |||
Engine Model | 190 | Protection Level | IP23 | |||
Displacement(cc) | 492 | Emergency stop switch | No | |||
Compression Ratio | 8:1 | Closed muffler | Yes | |||
Ignition System | Transistor contactless ignition | Sound Arrester | Sheet metal + cotton insulation | |||
Starting Method | Electronic | Noise output dB(A) | 63-69 | |||
Start motor specification | 12V/0.4KW | NG consumption 100% load m3 / h | 1.8 | |||
Fuel Type | NG | NG Inlet pressure range kPa (in.H2O) | 1.3-2.7 (5-11) | |||
Bore*Stroke(mm*mm) | 90×69 | Genset size (L*W*H) mm | 725×570×615 | |||
Intake Method | Naturally Aspirated | Packing Size(L*W*H) mm | 750×620×680 | |||
Oil Capacity(L) | 1.3 | Net weight(kg) | 86 | |||
Cooling Method | Forced air cooling | Gross weight(kg) | 93 | |||
About Us
CUSTOMER FEEDBACK
Our natural gas / bio gas generator has been widely applied by customers from all over the world, and get high recoginition.
QUALITY CONTROL
Each individual gas engine will be tested in our lab to ensure its high performance. The test includes power, gas consumption, intake system, etc. We can provide test video and test report if customer requested.

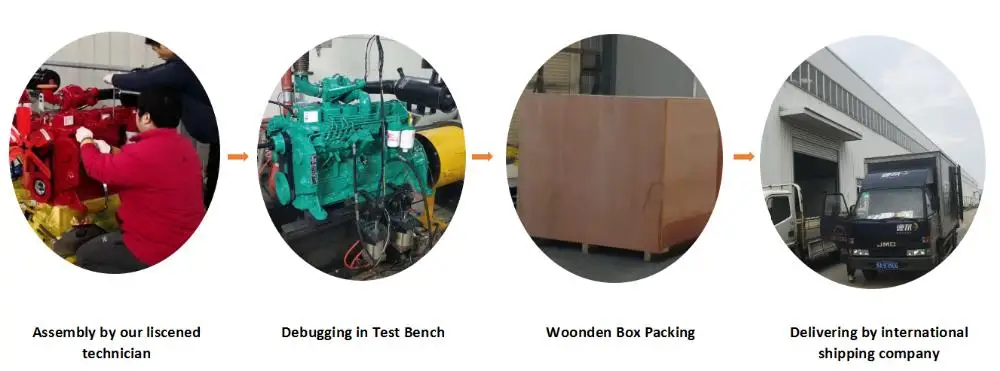

PROCESS FLOW
CASE STUDY
OUR FACTORY
EAPP is Chinese leading manufacturer for gas turbine power turbo electric engine power from 7KW to 1000KW, including natural gas engine, CNG/LNG/LPG/methane engine, bio gas engine, biomass, methane engine, natural gas generator, and biogas/biomass generator etc. As an important partner of power unit, our company has absolute advantage in gas power engine market. With the massive engine technical data as a support, we can provide customers with the overall power unit solution plan..
Exhibition Show
FAQ
1. What is the warranty ?
Unlimited hours in one year as long as it is maintained according to the manual.
And we will offer life time technological support and trouble shooting service.
2. Which fields or what's the application of your natural gas biogas generator?
According to different power, the natural gas biogas generator can be used in residental, industrial, marine, generating, power plant, etc. As continuous running genset, it can be used in large coal mine site, fieldwork area and powerstation. As backup genset, it can be used in hospital, factory, hotel, datacenter, supermarket, high-rise building. If any special application project, welcome to contact us firstly.
3. Will you test your generators or engines before shipped?
Yes, every product will be tested individually in our test lab in and test report and test vidoe can be provided.
4. What's the lead time and delivery time for your gas power generator?
Usually 15-35 days for lead time. Delivery time is according to your choice of shipping method.
5. What's the payment method do you accept?
We accept Alibaba trade assurance, west union, TT, etc. If you have speical requirement, welcome to contact us.
6. Are you manufacturer?
Yes, we are both manufacturer and foreign trade company, cooperating with many famous brand suppliers. Welcome to visit our factory.
