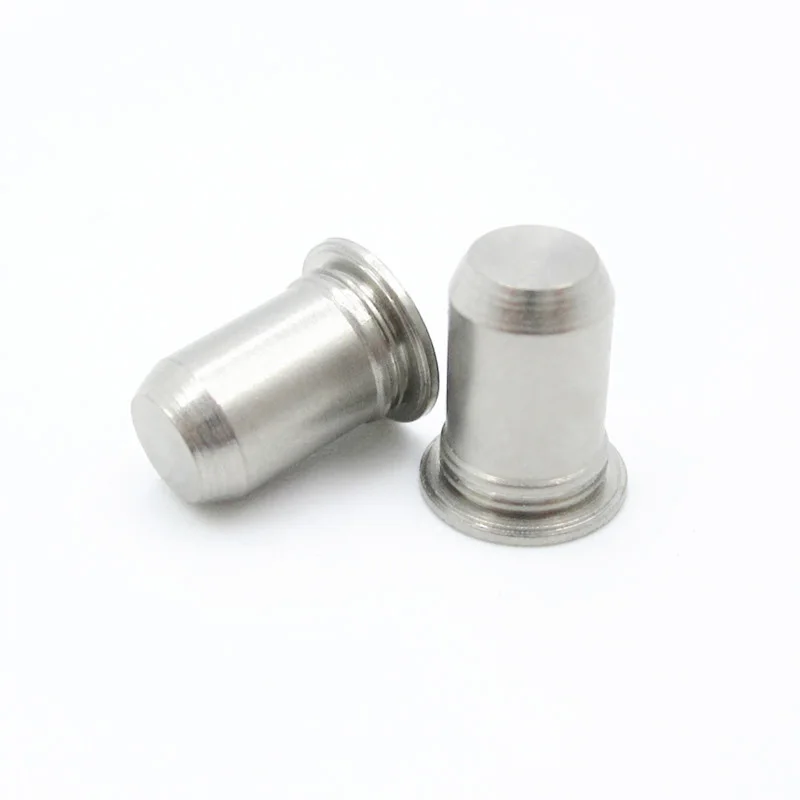

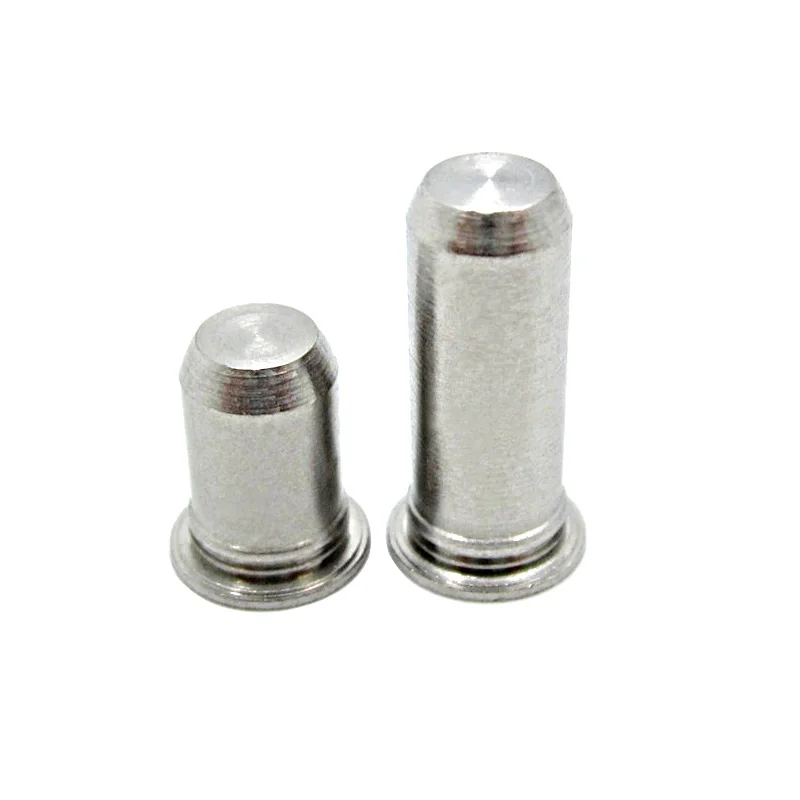

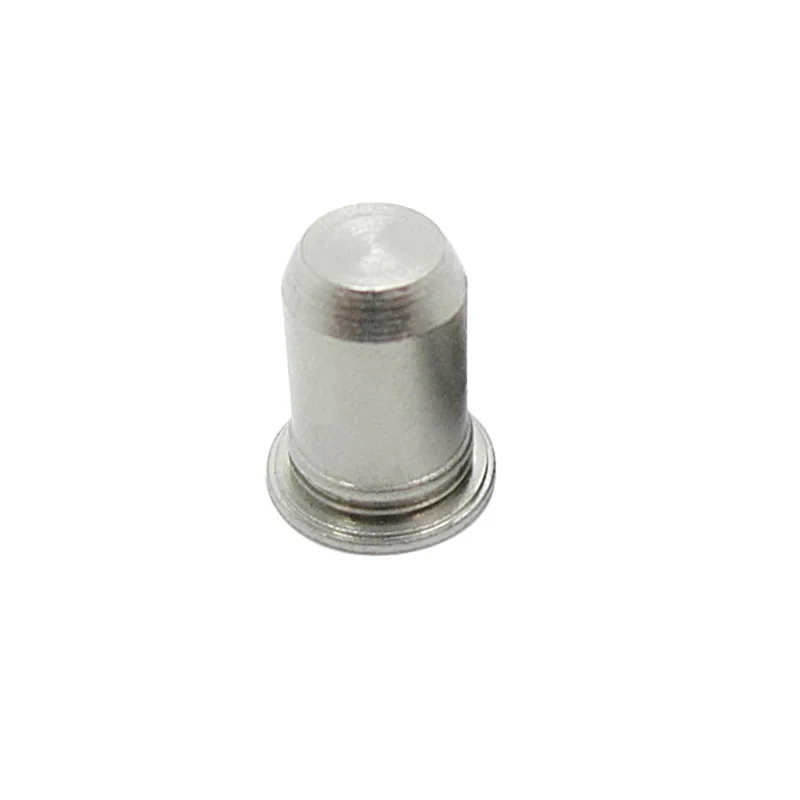

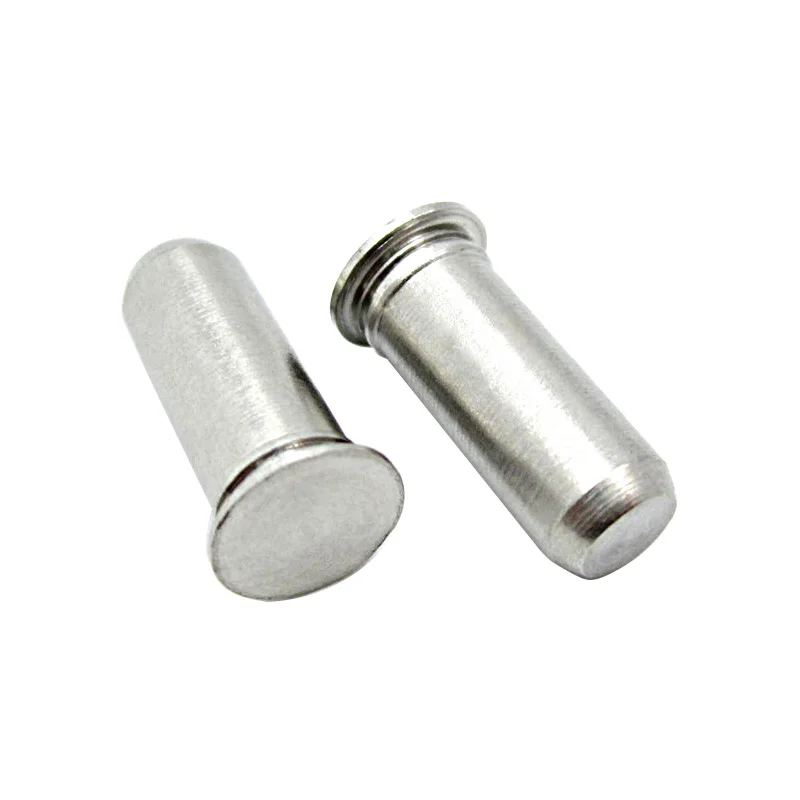

unthreaded dowel pins flush for sheet metal

Product Overview

Description

self clinching studs and pins for sheet metal

ALL DIMENSION ARE IN MILLIMETERS (MM)

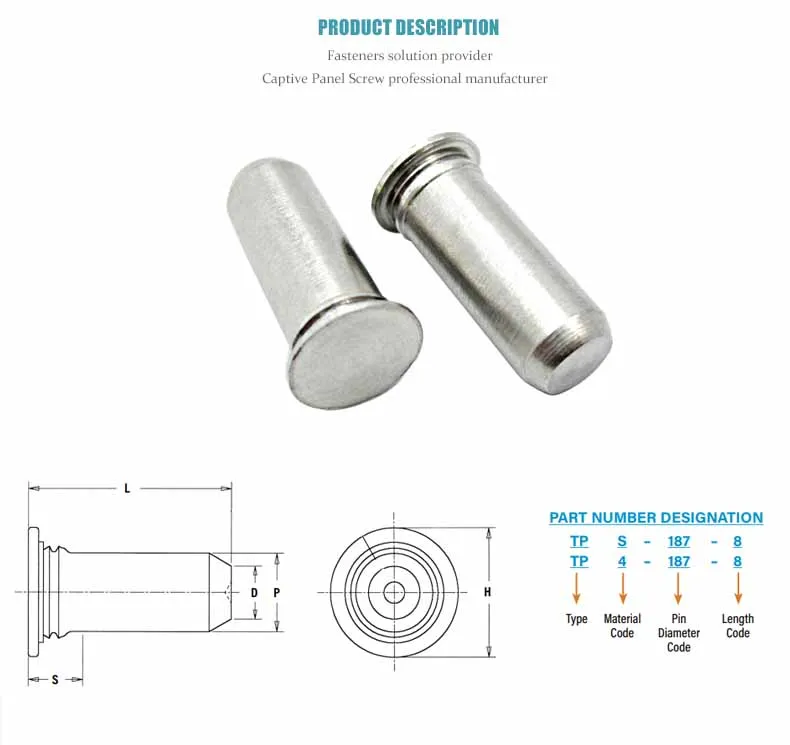

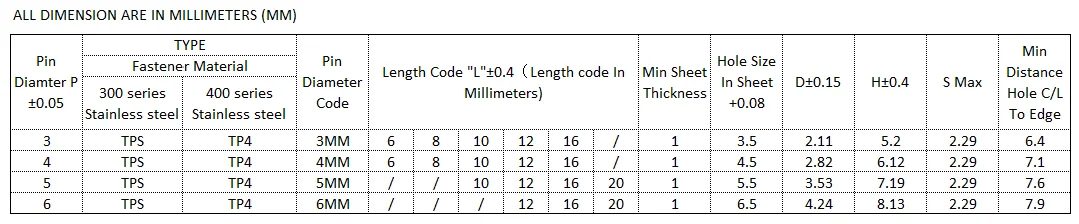

Pin Diamter P±0.05	TYPE		Pin Diameter Code	Length Code "L"±0.4(Length code In Millimeters)						Min Sheet Thickness	Hole Size In Sheet +0.08	D±0.15	H±0.4	S Max	Min Distance Hole C/L To Edge
	Fastener Material
	300 series Stainless steel	400 series Stainless steel
3	TPS	TP4	3MM	6	8	10	12	16	/	1	3.5	2.11	5.2	2.29	6.4
4	TPS	TP4	4MM	6	8	10	12	16	/	1	4.5	2.82	6.12	2.29	7.1
5	TPS	TP4	5MM	/	/	10	12	16	20	1	5.5	3.53	7.19	2.29	7.6
6	TPS	TP4	6MM	/	/	/	12	16	20	1	6.5	4.24	8.13	2.29	7.9







ALL DIMENSION ARE IN INCHES

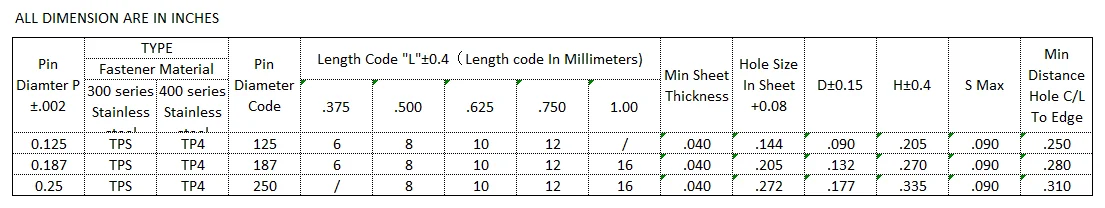

Pin Diamter P±.002	TYPE		Pin Diameter Code	Length Code "L"±0.4(Length code In Millimeters)					Min Sheet Thickness	Hole Size In Sheet +0.08	D±0.15	H±0.4	S Max	Min Distance Hole C/L To Edge
	Fastener Material
	300 series Stainless steel	400 series Stainless steel		.375	.500	.625	.750	1.00
0.125	TPS	TP4	125	6	8	10	12	/	.040	.144	.090	.205	.090	.250
0.187	TPS	TP4	187	6	8	10	12	16	.040	.205	.132	.270	.090	.280
0.25	TPS	TP4	250	/	8	10	12	16	.040	.272	.177	.335	.090	.310
