Forestry Machinery Wood Chipper With Auto Hydraulic Feeding
- Category: >>>
- Supplier: Weifang Kinger Machinery Co. Ltd.
Share on (62483695612):
Product Overview
Description
Product Description
Forestry Machinery Wood Chipper With Auto Hydraulic Feeding
Product Application
1. Driven by tractor, PTO connected, hydraulic feeding, easy to operate, with CE.
2. Used to make log and branches into chips, then as a fuel supply for energy and heating, and for industrial purposes such as MDF board and paper production.
3. In addition, used as ground cover or as surfacing material for paths as an environment-friendly weed killer, which reduces or eliminates the need for chemical sprays
SPECIFICATIONS FOR BX SERIES WOOD CHIPPER | |||||||
Model | BX42S/BX42R | BX62 /BX62R | BX52R / BX72R | BX92R | |||
Drive System | Direct drive, PTO Shaft | Direct drive, PTO Shaft | Direct drive, PTO Shaft | Direct drive, PTO Shaft | |||
HP Range | 18-50 | 30-70 | 50-100 | 65-120 | |||
Chipper Capacity | 4 Dia. (max. 12 slab) | 6 Dia. (max. 12 slab) | 5 Dia / 7 Dia. (up to 13 slab) | 9 Dia. (up to 14 slab) | |||
Rotor Size | 25 | 29" | 35 | 37" | |||
Rotor Knives QTY | 4 | 4 | 4 | 4 | |||
Knife Type | Hardened tool steel | Hardened tool steel | Hardened tool steel | Hardened tool steel | |||
Knife size | 210*60*9mm | 210*60*9mm | 240*60*9mm | 320*100*16mm | |||
Rotor Weight | 50kgs | 98kgs | 98kgs | 242kgs | |||
Rotor thickness | 18mm | 25mm | 25mm | 30mm | |||
Feeding System | Self or Hydraulic Feed | Self or Hydraulic Feed | Hydraulic Feed | Hydraulic Feed | |||
Mounting System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch | |||
Dimensions (Hopper Folded) | 1600*1600*1830mm | 1850*1550*2040mm | 1850*1550*2040mm | 1950*1750*2040mm | |||
Chipper Housing Opening | 4"x10" | 6½ x 12 | 5½"/ 7½" x 12" | 10½" x 14" | |||
Hopper Opening | 20" x 20" | 25" x 25" | 32" x 32" | 25" x 25" | |||
Discharge Hood Rotation | 360° | 360° | 360° | 360° | |||
Discharge Hood Height | 60 | 74 | 84 | 87 | |||
Rated RPM | 540-1000 | 540-1000 | 540-1000 | 540-1000 | |||
Weight | 280/430 kgs | 480/600 kgs | 430 / 610 kgs | 800 kgs | |||
Container capacity | 52/44 pcs per 40FT | 40/32 pcs per 40FT | 32/28 pcs per 40FT | 28pcs per 40FT | |||
Crushed Material
Detailed Images
1. Rotor:
At the heart of the Wallenstein BX Chipper is an oversize heavy duty rotor and reversible
chipping blades. The large diameter rotor has a faster tip speed for improved chipping
action and the heavy gauge steel keeps your momentum to power through 6" diameter tree trunks.
2. Blades
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper
3. Air Vents
Blowing force is maximized with air intake vents on the side of the chipper. Air enters through
the vents and powers the chips out the chute up to 20 feet.
4.Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output
force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
5.Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute.
The chute swivels 360 degrees and the top deflector adjusts the distance.
Easily control where you want the chips with the double adjustable Exit Chute.
The chute swivels 360 degrees and the top deflector adjusts the distance.

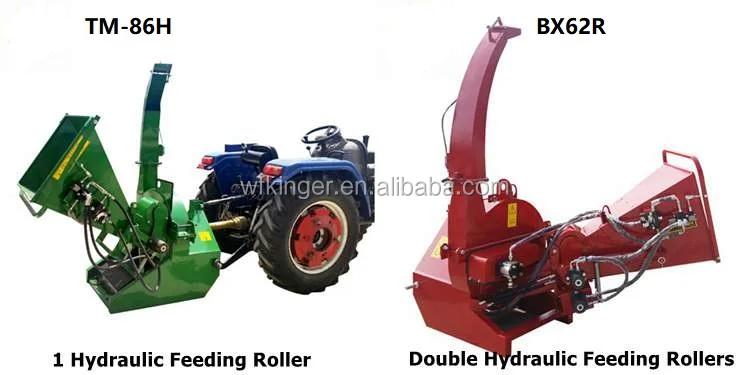

6.Hydraulic Feeding System
It can get the rollers
going forward / stop / going reverse
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* We are Alibaba gold supplier can deal from Alibaba to ensure your payment safety.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1140*820*1800(mm) for BX42R | |
Weight | 430kg | |
Packaging Details | Or depend on customers' requirements. | |
Packaging | ||
Size | 1230*1130*2000(mm) for BX92R | |
Weight | 750KG | |
Packaging Details | The normal package is iron crate with anti-dust film cover. Or depend on customers' requirements. | |
