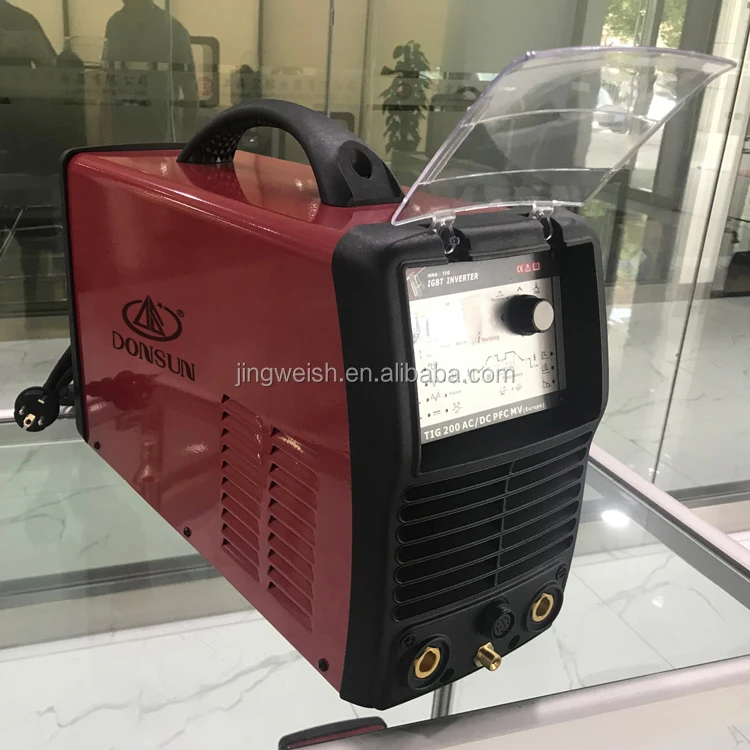

TIG 200 ACDC PFC MV, 110V/220V multi voltage inverter PFC, TIG AC DC Welder
- Category: >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62483839229):
Product Overview
Description

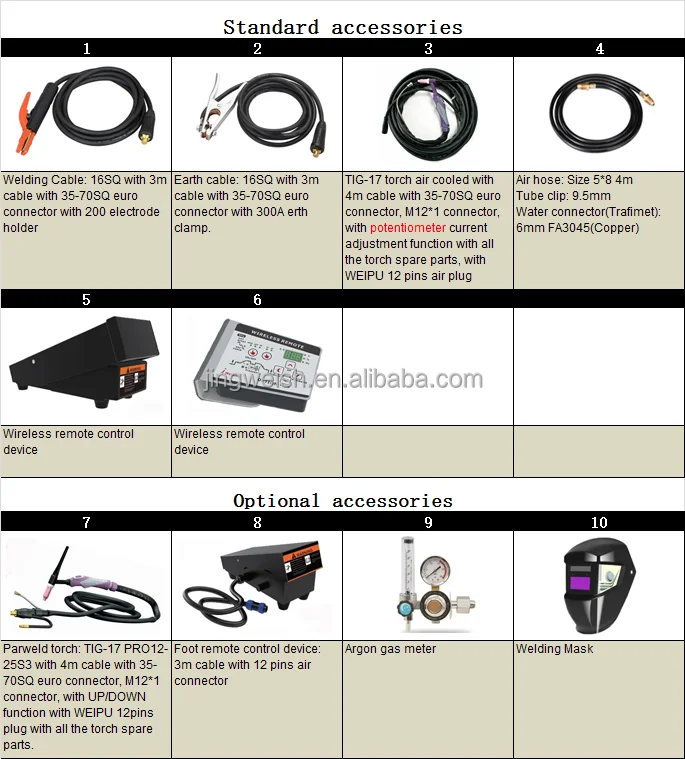

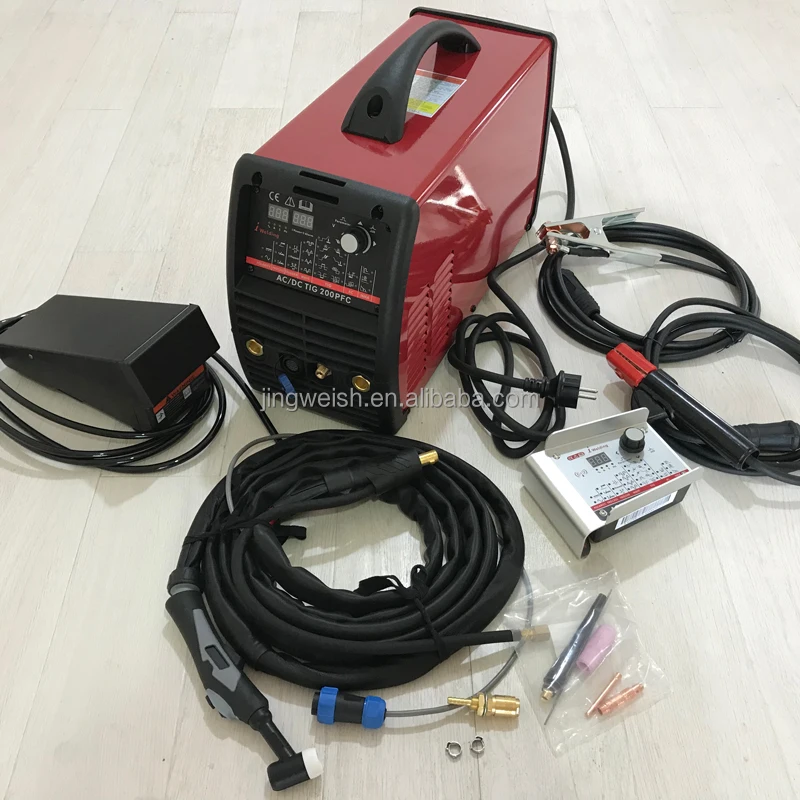

TIG ACDC accessories
Product Description
Features:

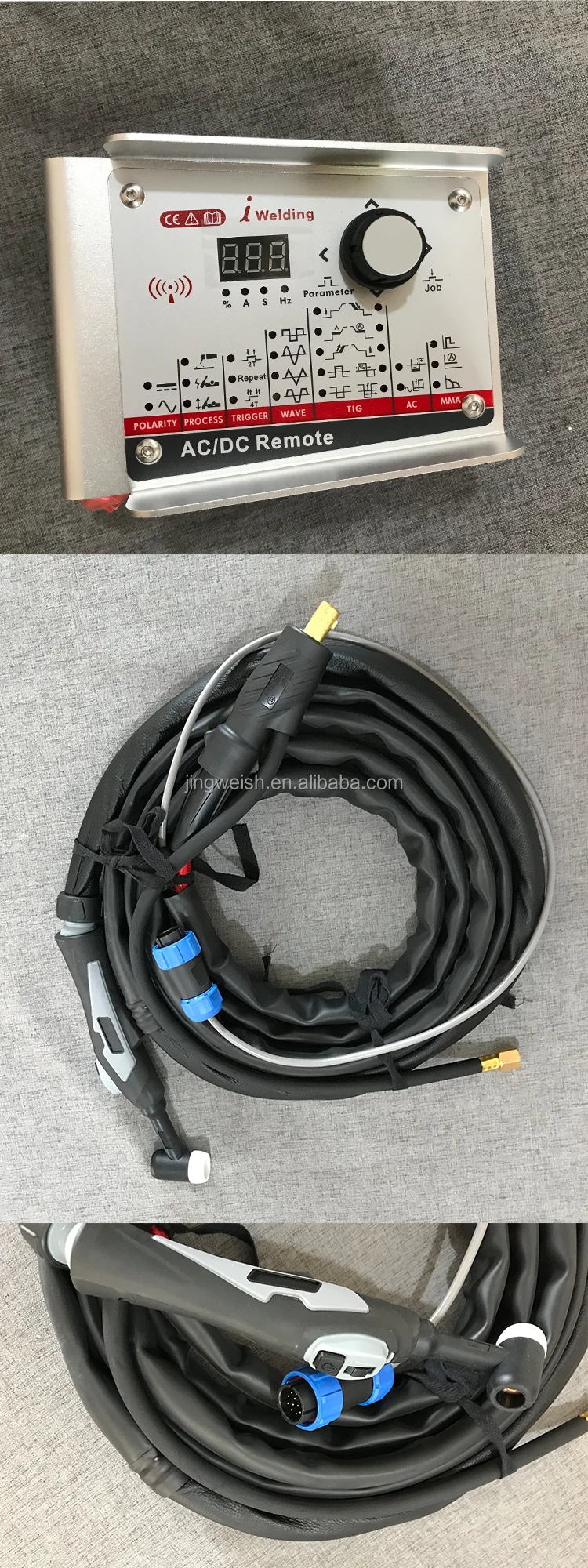

Accessories
·Remote Foot Control
·Wireless Remote Fingertip Control
·Remote Foot Control
·Up/Down Remote Torch

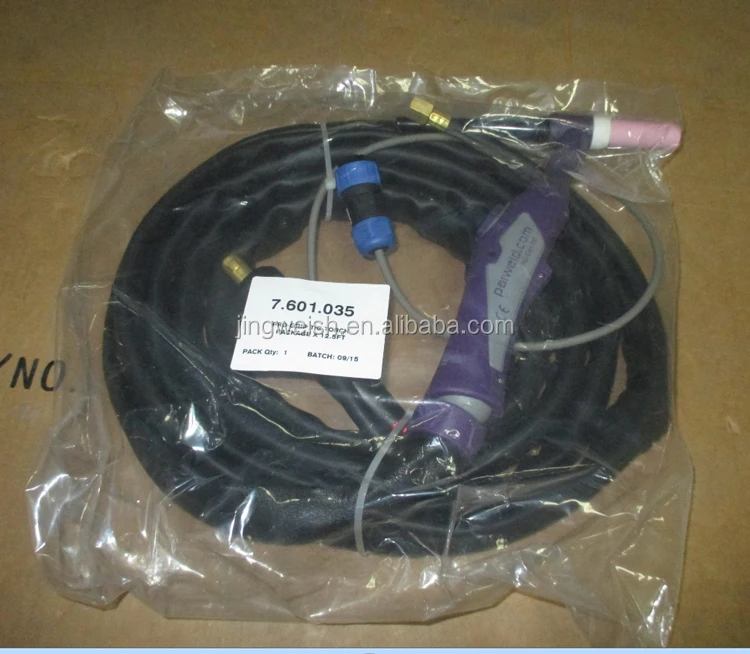

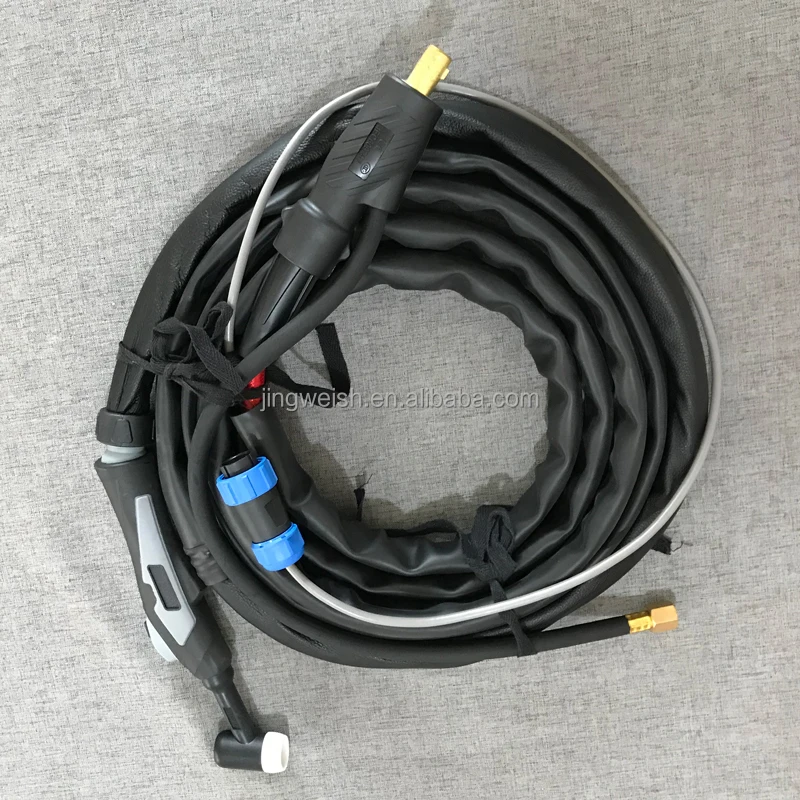

·Remote Control Torch
Multi-Waveform Output
AC waveforms include square wave,sine wave, triangular wave and trapezoidal wave.
AC Balance Control
AC balance(50~85%)control monitors the oxide and helps better cleaning during aluminum welding.
Protections
Equipped with temperature,voltage and current sensors for high protection.
| Model | TIG 200 AC/DC PFC MV | |||
| power supply voltage(V) | 90~275 | |||
| Fre.(HZ) | 50/60 | |||
| 1~110/120/130±10% | 1~220/230/240±10% | |||
| Rated Input Power (KW) | 4.2 (MMA) | 3.6 (TIG) | 6.6 (MMA) | 4.7 (TIG) |
| Rated input current(A) | 40 (MMA) | 32 (TIG) | 28 (MMA) | 21 (TIG) |
| MMA | TIG | DC | AC | |
| Duty Cycle(40 10Min) | 130A 30% 110A 60% 80A 100% |
160A 60% 125A 100% |
200A 35% 140A 60% 110A 100% |
200A 60% 155A100% |
| No Load Voltage(V) | 67 | |||
| Welding Current Range(A) | 5~130 | 5~160 | 5~200 | |
| Up Slope/Down Slope Time(S) | 0~10 | |||
| Pre/Post Flow(S) | 0.1~10/1~10 | |||
| Pulse Fre.(HZ) | 0.5~200 | |||
| Pulse width range(%) | 5~95 | |||
| AC Fre.(HZ) | 50~250 | |||
| Clearance effct(AC TIG) | 15~50 | |||
| Efficiency | ≥80% | |||
| Net Weight(Kg) | 15 | |||
| Dimensions(mm) | 492x189x350 | |||
| power factor | - | |||
| Insulation Class | IP23 | |||
| Protection Class | H | |||
| Cooling | AF | |||
For this TIG 200 AC/DC PFC MV, we have America and Europe two types! Tell us which type you need when place the order!

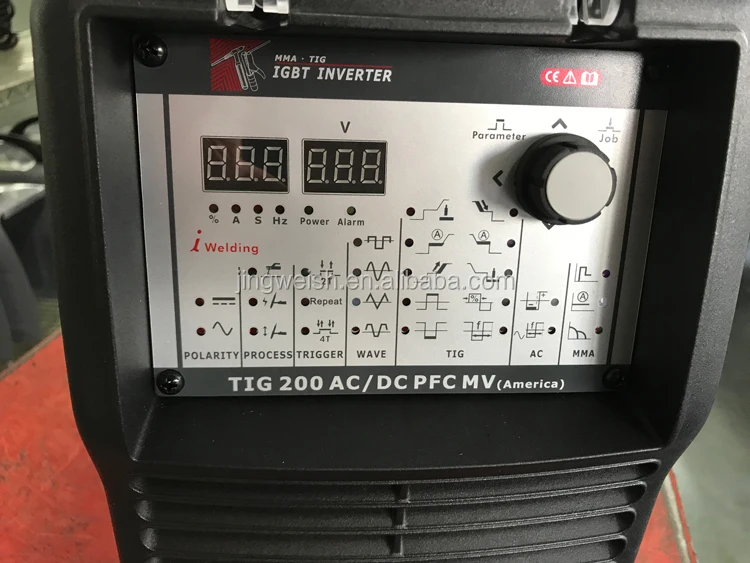

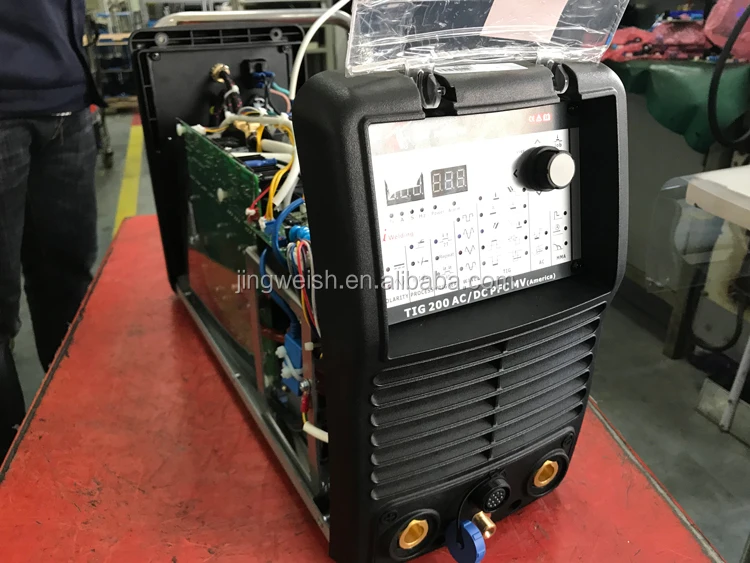

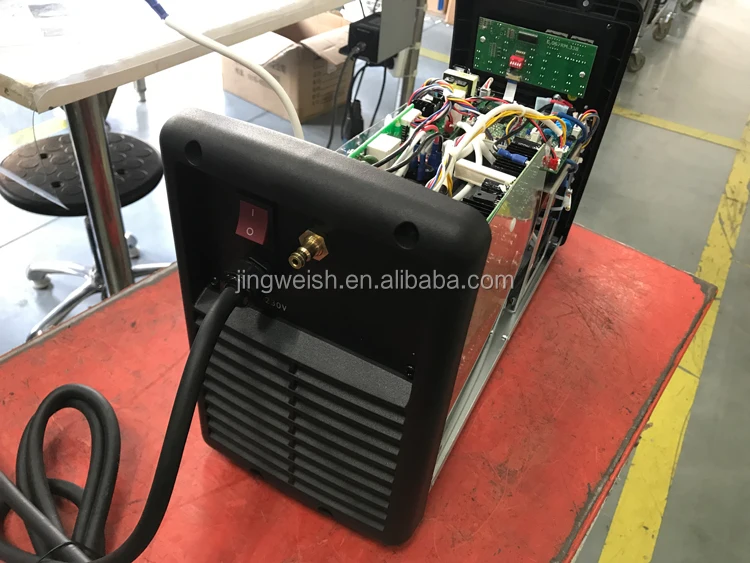

American type

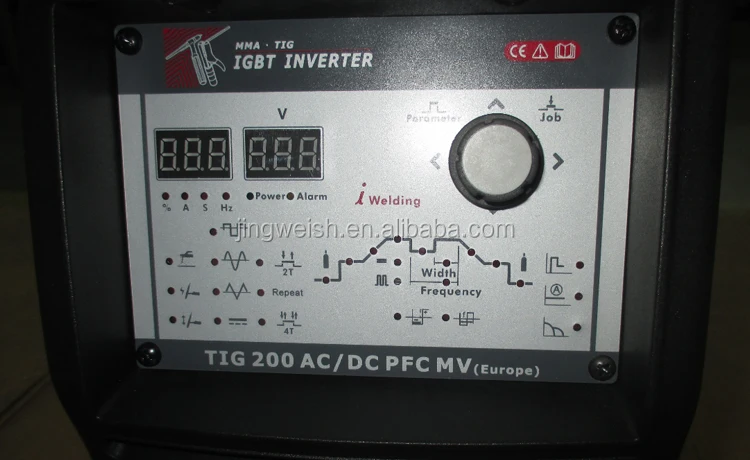

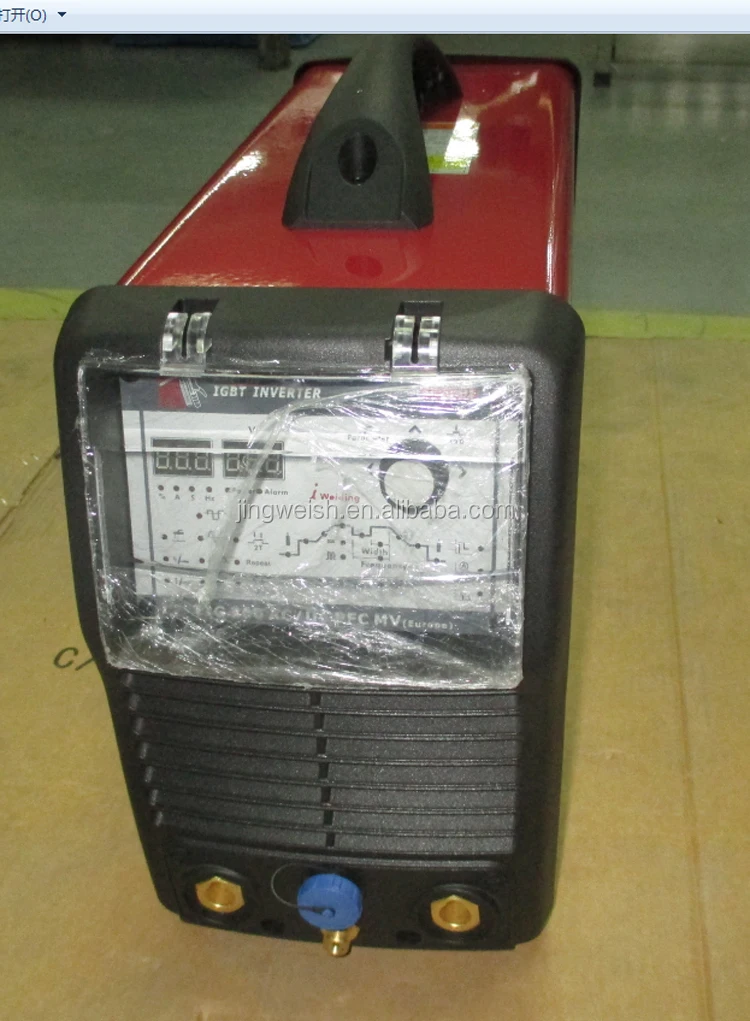

Europe type
