2 Axis Cartesian Robot Servo Motors Hand Clamp Modular Desktop Collaborative Robotic Arm Factory China
- Category: >>>
- Supplier: Ant Automation Equipment (shenzhen) Co. Ltd.
Share on (62483974016):
Product Overview
Description
You Must Know Before Order
Dear Customers, Thanks for visiting our website and product. In order to have a better understanding of our product ,
please allow us to remind you with following two tips :
* (1) We set up the price based on different quantity , please contact our sales with your estimated order quantity so we can quote you accordingly .
* (2) The above price is not shipping included , please tell us your delivery address for shipping cost quote if you don't have your own carrier or forwarder.
Dear Customers, Thanks for visiting our website and product. In order to have a better understanding of our product ,
please allow us to remind you with following two tips :
* (1) We set up the price based on different quantity , please contact our sales with your estimated order quantity so we can quote you accordingly .
* (2) The above price is not shipping included , please tell us your delivery address for shipping cost quote if you don't have your own carrier or forwarder.
Parameter | Model | ||||

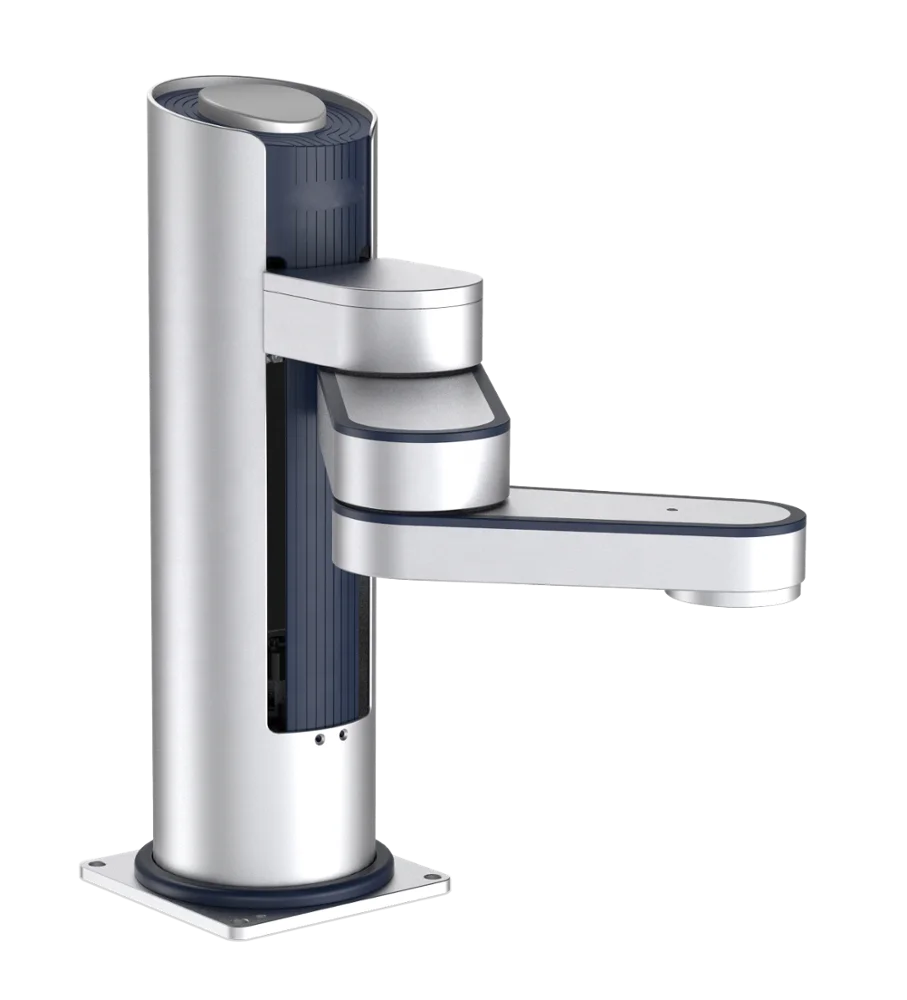

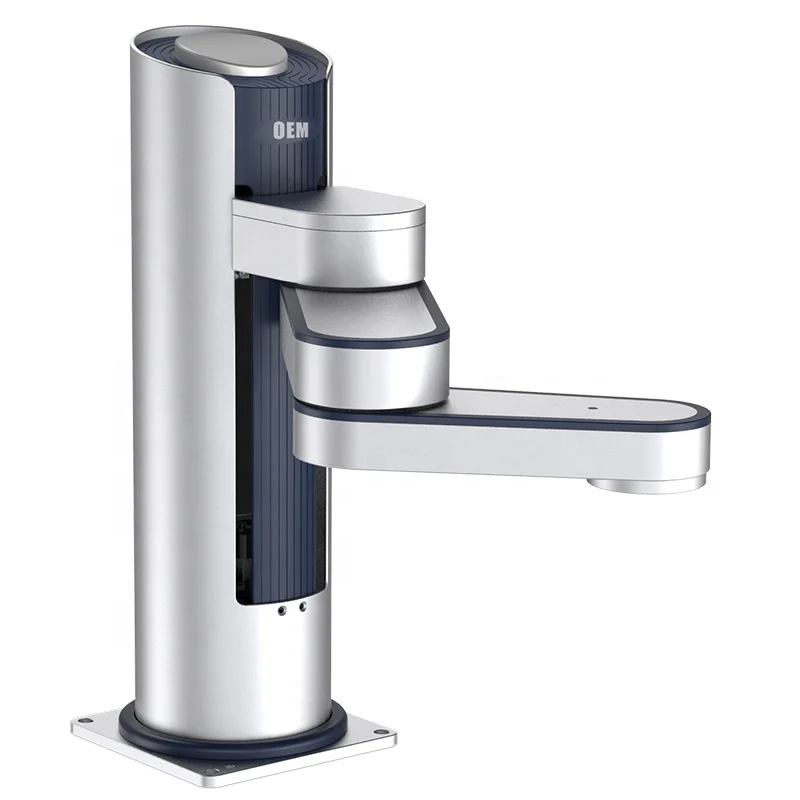

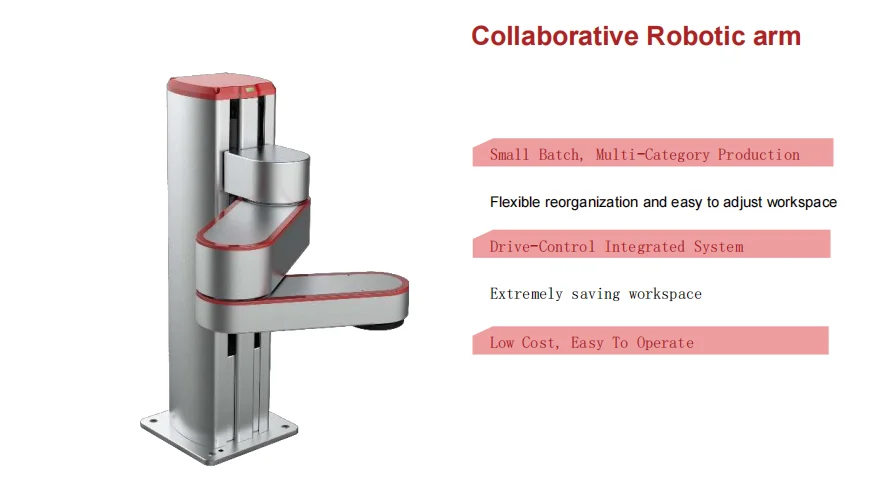

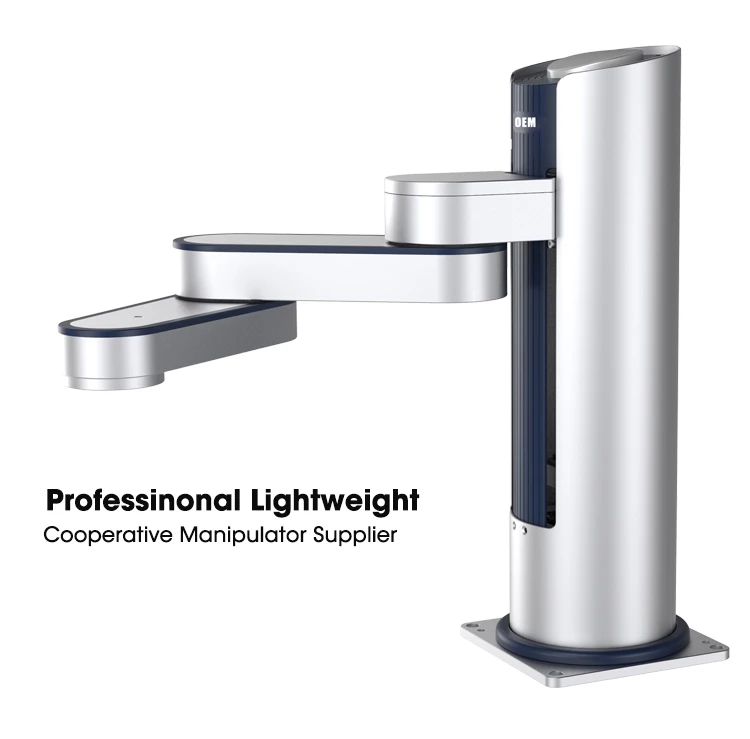

Z-Arm 1832C Collaborative | |||||

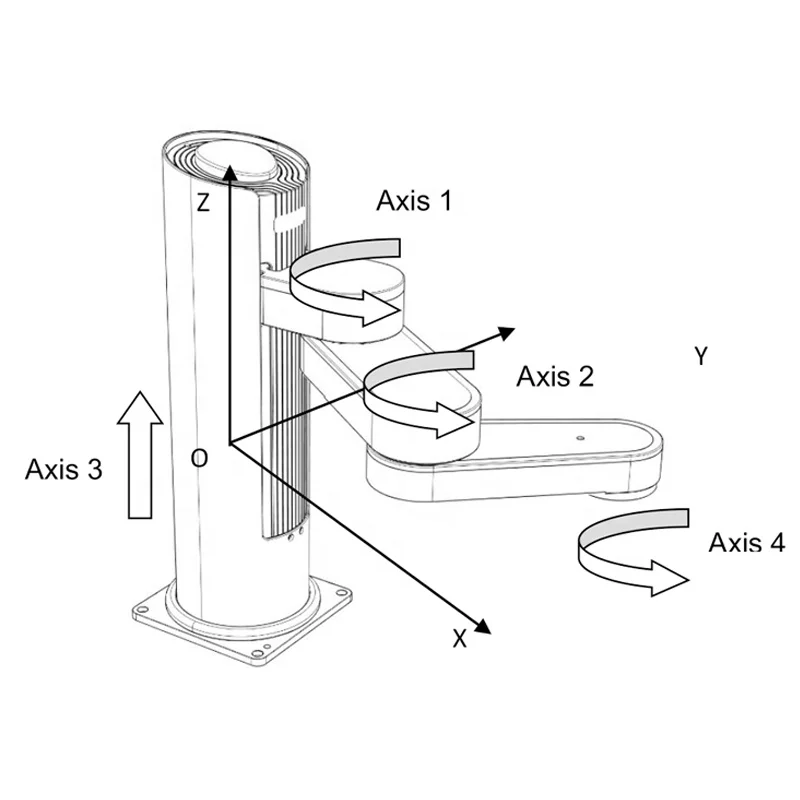

Basic Information | J1-axis | Arm length | 160mm | ||
Rotation angle | ±90° | ||||
J2-axis | Arm length | 160mm | |||
Rotation angle | ±143° | ||||
Z-axis | Stroke | 180mm | |||
R-axis | Rotation angle | ±180° | |||
linear velocity | 1017mm/s（payload 0.5kg） | ||||
Repeatability | ±0.02mm | ||||
Rated payload | 0.5kg | ||||
Maximum payload | 1kg | ||||
Degree of freedom | 4 | ||||
Power | 220V/110V 50~60Hz | ||||
Adapter to 24V DC | |||||
Communication | Ethernet | ||||
Extensibility | The built-in motion controller, provides 24 I/O | ||||
I/O | Digital input (isolated) | 9+3+ forearm extension (optional) | |||
Digital output (isolated) | 9+3+ forearm extension (optional) | ||||
Analog input(4-20mA) | / | ||||
Analog output (4-20mA) | / | ||||
Height | 500mm | ||||
Weight | 180mm reach, 11kg | ||||

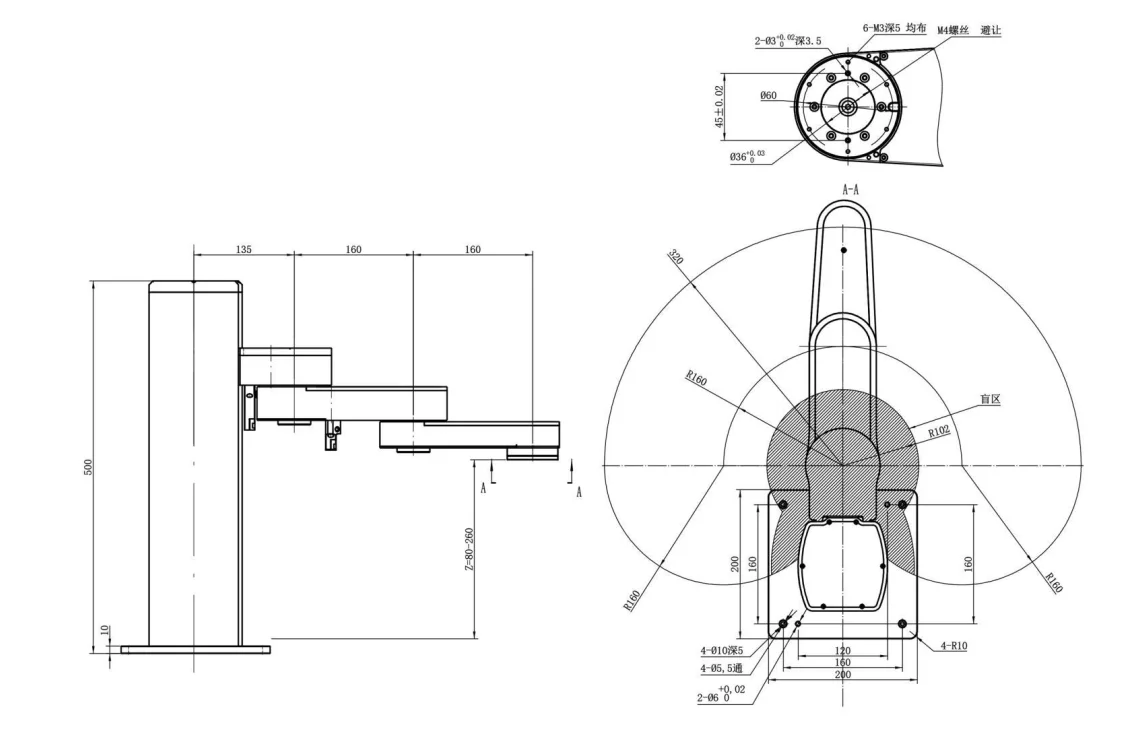

Base installation parameters | Overall size | 200mm*200mm*10mm | |||
Mounting hole spacing | 160mm*160mm With 4 M5*12 screws | ||||
Safety-related monitored stop | YES | ||||

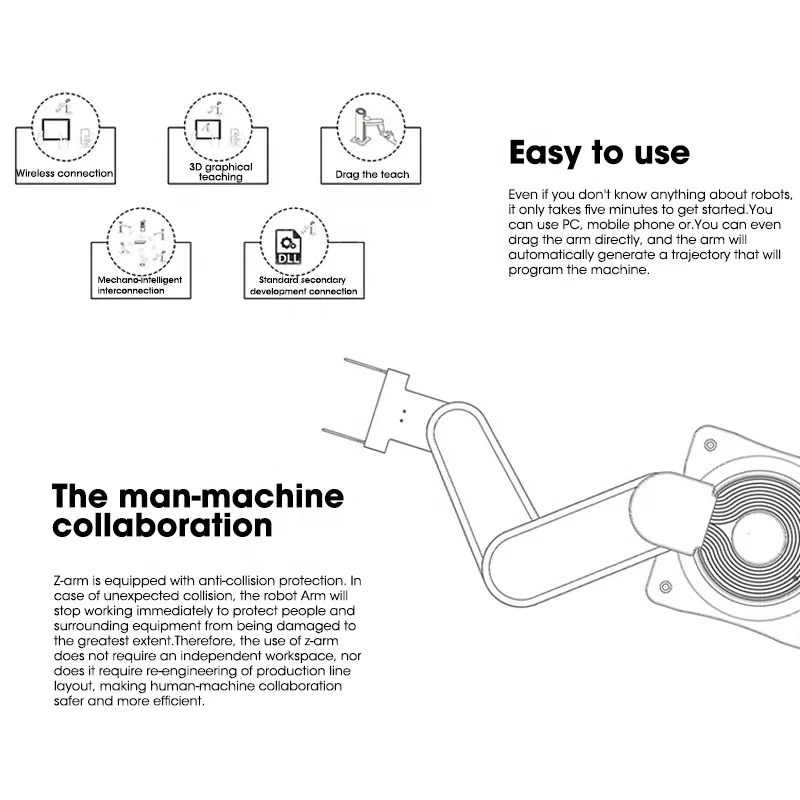

Handhold teaching | YES | ||||

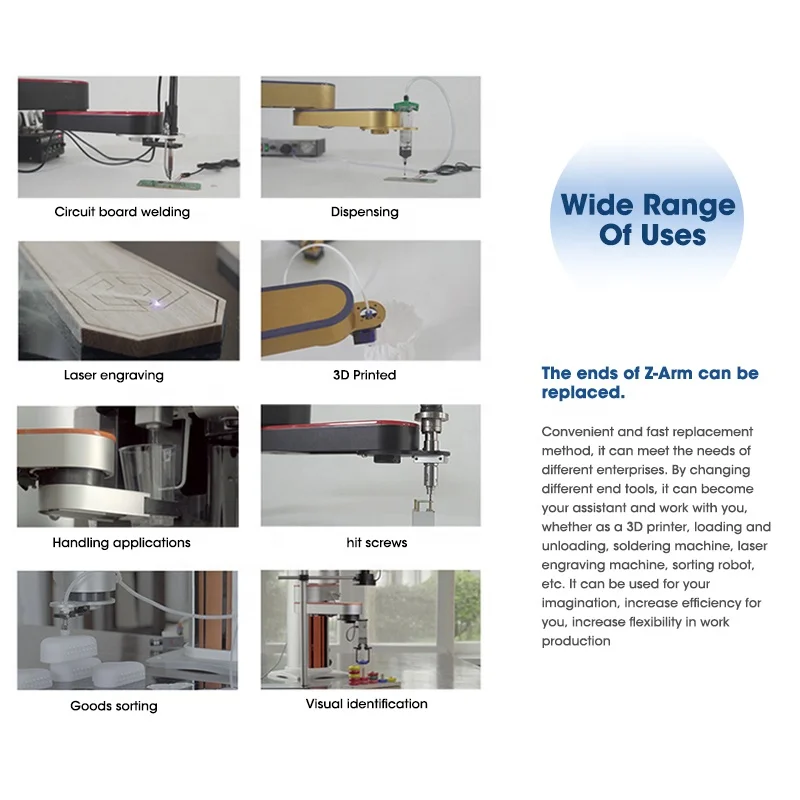

Main Applications
Our Services
* Pro-Sale Service:
1. Good Quality / Factory Price / Quick Response Reliable Service, is our working faith.
2. Professional and High efficient foreign sale- team, Reply your Alibaba inquiry and trade massages in 6 working hours, you can totally believe our service.
* Middle-Sale Service:
1. Checking the most suitable shipping ways for customers.
2. Testing quality again before sending goods.
3. Sending the tracking numberbil of loading. and update the situations of the goods customers receive the goods
* After-Sale Service:
1. We are very glad that customer give us some suggestion for price and products.
2. If have any question, please contact with us freely by E-mail or Telephone for more details.
1. Good Quality / Factory Price / Quick Response Reliable Service, is our working faith.
2. Professional and High efficient foreign sale- team, Reply your Alibaba inquiry and trade massages in 6 working hours, you can totally believe our service.
* Middle-Sale Service:
1. Checking the most suitable shipping ways for customers.
2. Testing quality again before sending goods.
3. Sending the tracking numberbil of loading. and update the situations of the goods customers receive the goods
* After-Sale Service:
1. We are very glad that customer give us some suggestion for price and products.
2. If have any question, please contact with us freely by E-mail or Telephone for more details.
Company Profile
FAQ
Q: Are you a factory?
A: Yes,we are factory,have more than 10 years experience;
Q: What is your MOQ;
A: At present, our MOQ is 1 set;
Q: How long is the delivery time?
A: In general, the delivery time is 15 days for 1 set.
Q: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.
Q: Are you manufacturer or trading company?
A: We are manufacturer for automation robot in Shenzhen city, China.
Q: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite
installation or debugging. Welcom to you visit our company to learn and check the robot.
Q: What is your payment term?
A: The payment method is 50% prepayment, 50% balance before cargo delivery.
A: Yes,we are factory,have more than 10 years experience;
Q: What is your MOQ;
A: At present, our MOQ is 1 set;
Q: How long is the delivery time?
A: In general, the delivery time is 15 days for 1 set.
Q: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.
Q: Are you manufacturer or trading company?
A: We are manufacturer for automation robot in Shenzhen city, China.
Q: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite
installation or debugging. Welcom to you visit our company to learn and check the robot.
Q: What is your payment term?
A: The payment method is 50% prepayment, 50% balance before cargo delivery.
