Hi Fi F12 12 дюймов НЧ динамик Высокочастотный динамик dj басовых динамиков 8ohm 200 ватт громкий динамик
- Category: Speakers >>>
- Supplier: Zhuhai Hivi Technology Company Limited
Share on (62483978861):
Product Overview
Description

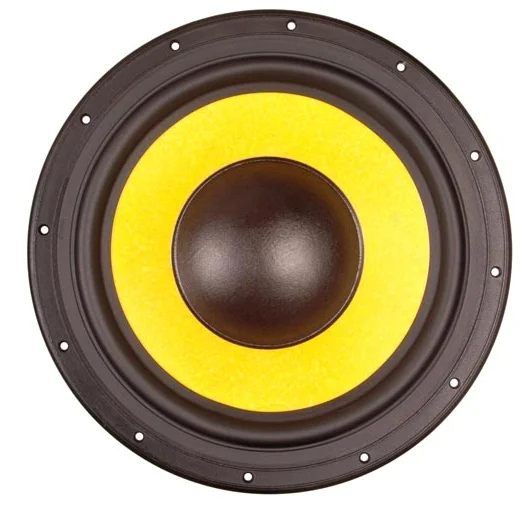

The F12 is a remarkable woofer with a detailed, punchy yet easy breathing and rich bass. The recommended crossover frequency is 300-800 Hz.
| F12 | |
| Nominal Impedance(Z) | 8Ω |
| Resonant Frequency (Fs) | 26Hz |
| Nominal Power Handling | 100W |
| Max Power Handling (Pmax) | 200W |
| Sensitivity (2.83V/1m) | 89dB |
| Weight | 6.2kg |
| Voice Coil Diameter | 50mm |
| Voice Coil Former | SV Wire |
| Magnet System | Outer-magnet |
| Magnet Former | Ferrite |
| Force Factor (BL) | 16.1N/A |
| Gap Height | 10.0mm |
| Linear Excurion (Xmax) | 6.0mm |
| Suspension Compliance (Cms) | 387.0uM/N |
| Mechanical Q (Qms) | 6.21 - |
| Electrical Q (Qes) | 0.39 - |
| Total Q (Qts) | 0.36 - |
| Moving Mass (Mms) | 99.9g |
| Equivalent Air Volume (Vas) | 145.6L |
| Cabinet Type | Vented |
Sound features: The low frequency shocking, high analysis, energetic.
Suitable for the bass unit of 3-way vented floor-standing loudspeaker system in the home, and also suitable for sub-bass unit of the sub-bass loudspeaker system
Accurate and uncompressed reproduction of very low bass at realistic levels represents the ideology implemented in this driver. The design of the F12 has been optimized for balanced and dynamic low bass reproduction in compact or medium vented systems and subwoofers.
