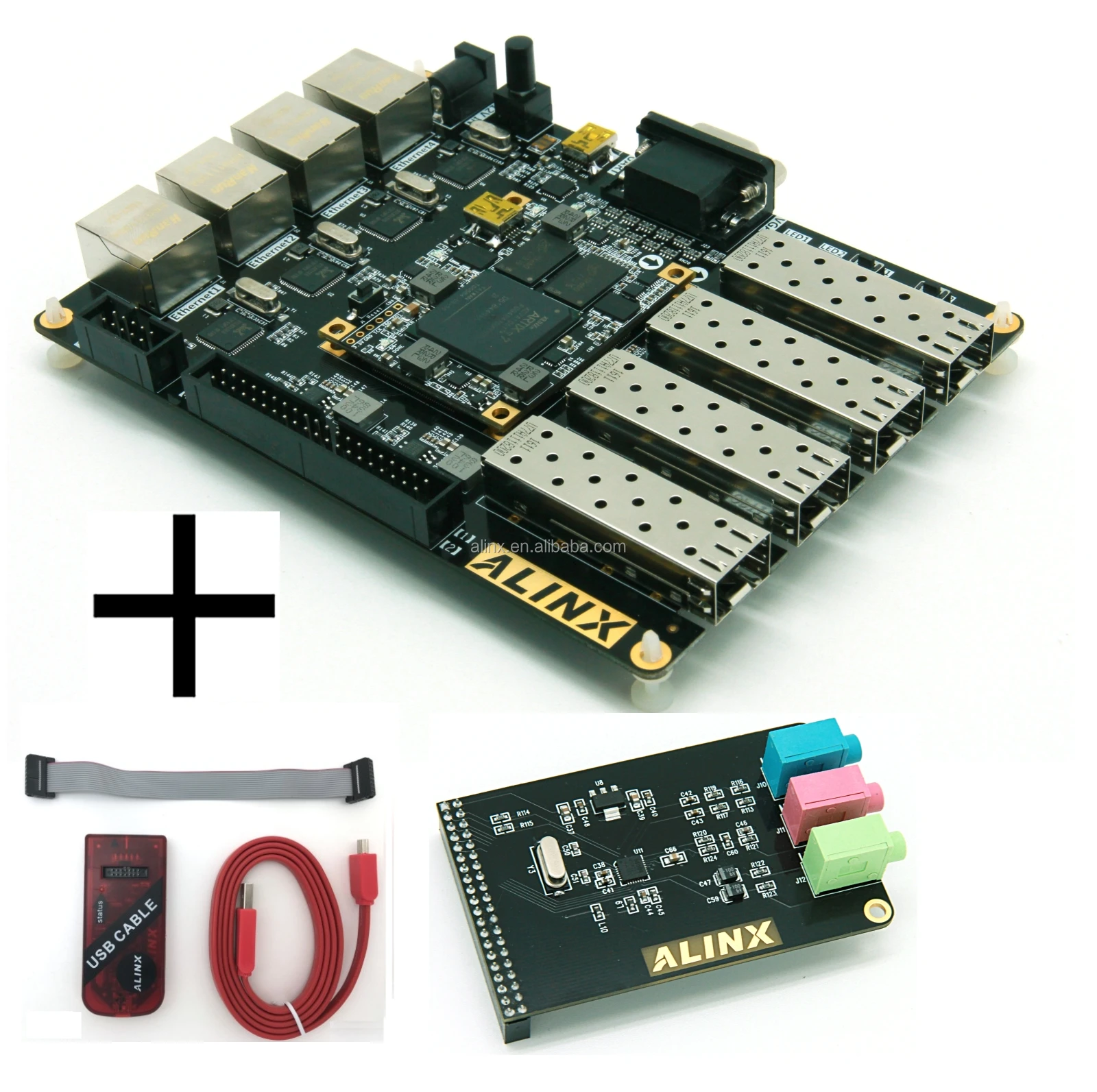

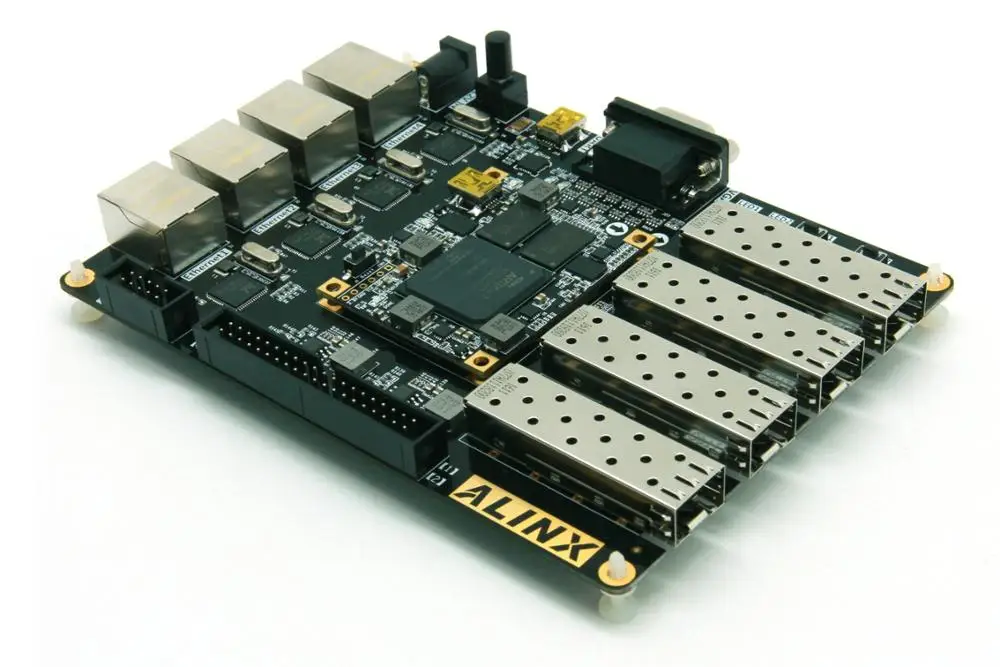

The Artix-7 FPGA 4SFP/ 4 Ethernet Evaluation Kit AX7101 features the leading system performance per watt Artix-7 family to get you quickly prototyping for your cost sensitive applications. This includes all the basic components of hardware, and pre-verified reference designs. Optimized for quickly prototyping cost sensitive applications using Artix-7 FPGAs, a high performance data transfer system using 4SFP and 4-port Ethernent

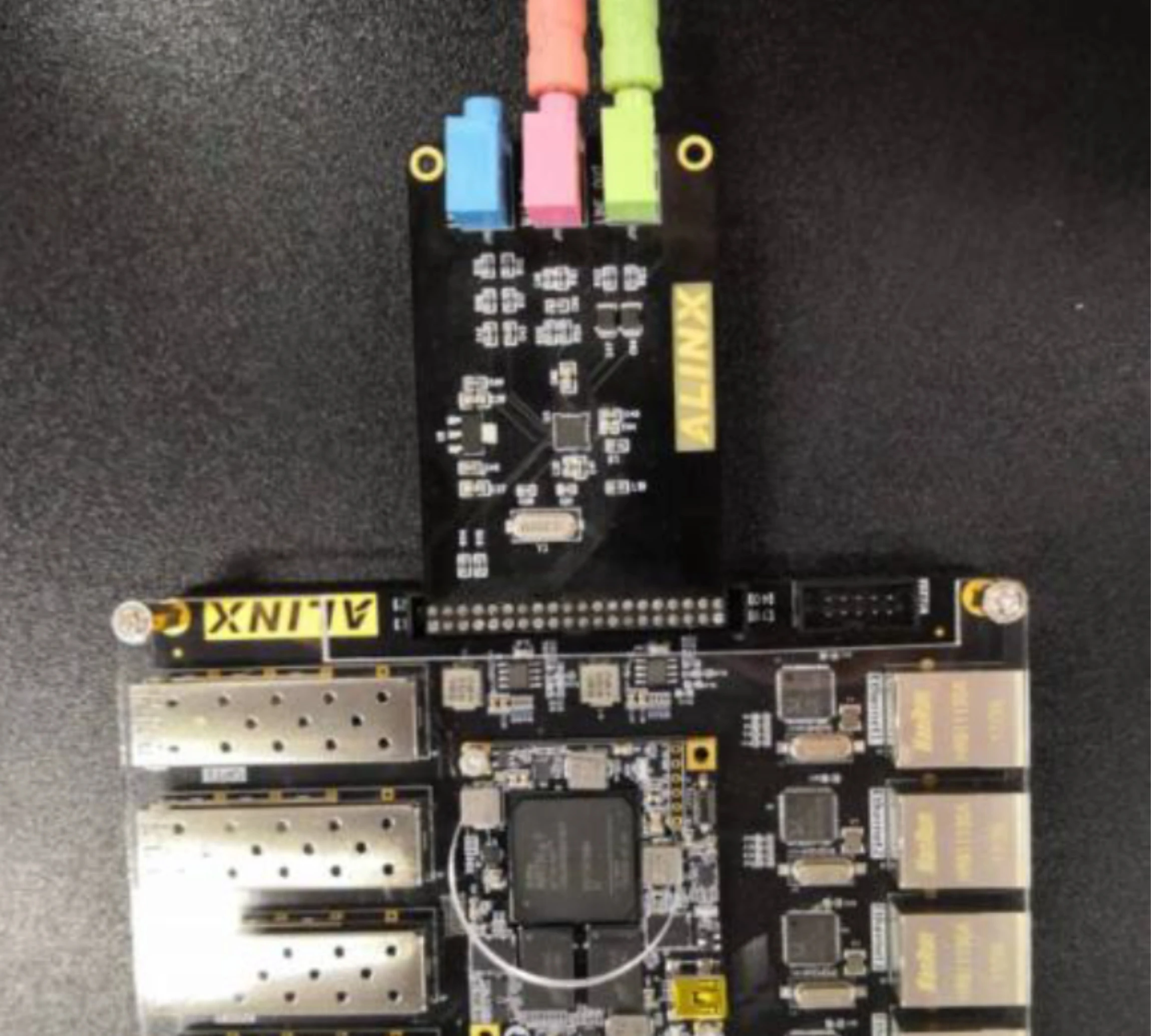

Details Images

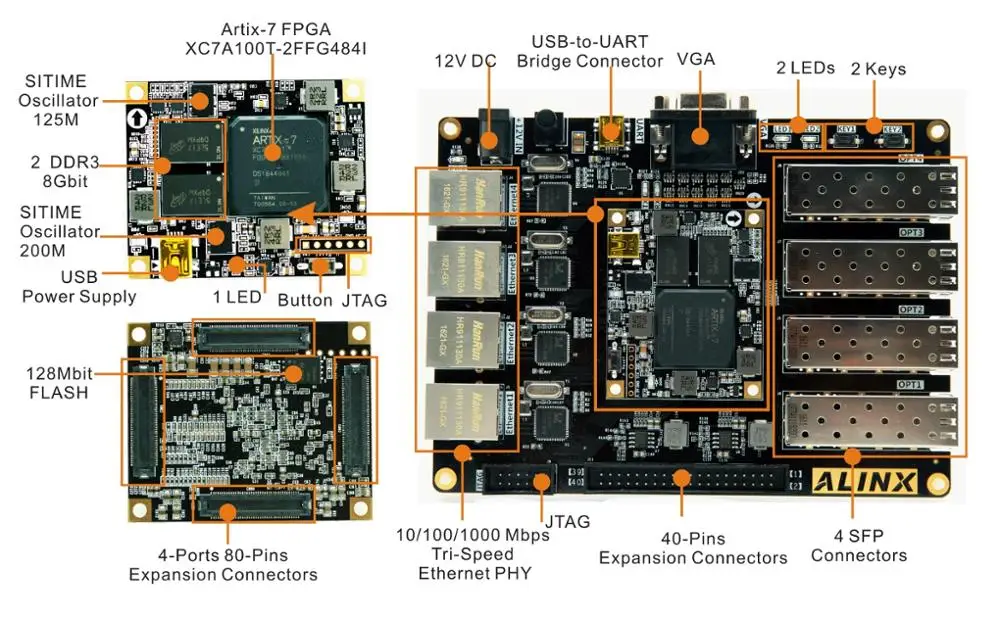

Core Board FeaturesFPGA: Xilinx Artix-7 XC7A100T-2FGG484I FPGA
Clocking
Fixed Oscillator with differential 200MHz output, used as the “system” clock for the FPGA
Fixed Oscillator with differential 125MHz output, used as Differential SMA GTP reference clock input.
Memory
8GB DDR3 SDRAM (2 pieces of 4GB) up to 800MHz / 1600Mbps, 32bit bus
QSPI Flash: 128Mbit
Display
3 LEDs: 1 Power indicator LED, 1 Configuration Indicator LED and 1 User LED
1 Reset Button.
Power: Reserved Mini USB interface.
4 pairs of 80-pin high-speed board to board connectors
Expand 180 standard IO ports of 3.3V level, 15 standard IO ports of 1.5V level, and 4 pairs of GTP high speed RX/TX differential signals.
Carrier Board Key Features:Communication & Networking
4 Ethernet ports, 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY
4 x SFP/SFP+ Module Connectors
USB-to-UART Bridge Connector
Display
16-bit D-type VGA output interface
Expansion Connectors: 1-port 0.1 inch spacing standard 40-pin expansion headers
Configuration
JTAG header provided for use with ALINX Brand Xilinx download cables such as the Platform Cable USB II;
Display: 2 Buttons, 2 User LEDs.
Power: 12V DC Adapter
Related Products
Company Introduction
Our Services & Strength
ALINX Electronics Technology (Shanghai) Co., Ltd, founded on 2012 in shanghai, china. It is High-tech Enterprise Specializing in FPGA R&D and Design. XILINX official partner
Provide FPGA Development Kit (Xilinx MPSOC/ZYNQ7000/KINTEX-7/ARTIX-7/Spartan-7/Spartan-6 series fpga, Intel Altera Cyclone IV, Cyclone 10) Widely used in artificial intelligence, machine vision, intelligent manufacturing, video image processing, Industrial control, communications, instrumentation and other industries.
Major Customer: University, research institutes and high-tech enterprises in the development of FPGA technology, Talent training and other aspects have a leading edge.
Packing&Shipping
Free Shipment: e-package, delivery time 9 to 15 days.
Expedited Shipping: EMS, DHL, SF, delivery time 5 to 7 days. Just paid $9.9 for the first package and $4.9 additional one.
FAQ

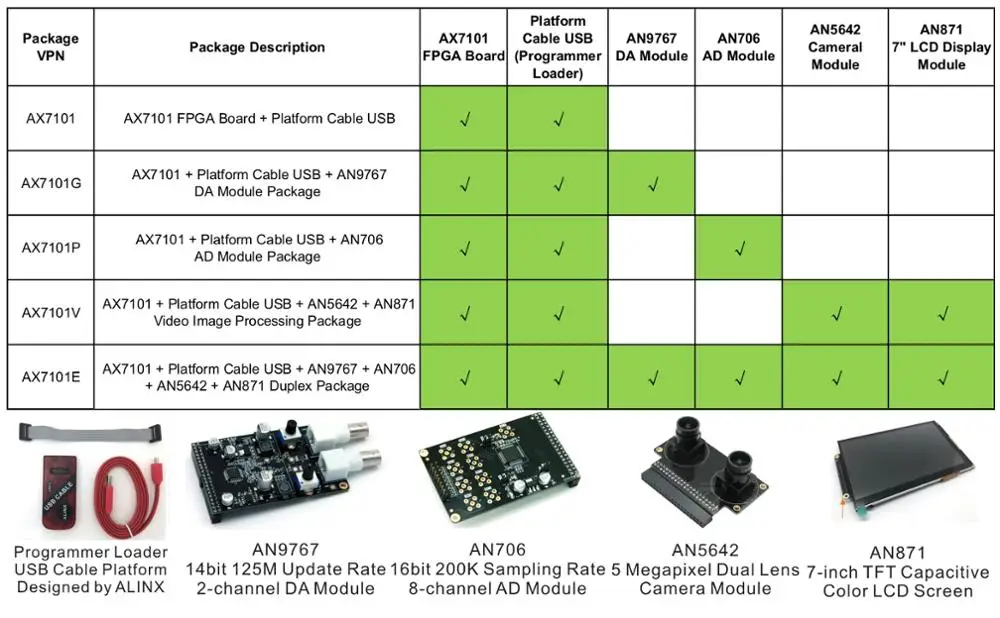

1. What's Documents Alinx Provide ?

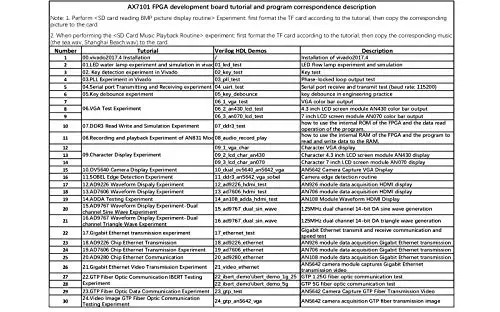

---Schematic/PCB in pdf ---User Manual in English and Chinese --- Verilog HDL Demos with Tutorial (in English and Chinese) ---Main Chip Datasheet
