R0.5 12.5mm Ball Nose End Mill/2 4 Flutes Carbide Milling Cutter For Steel

Product Overview

Description

Product Description

R0.5-12.5mm Ball Nose End Mill/2-4 Flutes Carbide Milling Cutter For Steel



Product Name	R0.5-12.5mm Ball Nose End Mill/2-4 Flutes Carbide Milling Cutter For Steel
Material	Tungsteen Carbide
Flute	2/4
Diameter	R0.25~R8mm
Flute length	1~75mm
Overall length	38~150mm
Shank length	4~20mm
Coating	TiN,TiAlN,CrN,TiCrN,DLC,NaNo
HRC	45,55,60,65
Helix angle	30°,35°,40°,45°,55°
Suitable for	Wood,Plastic,Acrylic,Composite Material,Copper,Cast Iron,Carbon Steel,Alloy Steel,Stainless Steel,Mould Steel,Titanium
Application	Side Milling, Slotting,Forming
Advantage	Wear resistance,high strength,good toughness,long tool life

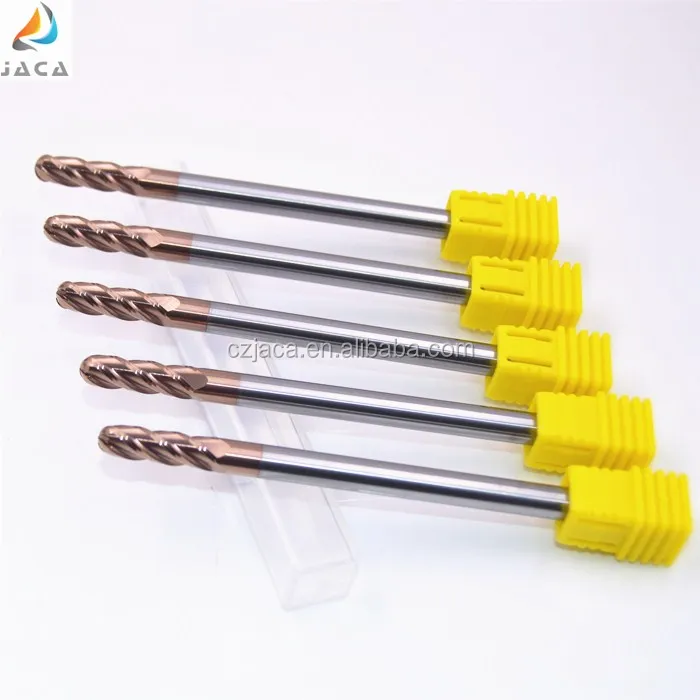

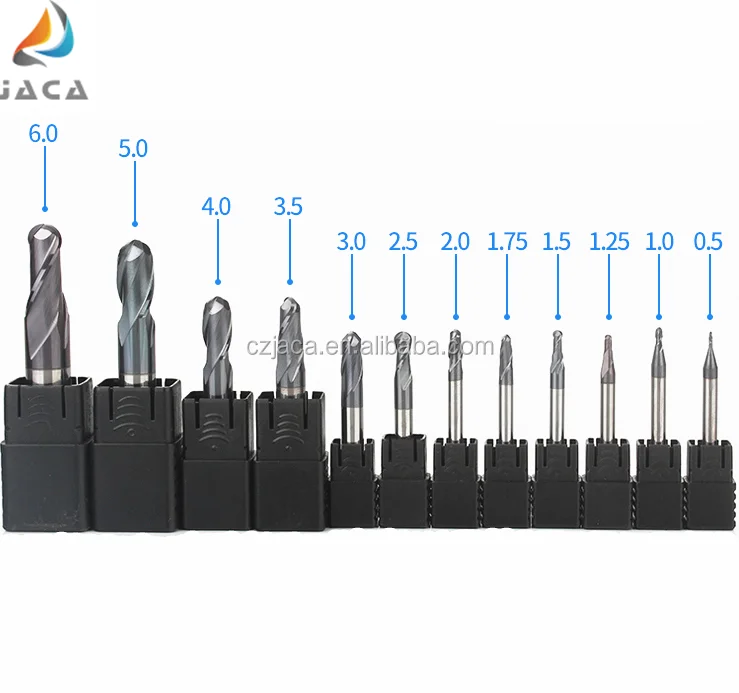

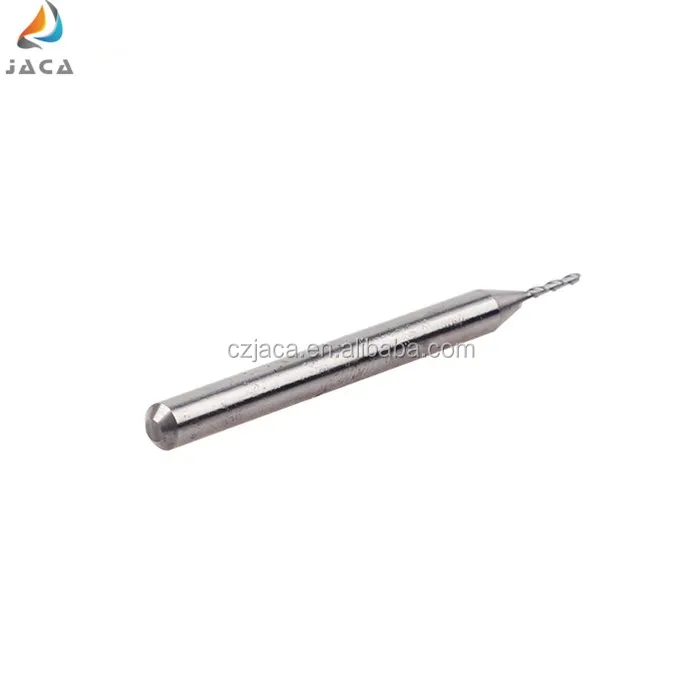

Product Picture

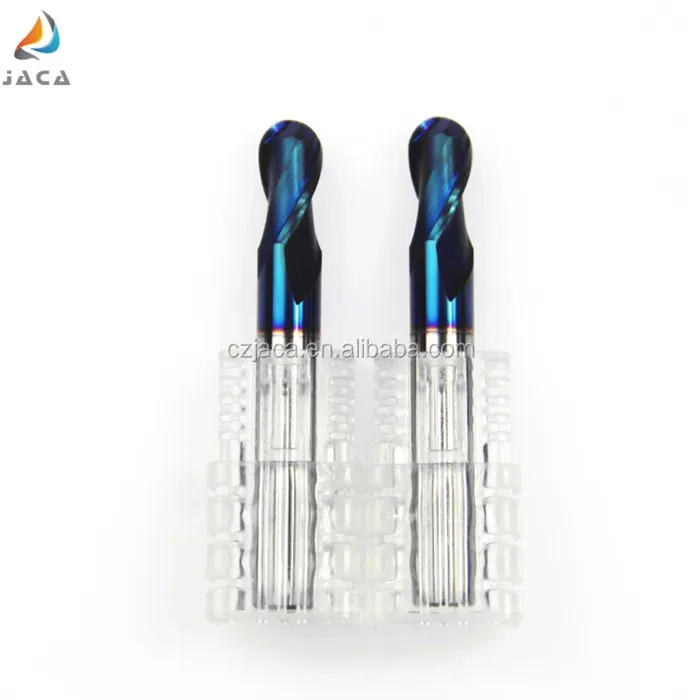

 Coating Colors



Company information

We are a professional manufacturer of carbide cutting tools, who specializes in designing and producing carbide end mills, drills,reamers,tapers and non-standard cutting tools. Our products are widely used for machining wood, plastic, composite material, graphite, aluminum, copper, titanium, cast iron,heat-resistant steel,alloyed steel, stainless steel,hardened steel etc. With professional machines (Walter,Anca, Deckel,Zoller    ),high-quality raw materials and skilled workers, we supply high quality products and cooperate with many foreign customers.
