5A 75E LED Display Full Color Synchronous Control Card For LED Screen Video Wall
- Category: >>>
- Supplier: Shenzhen Ledstore Technology Co.Ltd
Share on (62484369902):
Product Overview
Description
Hello, boss! Welcome to our shop. What can I do for you?
Dear customer :
Thank you for your visit to Shenzhen Ledstore technology Co.Ltd Alibaba International station! Nice to meet you~
We are a LED display control solution integration provider, located in Shenzhen,specializing in the production of LED video processor and LED control system supporting products.
The company has a professional R & D team, most of them have more than 12 years of LED industry experience.
We are confident to provide you with free LED display professional consultation and the best LED control solutions.
If you are looking for LED display and supporting products, welcome to consult.
Our team is always at your service.
Thank you very much＼(◎o◎)／！
The company has a professional R & D team, most of them have more than 12 years of LED industry experience.
We are confident to provide you with free LED display professional consultation and the best LED control solutions.
If you are looking for LED display and supporting products, welcome to consult.
Our team is always at your service.
Thank you very much＼(◎o◎)／！
After Sales Service
★ 24 hours around clock & 12 months warranty
★ life-long technical support for the product Quality Control
★ 5 times testing during production
★ our product have got CE FCC ROSH certification
Shenzhen Ledstore technology Co.Ltd

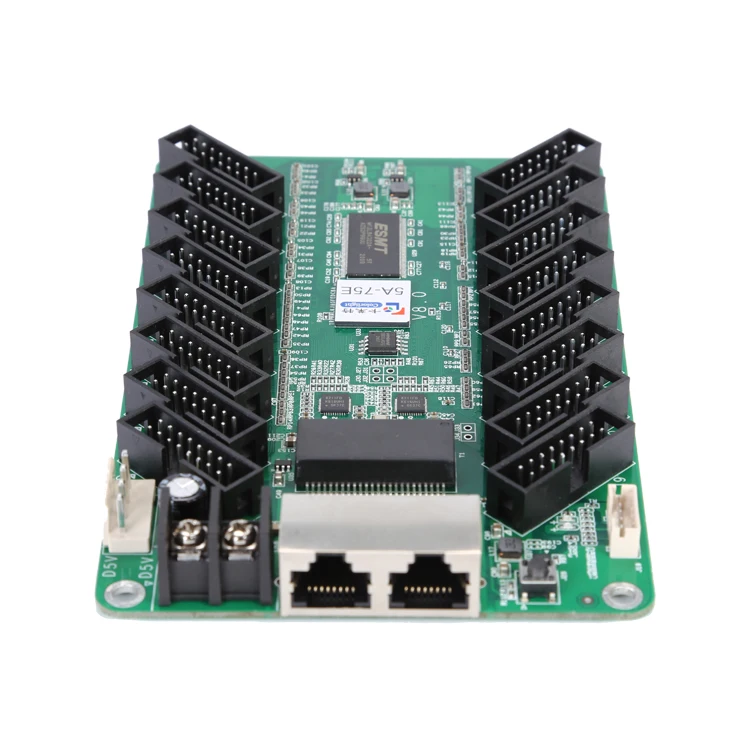

Product Description
5A-75E receiving card is a specially introduced high cost-effect product of Colorlight,which is designed for customers to save cost, reduce points offault and failure rate. 5A75E single card can load up to 256X1024 pixels, support up to 32 groups of parallel dataor 32 groups ofserial data. Based on the technical advantages of conventional receivingcards, 5A-75E can be integrate into the HUB75 interfaces, which is more reliable andmore economical on the premise ofensuring high-quality display.
Product Features
· Integrated HUB75 interface, more convenient with less cost.
· Reduce the plug connectors, and reduce malfunction, lower failure rate.
· Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
· Perfect performance under lower grayscale status.
· Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
· Support 14 bits high-precision point-by-point calibration in the Brightness and the chromaticity.
· Support conventional chips, PWM chips and lighting chips.
· Support any scan mode from static to 1/32 scan.
· Support any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display,
etc.
· Support 32 groups of RGB signal output.
· Large load capacity.
· Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
· Wide working voltage range with DC3.3~6V.
· Support reserve connection protection.
· Compatible with Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc.
· Reduce the plug connectors, and reduce malfunction, lower failure rate.
· Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
· Perfect performance under lower grayscale status.
· Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
· Support 14 bits high-precision point-by-point calibration in the Brightness and the chromaticity.
· Support conventional chips, PWM chips and lighting chips.
· Support any scan mode from static to 1/32 scan.
· Support any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display,
etc.
· Support 32 groups of RGB signal output.
· Large load capacity.
· Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
· Wide working voltage range with DC3.3~6V.
· Support reserve connection protection.
· Compatible with Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc.

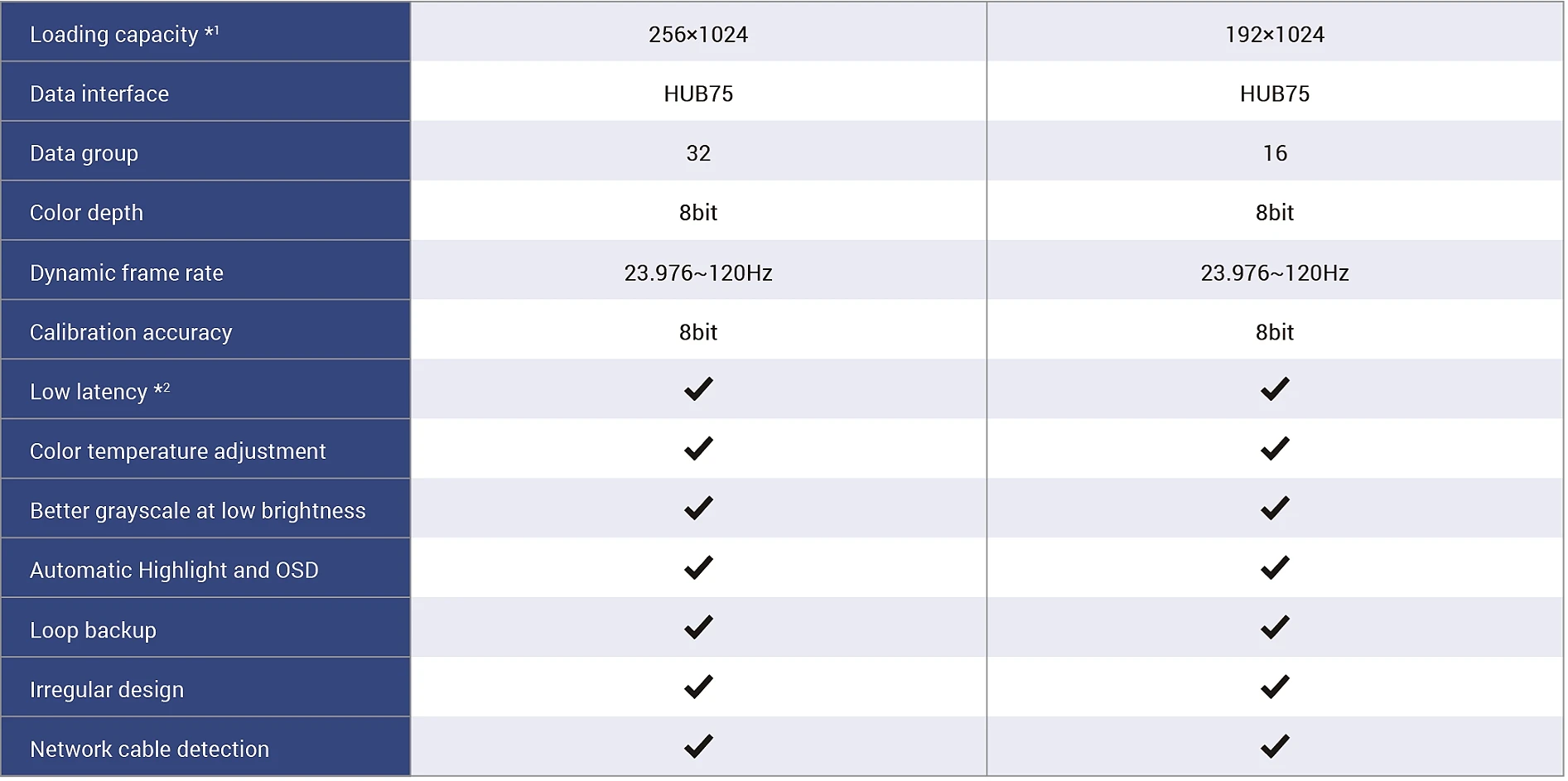

Parameter specification
Physical Specifications | ||
Hardware interface | HUB75 interfaces | |
Ethernet port transmission rate | 1Gb/s | |
Communication Distance | Recommended: CAT5e cable≤100m | |
Compatible withTransmission Equipment | Gigabit switch, Gigabit fiber converter, Gigabit fiber switch | |
Size | LxWxH/145.2mm(5.72")x91.7mm(3.61")x18.4mm(0.72") | |
Weight | 100g/0.22lbs | |
Electrical specification | ||
Voltage | DC 3.8~5.5V,0.6A | |
Rated power | 3.0W | |
Body Static Resistance | 2KV | |
Operating environment | ||
Temperature | 25'C~75°C(-13°F~167°F) | |
Humidity | 0%RH-80%RH,no condensation | |
Storage and transport environment | ||
Temperature | -40°C~125°C(-40°F~257°F) | |
Humidity | 0%RH-90%RH,no condensation | |
Package information | ||
Packaging rules | Standard blister card tray device, 100 cards per carton | |
Package size | WxHxD/603.0mm(23.74")x190.0mm(7.48")x501.0mm(19.72") | |
Certification Information | ||
RoHS | ||
Function

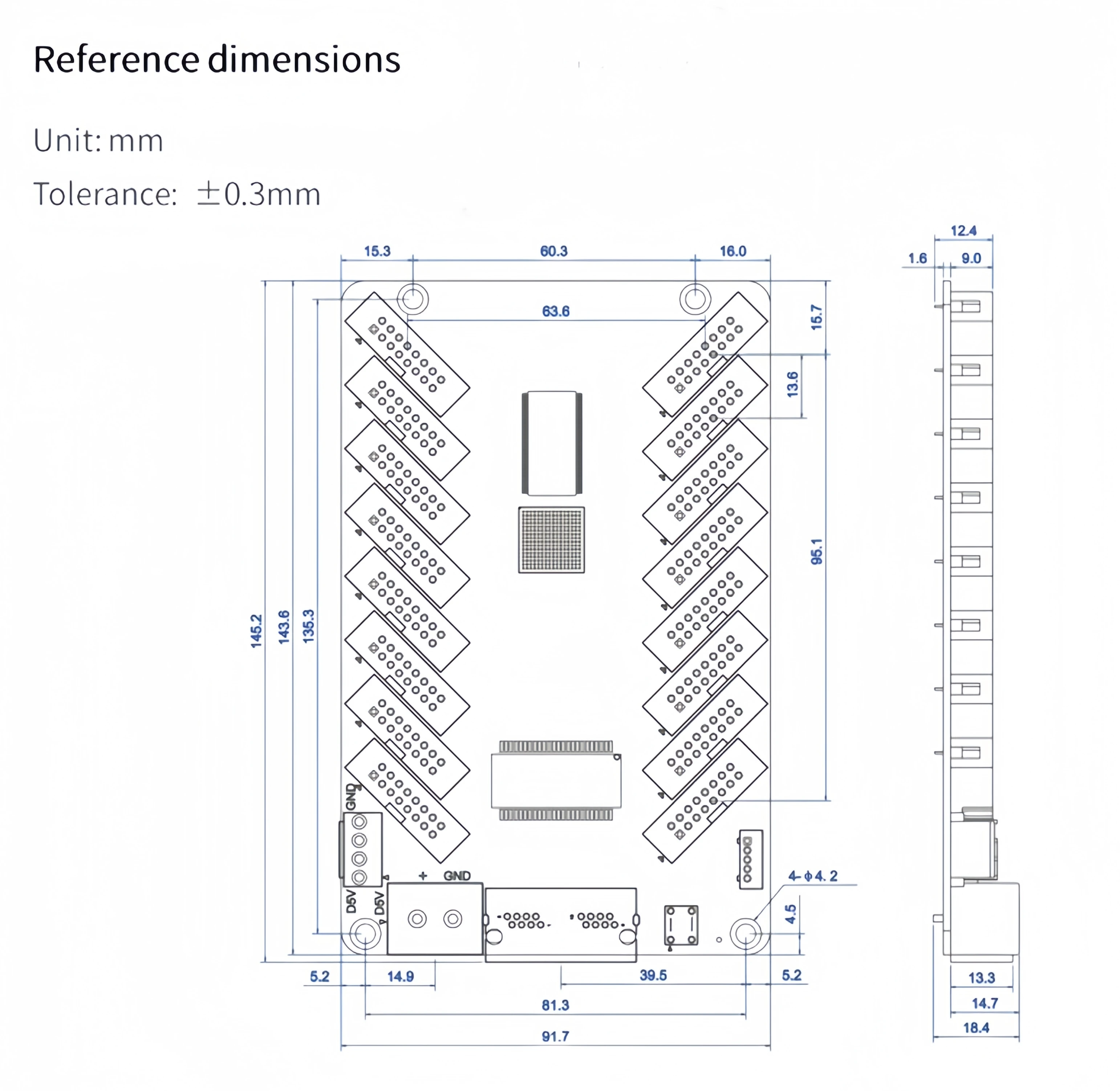

Product size

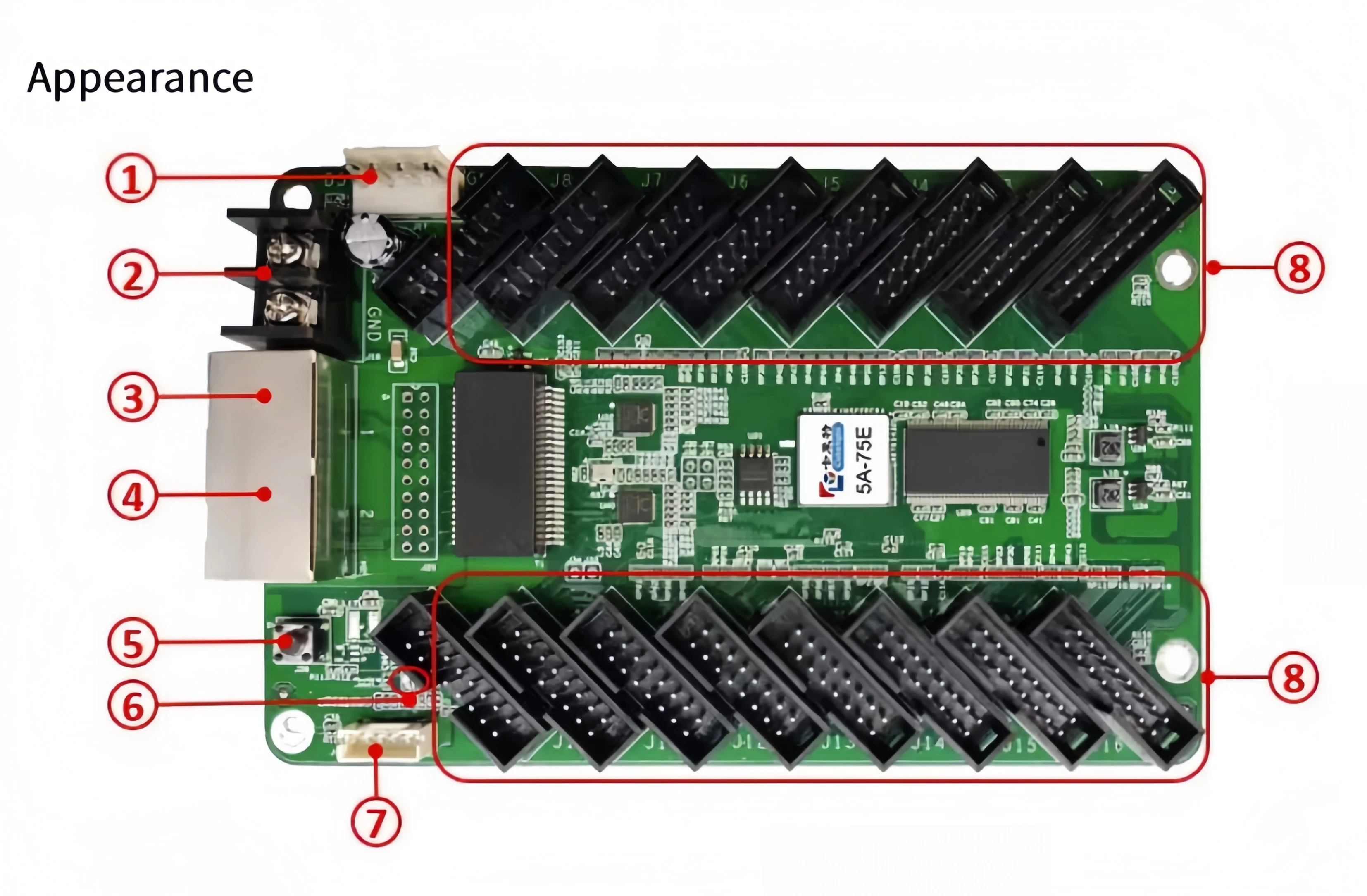

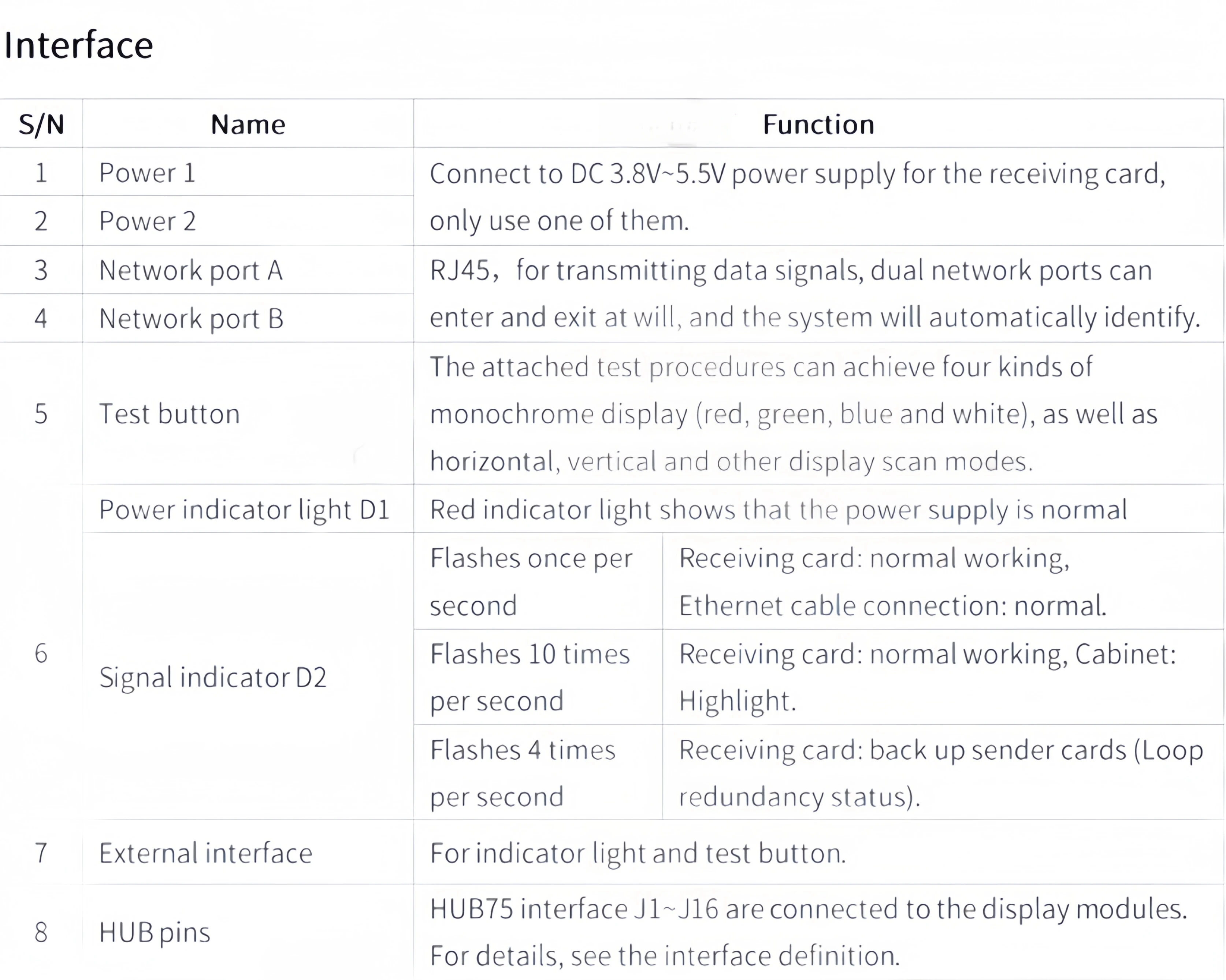

Appearance Description

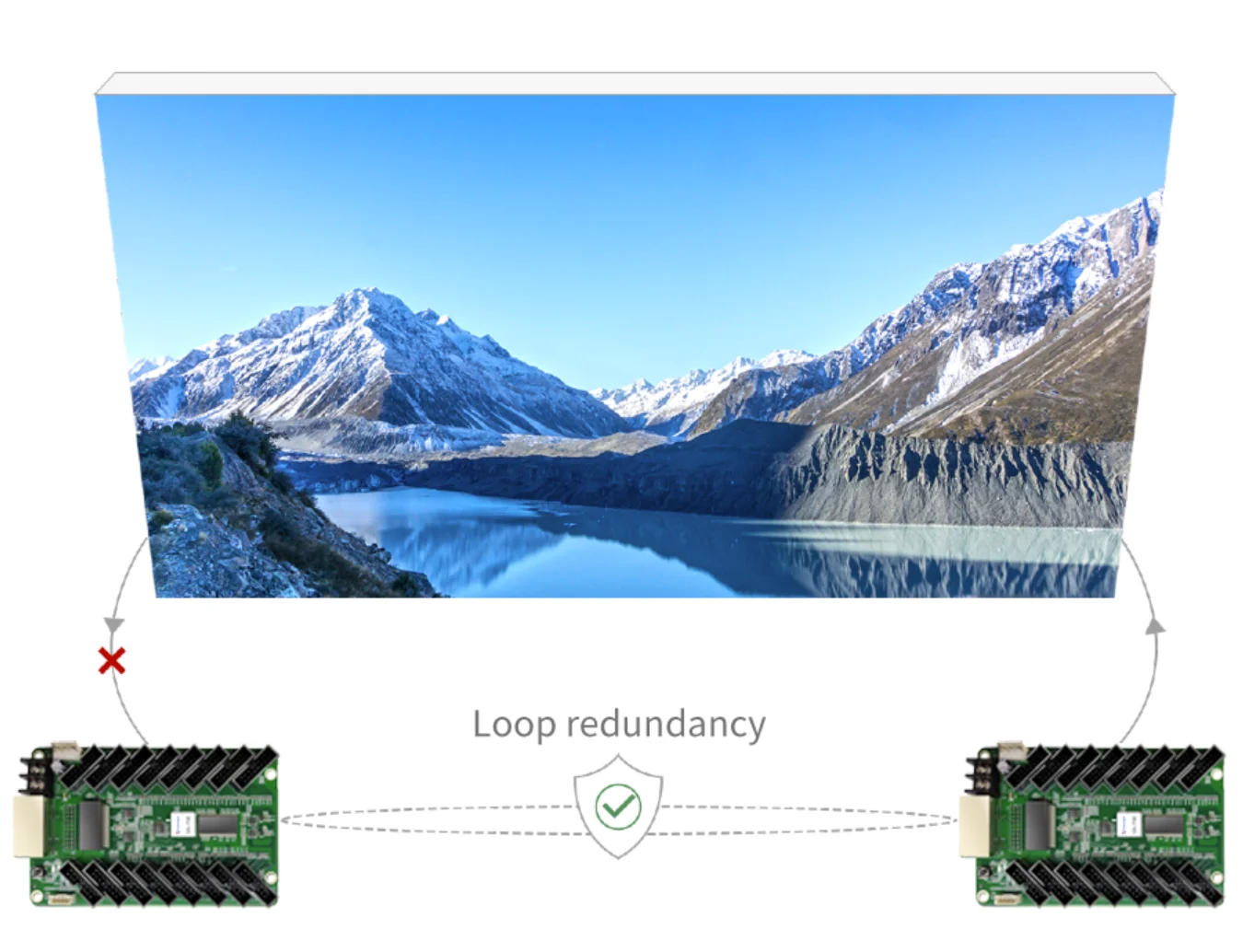

Loop redundancy
Switch automatically and seamlessly to the other signal channel
when one channel fails, to increase transmission reliability, ensuring normal screen display
Logistics & Payment
FAQ
FAQ
Q.Are you a manufacturer?
A: Yes, we are a professional manufacturer of display power supply and LED control system.
A: Yes, we are a professional manufacturer of display power supply and LED control system.
A: In electronic devices, a receiving card is a device that receives an external signal and decodes it.Receiving cards are often used in LED display, digital broadcast television system, electronic signage and so on.Receives external signals and converts them into the format required by the display or device.
Q:How does the receiving card work?
A:The working principle of the receiving card can be summarized as two steps: decoding and driving display.Decoding is to convert the external signal into a format that can be recognized by the computer, and the driver display is to convert the signal output by the computer into the signal required for the LED display.Specifically, the receiving card converts the signal into a format suitable for the TV or display screen by receiving serial data or parallel data.In the decoding process, the receiving card will process the contrast, brightness, chroma and other aspects to convert the original signal into an image that is more in line with human vision.Another key function of the receiving card is to drive the display.The receiving card converts the digital signal output by the computer into the analog signal matching the display screen, and then converts the digital signal into the electrical signal required by the display screen, so as to achieve the normal work of the display screen.
Q:Application of receiving card on LED display
A:Receiving card is widely used in LED display. In general, the LED display is divided into many modules, each module needs a receiving card to receive, decode the signal and control the display.These receiving cards need to be connected to the control card of the LED display through the data cable.In the application of LED display, the performance of the receiving card has an important impact on the display effect. High-performance receiver cards enable faster signal conversion and more precise drive control, resulting in higher quality image display results.
A:Receiving card is widely used in LED display. In general, the LED display is divided into many modules, each module needs a receiving card to receive, decode the signal and control the display.These receiving cards need to be connected to the control card of the LED display through the data cable.In the application of LED display, the performance of the receiving card has an important impact on the display effect. High-performance receiver cards enable faster signal conversion and more precise drive control, resulting in higher quality image display results.
Q. How to choose a good receiving card?
A:Receiver card resolution The resolution of the receiving card refers to the maximum number of display pixels it can support, usually expressed in the number of horizontal and vertical pixels. The resolution determines the display effect of the LED display. Higher resolution results in sharper, more detailed images.
Q.How to choose LED display control card?
A:First of all, understand the specifications and dimensions of the LED display, calculate the number of points, know the effect you need, is synchronous, or asynchronous, do not need secondary development; Then, determine synchronous asynchronous, determine the effect, determine the point range, determine the price range, * determine the card; Control card selection is appropriate, not necessarily high price, good quality is suitable. *, the software is not suitable for yourself and the customer.
Q.:What is your current lead time?
A:Receiver card resolution The resolution of the receiving card refers to the maximum number of display pixels it can support, usually expressed in the number of horizontal and vertical pixels. The resolution determines the display effect of the LED display. Higher resolution results in sharper, more detailed images.
Q.How to choose LED display control card?
A:First of all, understand the specifications and dimensions of the LED display, calculate the number of points, know the effect you need, is synchronous, or asynchronous, do not need secondary development; Then, determine synchronous asynchronous, determine the effect, determine the point range, determine the price range, * determine the card; Control card selection is appropriate, not necessarily high price, good quality is suitable. *, the software is not suitable for yourself and the customer.
Q.:What is your current lead time?
A: usually no more than 10 days; and some products are in stock for quick delivery
Q.How can i pay for the order? Is safe enough?
Q.How can i pay for the order? Is safe enough?
A: Yes, we provide a written guarantee order until you confirm receipt of the goods.
