Lab scale Double Extractor Separator Co2 Circulated Supercritical Co2 Fluid Extraction Machine

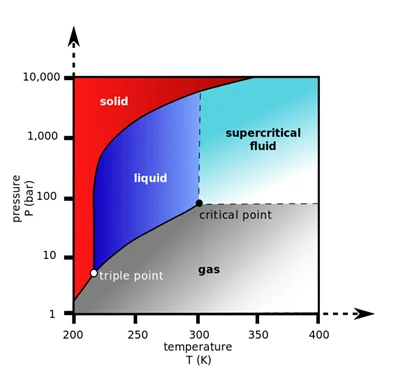

1.       What is supercritical Co2 fluid:

Supercritical Co2 is a fluid state, which occurs at or above its critical temperature 31.1 C and critical pressure 7.38 0 bar.

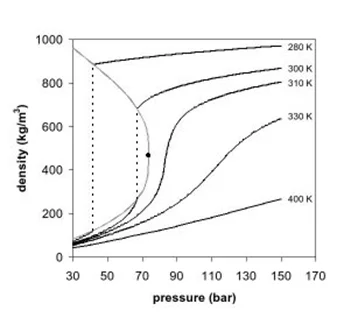

2.       Characteristics’ of Supercritical Co2 Fluid:

a.       Density under gas and liquid phase, close to liquid, or namely as dense gas, dissolve ability close to liquid.

b.       Viscosity between gas and liquid phase, close to gas.

c.       Diffusion coefficient between gas and liquid, much bigger than liquid phase, strong penetrability.

3.       Supercritical Co2 Fluid Application

a.       Food industries

b.       Medical care food industries

c.       The effective components in Chinese herbal medicine extraction

d.       Extraction of natural flavors and fragrances

e.       Natural pigment extraction

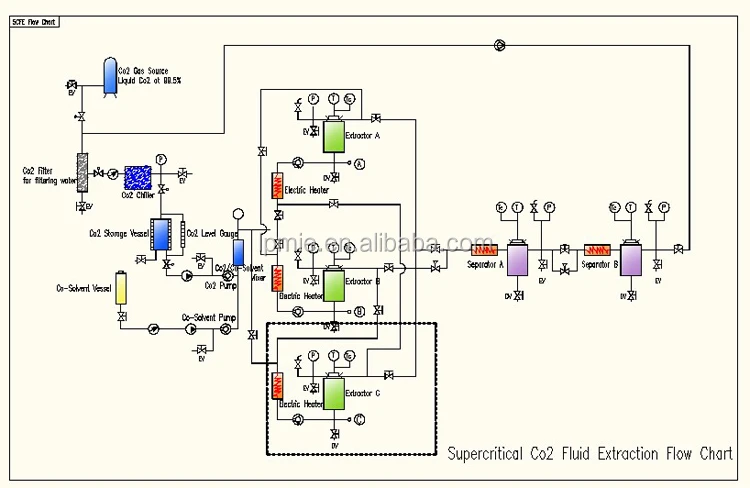

Supercritical Co2 Fluid Extraction Device Process Design:

Liquid Co2 from pressured bottle or storage tank, through pipeline into purifying part, cooling part, mixer part, after heated and transferred into extractor, where solid raw material loading into barrel feeding into extractor, with dissolve ability to extracting, through temperature and pressure condition change, separated target material in separator. Separated material without chemical solution remained, Co2 would be gasifying after few seconds.

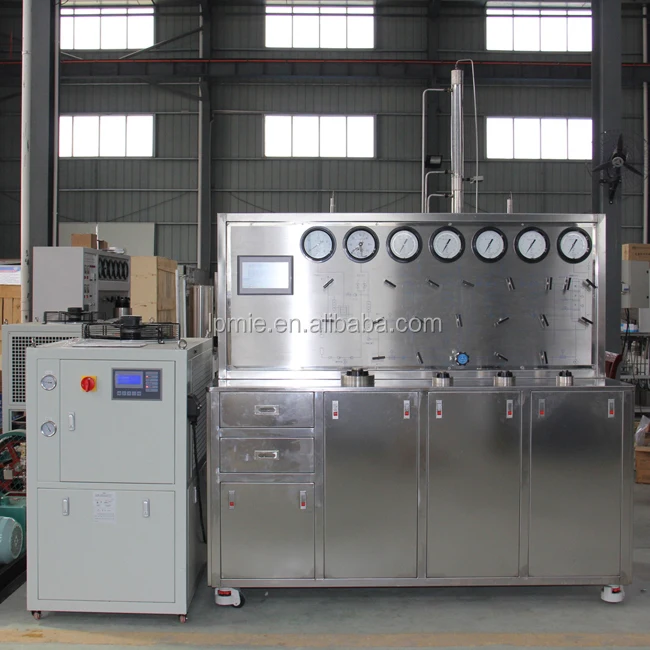

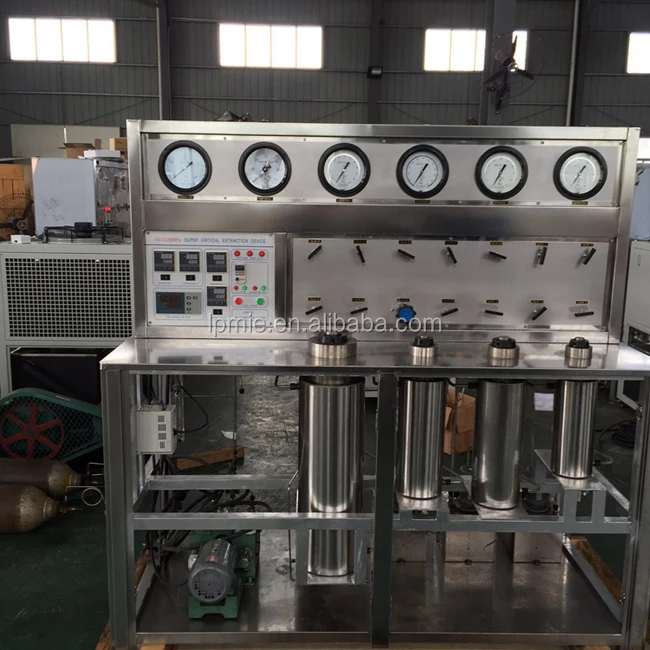

5 liter & 1 liter double extraction vessel lab scale Supercritical Co2 Extraction machine with touch screen

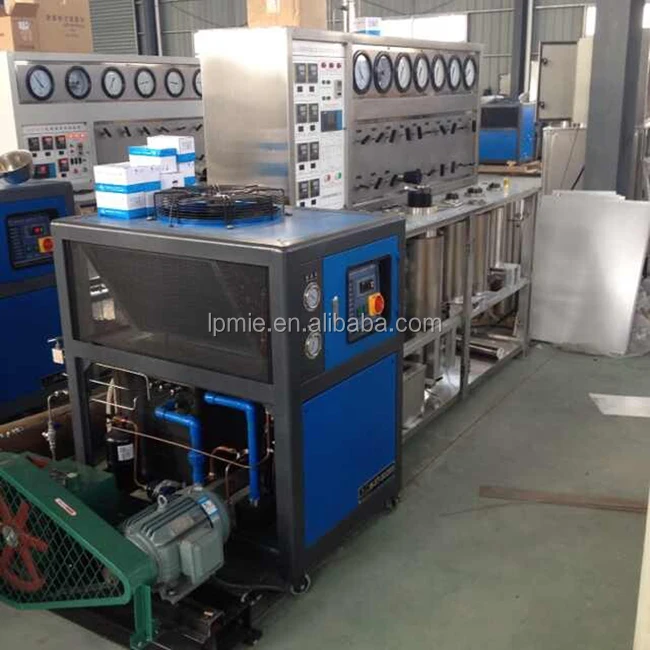

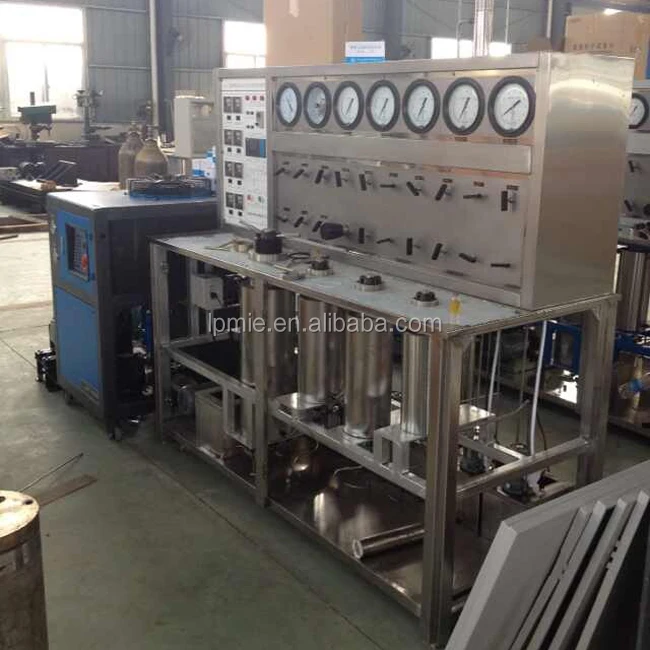

5 liter & 1 liter double extraction vessel lab scale Supercritical Co2 Extraction machine without touch screen

5 liter & 1 liter double extraction vessel lab scale Supercritical Co2 Extraction machine exported to Hobart, Australia for Lab testing

5 liter & 1 liter double extraction vessel lab scale Supercritical Co2 Extraction machine exported to Hobart,  Australia for Lab testing

 Supercritical Co2 Extracted astaxanthin from Haematococcus pluvialis and astaxanthin dried powder

 Supercritical Co2 Extracted essential oil from Tasmania Mountain peper mint for prefume basement

Supercritical Co2 Extracted essential oil from rose, jasmine and lycopene etc

 For Pilot Scale Supercritical Co2 Fluid Extraction Machine, Please visit the following website or picture as:

                       Pilot Scale Supercritical Co2 Fluid Extraction Machine

You may also interested in other  type Centrifuge, Please visit the following website or picture as:

                       Tubular Centrifuge                                                    Peeler Centrifuge

                       Disc Centrifuge                                                     Decanter Centrifuge

Liaoyang Pharma Machinery Co.,Ltd is a grouping enterprise which contributes to production and sale of pharmaceutical,chemical and packaging machinery, the group consists of several subbranches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA,Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the producs are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine,teabag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.

For detialed technical specification of such equipment, please contact me in the following items:

1. contact person name: Ms. Daisy

2. contact e-mail address:  daisy (at) lpmie.net
