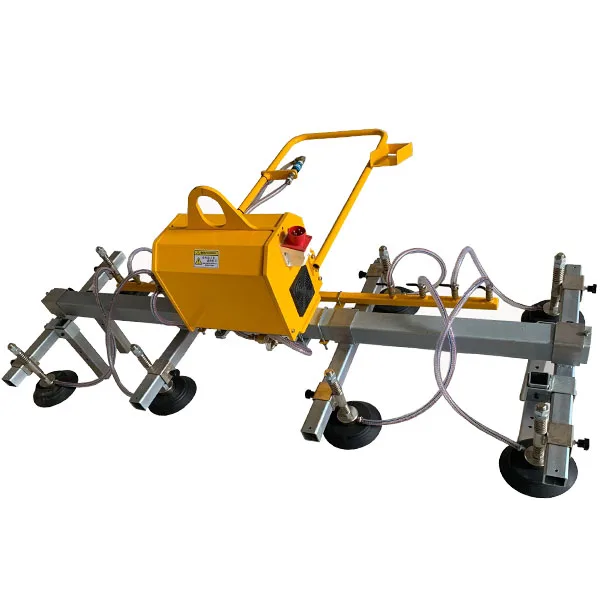

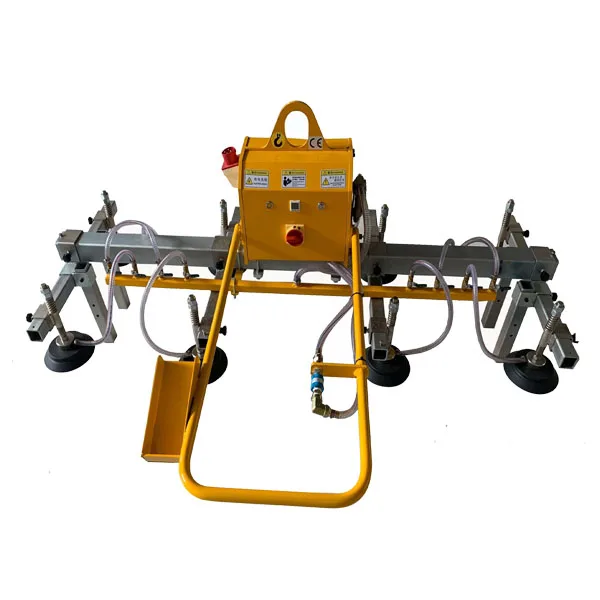

Vacuum suction cup lifter for sandwich panel
- Category: Vacuum Lifter >>>
- Supplier: Taizhou Ruyi Handling Machinery Factory
Share on (62484768334):
Product Overview
Description
The vacuum lifter widely used for lifting metal plate and sheet. The vacuum lifting beams for use in the laser cutting machine, plasma cutting machine, plate shearing machine, as well as heavy duty plate and slab lifters used in steel & aluminium production.

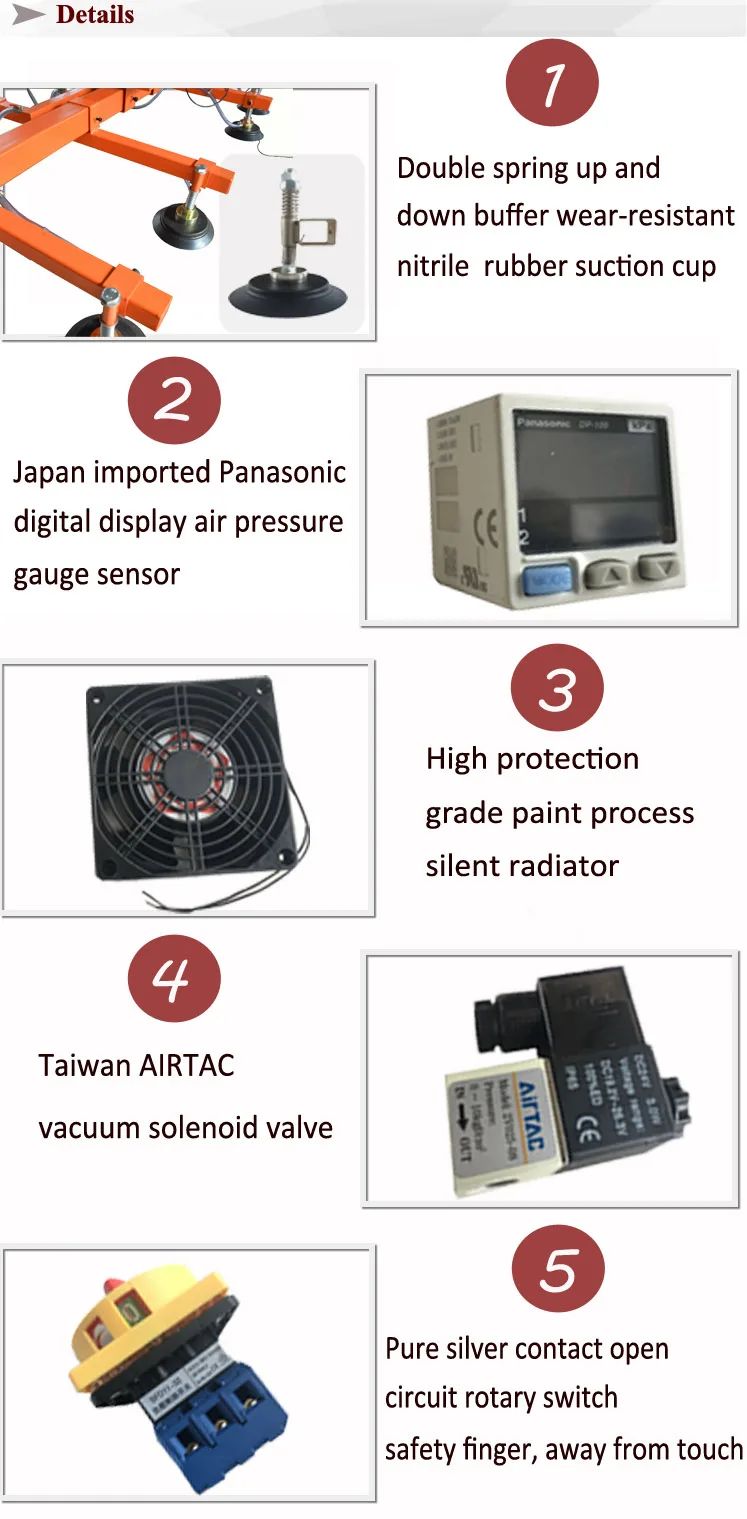

| Product model | SSUPYE |
| Suction cup size | 200mm |
| Number of suckers | 8(customizable) |
| Voltage | DC12V |
| Single suction cup load Capacity | 80kg |
| Rated load capacity | 500kg(customizable) |
| Rated power | 200W/55OW |
| Suction cup frame size (L*W) | 2200*1000mm |
| Suitable for sheet metal size (L*W) | 3000*1500mm |
Advantages of vacuum handling
•Efficient, non-damaging handling of heavy loads
•To work ergonomically and protect operator health
•Excellent work safety and process reliability thanks to vacuum reservoir and audible warning device
•Long service life due to a robust mixture of steel and high-strength plastic
•Low operating costs thanks to controlled vacuum generator with energy saving
No longer need spaces or stoppers for storage and don’t need a heavy-duty back-up power. By the aid of vacuum you never damage the load and you don’t have residual magnetism.

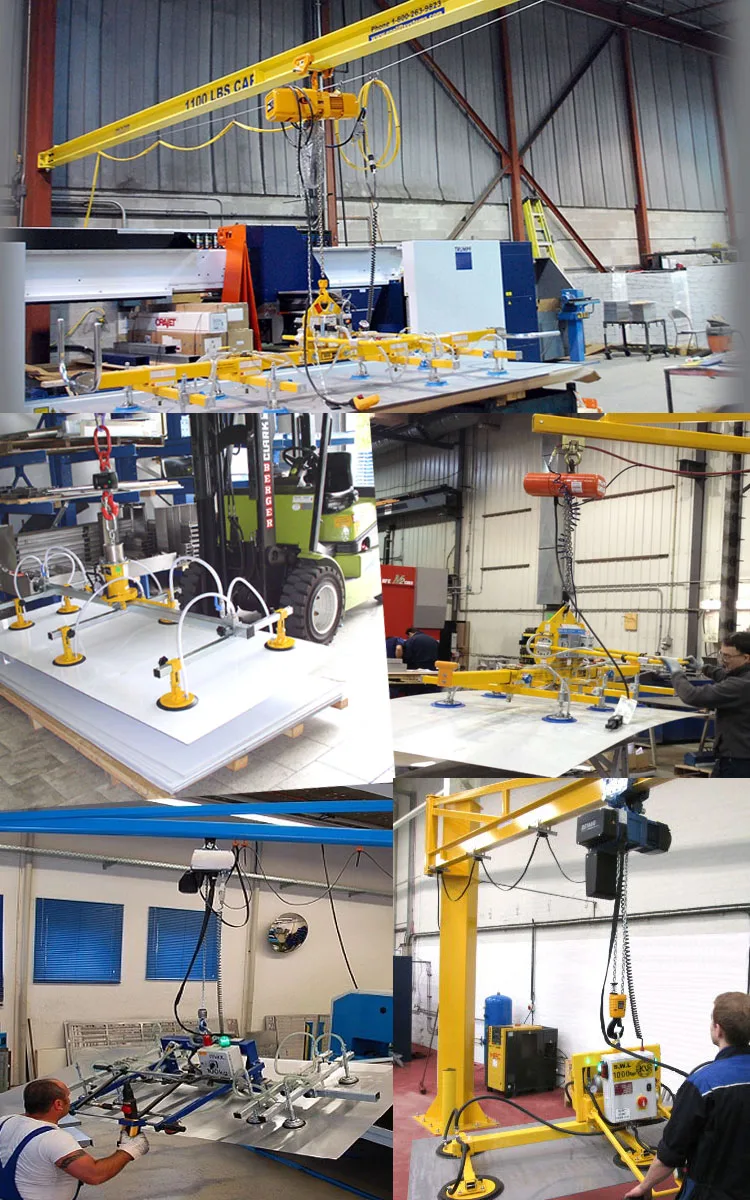

The equipment for handling large, flat and typically non-porous workpieces, for example:
•Loading and unloading laser cutting machines with metal plates
•Loading and unloading CNC machining centers with wooden boards or plastic sheets
•Handling and positioning glass panels and windows during production, framing and installation
Related products
Contact information
24 hrs hot line: 4000272830
T: +86 52386338822
F: +86 52386335522
24 HRS Hotline:400 0 272830
Skype/Mobile/Wechat/Whatsapp: +86 18936829327
//www.ruyi-lift.com

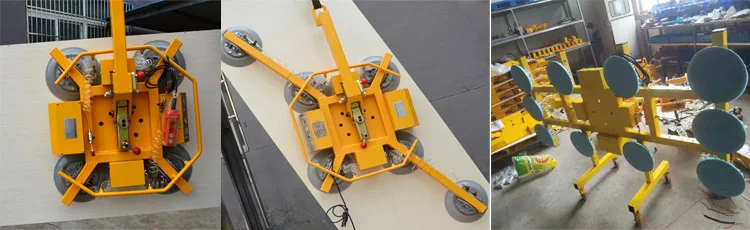

Aluminum plate vacuum lifter vacuum cups lift equipment

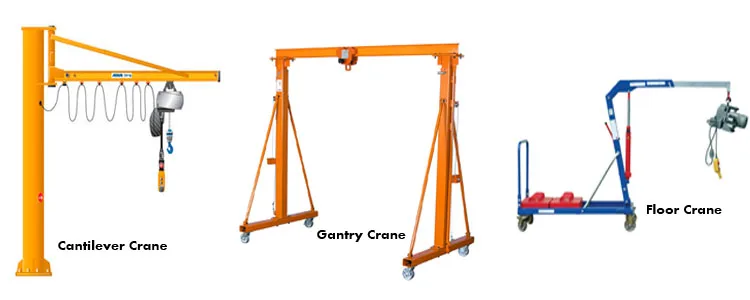

The vacuum glass lifter clamp device can be combined and operated with many different carrier facilities,such as crane,excavatos, wheel loaders, forklifts etc.
Application
1) Glass sheet2) Steel boards3) FRP boards4) Aluminum boards5) Plastic boards6) Stone slabs7) Wood panel8) Laminated Chipboards
