convenient mini hydraulic small pressbrake bending machine folding machine
Features:
★Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment

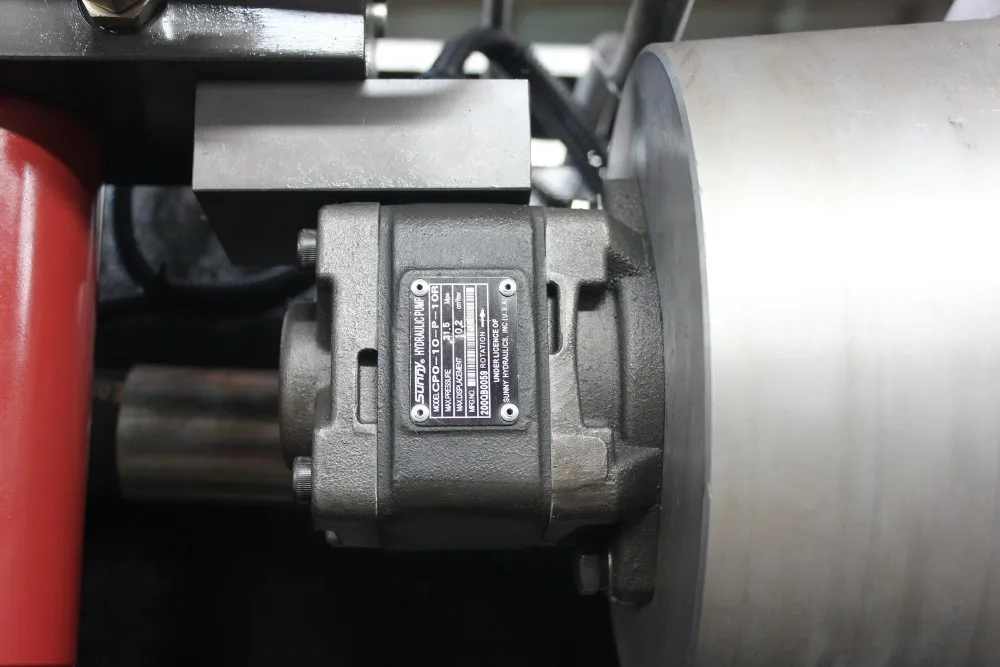

★Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany.
★Electro-hydraulic servo CNC, Y1, Y2,for Oil cylinder stroke X1,x2 for back gauge forward and back,z1,z2 for right and left movement,R1,R2 for up and down, V for Hydraulic compensation.
★The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by DA66t.
★Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
★Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety
40T/1600 CNC | controller System | Axis | Bending precision | Backgauge precision |
40Tons by 1600mm | DA66T DELEM | 8+1 axis X1,X2,Y1,Y2,R1,R2,Z1,Z2,V | +-0.01 | +-0.01 |
Maximum Bending thickness | Maximum Bending length | Crowning | Y axis Fast speed | Safety standard |
4mm by 1.6 meters | 1600mm | Villa compensation | 150mm/s | CE , ISO ,COC, SGS |
Detailed Images

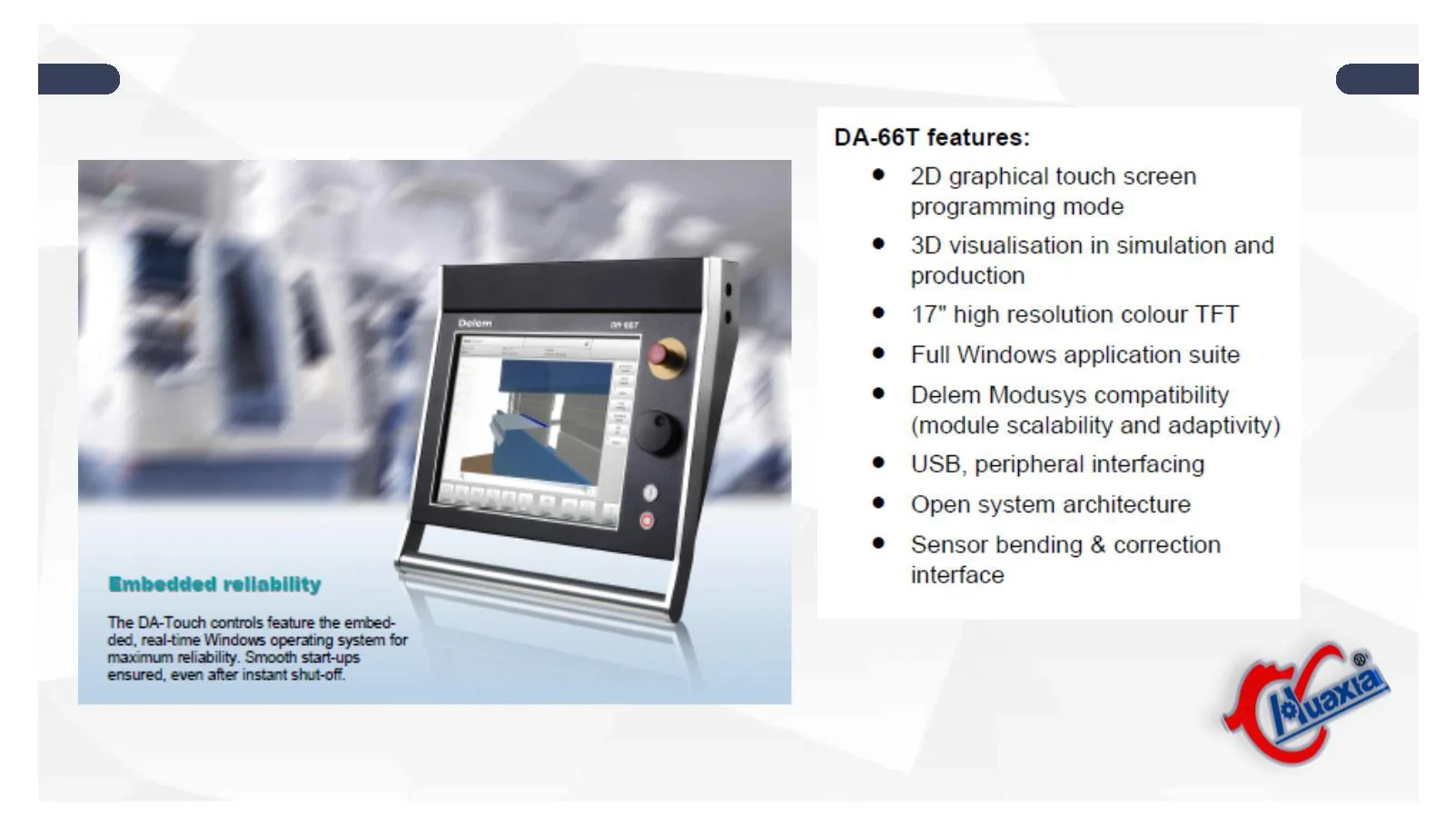

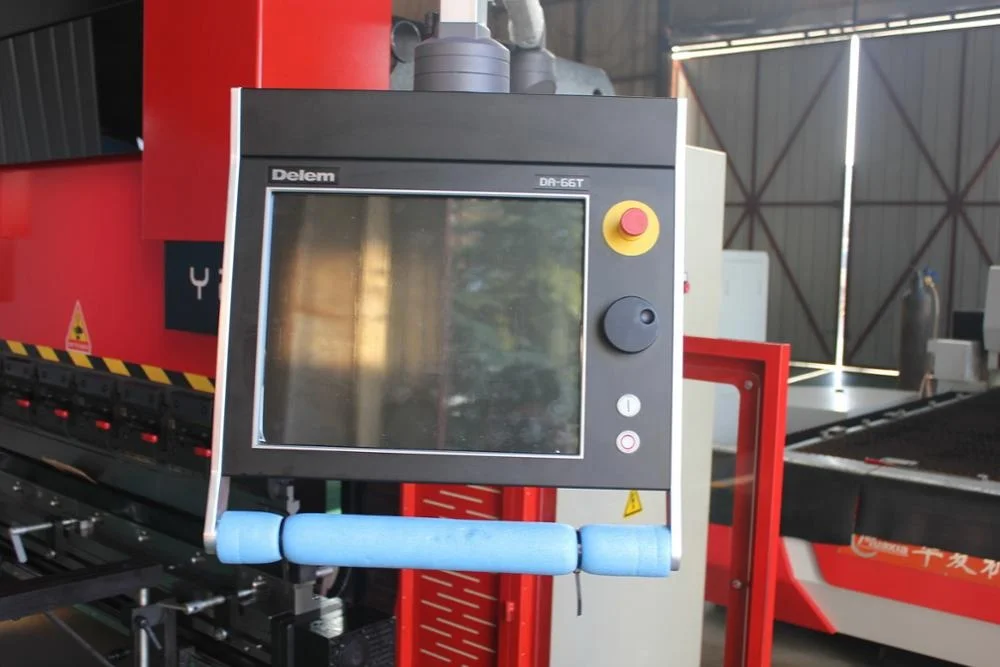

★Delem DA66t control System

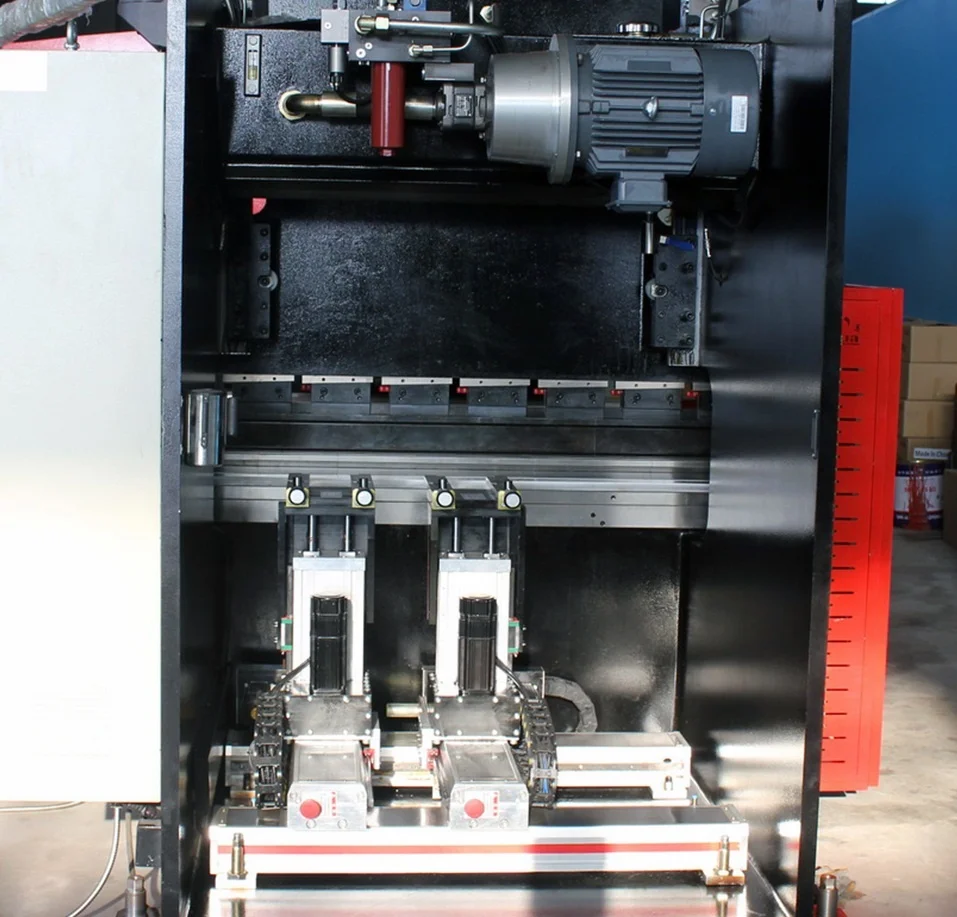

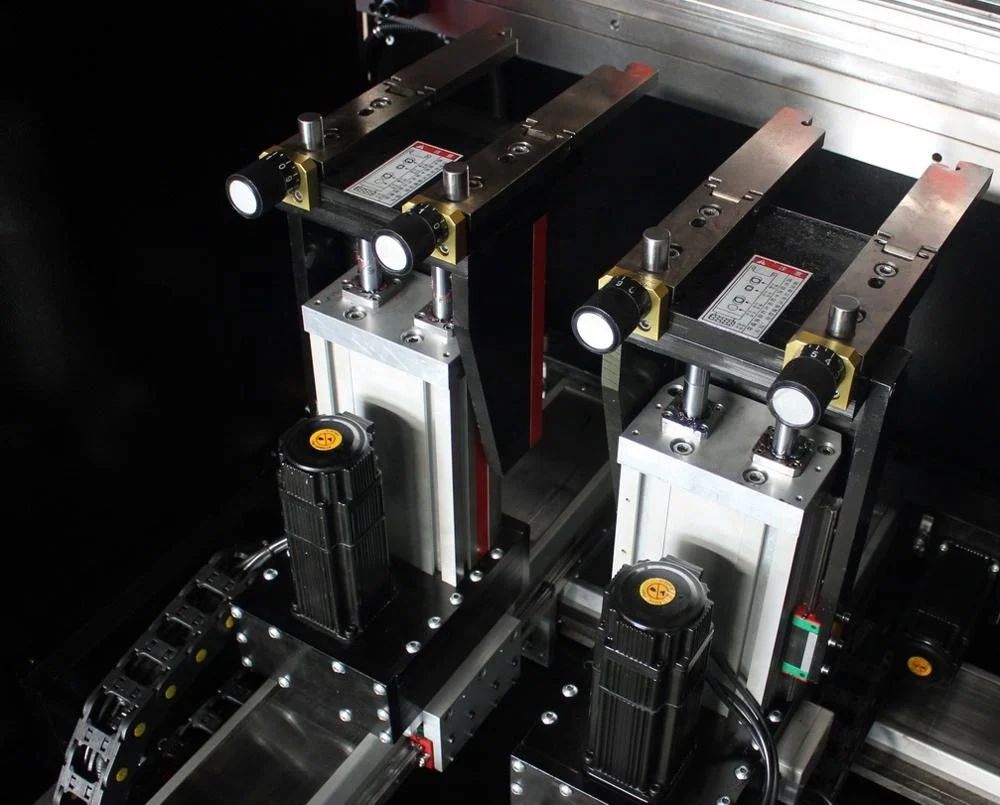

★Powered Cylinder Y1 & Y2-axis and Back gauge move forward and back X1&X2-axis ,Back gauge move up and down R1&R2-axis,Back gauge move left and right Z1&Z2 axis,also the V compensation work table.

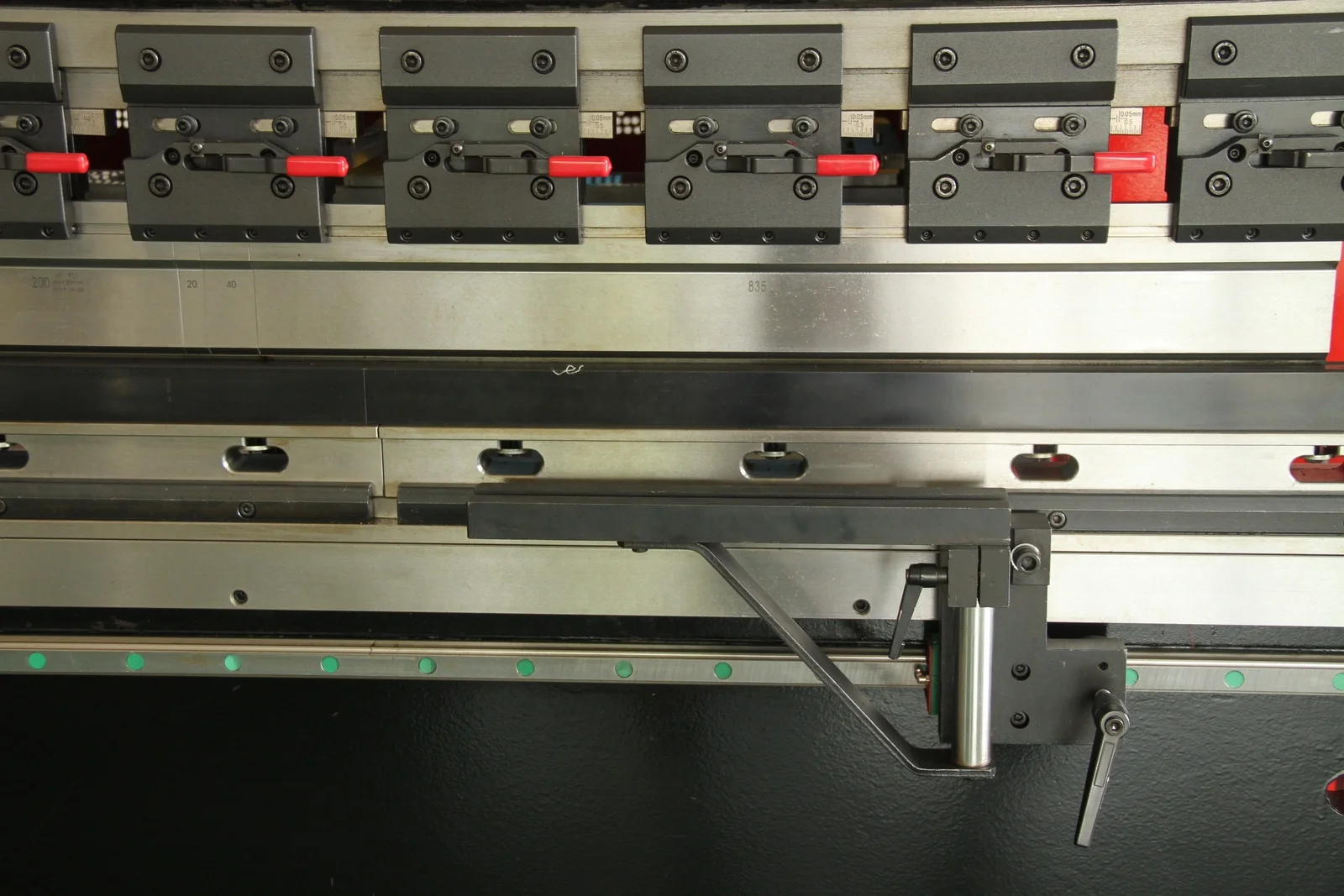

★Front Support Arms

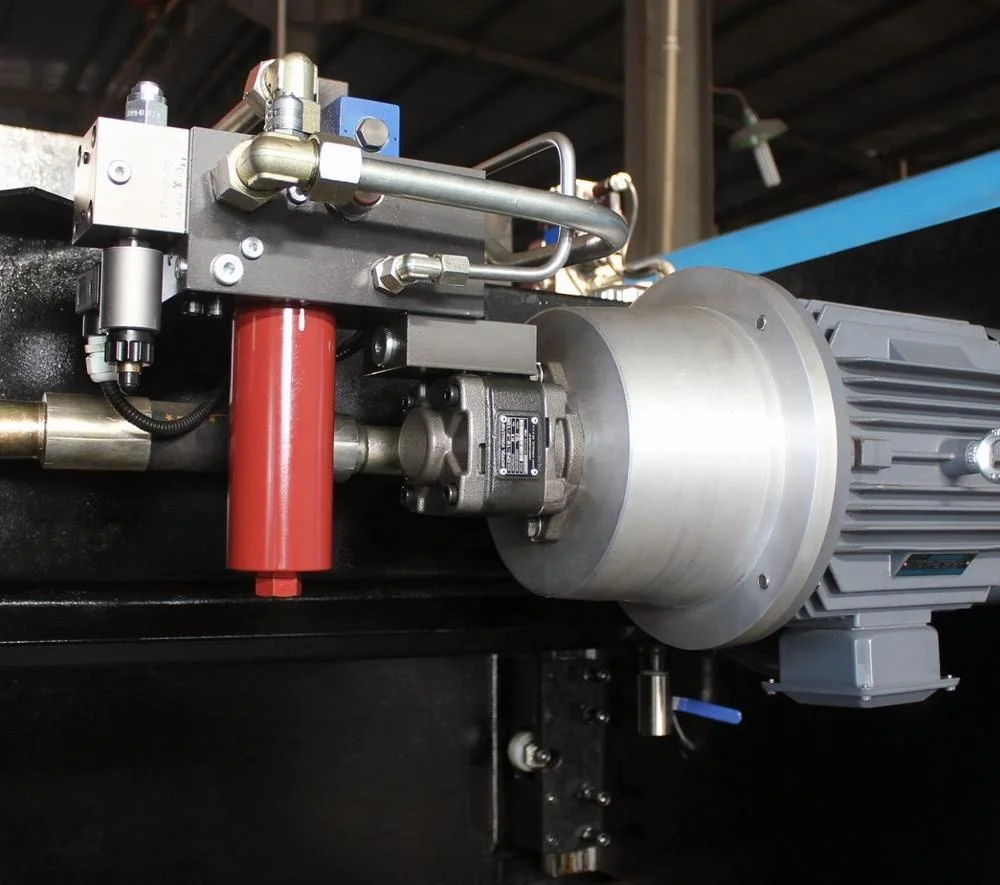

★Germany Siemens Main Motor
★Siemens/Schneider Electrics
★Hydraulic & Electrical overload protection
Certifications

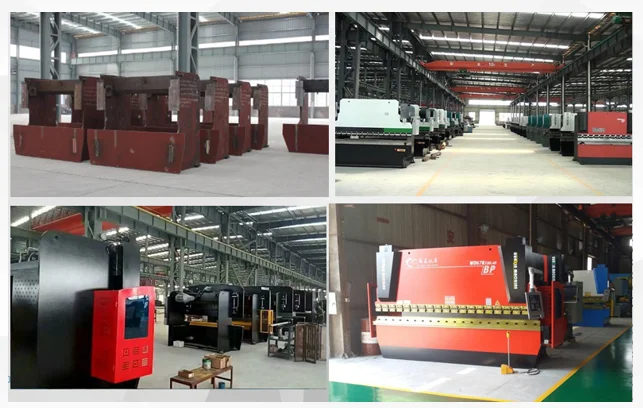

Factory view
