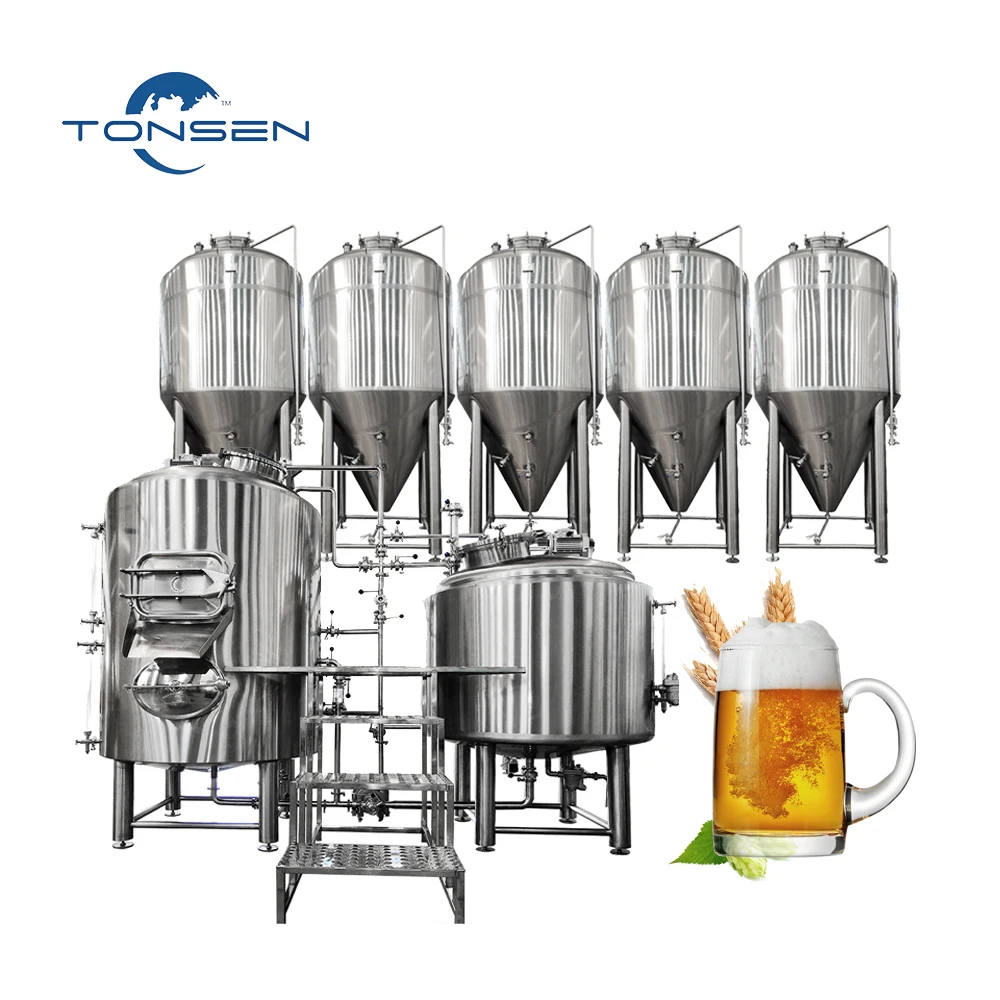

TONSEN Micro Beer Brewhouse 200liter 300liter 500liter Brewery Equipment

Share on:

Price:RUB 451,778.40 - RUB 903,556.80
Price in USD:Details


Product Overview


Detailed Information
Beer Equipment
SUS304 / SUS316 / red copper
Stainless Steel
Thickness 3.0mm
Stainless Steel
Thickness 2.0mm
Bottom Cone
60° for fermentor
160° for brewhouse
Heating/Colling Method
Steam / Electrical heating
Glycol Cooling
Dimple Jacket
Temperature Control
Pressure Display
Stainless Steel
Pressure Gauge
Pressure Relie
Stainless Steel
Pressure Relief Valve
Cleaning System
SUS 304
CIP arm with 360 spary cleaning ball
Insulation Layer
Rock Wool / Polyurethane
SUS 304
Clamp or Flange Manway
Sampling Valve
SUS 304
Aseptic Type, no Dead Coner
Dry Hops Adding Port
SUS 304
Optional, clamp Type
Carbonation Device
SUS 304
Yeast Adding Tank
SUS 304
Bright Beer Tank
SUS 304
Single or Double-deck available
Filling System
SUS 304


1)Desiging tanks and heating system according to craft, mash tank warming≥10℃/min

2)Energy saving stir structure : large cross-section impeller, 15r/min speed

3)Sieve plate of filter tank includes welding sieve plate and milling sieve plate.

4)Plow knife of filter tank separated to one foot, feet and bow plow knife

5)Wort boiling heat way includes steam jacket, interior heating and exterior heating.

6)Material includes stainless steel 304, 316 and red copper


1)Our Fermentation tanks/tun available from 100L to 20000L (1 gallon to 20 gallon) and average 25% Head Space.

2) All tanks have a Dish top,

3)Cylinder body & 60/70° Cone Bottom.

4)Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.

5) Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.

6)All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

7) We can customize fabricate any tank to meet your brewery’s space and height restrictions.

CIP cleaning system include lye tank ,Hydrogen Peroxide tanks and as line valves,if the tank volume is small, the tank can be fixed on trolleys,so it's easy to clean brewing system.alkaline cleaning can removed the fat and protein by saponification,to improve product safety.After the CIP treatment, clean bright surface, no water, no savor no dirt.And the device is easy to operate, strong security.

"One-stop" Service of Beer Equipment Line

Beer Output Solution

How much liter do you hope to brew ?

A good solution is always for you !

Wonderful configuration, Most competitive budget

Drawing Plan

The detailed floor plan,CAD drawing and 3D drawing of the brewery,installation pipeline connection drawing,the operation manual

Worshop Layout

Design arrangement according to your space

Non-standard Customize

Freely design according to your craft

Brewing Equipment Produce

All product comply with CE certificate

We supply the complete turnkey beer brewery equipment include the bottle and barrel filling system

Filter & Filling System Configurate

We have fixed cooperators

Products separated to high, middle and low grade

Price is lower than the market

Delivery to The Site

Delivery to the site assigned by you

Engineer Installation Service

Support sending engineer to install and training technology on site and supervised-installation with remote support

Lifetime Guarantee

3 Years Guarantee service for the beer brewery equipment
