h.265 4g waterproof mdvr cms server SSD mobile dvr 1080p ahd camera vehicle dvr car mdvr 4g for Truck RV Bus Van
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (62485032511):
Product Overview
Description
key features
For bus truck taxi WIFI GPS Analog AHD 720P 4CH 3G Mobile DVR Movil

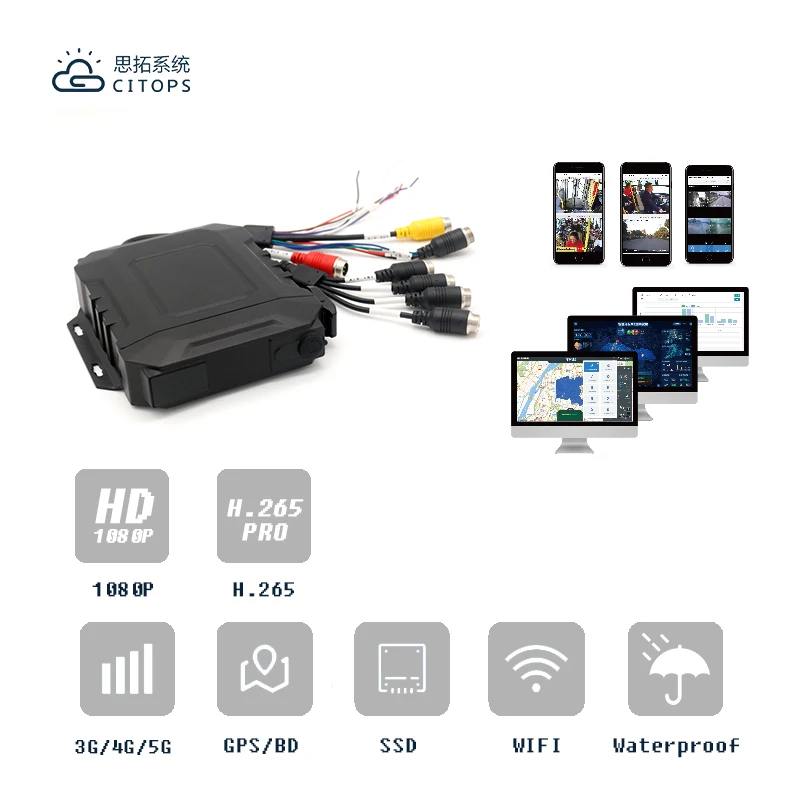

M32 is a professional HD H.264 mobile digital video recorder(DVR) specially designed for vehicle surveillance purpose. It adopts
high speed processor hardware and embedded Linux system. The state of the art mobile dvr use the latest IT technologies, such as H.264 code, data flow streaming, A/V noise reduction,module-style design, anti-vibration technology, wide-range voltage design. It
supports analog AHD record and hybrid model which can easily upgrade your old CIF/D1 analog mobile DVR to HD solution(high
definition.)This powerful mobile DVR has robust hardware for anti-shock and rich interfaces with simple deploy and reliable work
high speed processor hardware and embedded Linux system. The state of the art mobile dvr use the latest IT technologies, such as H.264 code, data flow streaming, A/V noise reduction,module-style design, anti-vibration technology, wide-range voltage design. It
supports analog AHD record and hybrid model which can easily upgrade your old CIF/D1 analog mobile DVR to HD solution(high
definition.)This powerful mobile DVR has robust hardware for anti-shock and rich interfaces with simple deploy and reliable work
1.Industrial-grade design with special vehicle port for reliable working on harsh environment
2.Wide voltage support over-load ,short circuit ,reverse connect protection
3.UPS power for continual work
4.Basic type: support 2 sd cards &external fire box, max support 256GB
5.Functional type: support 2 sd cards $ external fire box, And supports 2.5' SSD, max support 2TB.
6.4G/WIFI transmit; multiple grade image quality transmitting option
7.GPS/BD/GLONASS global positioning
8.Powerful software platform including remote preview, playback, broadcast, talk and more
9.IP communication
10.PTTgroup talk function
11.Support multiple serial port extension
Specifications
OS | Linux | ||
User interface | Support E-set, remote controller, remotely operation, SD card, etc to configure | ||
Video & preview | Input/output | 4 channel video input, 1 channel video CVBS output; 1.0Vp-p, 75Ω | |
preview | 1 channel/Quad preview; support events trigged to full screen and video switch | ||
Speed(frame rate) | PAL: 100fps, each channel 25fps; NTSC: 120fps, each channel 30fps | ||
Resolution | 1080P/720P /D1 adjustable | ||
Audio | Audio input/output | 4 channel audio input/1 channel audio output; independent handheld talk MIC port | |
Compression | G.726,G711 | ||
Record | Storage | Basic type: support 2 sd cards &external fire box, max support 256GB Functional type: support 2 sd cards $ external fire box, And supports 2.5' SSD, max support 2TB. | |
Alarm | Input | 4 channel level signal and 2 channel analog signal input | |
Output | 2 channel level signal output | ||
Communication | Serial Port | Support 2 channel RS232 | |
3G/4G/WIFI | Support 3G/4G and compatible with GPRS, EDGE, etc; built-in WIFI | ||
G-Sensor | Built-in G-Sensor | ||
GPS(option) | Support GPS, option/BD/GLONASS | ||
Power supply & consumption | Power manage | ACC on/off; delay off; | |
Voltage | DC:+8V ~ +36V | ||
Power failure protection | Built-in UPS, to ensure the record completely when power failure suddenly; | ||
Consumption | Working: <10W; Support turning off with no power consumption | ||
Size | 154(W) x 39(H) x 137(D) mm | ||
Weight | Net weight: 1.6KG; Gross weight: 2.5KG | ||

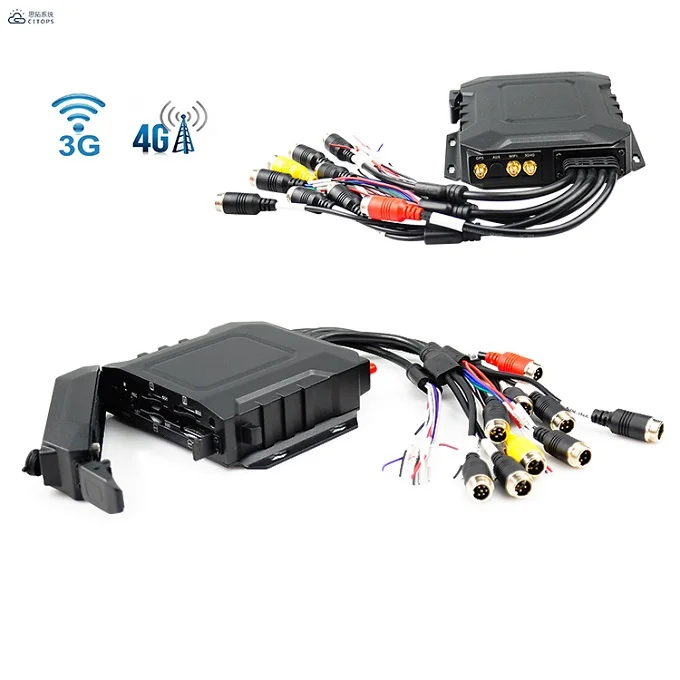

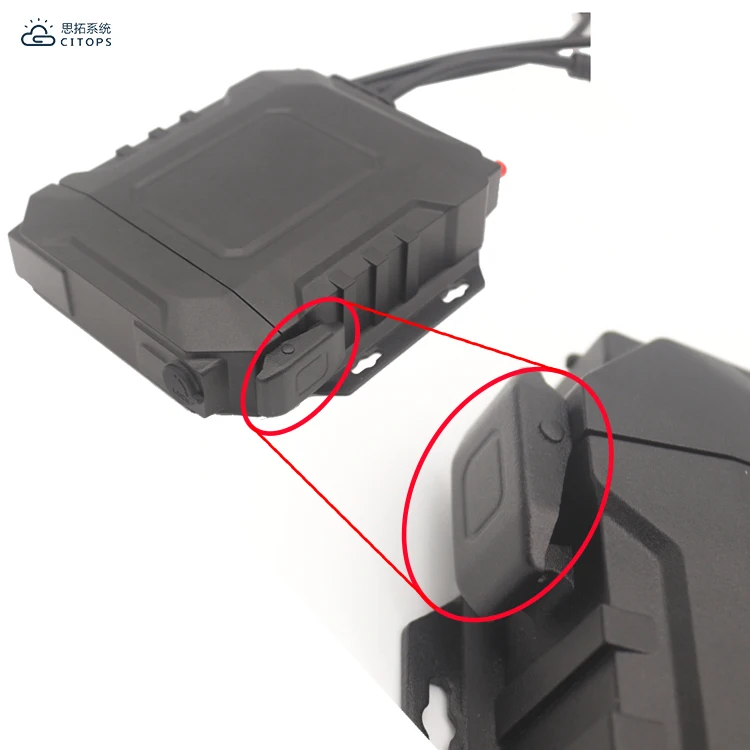

Detailed Images

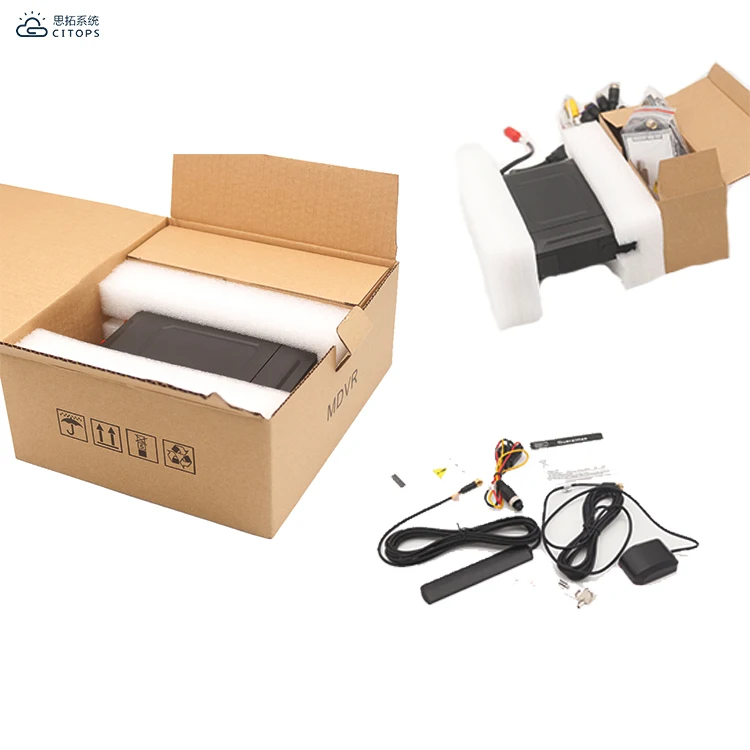

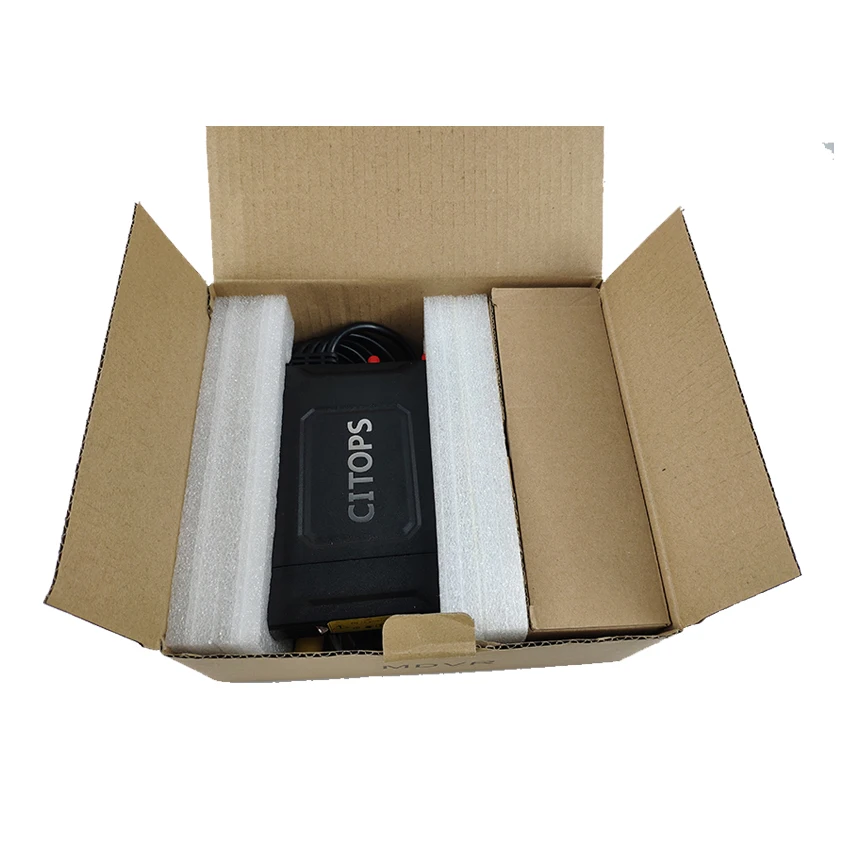

Packing & Delivery
