Product Overview
Description
Product Description
yto 904 tractor features
1.YTO 4-Cylinder Diesel Engine of UK RacadoTechnology Applied,Typical of Large Torque Reserve, Vigorous
Power, Low Carbon and Environment-Friendly, and Low Fuel Specific Consumption
2.European Technology Applied to Transmission System, 12F+4R (Optional 12F+12R or 24F+BR), Optional
Synchronizer Gear Shifting, Able for Smooth Gear Shift so long as not Parked, Characterized by more Handy
and Prompt Operation
3.YTO Front Axle of European Technology Used, Reliable and Durable
4.LUK Dual Clutch of Independent Control, Featuring High Reliability, able for Normal Drive of Farm lmplement
at Gear Shifting of Transmission, of Higher Operating Efficiency
5.Hydraulic Steering System, with Adjustable Steering Wheel, Featured by Handy and Comfortable Control
6.Static Hydraulic Wet, and Disc Brake, Safe and Reliable
7.Synchronized and Independent PTO Double-Speed Power Output, to Meet the Requirements for Matching
Multiple Farm lmplements
8.Adjustable Single/Double-Acting Multi-Way Valve, 2 or 3 Groups of Hydraulic Outputs, Typical of Strong Adaptability
9.Fully-Enclosed Cab, with Wide Visibility, Characterized by Nice Appearance, Comfort, and Luxury, and Optional lnstallation of heater and Air Conditioner.
yto x904 specification
Model | YTO-X904 |
Type | 4×4 |
Overall dimensions (LxWxH)(mm) | 4350×2300×2765 |
Wheelbase(mm) | 2314 |
Min. ground clearance(mm) | 440 |
Min. operating mass(with safety stand)(Kg) | 3920 |
Tyre spec., front /rear | 13.6-24/16.9-34 |
Wheel tread, front/rear | 1562~2000/1520~2120 |
Steering | Full hydraulic |
Brake | Oil immersed, disk type |
Diesel engine |
|
Model | LR4M5-23 |
Type | Four cylinder, vertical, water cooled, four stroke, direct injection combustion |
Displacement (L) | 5.13 |
Rated power/speed(Kw)/(r/min) | 66.5/2300 |
Max. torque (N.m)/speed (r/min) | 325/1600-1800 |
Bore x stroke (mm) | 110x135 |
Transmission |
|
Gear shift, forward/backward | 12/4 |
Speed range (Km/h), forward/backward | 1.65~27.17/4.28 ~12.85 |
PTO power (Kw) | 55 |
PTO rotation speed (r/min) | 540/720 or 540/1000 |
Clutch | 11-inch, dry, double action |
Implement |
|
Three-point linkage category | Three-point linkage category Ⅱ |
Tilling depth control mode | Combined draft, position control and floating control |
Lifting force(KN) | 17 |
Options |
|
OECD anti-turnover bar | OECD certified anti-turnover bar or anti-turnover bar with awning |
Transmission with shuttle-type gear | 12+12 |
Transmission with creeper gear | 24+8 |
Hydraulic output | 2 or 3 group |

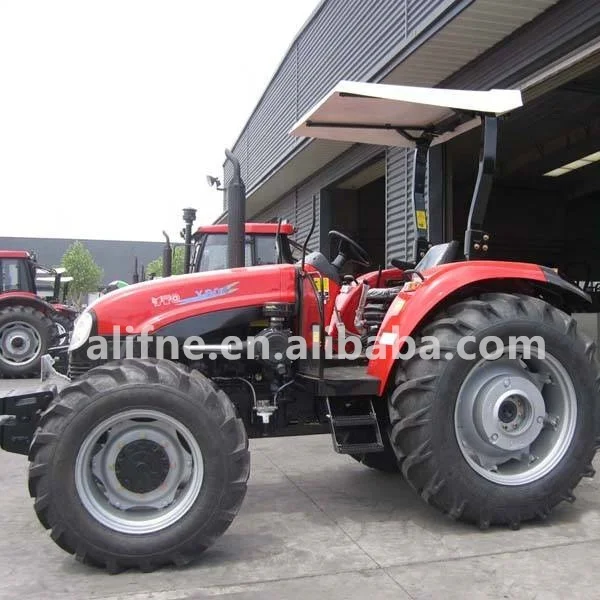

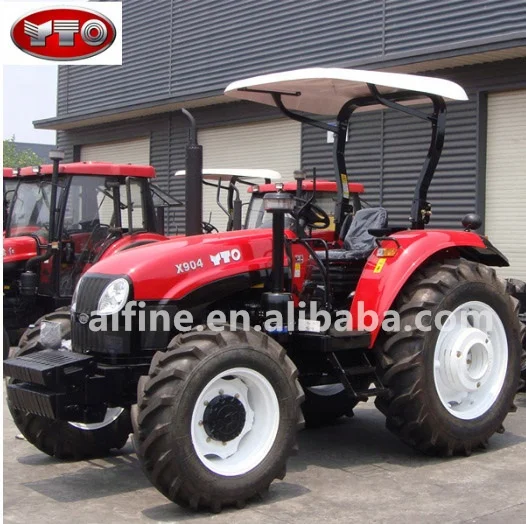

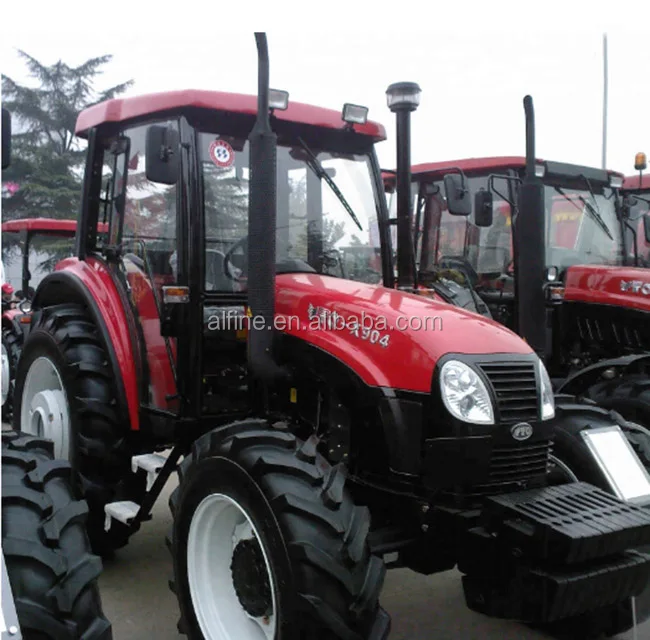

yto x904 product show

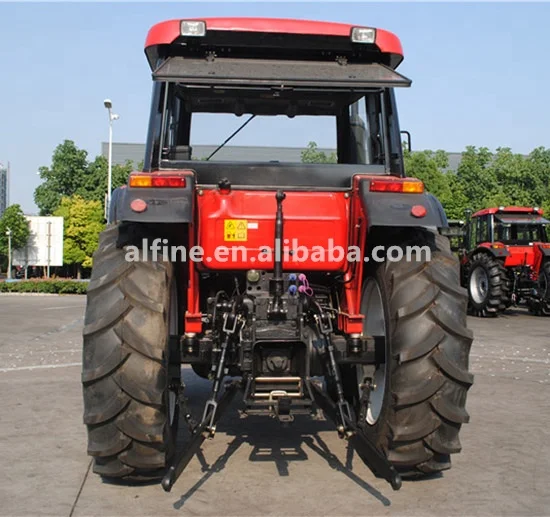

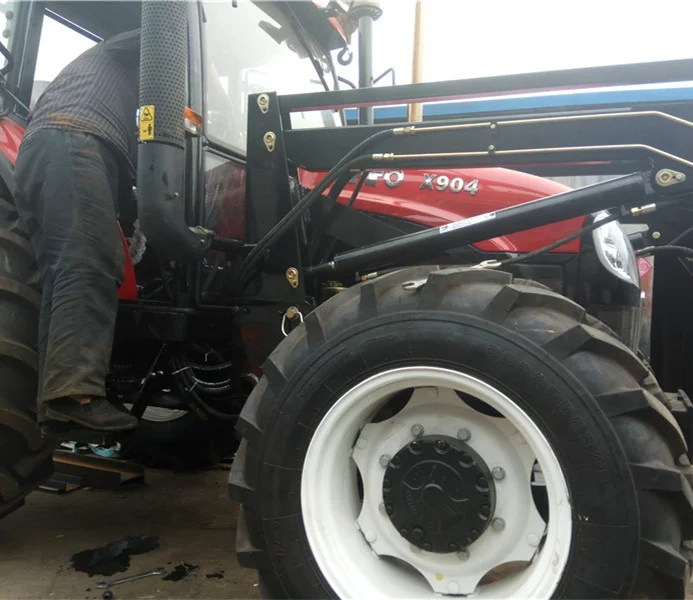

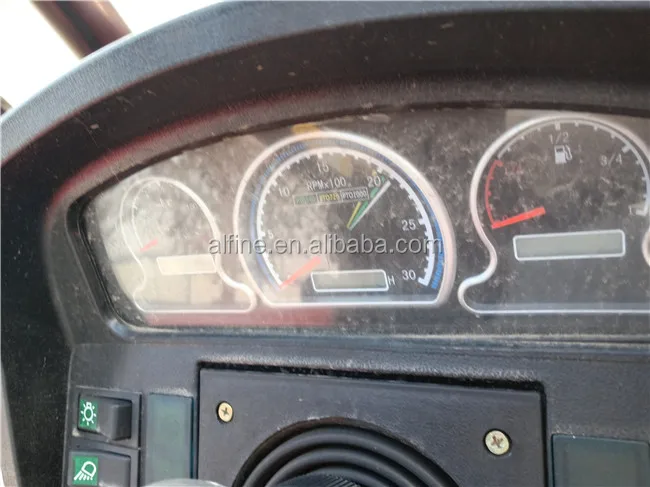

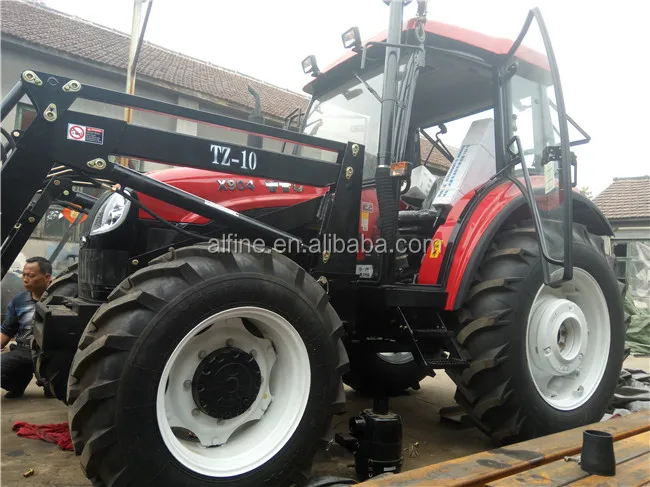

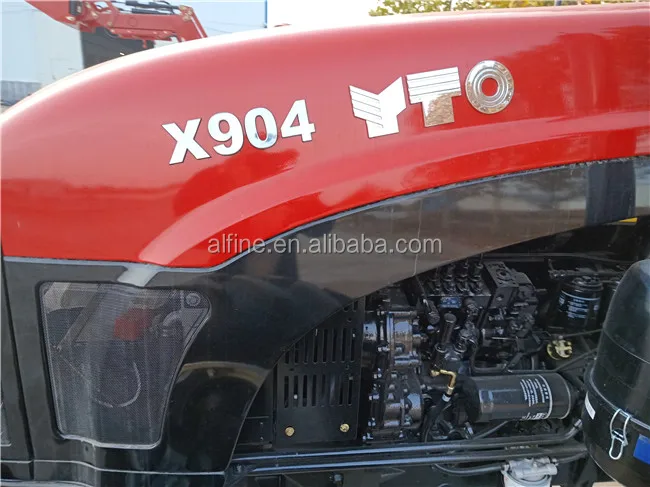

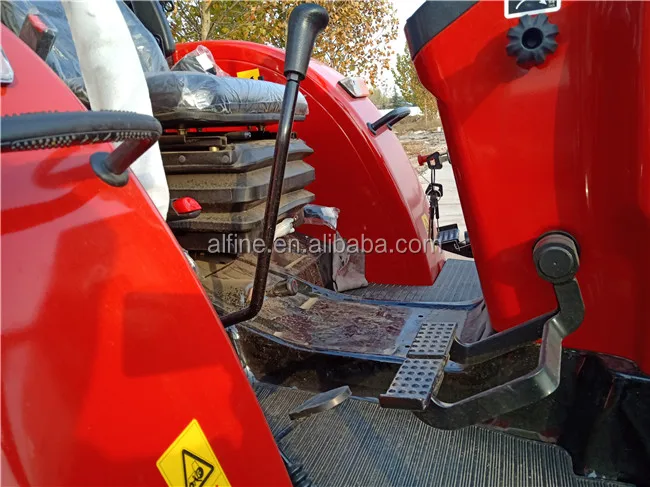

yto x904 details picture
